Бетономешалка Евро 4 Sitom 4x2 5 тонн

Описание и отзывы

Трекер стоимости

Характеристики

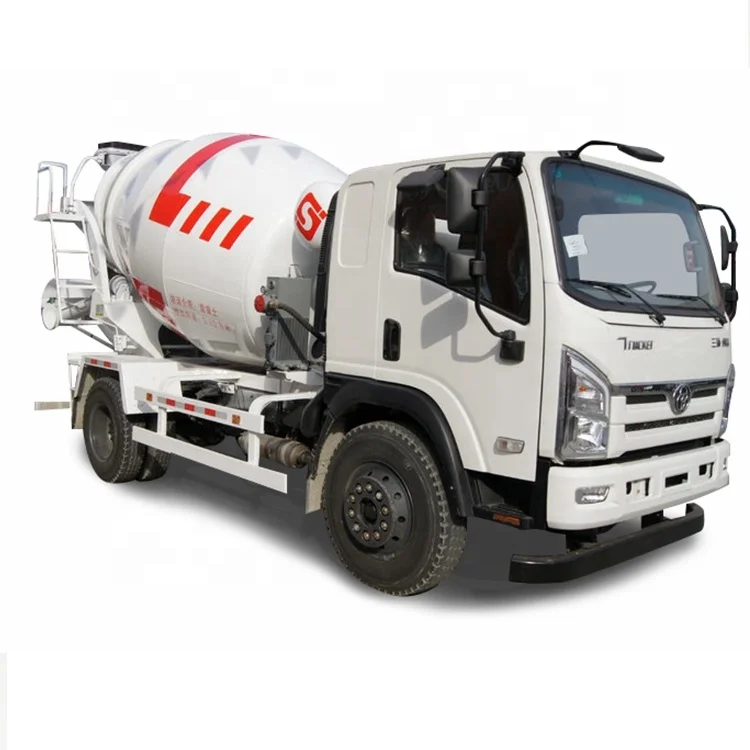

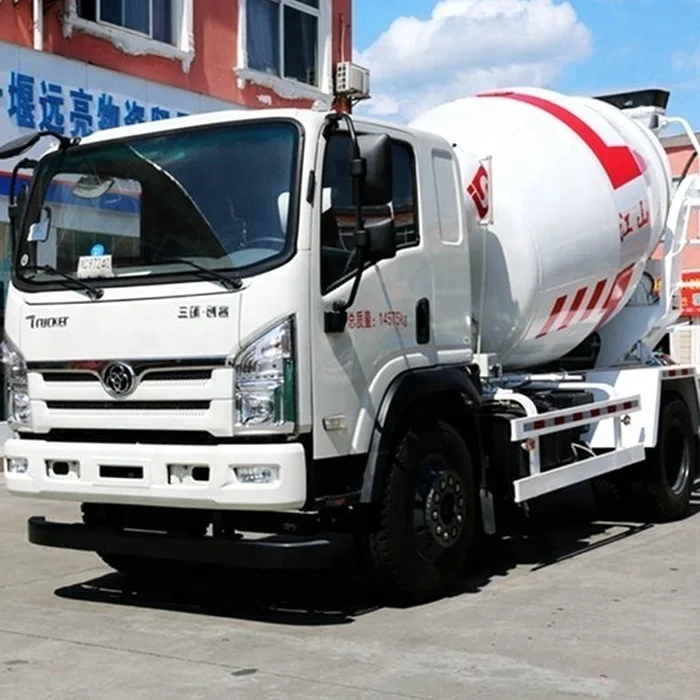

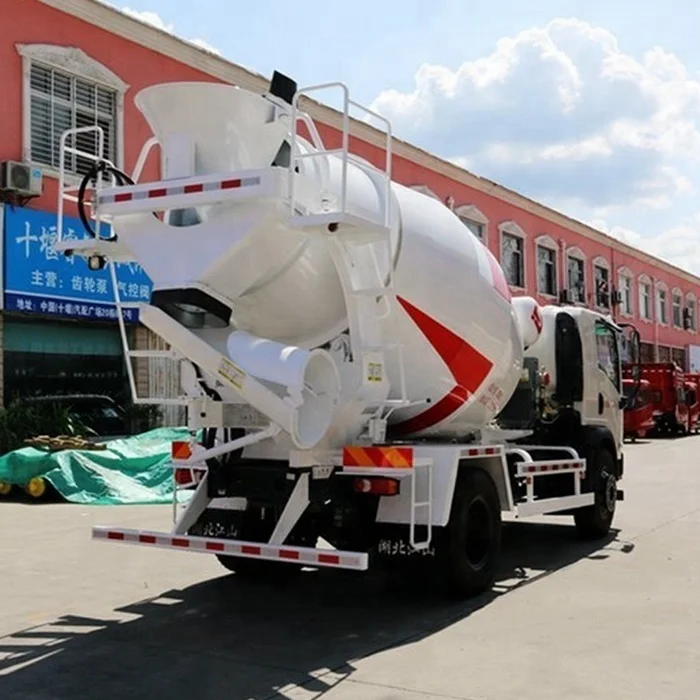

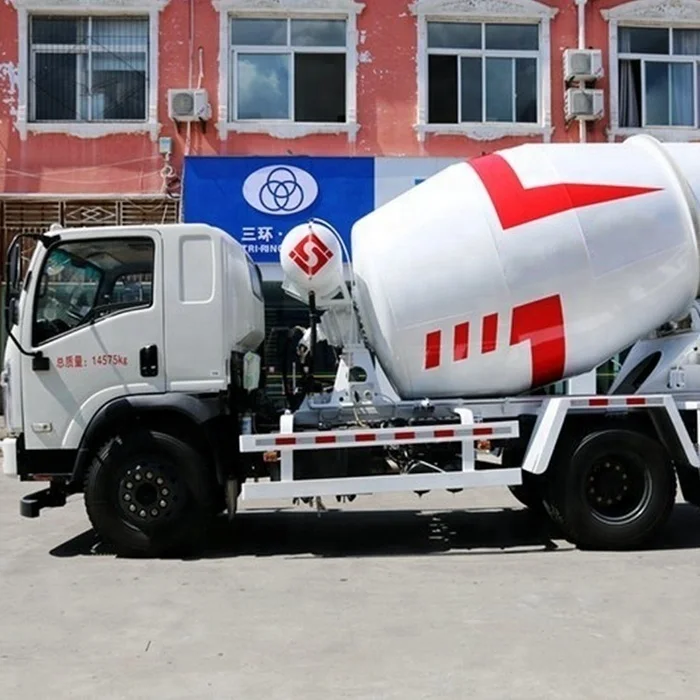

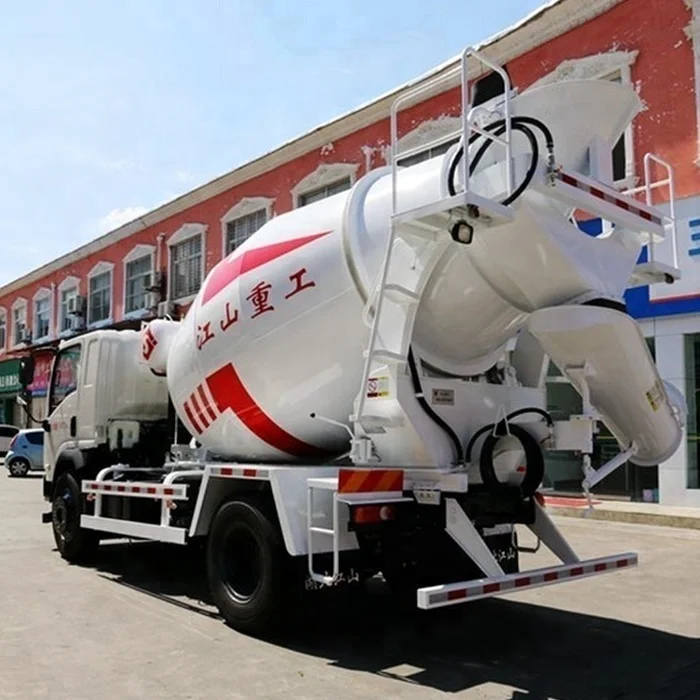

 Euro 4 Sitom 4x2 volumetric 5 ton concrete mixer truck for sale

Driven type	4x2
Wheelbase (mm )	3650/3950mm
Max speed (ml/km )	90
Economical speed(km/h)	60-70
Effective Mixing capacity	3m³,4m³,5m³,6m³

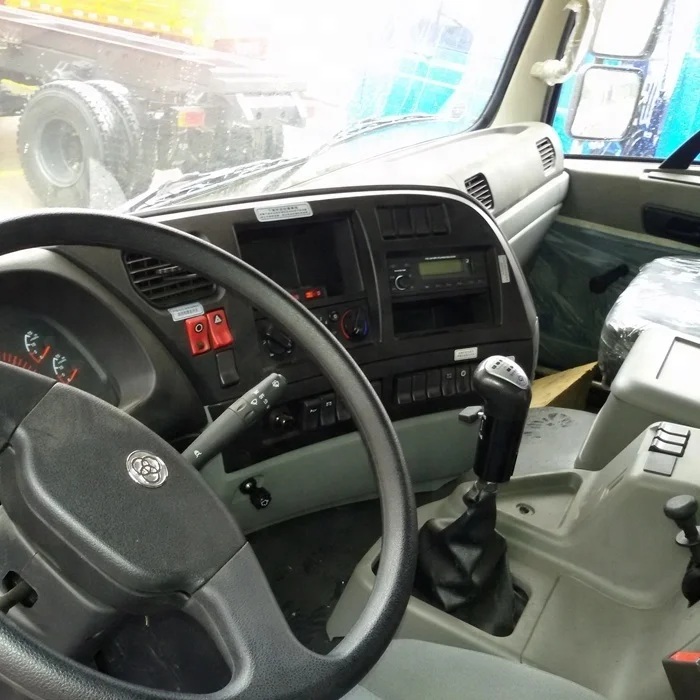

Cabin type	T3 cab flat left rudder
Engine type	YC4D140-45 (Full power take power)
Emission standard	Euro IV
Gearbox	Shaochi 6J53F
Chassis Frame	250mm(6.5+5)mm  high strength plate
Front Axle	3.6 ton
Rear Axle	10 ton
Front Suspension	13 mm
Rear Suspension	16 mm
Tire	9.00R20
Chassis standard	Hydraulic power steering, exhaust brake



Sitom-T3 small concrete truck mixer is the top-choice for the concrete transporation for rural construction,

urban construction,tunnel,airport,seaport,high-speed rail site,beam field,bridge construction projects and so on.



The machine has been successfully exported to Sri Lanka, Mongolia, Vietnam,Africa, Algeria and other countries and regions.



Product Features

1. The drums are made of special anti-wear steel plate.

2. The rational matching and reliable performance.

3. Adopt domestic-famous brands –Foton chassis and Tri-ring chassis.

4. Adopt air-cooled type of radiator.

5. All structural parts are treated with shot blasting pretreatment.

6. High utilization rate of effective tank volume.

7. Low residual.

8. Easy operation, reliable safety and economical purchasing.

9. Low gravity, small size truck mounted concrete mixer small size.
