Отражатель ETL cETL DLC НЛО high bay

Green Inova® LED high bay lights are distinctive, low-profile design, high-quality construction, ultra-high Lumen high bay LED Lights delivering a luminous efficacy of more than 130 lm/W - more than 80%-85% energy savings compared to traditional HID high bay lighting.

Highest-grade LED components and driver circuitry are protected from dust and moisture by waterproof connections and silicone seals for an IP-65 rating. While the heavy-duty, die-cast aluminum housing gives the fixture its unique look, it also serves as a massive, high-efficiency heat sink-dissipating heat and further protecting the system for a lifetime of reliable, maintenance-free service.

Widely used in commercial Applications: warehouses, manufacturing plants, supermarkets, malls, retail stores, exhibition centers, arenas, stadiums, etc.

Item No.	3HBA60L50[B,W,BK]1PDM PC	3HBA100L50[B,W,BK]1PDM PC	3HBA150L50[B,W,BK]2DM PC	3HBA184L50[B,W,BK]2 [Blank, P]D2PC
Power	60W	100W	150W	184W
Light output	7,680 Im	12,400 Im	16,660 Im	20,526 Im
Beam angle	16' Acrylic lens	16' Acrylic lens	24' Acrylic lens	24' Acrylic lens
Input Voltage	AC100-277V; 347V-480V
LED Source	Seoul LEDS
CCT	4000K/4500K/5000K
Fixture Material	Cold-forging aluminum+Arylic lens
Fixture Surface	Silver/Black/White optional
IP Rating	IP65
Warranty	6 years
Certificates	ETL/cETL DLC(3HBA60L50[B,W,BK]1PDM)
Mounting	Hook mount, Surface mount,Pipe mount
Dimming	Available
Sensor	Motion sensor available

Product Description

Electrical Advantages:

◆ Market-leading efficiency up to 150LM/W
     (VS. most others <130LM/W) .
◆ Advanced Seoul LEDS technology .
◆ Top quality Mean Well drivers .
◆ 100-277V & 347-480V available for all items .

Real Mean Well driver:

One of our subsidiary corporations is a

Mean Well distributor, allowing us quality

source for Mean well drivers.

Structural Advantages:

◆ Cold-forging technology and exceptional thermal manag
ement (LED TC temp<58° @ 25° ambient) .
◆ Integrated heat sink design, no riveting .
◆ LED Drivers isolated from the heat sink .
◆ IP65 rated, suitable for indoor areas, weather areas .

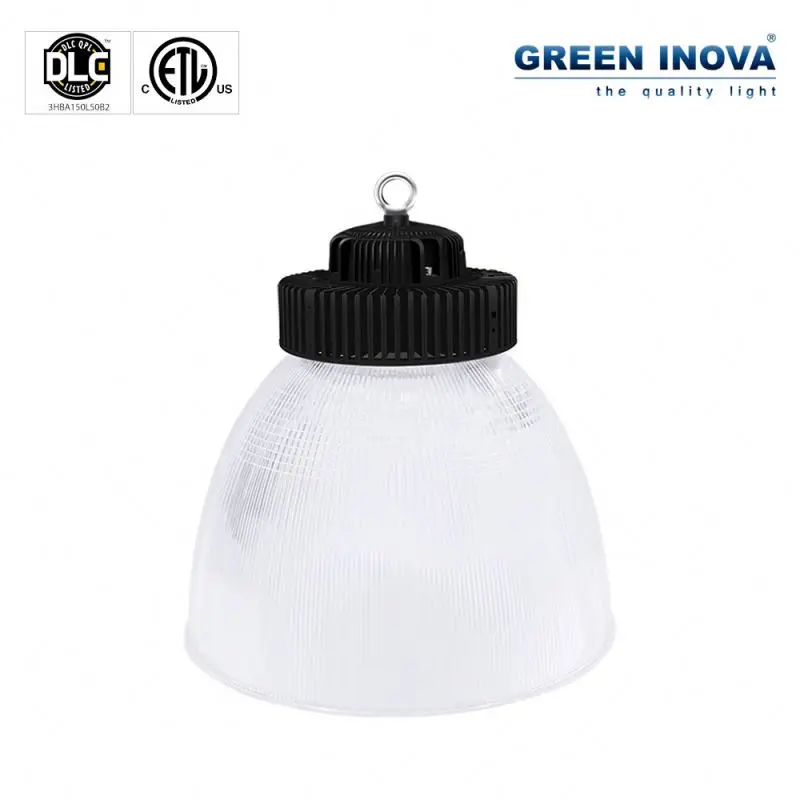

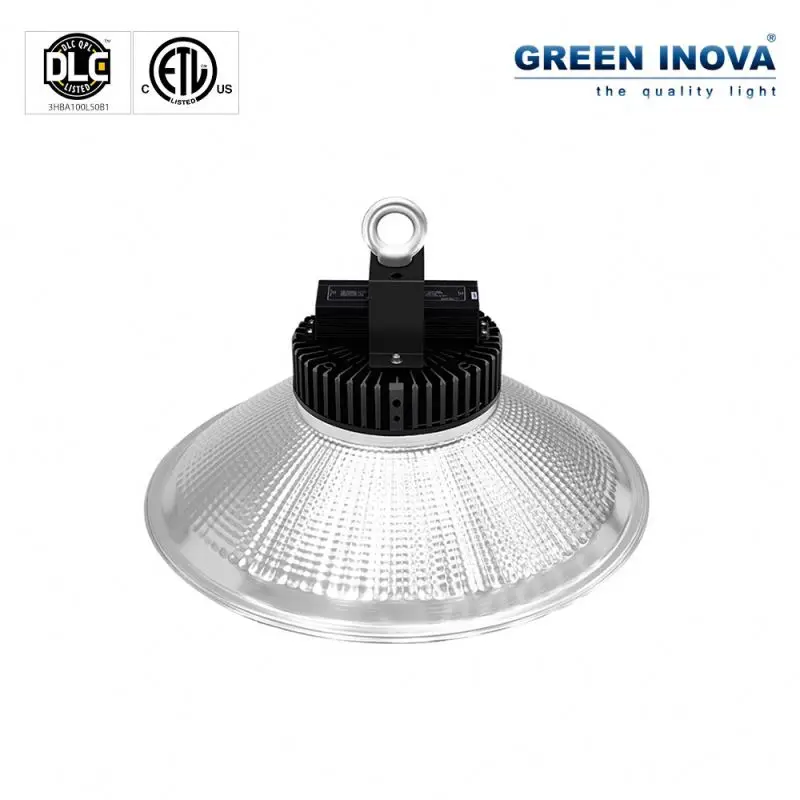

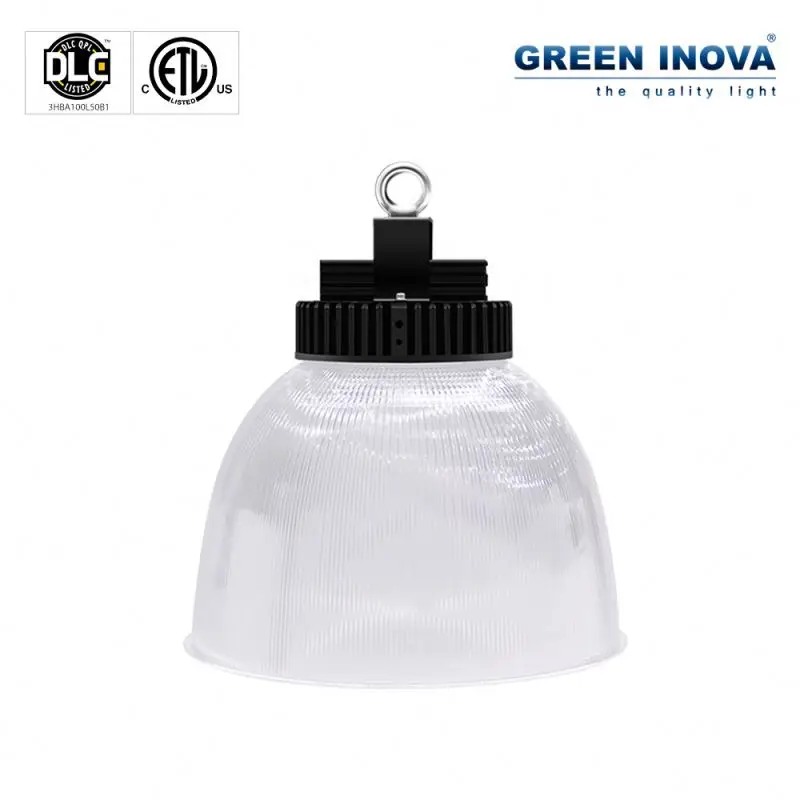

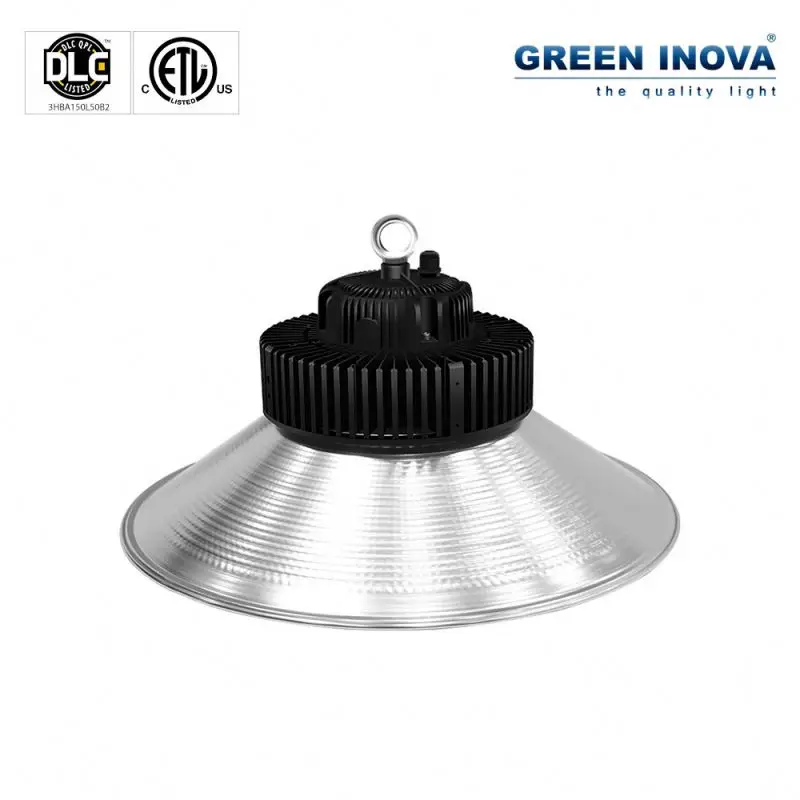

◆ Versatile design,use it as UFO fixture, or add Aluminum
/Acrylic reflector for classic shape .

More Options:

◆ 0-10V dimming drivers for 100W~320W .
◆ Line voltage (100-277V) dimming (being tested) .
◆ Motion sensor for all items .
◆ Surge protector for 347-480V .
◆ Aluminum reflector, Acrylic reflector, wire guard,
     drop lens.

Installation Process

◆ Turn off power supply to avoid the risk of electrical shock.
◆ Proper grounding is required to ensure personal safety.
◆ Make certain power is OFF before starting installation or maintenance.
◆ Do not recess the fixture.
◆ A qualified electrician should do all work.
◆ DO NOT TOUCH THE LED CHIPS. DAMAGE MAY OCCUR.

Applications

Certifications

Quality Control

IQC.

1. Most strictly select raw material
    100% checking.

IPQC.

1. Testing all PCB after soldering with
　electricity.
2. Integratingsphere testing
    Waterproof testing.
3. Cooling effect testing.
4. 100% 48 hours aging testing
  (72 hours for high voltage products).

FQC.

1. 100% appearance checking.
2. 100% lable checking.
3. 100% function checking.

Company Information

Green Inova is an innovative, energetic and vibrant company, which was founded in year 2007, has been a leader in manufacturing and marketing of LED lightings. Our expertise is manufacturing LED lighting products including LED retrofit kits, LED wall packs, LED canopy lights, LED Shoebox, LED IP65 high bays, LED Flood lights, New LED PL G24 lamps and bulbs,LED Post Top Retrofit kits & LED Billboard Retrofit kits, LED Low Priofile LED Canopy, LED Barn Light etc.

We are the first company in China who started to make LED wall packs, LED canopy, & LED retrofit kits, awarded by around 40 Utility model patents. Our LED G24 lamps have also been upgraded to a brand-new level and awarded with both Utility model patent and product appearance patent. The new heat dissipation technology allows the lamps real lifespan of more than 50,000 hours. We have been making the most reliable products in these areas.

Green Inova Services

1).Customize services are available when need. OEM/ODM available.ETL cETL multiple list available.

2).More than 8 years experience R&D and sales engineers would offer best lighting solution for projects.

3).Best after services:Time tracking of customers' usage, collect information to improve,fast action of dealing with
　problems in 48 hours.

4).Quick action of technical support and maintenance.
