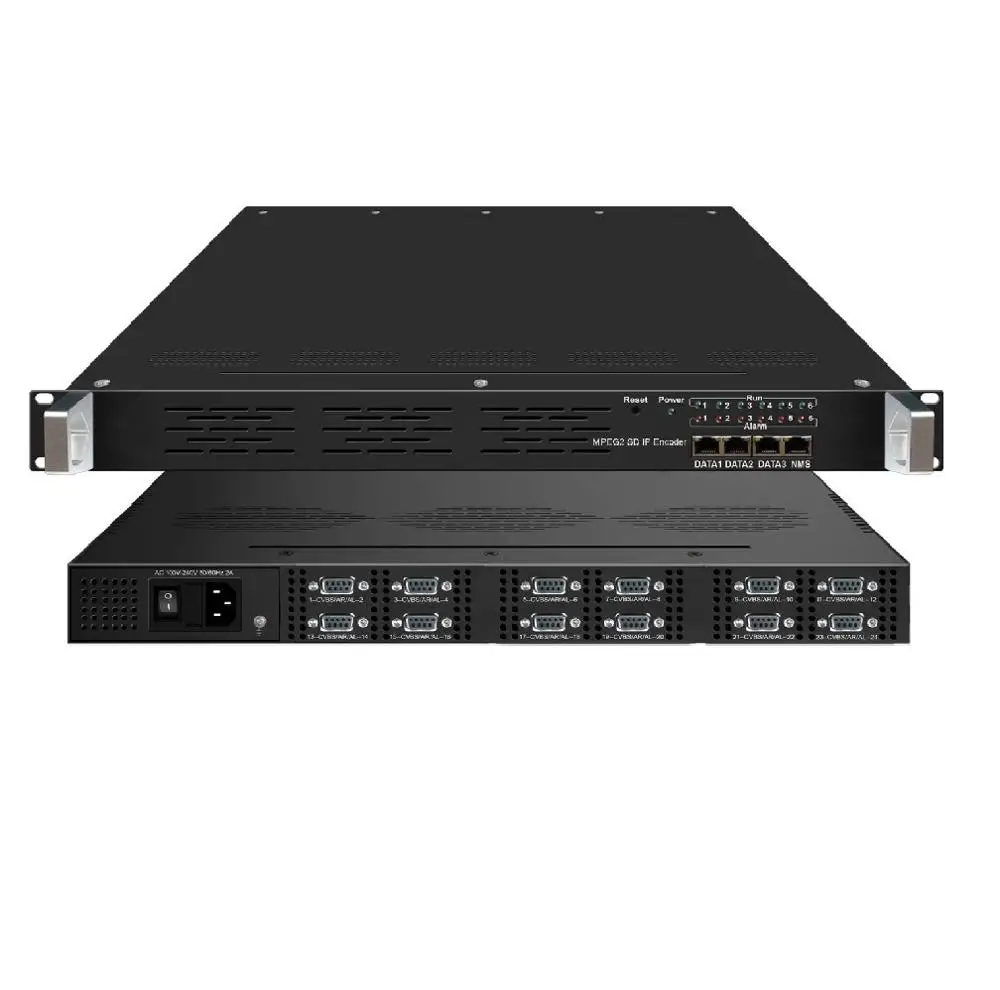

Цифровой кабельный ТВ кодер HD Mpeg4


Поделиться:


Цена:1 025,00 $ - 1 856,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 1302.65 $* 1328.43 $*
Jul-18-2025 1056.68 $* 1077.5 $*
Jun-18-2025 1281.5 $* 1307.43 $*
May-18-2025 1271.22 $* 1296.95 $*
Apr-18-2025 1015.5 $* 1035.26 $*
Mar-18-2025 1251.83 $* 1276.87 $*
Feb-18-2025 1240.47 $* 1265.23 $*
Jan-18-2025 1230.20 $* 1255.94 $*

Характеристики


Digital Cable TV Encoder HD Mpeg4 IPTV

Skype:   live:jiexiang02  to contact Jaylyn




Input

8/12/24CVBS inputs , RCA interface

Video

Resolution

720×480_60i, 544×480_60i, 352×480_60i

352×240_60i, 320×240_60i,176×240_60i, 176×120_60i

720×576_50i, 704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i, 176×288_50i, 176×144_50i

Encoding

MPEG-2

Bit-rate

0.5Mbps~8Mbps each channel

Rate Control

CBR/VBR

GOP Structure

GOP_0_B, GOP_1_B, GOP_2_B, GOP_3_B

Advanced Pretreatment

De-interlacing, noise reduction

Audio

Encoding

MPEG-1 Layer 2, AC3(2.0)

Sampling rate

48KHz

Resolution

24-bit

Bit-rate

64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each channel

Multiplexing

Function

PID remapping (automatically or manually)

Accurate PCR adjusting

Generate PSI/ SI table automatically

Stream output

1 ASI as copy of MPTS

IP (MPTS/SPTS) output over UDP/RTP/RTSP

8/12 CVBS inputs with 8/12 SPTS and 1 MPTS output

24×CVBS inputs with 24 SPTS or 1 MPTS output

System function

Network management (WEB)

Chinese and English language

Ethernet software upgrade

Miscellaneous

Dimension(W×L×H)

482mm×410mm×44mm

Approx weight

8kg

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

Power consumption

20W



Данные ресурс не является интернет-магазином, а лишь содержит ссылки на международную торговую площадку Alibaba.com
