S5P6818 System on Module SoM A53 Octa процессор Core
- Категория: Development Boards and Kits >>>
- Поставщик: Baoding,Forlinx,Embedded,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.82 $* | 0.80 $* |
| Aug-19-2025 | 0.85 $* | 0.46 $* |
| Jul-19-2025 | 0.39 $* | 0.17 $* |
| Jun-19-2025 | 0.19 $* | 0.82 $* |
| May-19-2025 | 0.21 $* | 0.10 $* |
| Apr-19-2025 | 0.92 $* | 0.37 $* |
| Mar-19-2025 | 0.5 $* | 0.18 $* |
| Feb-19-2025 | 0.64 $* | 0.28 $* |
| Jan-19-2025 | 0.25 $* | 0.86 $* |
Характеристики
Product Description

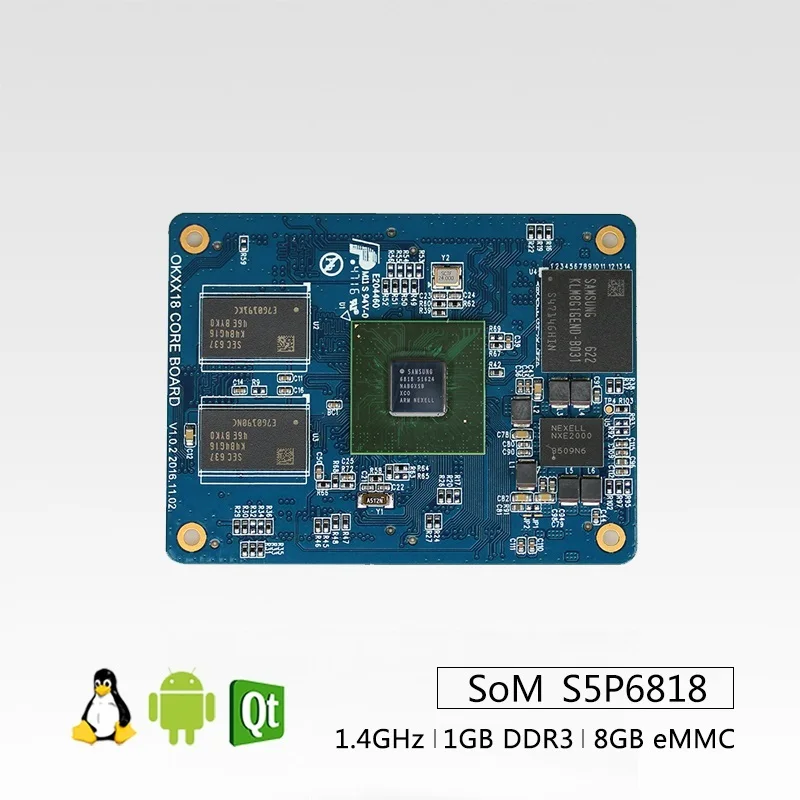

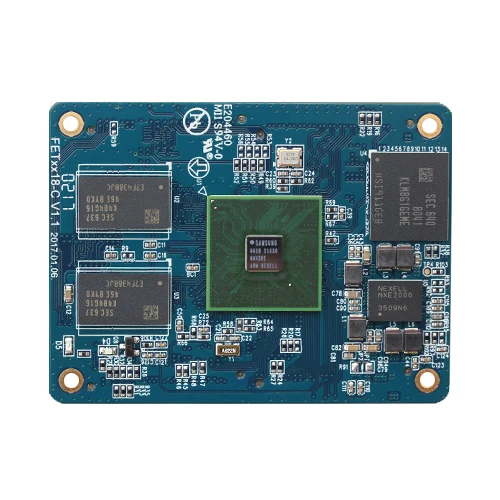

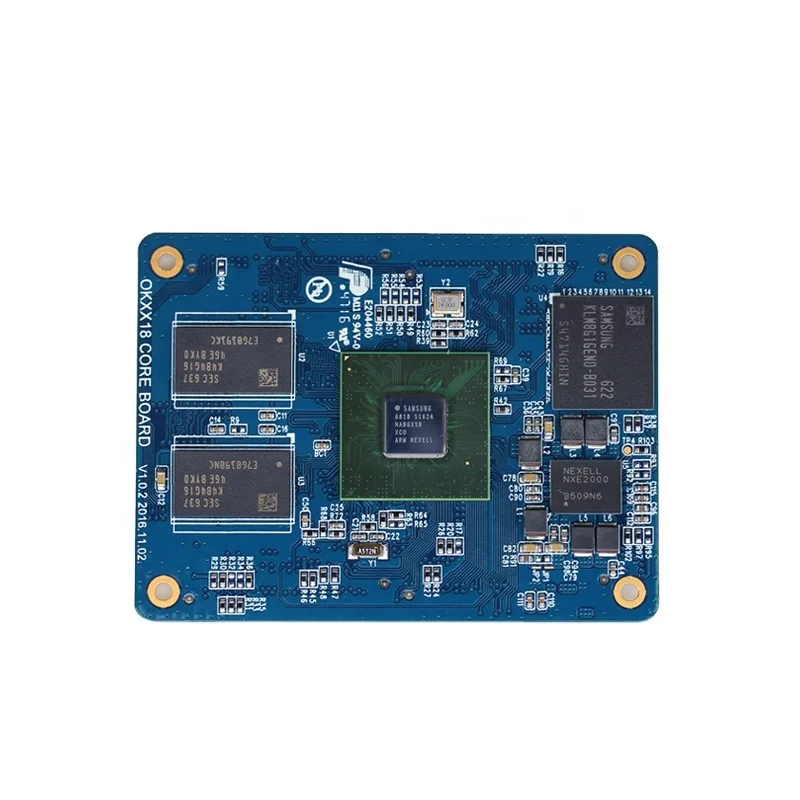

S5P6818 System on Module SoM A53 Octa Processor Core Board
FET6818 is a high cost effective low power system on module based on S5P6818 A53 Octa core processor. It is an RISC(64-bit) SoC-based starter kit featuring S5P6818 Octa core CPU belongs to Cortex-A53 low power item. Its CPU or processor is with main frequency of 1.4GHz. It has a powerful multi-media performance supporting 1080P hardware video codec and 3D graphical accelerator. RGB, HDMI1.4, MIPI and LVDS display types are all available, what's more, DVP and MIPI cameras are both well supported. The CPU module is with 1GB DDR3, 8GB eMMC, dimensions of 60*45mm, it's connected to the carrier board by 4 ultra thin connectors with hight only 1.5mm to draw out mostly pins (320 pins). OS Android5.1, Linux 3.4.39 and QT4.8.6 are well supported. S5P6818 and S5P4418 are totally compatible in pins.
FET6818 is an popular system on module item since it's launched on market because of its excellent product performance and cost efficient performance.
Airy tiny appearance, make your design free

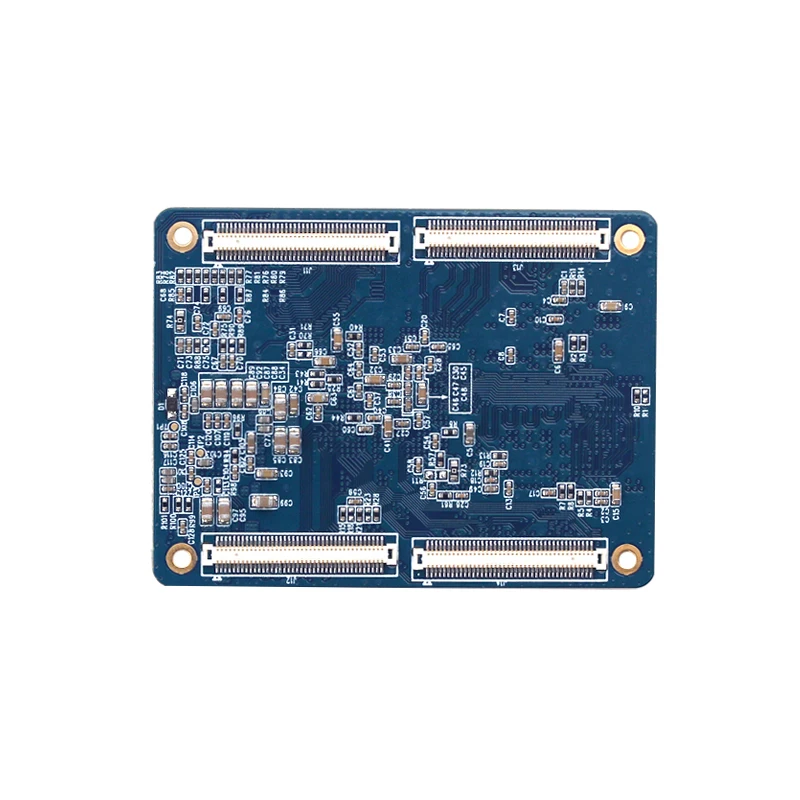

Tiny SoM size: 60mm * 45mm and 8-layer ENIG PCB. Four connectors with each only 1.5mm high, for board-to-board connection between SoM and carrier board.
Unique design to avoid misplugging, and SoM designed with 4 positioning holes to allow it to run stably in viberating environment.
Rich BUS types, makes it expandable
The SoM is with pins 320 in total with all functional ports drawn out from CPU, supporting with 6x UART, 3z IIC, 3x SPI, 2x SD/MMC/SDIO, 3x IIS, 1x Gigabit Ethernet, 16-bit data bus and 14-bit address bus
Perfect compatible with S5P4418 and S5P6818 to let switching easy
Two CPUs share one SoM design since S5P4418 and S5P6818 pins are completely compatible, users could upgrade S5P4418 to S5P6818 on a same carrier board without any change.
Powerful multi-media peformance to make displaying different
Supported with 3D graphical processor and video codec capability up to 1080P
Different display types (RGB, LVDS, MIPI, HDMI, etc.) are all available, with resolution up to 2048*1280
Excellent Li-battery power management system
Dynamic frequency modulation to lower your product power consumption.
OS supporting
Application
Hardware Features
System on Module (SoM) FET6818 Features | ||||||
CPU | S5P4418XCO-LA40 | Architecture | Cortex- A9 | |||
Main Frequency | 1.4GHz | Core | Quad-core | |||
RAM | 1GB DDR3 | Memory (Flash) | 8G eMMC | |||
Dimensions | 60*45mm | Packing Type | board-to-board connector | |||
PMU | NXE2000 | Working Voltage | 5V input | |||
Working Temp | 0~+70℃ | Working Humidity | 10%~90% none condensing | |||
OS | Android 5.1.1, Linux 3.4.39, QT4.8.6 | |||||
System on Module (SoM) FET6818 Software Parameters | ||||||
Function | QTY | Spec. | ||||
LCD | 1 | RGB 888, resolution up to 2048 x 1280 | ||||
LVDS | 1 | both JEIDA and VESA output modes are supported, 4x data channel, 1x clock channel, resolution up to 2048 x 1280 | ||||
HDMI1.4 | 1 | HDMI1.4, resolution up to 1080 x 1920 | ||||
MIPI_DSI | 1 | MIPI DSI SPEC V1.01r11, up to 4 data channels with resolution up to 1920 x 1200 | ||||
MPEG | 2 | 8-bit parallel interface, up to 5-Megapixel | ||||
MIPI_CSI | 1 | D-PHY spec V1.00, up to 5-Megapixel | ||||
SD/MMC/SDIO | 2 | up to 3-ch supported by CPU, 2x SD/MMC drawn out by SoM, eMMC not drawn out | ||||
USB Host | 1 | USB 2.0 Host (up to 480Mbps), with HS USB PHY | ||||
USB OTG | 1 | USB 2.0 OTG (up to 480Mbps), with HS USB PHY | ||||
UART | 6 | each up to 5.0 Mbps | ||||
IIC | 3 | 100kbit/s and 400kbit/s | ||||
IIS | 3 | support up to 3x IIS | ||||
SPI | 3 | support up to 3x SPI | ||||
Ethernet / LAN | 1 | 10M/100M/1000M | ||||
PWM | 4 | 4-ch | ||||
SPDIF | 1 | supported | ||||
ADC | 7 | 12-bit resolution, input frequency up to 100KHz, power input 0-1.8V | ||||
EBI | 1 | data bus width up to 16-bit, address bus up to 14-bit | ||||
Android 5.1.1 | ||||||
Cross-compiler | arm-eabi-gcc-4.8, OpenJDK 7.0 | |||||
OS Image Flashing | flash OS image to eMMC via SD card | |||||
U-boot | boot mode selection (eMMC) | |||||
Kernel Version | Linux3.4.39 | |||||
eMMC | UART/RS232 serial port driver | |||||
SD card | RS485 | |||||
LVDS display | ADC | |||||
LCD | accelerator sensor | |||||
MIPI display | IrDA | |||||
HDMI1.4 display | RTC | |||||
LCD/MIPI/LVDS capacitive touching | IO | |||||
PWM | LED | |||||
LCD/MIPI/LVDS backlight driver, 255-class adjustable | user key | |||||
parallel camera OV5640 | IIC | |||||
MIPI camera OV5645 | SPI | |||||
Gigabit Ethernet | USB host driver, support mouse & keypad | |||||
4G | USB device | |||||
BT | WM8960 audio | |||||
WIFI | sleeping mode waking up | |||||
Linux Console | ||||||
Cross-compiler | arm-cortex_a9-eabi-4.7-eglibc-2.18 | |||||
OS Image Flashing | flash OS image to eMMC via SD card | flash OS image to eMMC by USB | ||||
U-boot | boot mode selection (eMMC) | |||||
version: Linux3.4.39 | LCD back light driver, 255-class adjustable | |||||
file system forms: EXT/NFS/VFAT | LCD driver (7'') | |||||
eMMC | USB host, supports U-disk, USB hub, USB keyboard | |||||
watchdog | USB device | |||||
RTC | TF/SD/MMC card | |||||
IO | serial interface | |||||
user key | WM8960 audio | |||||
SPI | Ethernet | |||||
IIC | 3G | |||||
camera OV5640 | USB to serial port | |||||
PWM | MIPI 7'' display | |||||
capacitive touching | LVDS | |||||
Utility APP | WIFI configuration tool | SDIO WIFI | ||||
Telnet | user key | |||||
RTC | audio recording/playing | |||||
camera | ADC | |||||
IP/MAC address setting | FTP web tool | |||||
touch/mouse mode switching | lighttpd web sever | |||||
TTL to RS232 | LCD back light | |||||
serial interface | video playing and mp3 file | |||||
audio recording and playing | watchdog | |||||
GPRS network | SPI | |||||
GPS | ||||||
Linux QT 4.8.6 | ||||||
Cross-compiler | arm-cortex_a9-eabi-4.7-eglibc-2.18 | |||||
OS image flashing | flash OS image to eMMC via SD card | flash OS image to eMMC via USB | ||||
U-boot | booting mode selction (eMMC) | |||||
Linux Kernel | Linux 3.4.39 | LCD back light driver, 255-class adjustable | ||||
file system EXT/NFS/VFAT | LCD driver (7'') | |||||
eMMC | USB host driver, U-disk, USB hub, USB keyboard | |||||
watchdog | USB device | |||||
RTC | TF/SD/MMC card | |||||
IO | serial interface | |||||
user key | WM8960 | |||||
SPI | Ethernet | |||||
IIC | 3G | |||||
camera OV5640 | USB to serial port | |||||
PWM | MIPI 7'' display | |||||
capactive touching | LVDS | |||||
Utility APP | GPS testing | SDIO WIFI testing | ||||
RTC testing | GPRS network testing | |||||
camera testing | audio recording/playing testing | |||||
IP/MAC address setting | ADC testing | |||||
touching/mouser mode switching | watchdog testing | |||||
TTL to RS232 testing | lighttpd web server | |||||
serial interface testing | LCD back light testing | |||||
audio recording/playing testing | video playing and mp3 playing testing | |||||
Click here to know more about the matched development board.
