Product Description

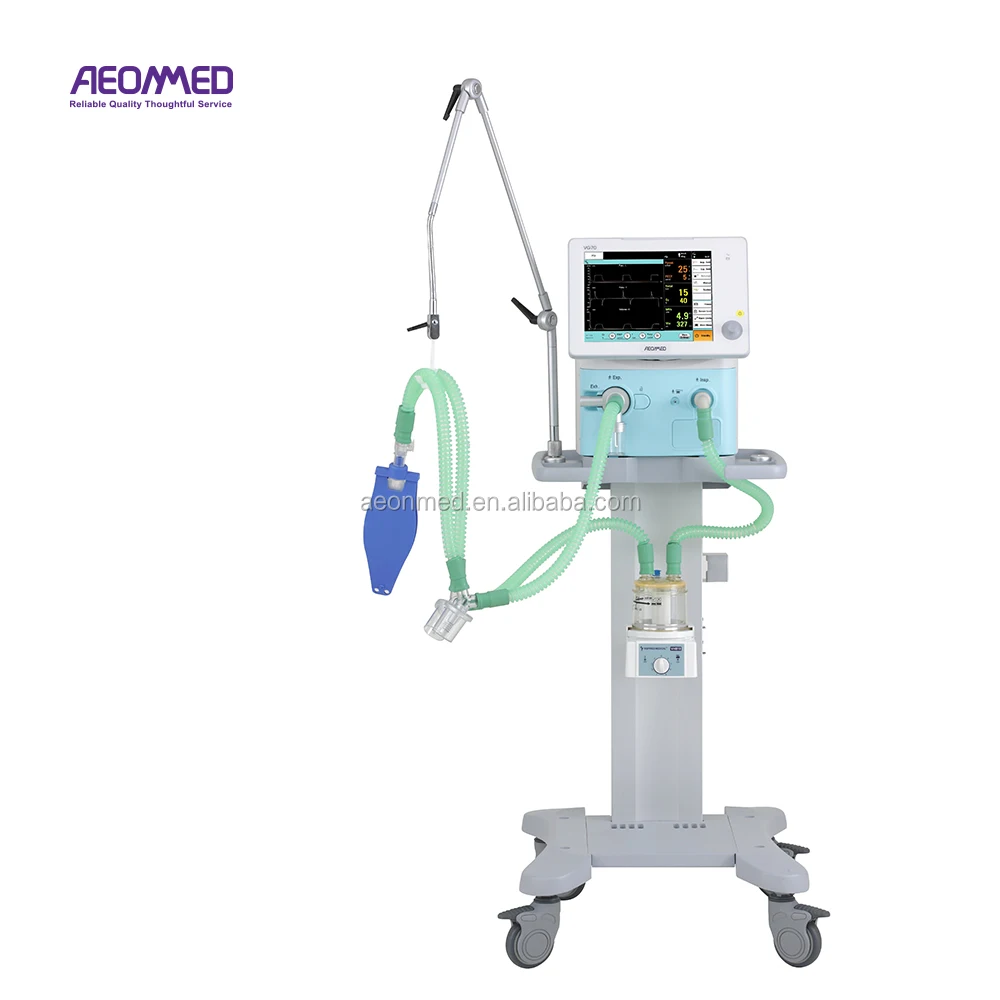

   VG70  Ventilator
Superior Mobile ICU ventilator
• Comprehensive ICU ventilator including BIVENT and PRVC
• Compact, big capacity battery, no air compressor, intra-hospital mobility
• Flexible device configuration: equipped on a trolley, bed or ceiling pendant
Cost Effective Solution
• Unique metal-based, autoclavable, heated exhalation valve
• Built-in flow sensor, non-consumable design
• Upgradeable ventilation system software, with an available USB port


An Optimal Combination of Invasive and Noninvasive Ventilator
As noninvasive ventilation is used increasingly in a wide range of clinical situations, we offer a dual solution. VG70 combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU.

\t
Ventilation Settings
\t
\t
Ventilation Modes
\t
• VCV (A/C), PCV (A/C), PRVC (optional), PSV (optional), STANDBY • SIMV (VCV)+PSV, SIMV (PCV)+PSV, SIMV (PRVC)+PSV
• SPONT/CPAP+PSV
• BIVENT/APRV +PSV (optional)
• NIV/CPAP, NIV-T, NIV-S/T
\t
Enhancements
\t
• Apnea ventilation, Pressure and Flow trigger, Automatic Tube Compensation (ATC), Smart suction • Manual breath, Insp/Exphold, Screen freeze, Nebulization, Lung recruitment
\t
Parameters
\t
\t
Tidal volume (VT)
\t
20-2000ml
\t
Respiratory rate (RR)
\t
1 to 80 bpm
\t
Inspiratory time (Ti)
\t
0.2 to 9 s (adult), 0.2 to 5 s (pediatric)
\t
Inspiratory flow (Flow)
\t
0 to 100 L/min (pediatric), 0 to 180L/min (adult)
\t
Inspiratory pressure (Pinsp)
\t
5 to 70 mbar (or cmH2O)
\t
Inspiratory pressure limit (Pmax)
\t
80 mbar (or cmH2O)
\t
PEEP
\t
0 to 35 mbar (or cmH2O)
\t
Tslope
\t
0 to 2 s
\t
O2 concentration (FiO2)
\t
21 to 100 Vol%
\t
Trigger sensitivity
\t
0.5 to 20 L/min (Flow trigger),
-20 to 0 mbar (or cmH2O) (Pressure trigger)
\t
I/E ratio
\t
1/10 to 4/1
\t
Apnea alarm time
\t
10-60 seconds
\t
Monitoring
\t
• Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2)
• Compliance (dynamic & static), Resistance (R), MVleak, RSBI, WOB, I:E, Vdaw, PEEPi • Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop
\t
Alarms
\t
Expiratory minute volume (MV) High/Low, Airway pressure (Paw) High/Low,
VTe Low, PEEP High/Low, Insp. O2 concentration (FiO2) High/Low,
End-expiratory CO2 concentration (etCO2) High/Low, fspont High, Apnea alarm, Disconnection, Flow sensor error, Gas supply, Electrical supply & battery failure,
Exhalation obstruction, Apnea backup for low frequency alarm
\t
Dimensions (WxDxH)
\t
375mm x 395mm x 430mm
\t
Weight
\t
17kg (37.5lbs)
\t
Screen
\t
12.1" TFT color touch screen
