Горячая Распродажа! Четырехтактный Газовый Генератор G12V190ZLD1 shengdong 1000
- Категория: Генераторы газовых турбин >>>
- Поставщик: Jinan,CC,Power,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.45 $* | 0.59 $* |
| Aug-16-2025 | 0.25 $* | 0.51 $* |
| Jul-16-2025 | 0.56 $* | 0.60 $* |
| Jun-16-2025 | 0.75 $* | 0.59 $* |
| May-16-2025 | 0.57 $* | 0.33 $* |
| Apr-16-2025 | 0.10 $* | 0.66 $* |
| Mar-16-2025 | 0.32 $* | 0.67 $* |
| Feb-16-2025 | 0.35 $* | 0.21 $* |
| Jan-16-2025 | 0.13 $* | 0.0 $* |
Характеристики

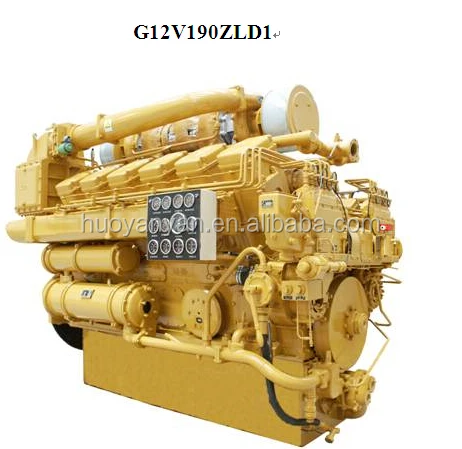

Hot sale!!! Four stroke G12V190ZLD1 shengdong gas generator 1000kw
Advantages:
Series Z12V190 are applied for several different kinds of dredgers. According to different characteristics,we made modifications on design as the main propulsion and auxiliary engines to fulfill the special requirements of the working conditions. This series engines are considered as power take off for engineering boats, such as dredging, transmission, suction. Rated power: 390KW to 880kw Rated speed:1000~1500r/min
Series Z12V190 marine diesel engines, with large power, low oil consumption, high reliability and long using life, have introduced the advanced technology. Basing on the series 6000engines, we made improvement and reach the international level of power and economy target. Matching generators with single or double bearings, gear box sets, pumping sets, they can be used on shipping and engineering boats.
| Model: | Hot sale!!! Four stroke G12V190ZLD1 shengdong gas generator 1000kw |
| Brand: | shengdong,jichai, chidong |
| Fuel: | Diesel |
| Quality assurance: | 1500 hours |
| Calibration power: | 1000KW |
| Standby power : | 900KW |
| Specific fuel consumption: | ≤209.4g/kW·h |
| Specific oil consumption: | ≤1.6g/kW·h |
| No.and layout of cylinders: | 12,60°Vee |
| Type: | Four stroke,water cooled,turbocharged,aftercooled,direct injuction |
| Bore: | 190mm |
| Stroke: | 210mm |
| Total displacement: | 71.45L |
| Compression ratio: | 14:1 |
| Direction of rotation: | Counter-clockwise(facing to flywheel) |
| Starting method: | Air motor, electric motor |
| Lubricationg method: | Pressure and splash lubrication |
| Speed mode: | Mechanical governor, stable speed rate ≤ 8% |
Main specification:
Main specification | ||||||
Model | 12hourpower(kw)/ speed(r/min) | Constinuous power(kw)/ speed(r/min) | Specific Fual Consumption(g/kw.h) | Specific Oil Consumptiong/ (kw.h) | Overall dimension L×B×H(mm) | Net weight(kg) |
Z12V190B | 882/1500 | 794/1500 | <209.4 | <1.6 | 2692×1560×2070 | 5300 |
PZ12V190B | 882/1500 | 794/1500 | <209.4 | <1.6 | 4301×1980×2678 | 7500 |
Z12V190B-3 | 820/1300 | 738/1300 | <209.4 | <1.6 | 2692×1560×2070 | 5300 |
PZ12V190B-3 | 820/1300 | 738/1300 | <209.4 | <1.6 | 4301×1980×2678 | 7500 |
Z12V190B-1 | 735/1200 | 662/1200 | <209.4 | <1.6 | 2692×1560×2070 | 5300 |
PZ12V190B-1 | 735/1200 | 662/1200 | <209.4 | <1.6 | 4301×1980×2678 | 7500 |
Z12V190B-2 | 588/1000 | 529/1000 | <209.4 | <1.6 | 2692×1560×2070 | 5300 |
PZ12V190B-2 | 588/1000 | 529/1000 | <209.4 | <1.6 | 4301×1980×2678 | 7500 |
Z8V190 | 588/1500 | 529/1500 | <213.5 | <2.7 | 2112×1560×2080 | 4300 |
PZ8V190 | 588/1500 | 529/1500 | <213.5 | <2.7 | 3950×1980×2678 | 6750 |
Z8V190-1 | 471/1200 | 425/1200 | <213.5 | <2.7 | 2112×1560×2080 | 4300 |
PZ8V190-1 | 471/1200 | 425/1200 | <213.5 | <2.7 | 3950×1980×2678 | 6750 |
Z8V190-2 | 390/1000 | 350/1000 | <213.5 | <2.7 | 2112×1560×2080 | 4300 |
PZ8V190-2 | 390/1000 | 350/1000 | <213.5 | <2.7 | 3950×1980×2678 | 6750 |
Main technical data | ||||||
No.and layout of cylinders:12(8),60.Vee | ||||||
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection | ||||||
Bore:190mm | ||||||
Stroke:210mm | ||||||
Total displacement:71.45(47.6)L | ||||||
Compression ratio:14:1 | ||||||
Direction of rotation:counter-clockwise(facing to flywheel) | ||||||
Starting method:Air motor,electric motor | ||||||
Lubricating method:Pressure and splash lubrication | ||||||
