Smart parking management system introduction:

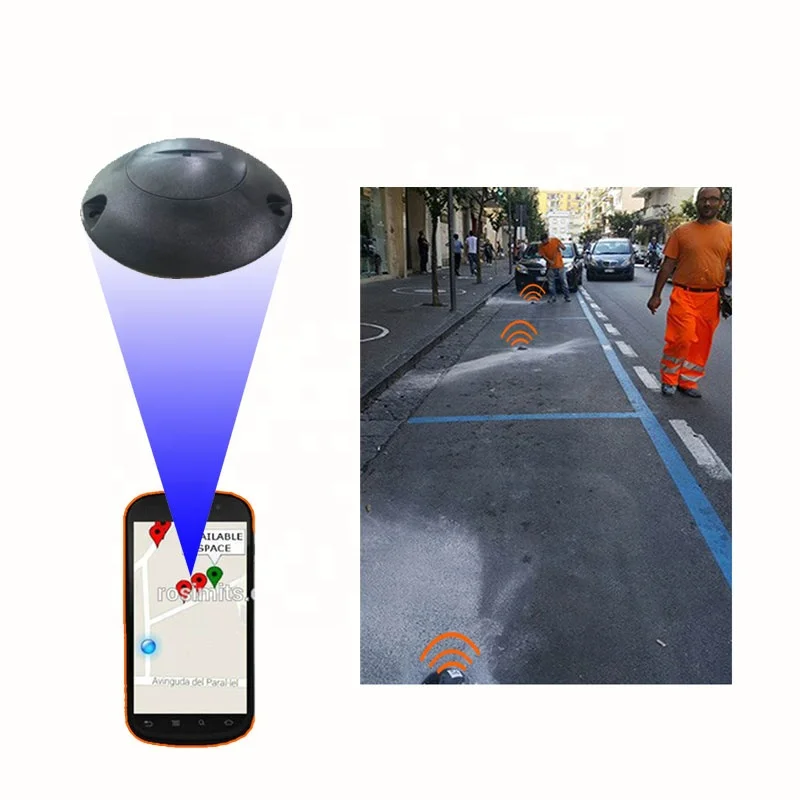

The parking space sensor is installed on each parking space, monitoring the parking occupancy data in real-time. When the vehicles parked on it, it will detect it at once and send out the parking data to the data collector wirelessly. The data collector can receive the data and relay it to the host system via TCP/IP or RS232.  These parking space occupancy data can be used for parking guidance system, to guide the driver to the nearest parking bay, it helps to reduce the fuel and the time for finding a parking space. It also can be used for parking overstay detection, it can send the parking data to the policy center and integrate with their system. It will reduce the labor work.

System structure

For example:

One parking lot with 50pcs of spaces, it will need 50 sensors and 1 data collector only.

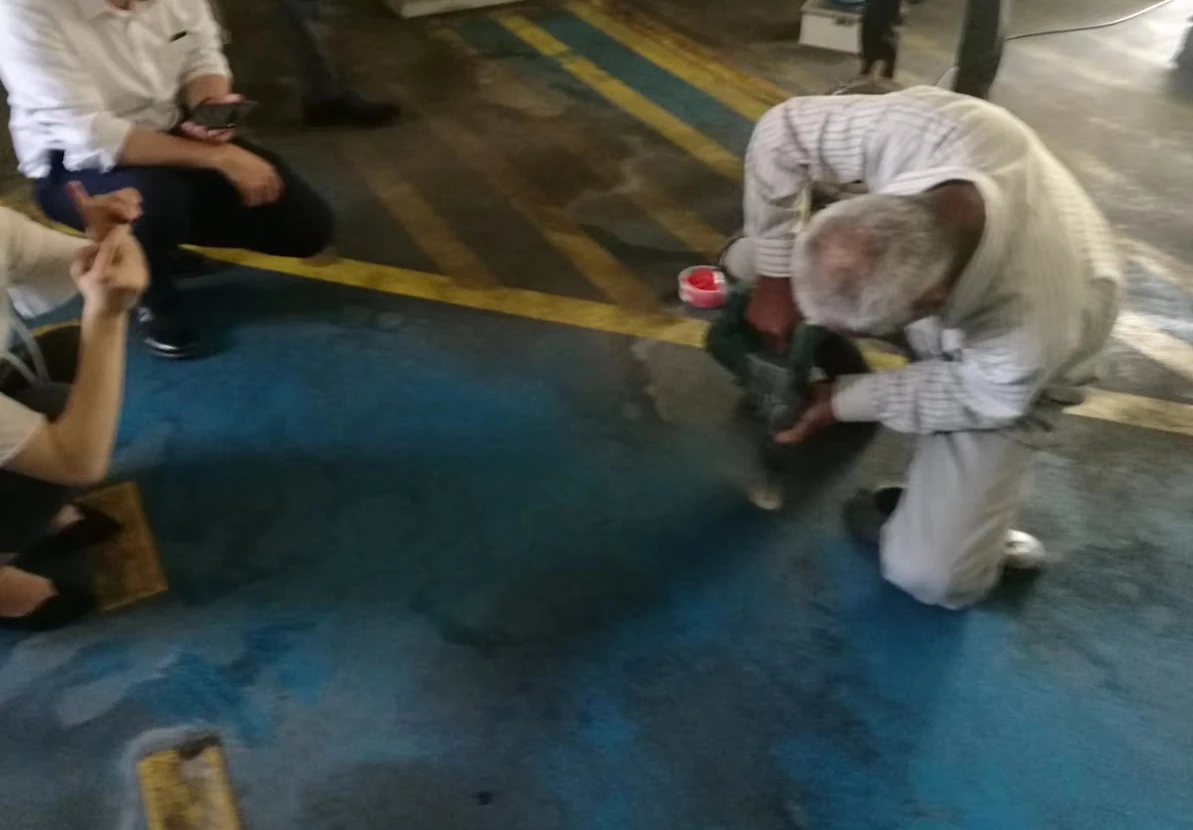

Installation process

Picture of installing Data collector:

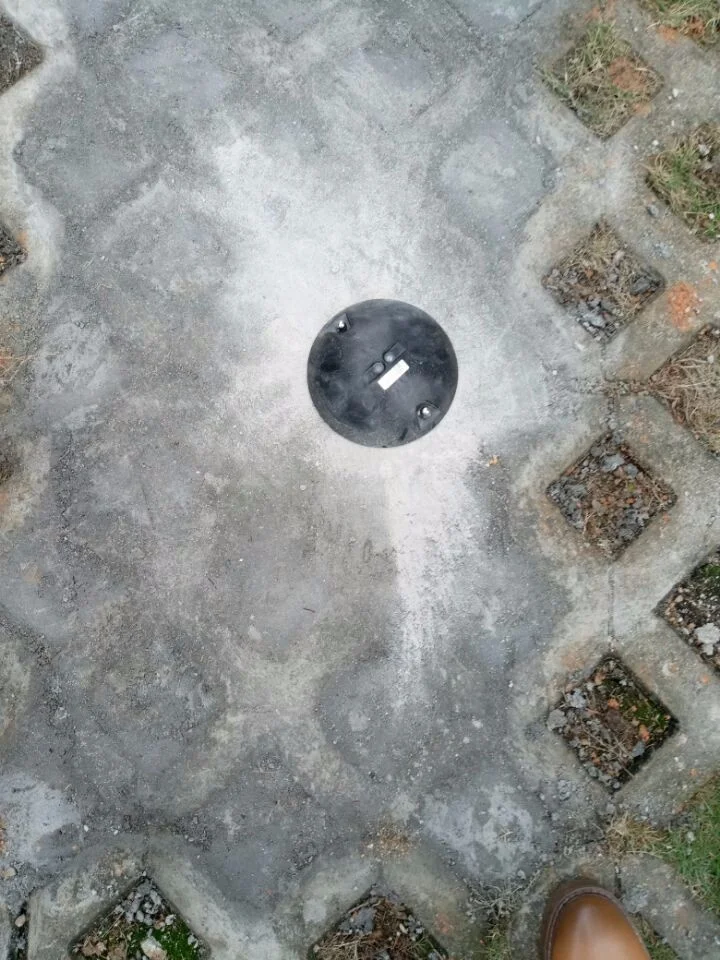

Parking space sensor installation: easy, simple and quick

 Parkview

KEY FEATURES:

♦     Configuration and monitor funciton

♦     Easy integraty

♦     Parking lot visible

♦     SDK/API supplied

ParkViewsoftware is provided for customers to quick start the wireless parking space detection system. It provides a series of configuration functions for WPSD sensors, as well as various forms of data monitor output. A demo system or experiment of testing purposes can be easily established by ParkView software.

FUNCTIONS

Configuration

Monitoring data

Testing

Demo

Our clients developed their own software and platform, app etc.

ROSIM is a leading developer and manufacturer of the parking space detection system, it has more than 8 years implement and experiments. The projects we completed are located in Italy, Malta, Turkey, Poland, German, France, Australia, Japan, and Malaysia. We focus on the detection technology and wireless network, the products will supply the stable performance and high-quality for all the clients.

1. Certification and patent

2. Client's visiting
