Характеристики
Wireless Transmission System STW 200
5.1-5.9Ghz / 120m-200m / 10 channels / Full HD 1920*1080P / SDI HDMI / no delay / no compression
Wireless HD Transmitter:
Specifications:
Frequency : 5.1-5.9Ghz, configurable with China, North American, Europe, etc
Transmission Power : Maximum 18dBm
Band width : 40MHz
Input Video Formats :
HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A
SDI: 3G, HD, and SD-SDI(auto-selected), SMPTE-259/274/292/296/372/424/425;1×BNC
Input Audio Fromats : SDI embedded 2 channel 24 bit/48KHz
Transmission Distance : 120m (clear transmission)
Interface :
SDI Input(BNC Female); HDMI Input(Type A female);
2 Antenna Port( PR-SMA male); DC input
Supply voltage range : DC 7V-36V
Signal Indicator : POWER-Green; Wireless RSSI-Blue(4LEDs); POWER/VIDEO-Yello
Power Consumption : less than 6.5W
Dimensions : (L*W*H) : 115*67*23mm
Mass Weight : 270g
Temperature Range : 0~40°C(operating condition); -20~60°C(Storage)
Modulation Mode : OFDM 16QAM
Compliance : FCC;CE
Functions:
Wireless HD Receiver:
Specifications:
Frequency : 5.1-5.9Ghz, configurable with China, North American, Europe, etc
Transmission Power : Maximum 18dBm
Band width : 40MHz
Input Video Formats :
HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A
SDI: 3G, HD, and SD-SDI(auto-selected), SMPTE-259/274/292/296/372/424/425;1×BNC
Input Audio Fromats : SDI embedded 2 channel 24 bit/48KHz
Transmission Distance : 120m (clear transmission)
Interface :
SDI Input(BNC Female); HDMI Input(Type A female);
2 Antenna Port( PR-SMA male); DC input
Supply voltage range : DC 7V-36V
Signal Indicator : POWER-Green; VIDEO-Yello
Receiver Sensitivity : -75dBm
Power Consumption : less than 7.5W
Dimensions : (L*W*H) : 152×95×23mm
Mass Weight : 355g
Temperature Range : 0~40°C(operating condition); -20~60°C(Storage)
Modulation Mode : OFDM 16QAM
Functions:

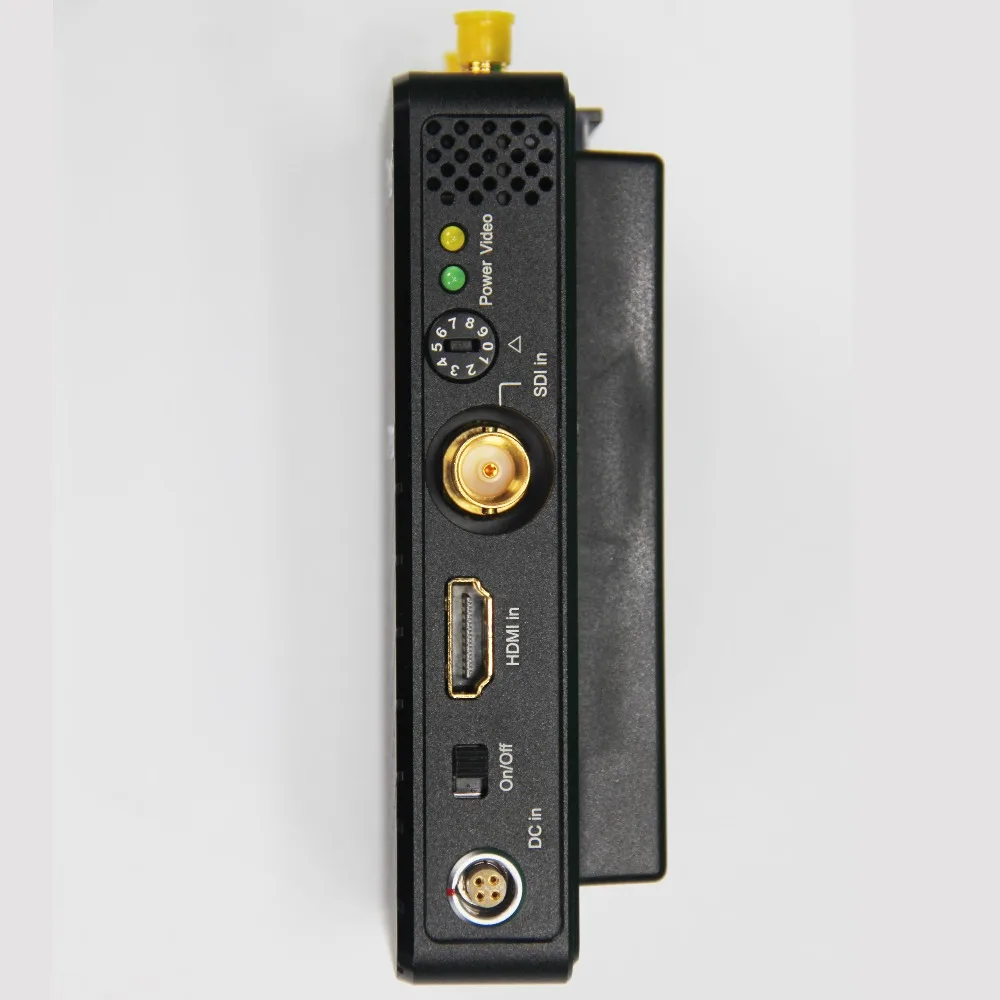

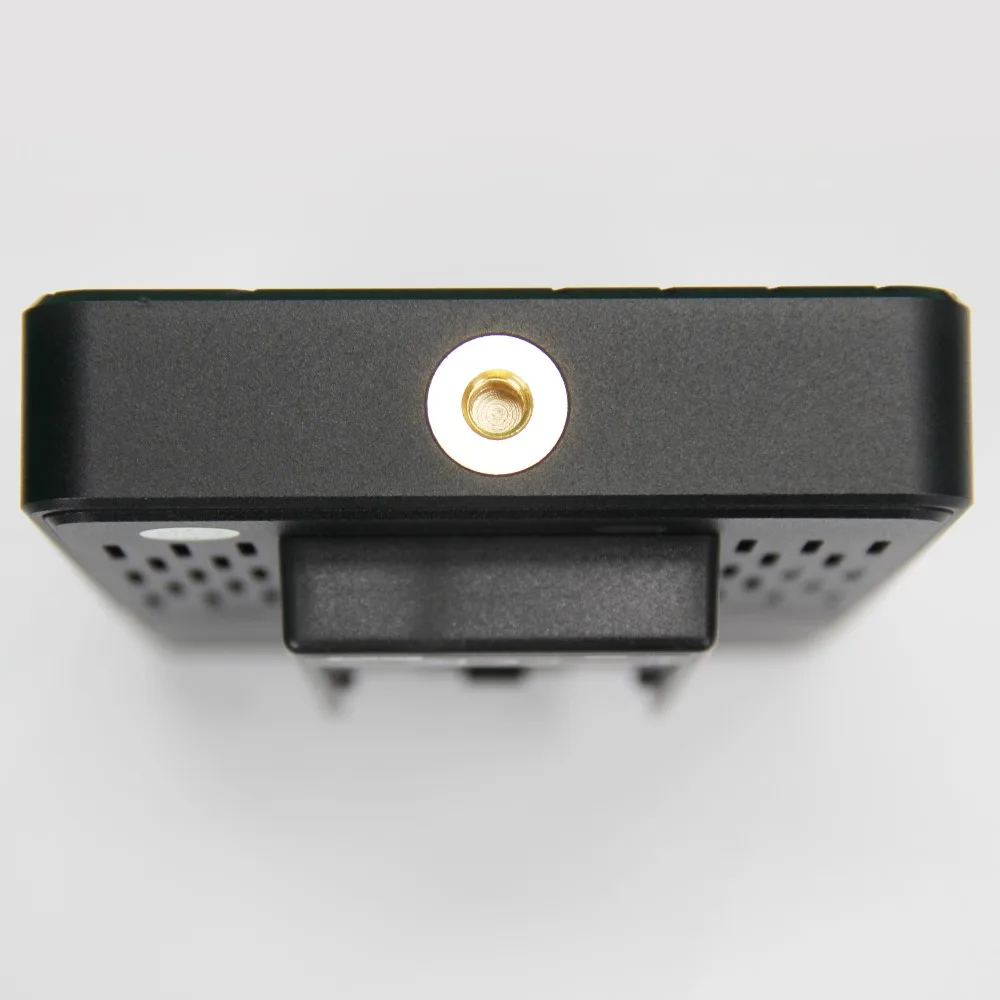

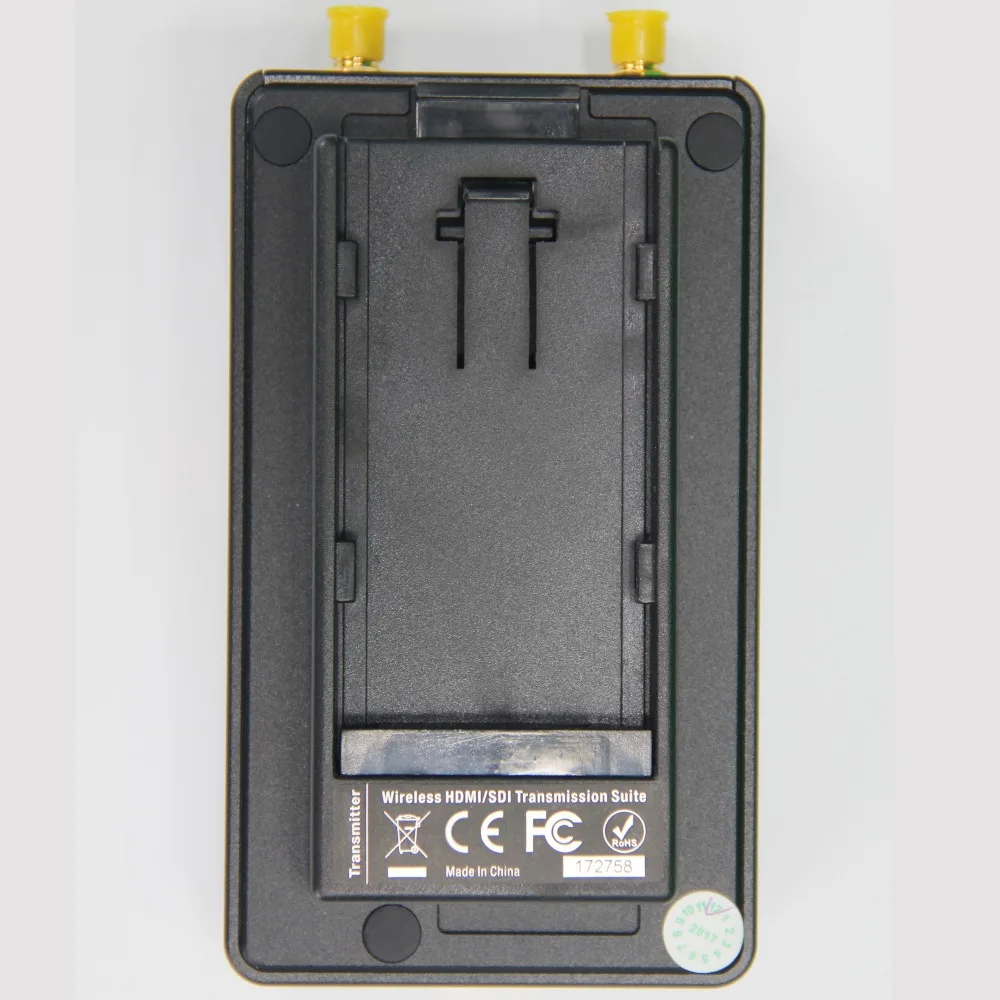

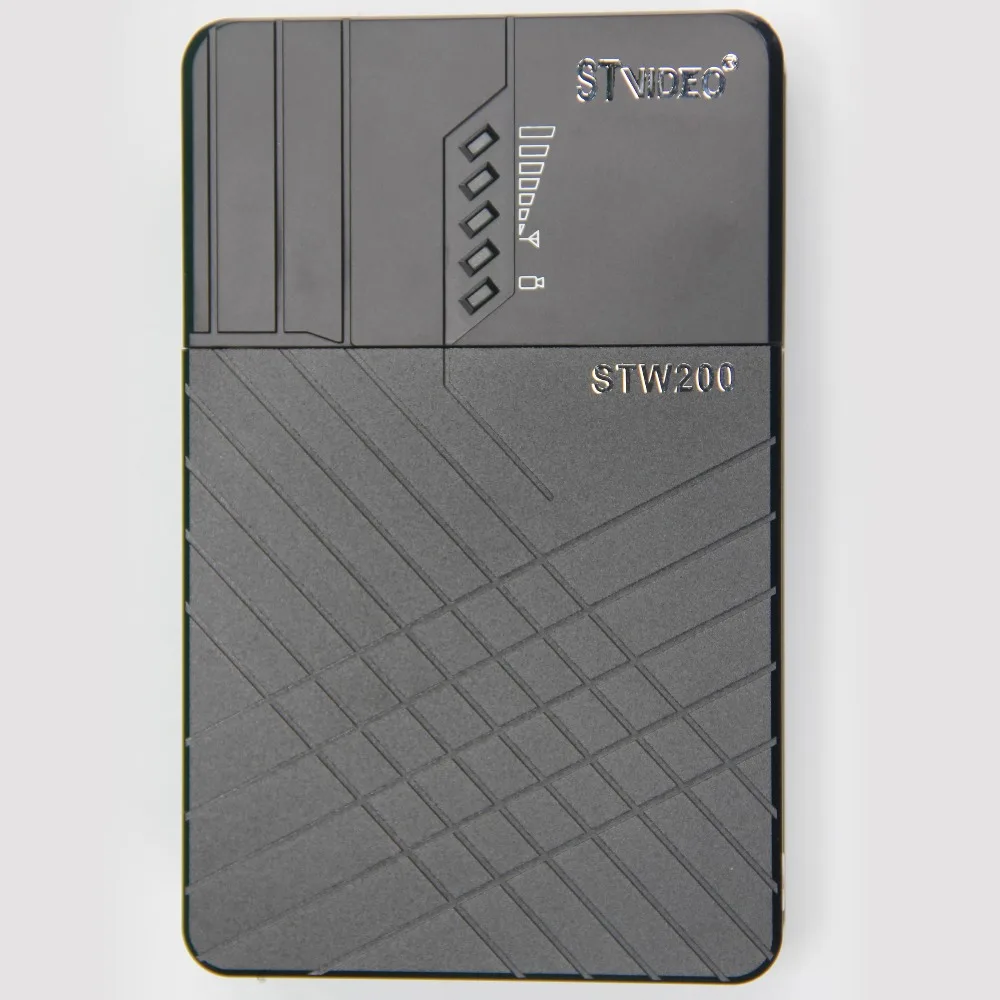

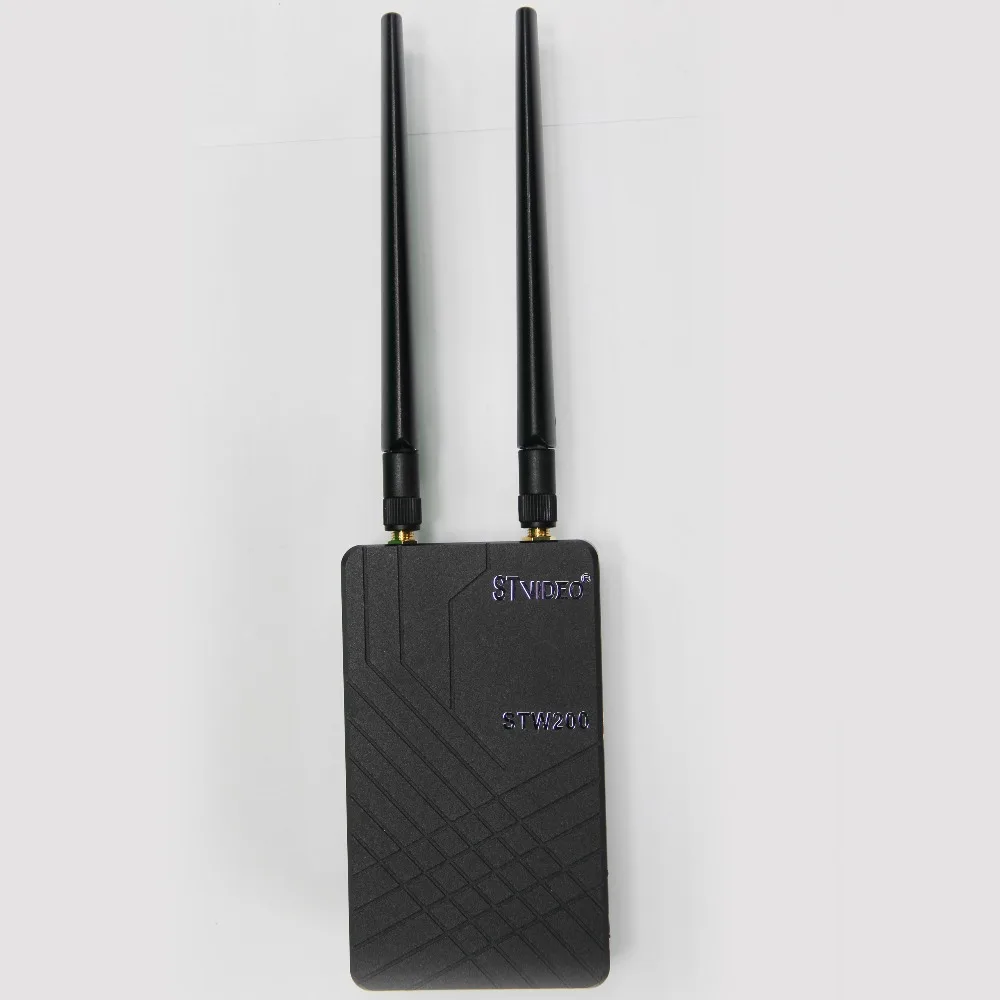

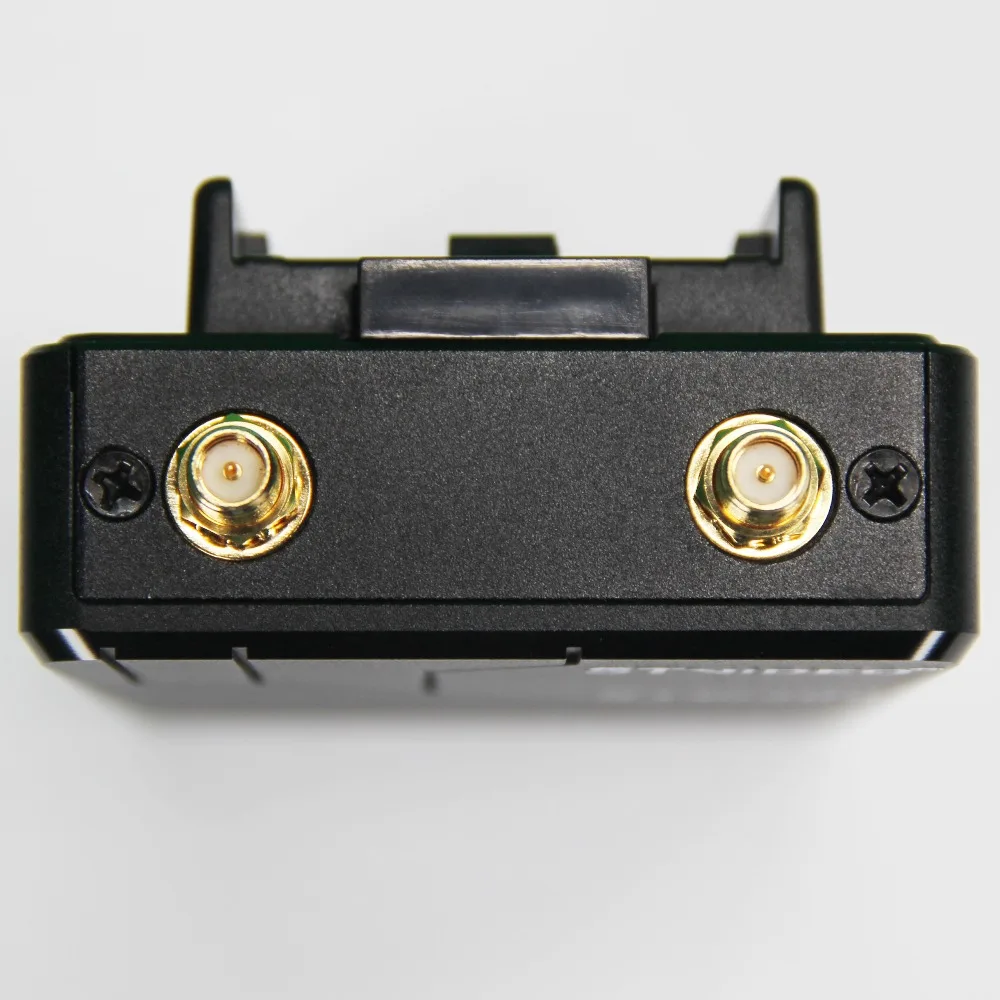

Images of HD Wireless transmission system
Packing Content
