Пневматический компрессор rock

Категория: Пневматические инструменты >>>
Поставщик: Shaanxi,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.36 $*	0.97 $*
Aug-15-2025	0.90 $*	0.28 $*
Jul-15-2025	0.14 $*	0.62 $*
Jun-15-2025	0.25 $*	0.82 $*
May-15-2025	0.34 $*	0.51 $*
Apr-15-2025	0.8 $*	0.85 $*
Mar-15-2025	0.56 $*	0.11 $*
Feb-15-2025	0.15 $*	0.17 $*
Jan-15-2025	0.84 $*	0.23 $*

Характеристики

air compressor rock breaker

Product Description

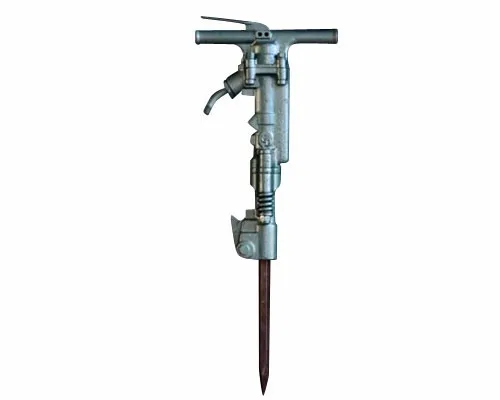

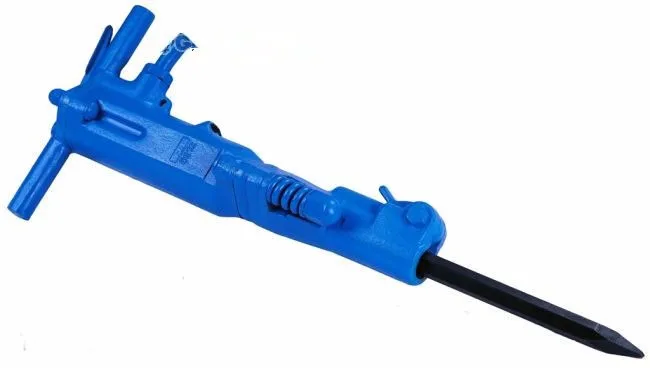

Specification of pneumatic power pick concrete rock breaker tools

The paving breaker model is tool with compressed air as its power.The compressed air is distributed alternatively through the valve into either end of the cylinder Assembly so that the hammer inside is made to carry on a reciprocal motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrete foundation and makes them split into huge pieces.

B47 breaker is a pneumatic instrument manufactured with the mature technology of Chicago Construction Pneumatic Tools Company. Featuring portability, durability, great efficiency and speed, the breaker can breaker ferroconcrete, rocks and asphalt, it is ideal machinery for the construction and blackout of mines, bridges, roads water pipes and electricity grids.

Parameters of pneumatic power pick concrete rock breaker tools

Model

N.W.

Length

Under Air Pressure 6kg/cm2

Bit Fixation

Style

Bit Head Size

Air Tube Lnner Diameter

L/S

Air Consumption

Percussive Frequency

B47

21.5 2 21.5

550

21.6

Lock/unlock

25×108

More choose

Model	B47	B50	B67C	B87C	B90
length	550mm	660mm	615 mm	686 mm	745mm
weight	21.5kg	18kg	30 kg	39 kg	34Kg
Air pressure	0.63mpa	0.63mpa	0.63mpa	0.63 Mpa	0.63 Mpa
impacting frequency	21.6hz	22 hz	24 hz	18 hz	16HZ
gas consumption	23l/s	33 l/s	42 l/s	55 l/s	27L/s
Bit Head Size	25×108 mm	25×108 mm	25×108 mm	32×152mm	32×152mm

Packaging & Shipping

wood-package 1

Our advantages

. Top techonology and guranty

One year warranty in overseas branch

D&R center ensure top advantages

Asian biggest drilling rig manufacturer with long history

World top-class heat treatment production line imported from Japan

Advanced automatic mloding production line from USA

Advanced NC machine

German TRUMPF flexible sheet metal processing system

Company info

Kaishan group Co., Ltd was founded in 1956.There are 31 members of the company, the company's total assets are 6 billion yuan, more than 6,000 employees and sales revenue is 4.5 billion yuan in 2011,Kaishan group Co., Ltd is the world's largest drilling machine manufacturing enterprises, the largest in Asia, the world's third air compressor manufacturing enterprises, and the largest drilling equipment manufacturers.Good Service, competitive price, high quality, fast shipping and perfect pre-sale and after-sale service.

Specialized in air compressor / pump/ rig/drill carriage/ project design

Through years development, Shaanxi kaishan had become a comprehensive form of complete equipments enterprise that combine sales,installation,repair &maintenance as one,and can provide all kinds and model of industrial screw ,piston , scroll air compressor rang from 1.1 kw to 335 kw to satisfy demand at the working condition of diverse customers and mobile compression air equipment in the blasting hole process.at same time,offer a complement Compression air purification equipment and spare parts,The company have long been cooperate with Zhejiang kaishan compressor Co.,Ltd. Which is exclusive distributor of kaishan brand equipments at northwest region.the company is now dedicate to provide a special compress air technique solution, ,top class products and perfection after-sales service,in line with customers demand-orientation ,and saving customers production efficiency as the object.
