Цифровой болт 3800Nm

Описание и отзывы

Трекер стоимости

Характеристики

Electric torque multiplier, high torque low speed tool, electric torque setter
Input:  220-240V  AC 50/60Hz
Digital control:  LCD display

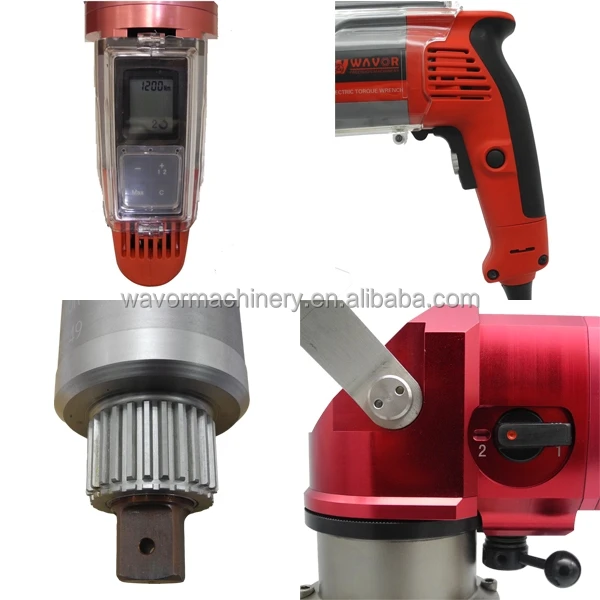

ETW series digital electric torque angle wrench & tool wrench

• High output and repeat accuracy: ± 5% and ±3%.
• Preset torque and automatic shutoff when reaching the setted torque.
• Single-chip intelligent torque control system with LCD display.
• With  manual 2-speed gearbox, high/low speed could be shifted freely.
• Very suitable for continuous operation in production assembly and maintenance.
• Free connection of power handle and drive unit, could be rotated 360°.
• Higher efficiency whether tighting or loodenning bolts and nuts than hydraulic torque wrench.
• Portable and durable design, low noise, with overload protection.
• After-sales service: 1 year guarantee period,  life-long maintenance.
• Supply scope :1 pcs torque wrench,1pcs reaction arm,1 copy operating instructions,1 copy test report.



Model	Troque (Nm)	Square C (mm)	D (mm)	H (mm)	Free Speed*  (rpm)	Weight* (kg)
ETW-08A	100-800	3/4"	88	248	20	8.7
ETW-12A	200-1200	1"	88	253	18	8.8
ETW-26A	400-2600	1"	88	274	7	9.4
ETW-38A	500-3800	1-1/2"	96	294	5	11
ETW-60A	1000-6000	1-1/2"	114	329	3.5	13.5
ETW-80A	1200-8000	1-1/2"	143	390	1.9	20.4
ETW-100A	1800-10000	1-1/2"	143	390	1.6	20.4
ETW-120A	2000-12000	1-1/2"	143	390	1.3	20.4



 Remark:  1. Above weight does not include the reaction arm.
               2. Free speed is no load speed at gear 2.

               3. Model selecting:  For loosening, the torque should be 50% bigger than tightening
