FRK бумага для изоляции пароизоляции ролл теплоизоляции
- Категория: Теплоизоляционные материалы >>>
- Поставщик: Suzhou,Yisheng,Jiaye,Packing,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.33 $* | 0.65 $* |
| Aug-16-2025 | 0.38 $* | 0.88 $* |
| Jul-16-2025 | 0.72 $* | 0.2 $* |
| Jun-16-2025 | 0.42 $* | 0.44 $* |
| May-16-2025 | 0.74 $* | 0.68 $* |
| Apr-16-2025 | 0.72 $* | 0.32 $* |
| Mar-16-2025 | 0.22 $* | 0.11 $* |
| Feb-16-2025 | 0.23 $* | 0.18 $* |
| Jan-16-2025 | 0.79 $* | 0.66 $* |
Характеристики
Products Description

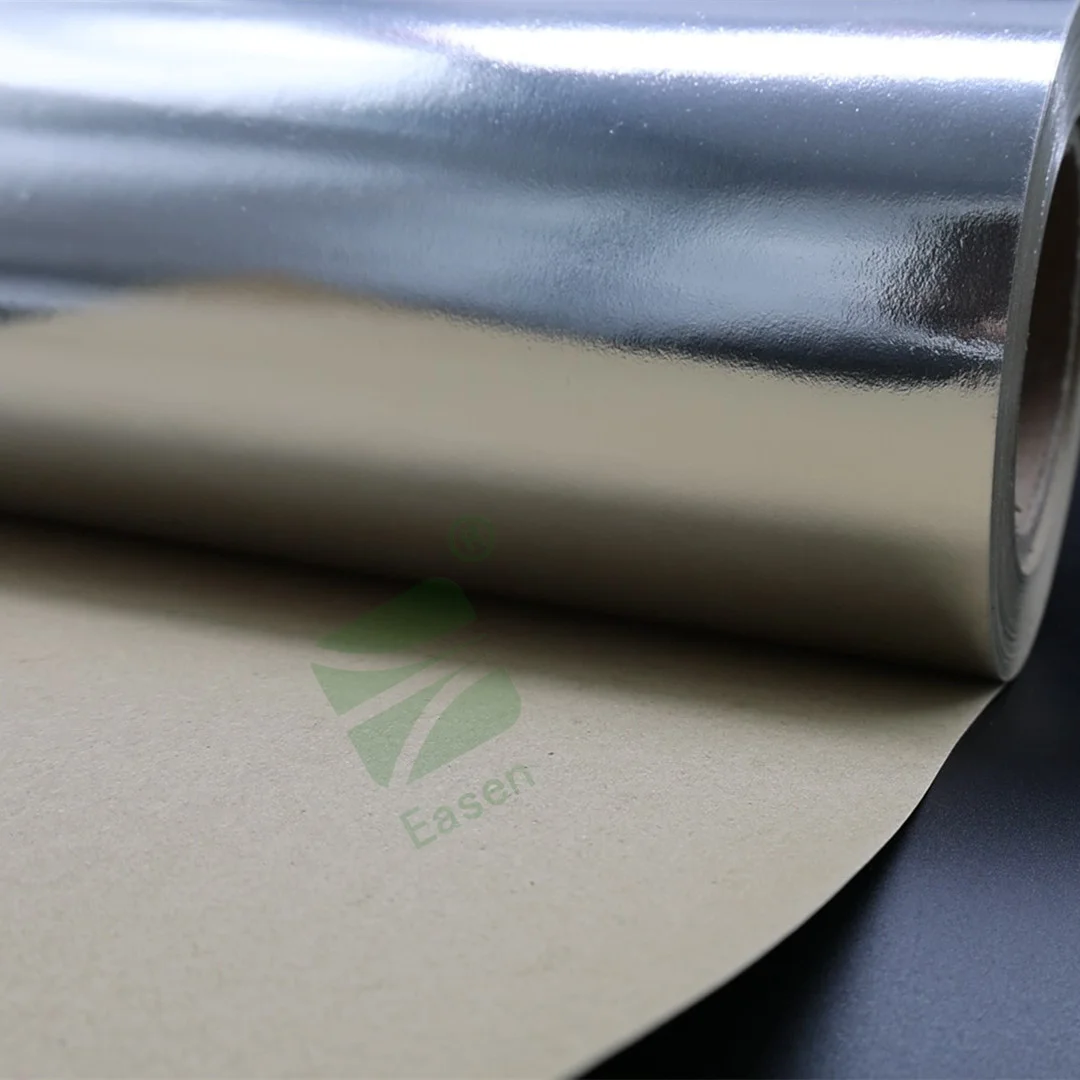

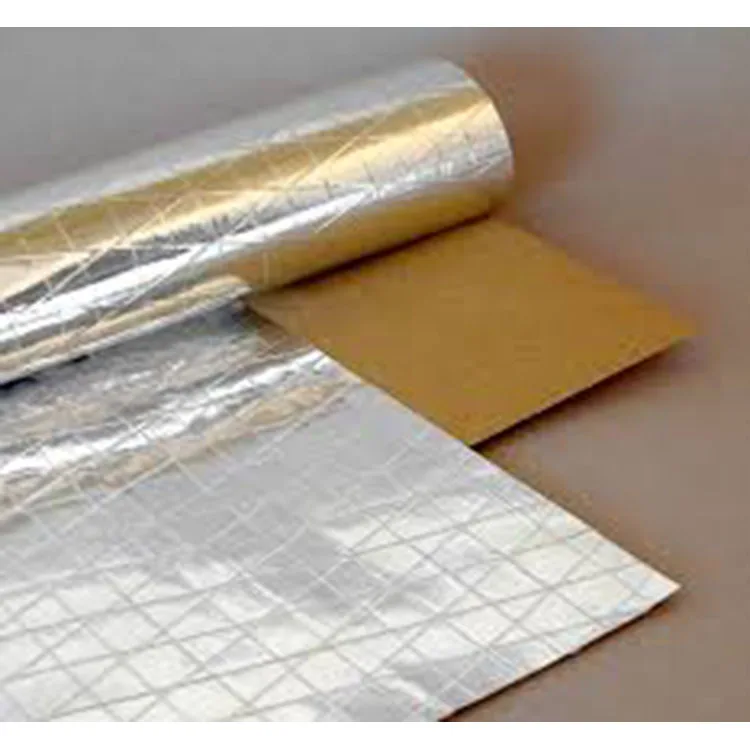

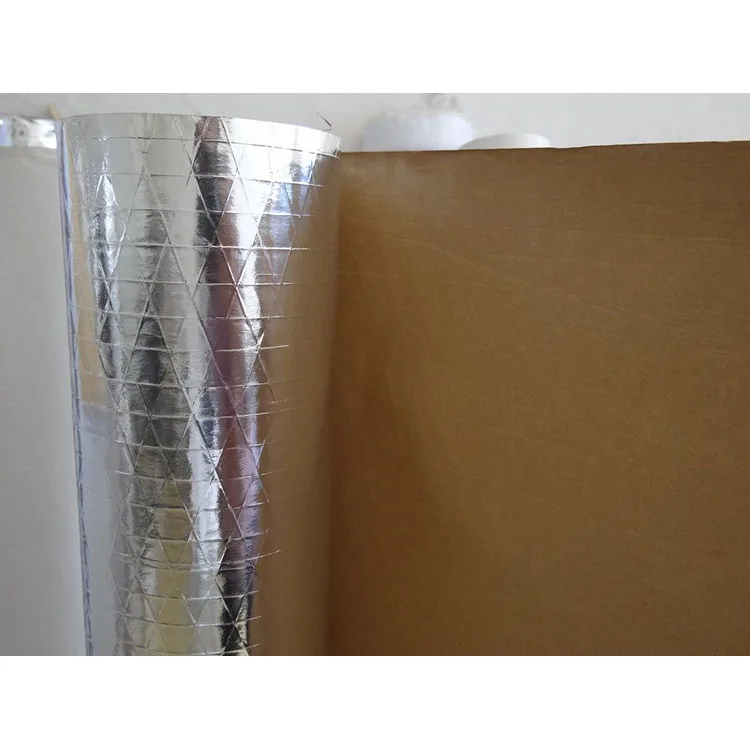

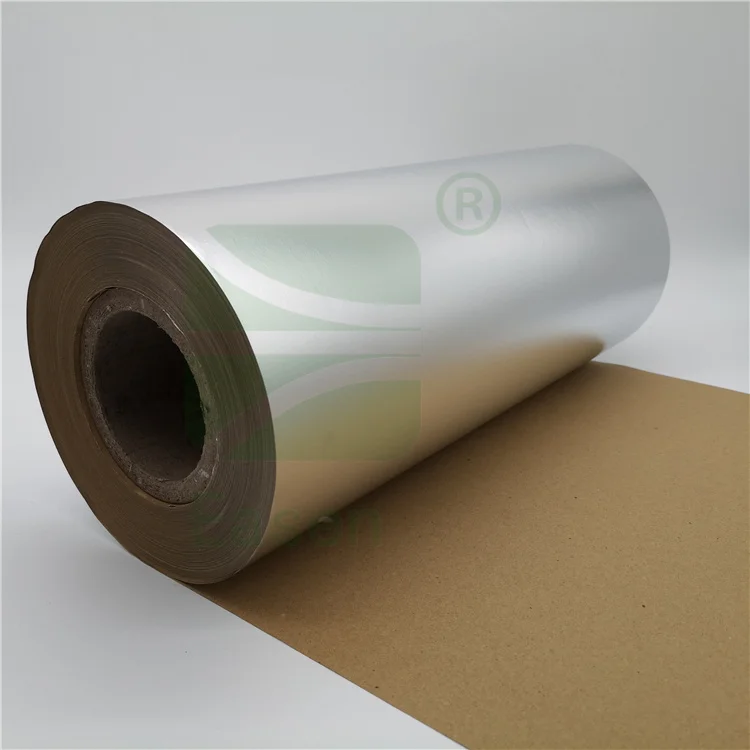

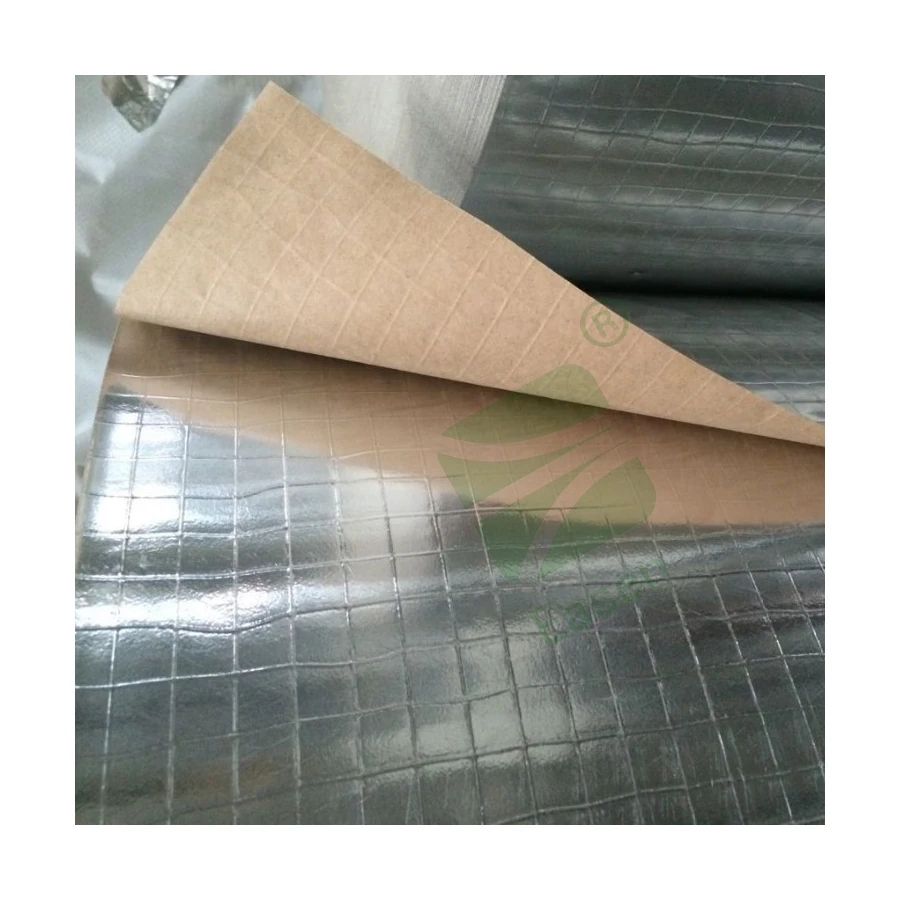

FRK Paper is a foil reinforced kraft paper that is used as a vapor barrier of fiberglass and mineralwool insulation rigid board products. FRK is also known as FSK (Foil, Skrim, Kraft). This is the exact same facing used by Owens Corning on their FRK faced products.
Sold in a tube of 12 individual sheets cut just shy of a 2ft x 4ft panel. Enough facing for 12 panels / bass traps (2' x 4').
Dimensions: Each sheet is cut 23-1/2" x 47-1/2" to perfectly laminate the surface of a 2 x 4 fiberglass panel.
Sold in a tube of 12 individual sheets cut just shy of a 2ft x 4ft panel. Enough facing for 12 panels / bass traps (2' x 4').
Dimensions: Each sheet is cut 23-1/2" x 47-1/2" to perfectly laminate the surface of a 2 x 4 fiberglass panel.
Name | Single Side foil/film-scrim Kraft paper | ||||||
Structure | Aluminum foil/FR adhesive/3-way scrim/Kraft Ppaer | ||||||
Temperature Resistance | 4 hours no decladding -30℃/90℃ | ||||||
Appearance | Silver/customerized | Width(cm) | 80/100/120/125/150/160 | ||||
Length(m) | 50-2500 | Grammage | 85g/m2 -120g/m2 | ||||
Reflectivity | 91%~92% | Treatment | FR/VCI/Perforated available | ||||
Water Vapor Transmission | 0.02g/m2 KPA | Bursting Strength | 95N | ||||
Tensile Strength(MD) | 100N/25mm | Tensile Strength(CMD) | 35N/25mm | ||||
Lamination Instructions
1. Once you receive the tube, open and remove the 12 sheets of FRK paper.
2. Keep all 12 sheets together and unroll, face the curl downards on a flat surface.
3. Put heavy objects, books, weights, etc to help uncurl the sheets.
4. Center 1 sheet per 2ft x 4ft fiberglass panel onto the surface of the plain fiberglass board.
5. Fold half the paper up and spray the fiberglass board with spray adhesive (any inexpensive spray glue is fine)
6. Slowly lay the FRK paper onto the adhesive, once it looks straight/wrinkle free, rub and smooth in with your hand.
7. Repeat sets 5 and 6 again for the 2nd half.
2. Keep all 12 sheets together and unroll, face the curl downards on a flat surface.
3. Put heavy objects, books, weights, etc to help uncurl the sheets.
4. Center 1 sheet per 2ft x 4ft fiberglass panel onto the surface of the plain fiberglass board.
5. Fold half the paper up and spray the fiberglass board with spray adhesive (any inexpensive spray glue is fine)
6. Slowly lay the FRK paper onto the adhesive, once it looks straight/wrinkle free, rub and smooth in with your hand.
7. Repeat sets 5 and 6 again for the 2nd half.
Applications

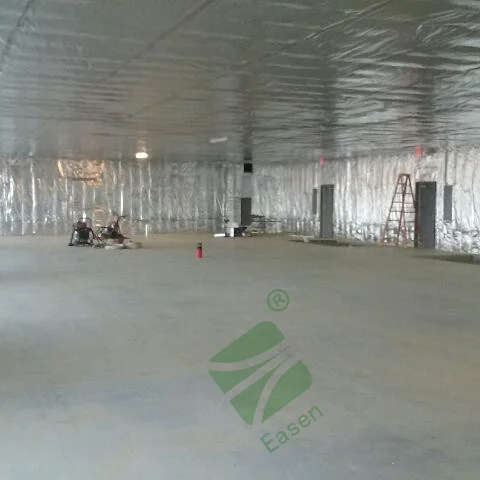

As a heat insulation materials in car, train, roof and wall, also been attached to glass wool blanket, rock wool board, mineral wool for get better performance.
A laminated thermal insulation sheeting. for covering ducts and pipes wrapped up by a thermal insulator such as glass wool and rock wool, PU foam and other insulation to protect them against vapor moisture in order to work more effectively.
Packaging & Delivery
A 20 container can load about 15-18tons metal roofing insulation
A 40HC can load about 22 tons metal roofing insulation
A 40HC can load about 22 tons metal roofing insulation
Company Profile
Suzhou Yisheng Jiaye Package Material Co,Ltd ( Yisheng Jiaye ) is a professional manufacturer of high quality Insulation aluminum laminated products. The company was founded in 2015, with the registered capital of 1 million RMB,and with total assets of 6 million yuan and over 30 employees. The company is located in the scenic Suzhou Jiangnan region in Taicang City, which lies close to the Northwest suburbs of Shanghai near the Yangtze River Delta,and is conveniently located near the G15 Highway and spans 5000 square meters.
Our Factory
Products:
Manufacturer of High quality Insulation Aluminum Laminated Products.
Products Application:
Widely used in mechanical processing, construction protection, medical supplies, automotive components and other industries.
Main products:
Aluminum foil woven fabric & Aluminum foil Kraft paper, Aluminum foil non-woven fabric.
Our company motto is "customer first,quality first, reputation first" and oursuccess is based on quality productsand efficient service. We look forwardto serving you and we invite you tocontact us for more information.
Production Process
We receive raw materials for laminating processing, and can provide printing services through customer requirements,we also can provide different lengths of slitting into rolls for packaging. Packaging We generally use the redundant materials of the finished material for full coverage packaging to avoid damage during transportation, then your goods can be shipped out in about a week after payment.
Quality Control
We have a strict quality control system. The quality of all products from raw materials to finished products is strictly
controlled. Through layer-by-layer testing, we finally deliver the best quality products to our customers.
controlled. Through layer-by-layer testing, we finally deliver the best quality products to our customers.
Testing Steps:
1.Weighing 2. Thickness 3.Tensile Strength 4. Peel Strength 5. Heat Seal Strength 6.Tear Strength
1.Weighing 2. Thickness 3.Tensile Strength 4. Peel Strength 5. Heat Seal Strength 6.Tear Strength
More product testing videos, you can Contact us to get the viedos !
Certification & Patented
We manufacture in strict accordance with the national environmental standards, and our full range of products are certified by the third party inspection company llike ISO, SGS,CTI, and in line with the EU's RoHS directive requirements for export.
Packaging & Delivery
Each order will be rigorously inspected before shipping to ensure all products are qualified.We are looking forward to serve you and invite you to contact us for more information.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: What is the delivery time?
A: 5-10 days when stock available, 15-20 days when stock not available,
but still due to order qty, it is better to discuss case by case.
Q: Could you offer free sample?
A: Yes, we could offer free sample but we cannot cover the freight cost.
Q: Would you give lower price if order in large qty?
A: Sure, we would give discount when order in large qty.
These products we produce will definitely satisfy you.You can contact us in the following way!
A: We are manufacturer.
Q: What is the delivery time?
A: 5-10 days when stock available, 15-20 days when stock not available,
but still due to order qty, it is better to discuss case by case.
Q: Could you offer free sample?
A: Yes, we could offer free sample but we cannot cover the freight cost.
Q: Would you give lower price if order in large qty?
A: Sure, we would give discount when order in large qty.
These products we produce will definitely satisfy you.You can contact us in the following way!
