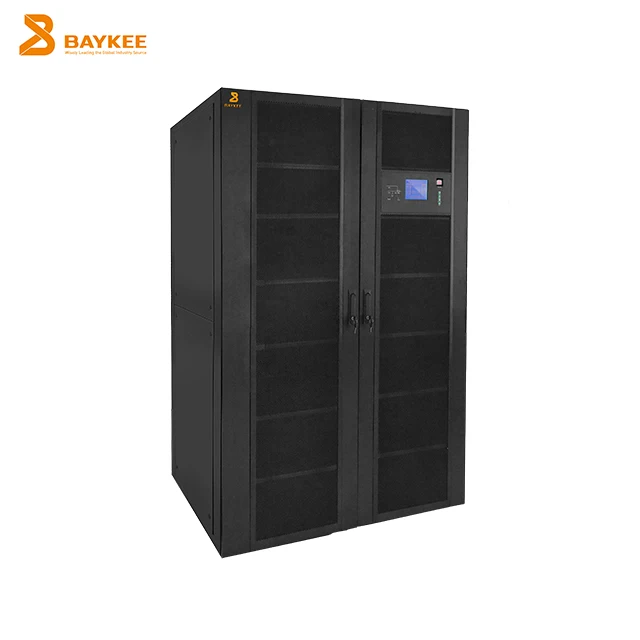

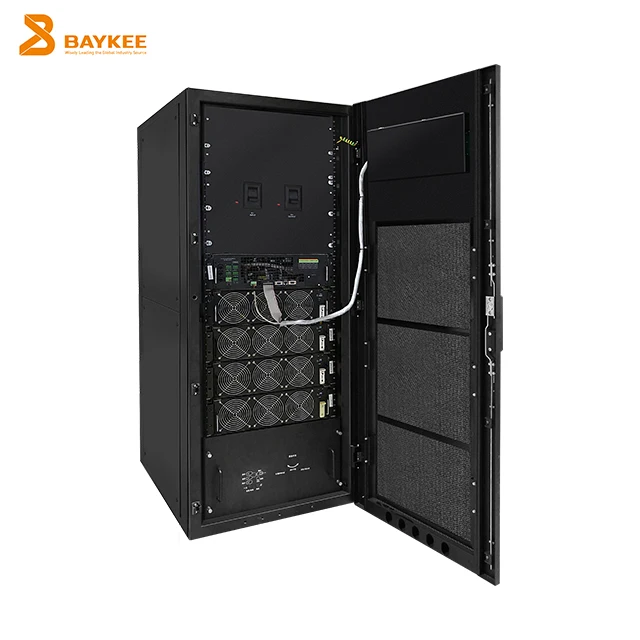

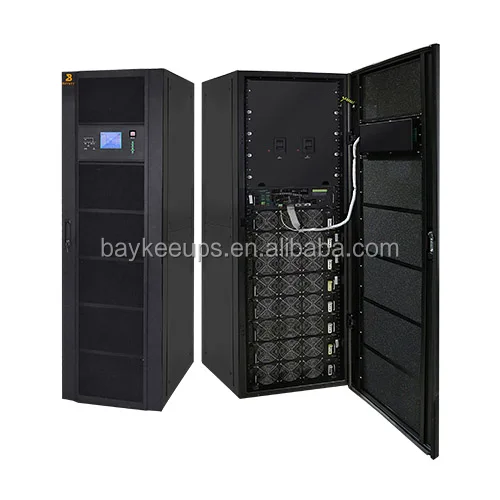

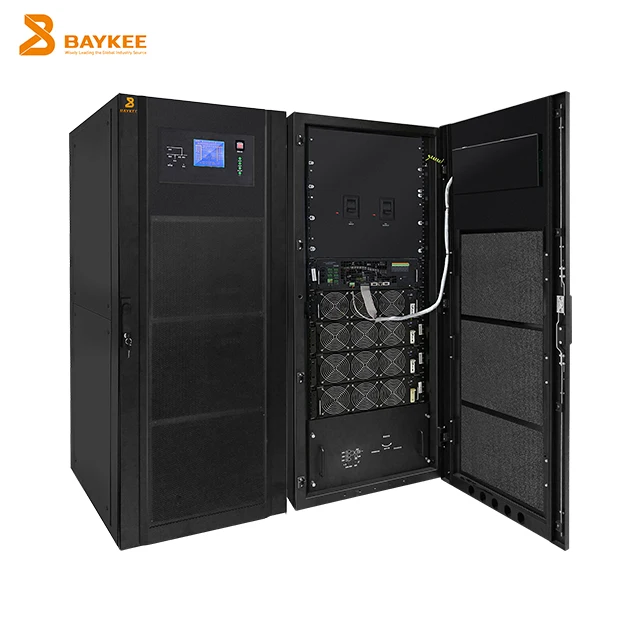

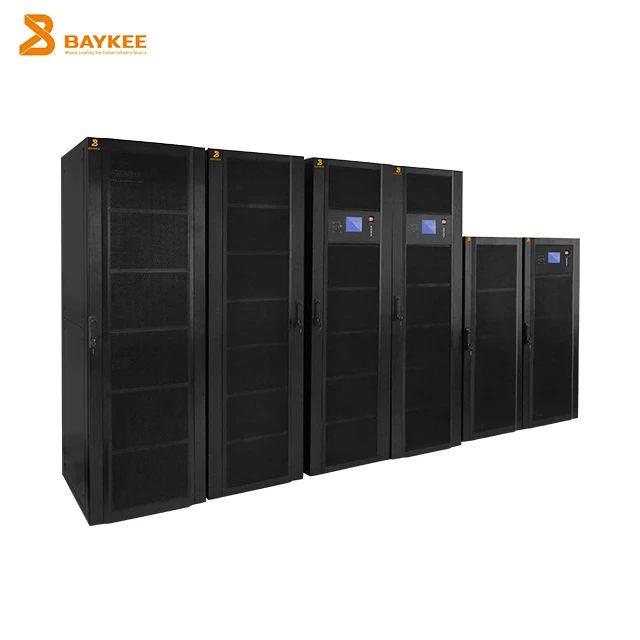

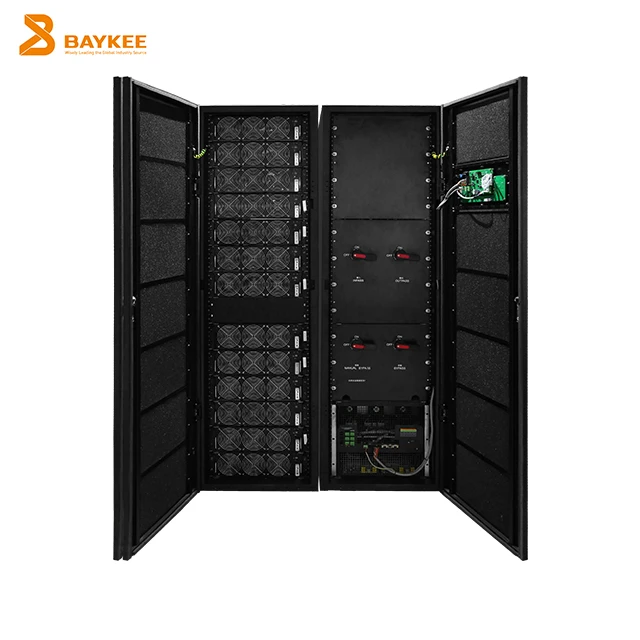

Baykee мкВ 3 фазы 10 ква онлайн-инвертор цены ups в

Model (full configured ) BKH-M1A

BKH-M1A-G30K

BKH-M1A-G60K

BKH-M1A-G100K

BKH-M1A-G120K

Capacity

10KVA-30KVA

10KVA-60KVA

10KVA-100KVA

10KVA-120KVA

Power module capacity

10KVA

Power module weight

14KG

Power module number(MAX)

3

6

10

12

Physical parameter

Power module size (W*D*H)

19"*509mm*"2U

Power module weight

14KG/unit

Cabinet size (W*D*H)mm

600*800*1600

600*800*2000

Cabinet weight

180

197

245

260

Mains input(AC )

Phase

3 phase 4 wires/single phase 2 wires+G

Voltage range

291~492V (line-line) full load;

Frequency range

30Hz~80Hz

THDi

<3%

Power factor

0.995

Bypass range

-10%~10% (can customized -10%~-30%, +10%~+20%)

Battery

Connection type

positive and negative battery supply

Rated voltage

+/- 384VDC (+/-32*12V series)

Battery number

64pcs/set

Charging current

20% * system power(battery capacity)

Output(inverter)

Output voltage

3 phase 380VAC/1 phase 220VAC +G

Voltage regulation

 <+/-1%

Phase lock range

50Hz/60Hz +/-5Hz;(self frequency 50Hz/60Hz+/-0.01Hz)

Output frequency

50Hz/60Hz+/-0.01Hz (if phase locked then mains frequency)

Power factor

0.9

Crest factor

 3:1

THDu

THD<1.0% (linear load), THD<3%(non-linear load)

Three phase voltage unbalance degree

balance load: 0.2%  100% unbalance load : 0.5%

Dynamic voltage transient range

<2%

Transient Recovery Time

 0ms

Three phase voltage deviation

mains:0.1;  battery :0.1

Overload capacity

125% for 10min: 150% for 1min; >150% for 200ms (linear load)

System efficiency

>94%

Environment indicator

Noise

<60dB @100%load, cooling fan adopt intelligent speed control

Display

touch screen LCD+LED

Interface

standard: RS232, RS485, dry contacts, SNMP card optional

Operation temperature

temperature: -10C ~+40C; humidity 0%~98%; storage temperature -25C~+75C   Altitude(m): <1000, 1000m-2000m above every 100m reduce 1%

IP class

IP30( Removable dust filter)

NOTES:  subject to change without further notice!
