Компьютер AM3354 на базовой плате
- Категория: Development Boards and Kits >>>
- Поставщик: Baoding,Forlinx,Embedded,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.65 $* | 0.56 $* |
| Aug-19-2025 | 0.36 $* | 0.50 $* |
| Jul-19-2025 | 0.37 $* | 0.79 $* |
| Jun-19-2025 | 0.33 $* | 0.5 $* |
| May-19-2025 | 0.91 $* | 0.27 $* |
| Apr-19-2025 | 0.23 $* | 0.6 $* |
| Mar-19-2025 | 0.65 $* | 0.74 $* |
| Feb-19-2025 | 0.33 $* | 0.2 $* |
| Jan-19-2025 | 0.70 $* | 0.70 $* |
Характеристики

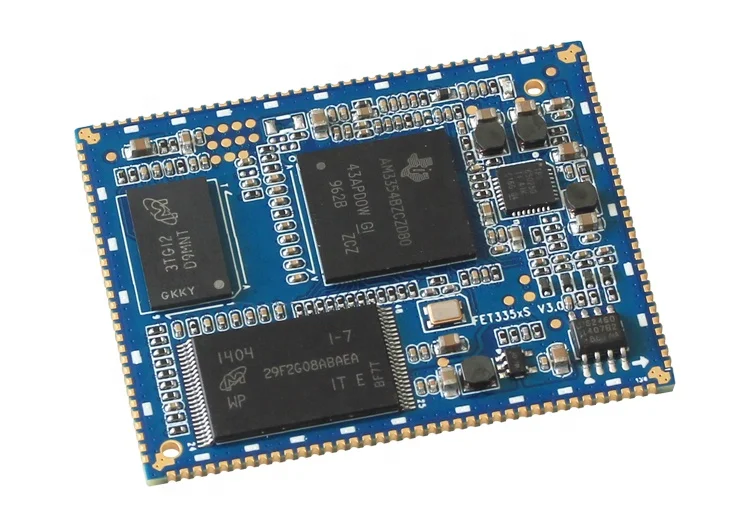

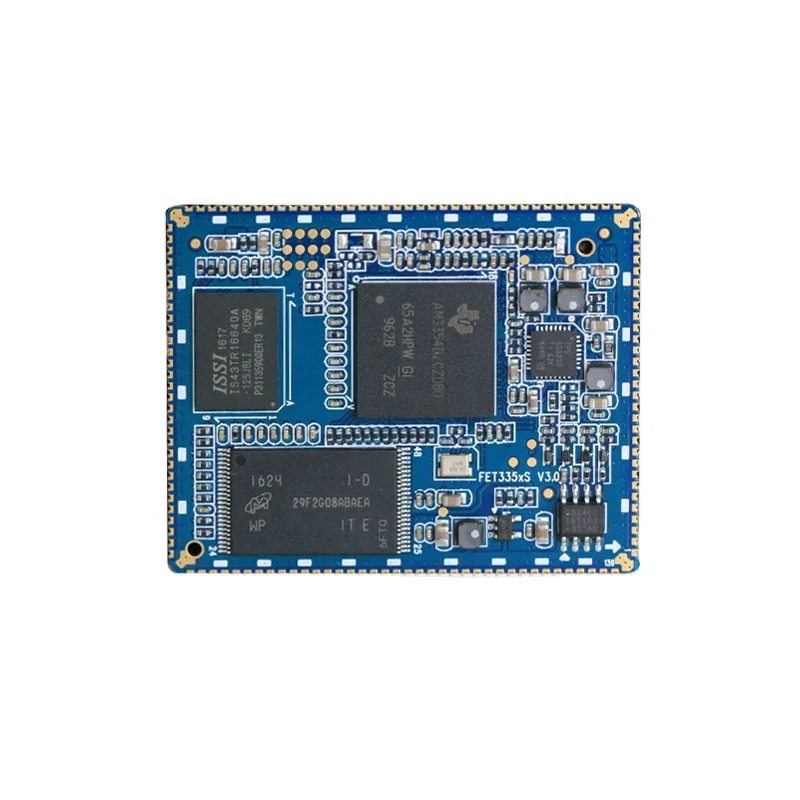

AM3354 Computer on Module Core Board
As an IDH of TI Sitara in China mainland, Forlinx designed a low power cost efficient computer on module based on TI AM3354 Cortex-A8 processor. this item is with 256M NAND Flash and 128M DDR3, all components are industrial grade components. This item had been widely used in application of HMI, industrial control, medical, IoT gateway solution, electronical solution, smart home, etc.
Hardware:
FET335xS-II Computer on Module | |||
CPU | AM3354 | I2C | 3-ch |
Architecture | A8 | SPI | 2-ch |
Main Frequency | 600MHz | CAN | 2-ch |
RAM | 128M DDR3 | USB HOST | 1-ch USB HOST 2.0 |
FLASH | 256M SLC Nandflash | USB DEVICE | 1-ch USB DEVICE 2.0 |
Temp range | -40℃-+85℃ | SD/MMC/SDIO | 3-ch MMC |
Humidity | 10%~90% | Ethernet | 2-ch Gb Ethernet port |
Input Voltage | 5V | UART/IrDA | 6-ch |
2D/3D | Support 2D/3D graphics acceleration | EINT/GPIO | Support |
GPU | Power VRSGX530 | ADC | 7-ch |
PMU | TPS650250 | Video Codec | Software codec |
Size | 52mm*42mm*2.6mm | JTAG | 1-ch |
Connection method | Stamp hole | EEPROM | Support (Only for Encryption) |
OS | Linux3.2 WinCE6.0 | PWM | 3-ch (1-ch for self definition,1-ch for backlight,1-ch for buzzer) |
LCD | RGB16bit | SATA | Support to connect with usb to SATA module |
Audio | IIS interface |
|
|
Software:
Linux3.2 OS | ||
U-boot version | u-boot-2011.09 | |
Kernel version | Linux-3.2.0 | |
Drivers | Ethernet driver | LCD FrameBuffer |
LED driver | Resistive touch screen driver | |
LCD driver | RTC driver | |
USB driver | Serial driver | |
PWM driver(Backlight and buzzer) | User key driver | |
Flash ECC | Watchdog driver | |
Nand Flash driver | IIC driver | |
UBI file system | AD driver | |
TF card driver |
| |
Win CE6.0 OS | ||
Boot Loader | EBOOT SD card flashing | |
Flashing method | SD card flashing | |
CE version | PB6.0 | |
Drivers | LED driver | User key driver |
GPIO driver | RTC driver | |
I2C driver | NANDFlash driver | |
SPI driver | Display driver | |
Serial driver | Ethernet driver | |
Touch screen driver,resistive touch | USB driver(OTG/USB/HOST) | |
SD card driver | Backlight driver | |
DMA driver | AD driver | |
Audio driver | PWM driver | |
Watchdog driver |
| |
Certificate:
Delivery&package:
generally the SOM could be packed in box or carton, stock goods could be sent out within 5 working days after receipty of full payment. Delivery by express or air logistics
