Сварочная машина для оловянной банки сварочные машины оловянных
- Категория: Аппарат для шовной сварки >>>
- Поставщик: Suzhou,First,Packing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.10 $* | 0.20 $* |
| Aug-16-2025 | 0.76 $* | 0.67 $* |
| Jul-16-2025 | 0.27 $* | 0.93 $* |
| Jun-16-2025 | 0.47 $* | 0.77 $* |
| May-16-2025 | 0.71 $* | 0.18 $* |
| Apr-16-2025 | 0.69 $* | 0.29 $* |
| Mar-16-2025 | 0.69 $* | 0.85 $* |
| Feb-16-2025 | 0.12 $* | 0.5 $* |
| Jan-16-2025 | 0.4 $* | 0.65 $* |
Характеристики
Product Name:can body welding machine for tinplate cans tin can welder
Metal Packaging Industry
Suitable:Chemical,Latex Paint,Motor Oil, Putty,Vacuum Cleaner,Ventilation Pipe.
Material:Tinplate,Galvanized, Stainless Steel,Cold Roller Sheet
Type:Round/Square/Conical
Product:Cans,Pails,Drums or Irregularly Shaped Containers
Size:0.25~25Liter
Product:Cans,Pails,Drums or Irregularly Shaped Containers
Size:0.25~25Liter
Products Description

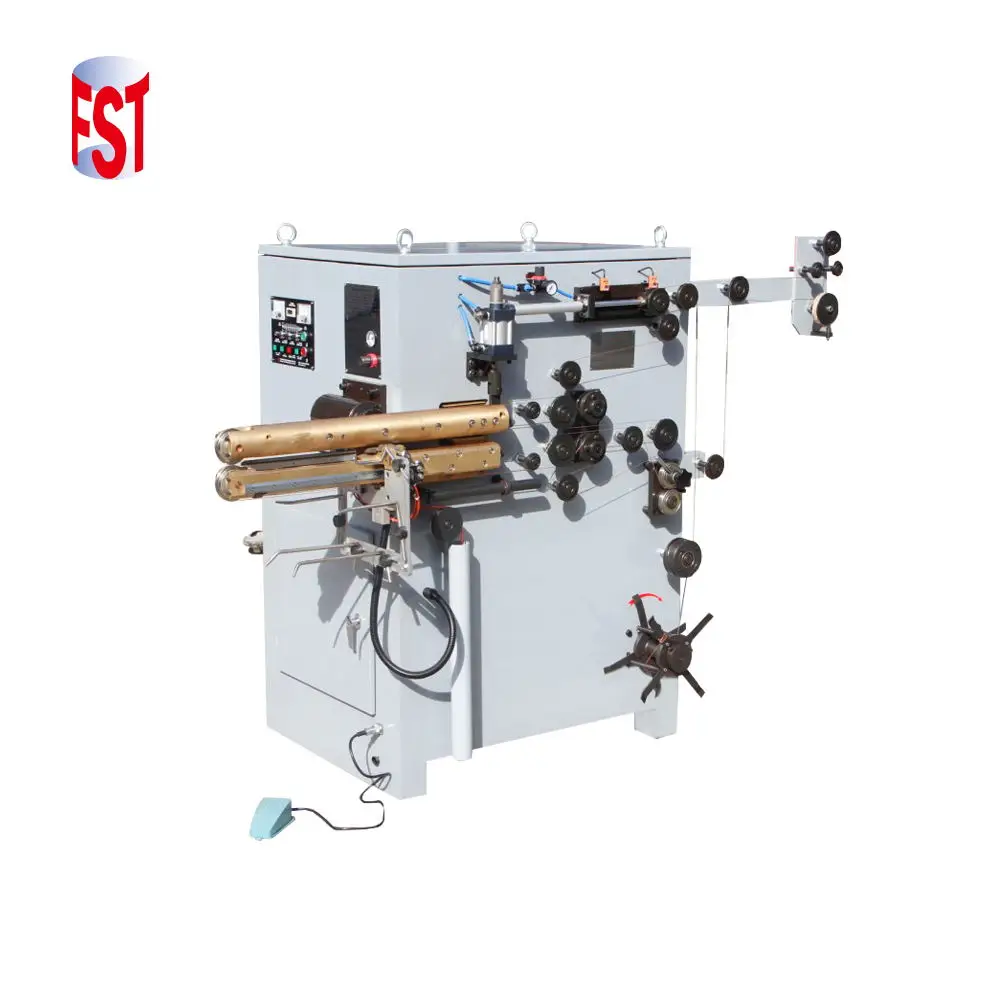

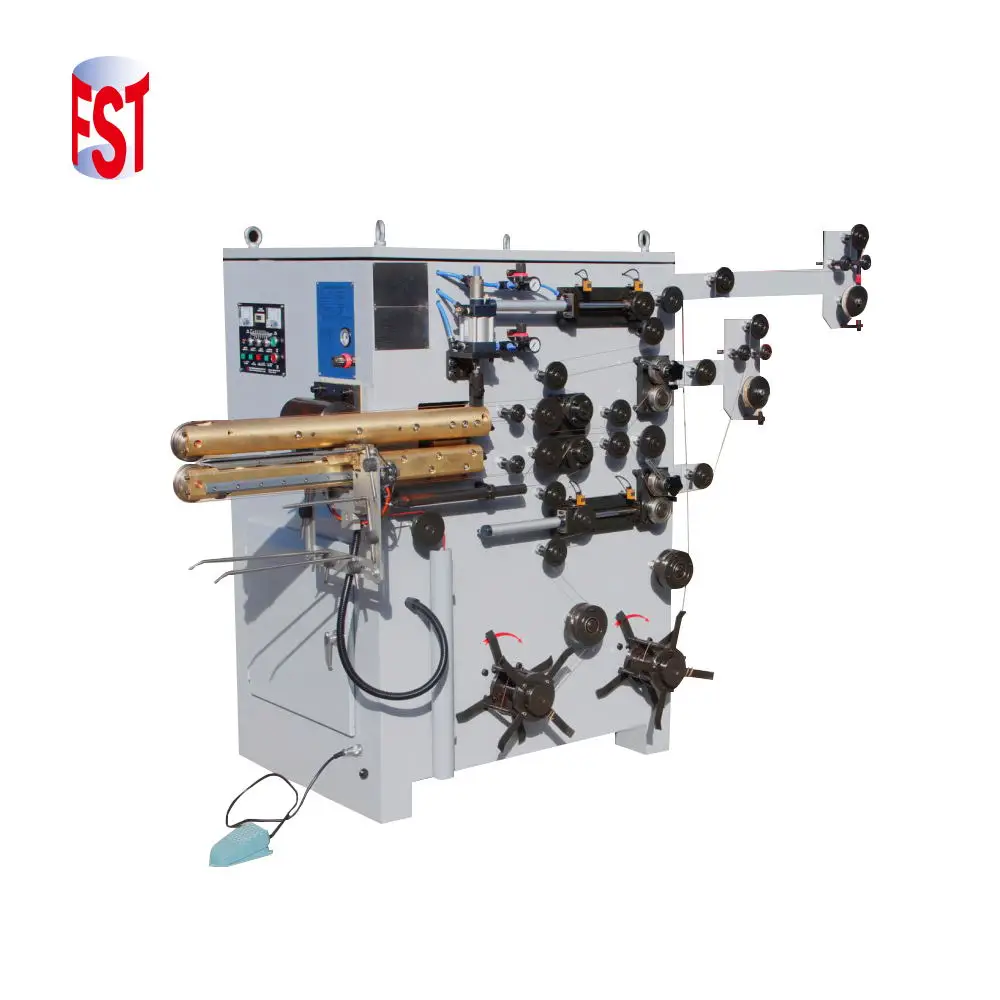

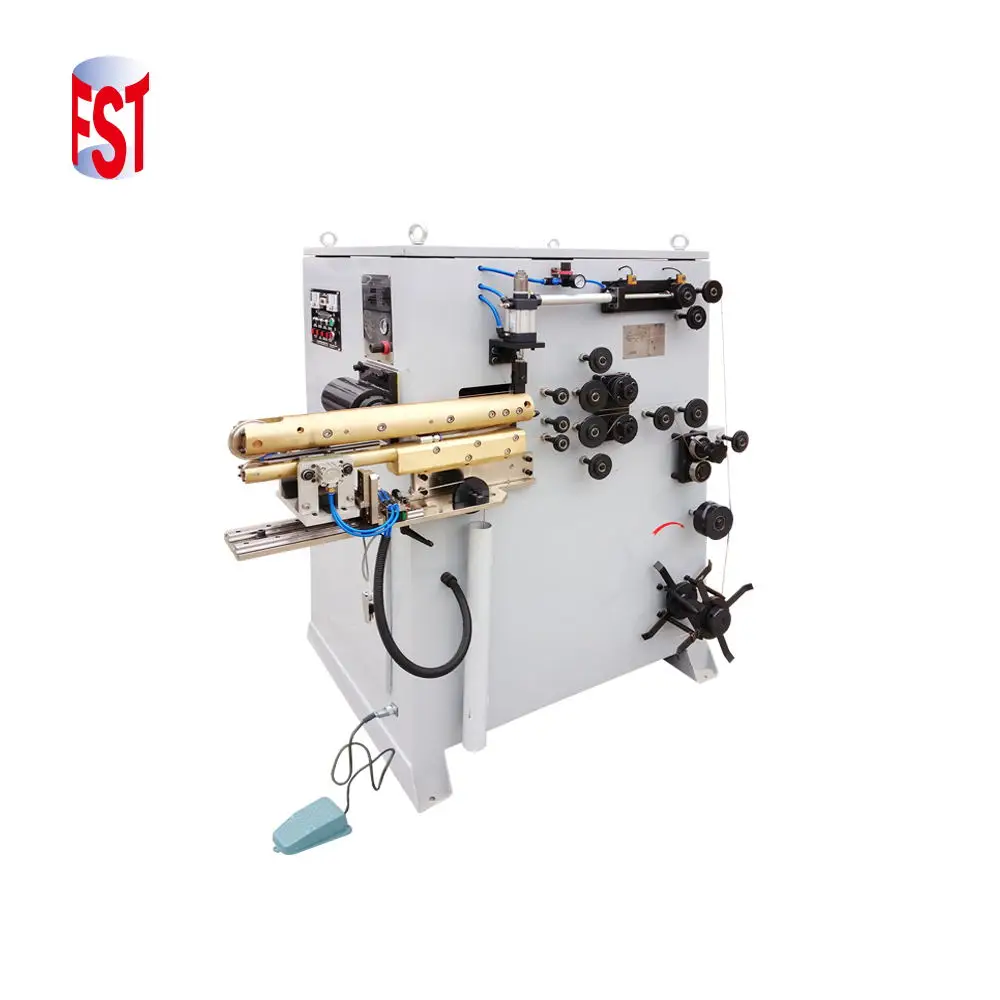

FN2000 Semi automatic Tin Can Seam Welder
FN2000 Semi automatic Tin Can Seam Welder is a special equipment for metal tin can making industry,use to welding tin can body,it's easy to repair and suitable to welding different size of cans.
Features:
1.Mitsubishi PLC and frequency conversion speed governor control system.
2.Welding current controlled by microcomputer,with the function of gently rise and fall of current in front and end.
3.Welding position with up and down limit to prevent loose.
4.Welding pressure,wire storage pressure are have a table show,easy to adjust.
5.Galvanized material use double copper wire to ensure the welding quality.
PLC:Mitsubishi in Japan
Frequency Converter:Mitsubishi in Japan
Sensor:OMRON in Japan
Contactor:Schneider in France
Silicon Controlled Rectifier:Semikron in Germany
Contactor:Schneider in France
Silicon Controlled Rectifier:Semikron in Germany
Welding Wheel Material:Beryllium Copper
Z-bar Material:Carbide
Product Paramenters
Model | FN2000-A | FN2000-B | FN2000-C |
Input Power | 3N 380V/50Hz 10KVA | 3N 380V/50Hz 10KVA | 3N 380V/50Hz 16KVA |
Welding Speed | 5~10m/min | 5~10m/min | 5~10m/min |
Productivity | 10cans/min | 20cans/min | 10cans/min |
Diameter Range | Φ105~Φ290mm | Φ52~Φ180mm | Φ105~Φ290mm |
Height | 420mm(500mm) | ≤250mm | 420mm(500mm) |
Welding Thickness | 0.28~0.42mm | 0.18~0.4mm | 0.28~0.5mm |
Overlap | 3~4mm | 2~3mm | 3~4mm |
Copper Wire | Φ1.5 T2 | Φ1.5 T2 | Φ1.5 T2 |
Welding Material | Tinplate | Tinplate | Tinplate/Galvanized |
Net Weight | 1000kg | 1000kg | 1000kg |
Dimension | 2200x1100x1600mm | 2200x1100x1600mm | 2200x1100x1600mm |
Recommend Products
Exhibition
2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou
Company Profile
Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,
coating,ventilation duct and etc.
