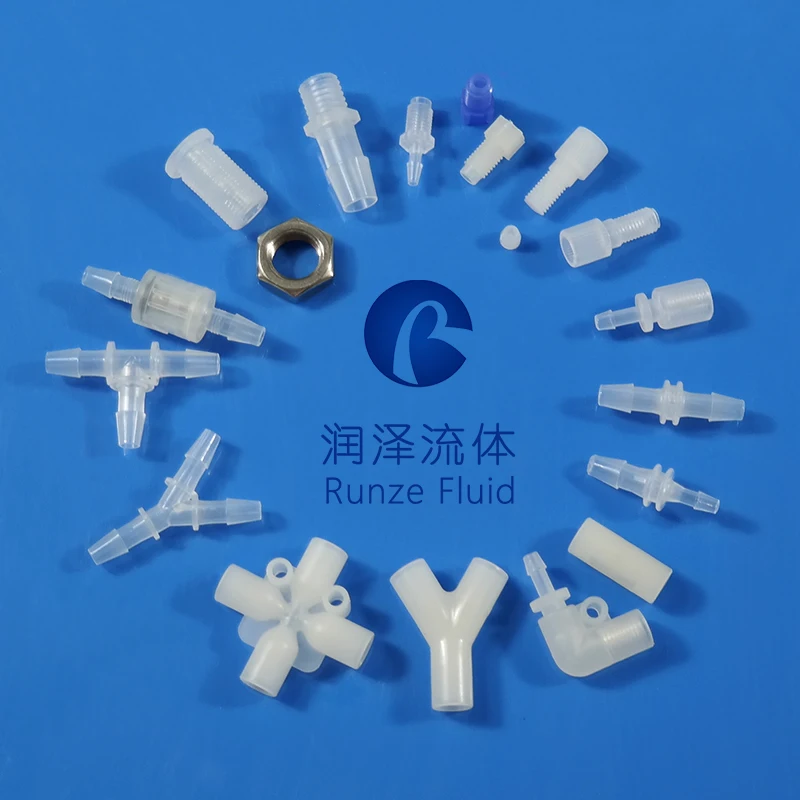

Fittings are a crucial component in setting up your fluid handling system with no leaks, flow restrictions or costly downtime. Our extensive selection includes barbed fittings for flexible tubing, threaded fittings for rigid tubing, quick-connect couplings, luer adapters and many other fittings. Fittings and adapters are available in sizing to connect anything from microbore tubing up to large pipes and in a variety of materials such as low-cost polypropylene (PP) for general applications to PTFE and PFA for corrosive media. Runze Fluid is a super professional molding factory who also support customize your design for special applications.

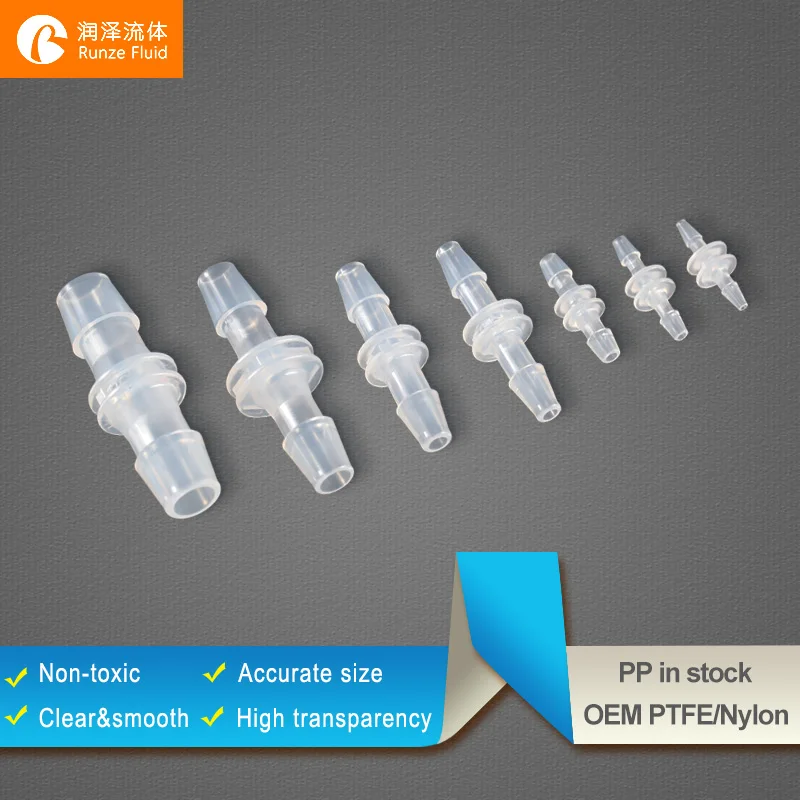

Product Features



• Used to connect peristaltic-type flexible tubing, low pressure applications of peristaltic pumps


• Medical grade polypropylene, not autoclavable due to low melt point of PP, PP can be sterilized via gamma radiatio


• Accurate molding to ensure accurate size and non-leakage connection


• Advanced machining technology to ensure qualified product



Specification



Model No.	Metric/Inch Size	Material	Color	Barbed End (mm)	Tubing ID (mm)	Qty.
DI-016	1.6-1/16	PP (Medical Grade)	Natural PP	∅1.60	1.0-1.6	100-pk
DI-024	2.4-3/32			∅2.40	1.6-2.4
DI-032	3.2-1/8			∅3.20	2.4-3.2
DI-040	4.0-5/32			∅4.00	3.2-4.0
DI-048	4.8-3/16			∅4.80	4.0-4.8
DI-064	6.4-1/4			∅6.40	4.8-6.4
DI-087	8.7-11/32			∅8.70	6.4-8.7

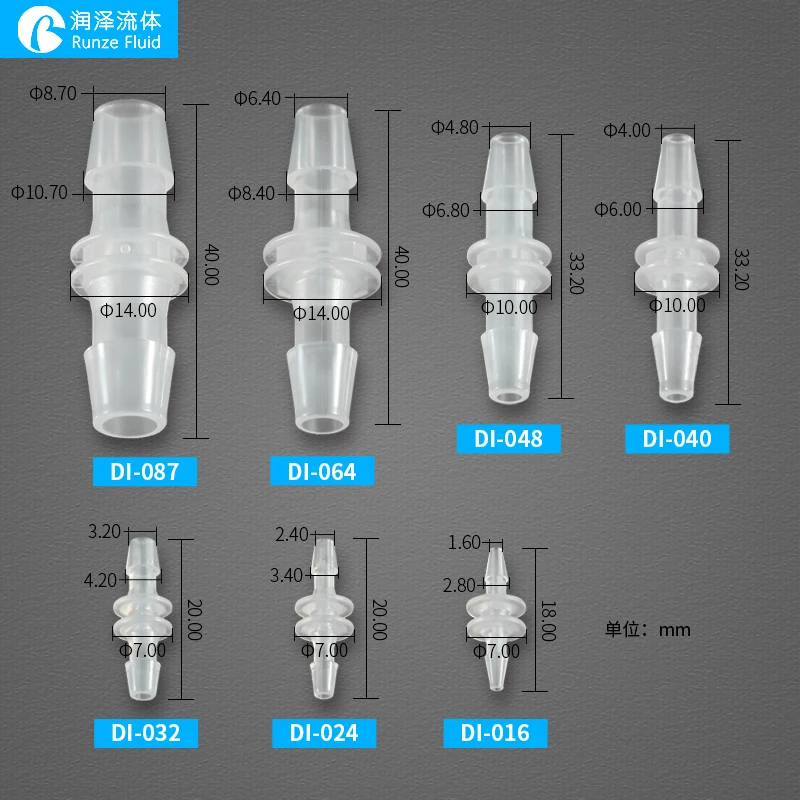

Dimension (unit: mm)







Application Note

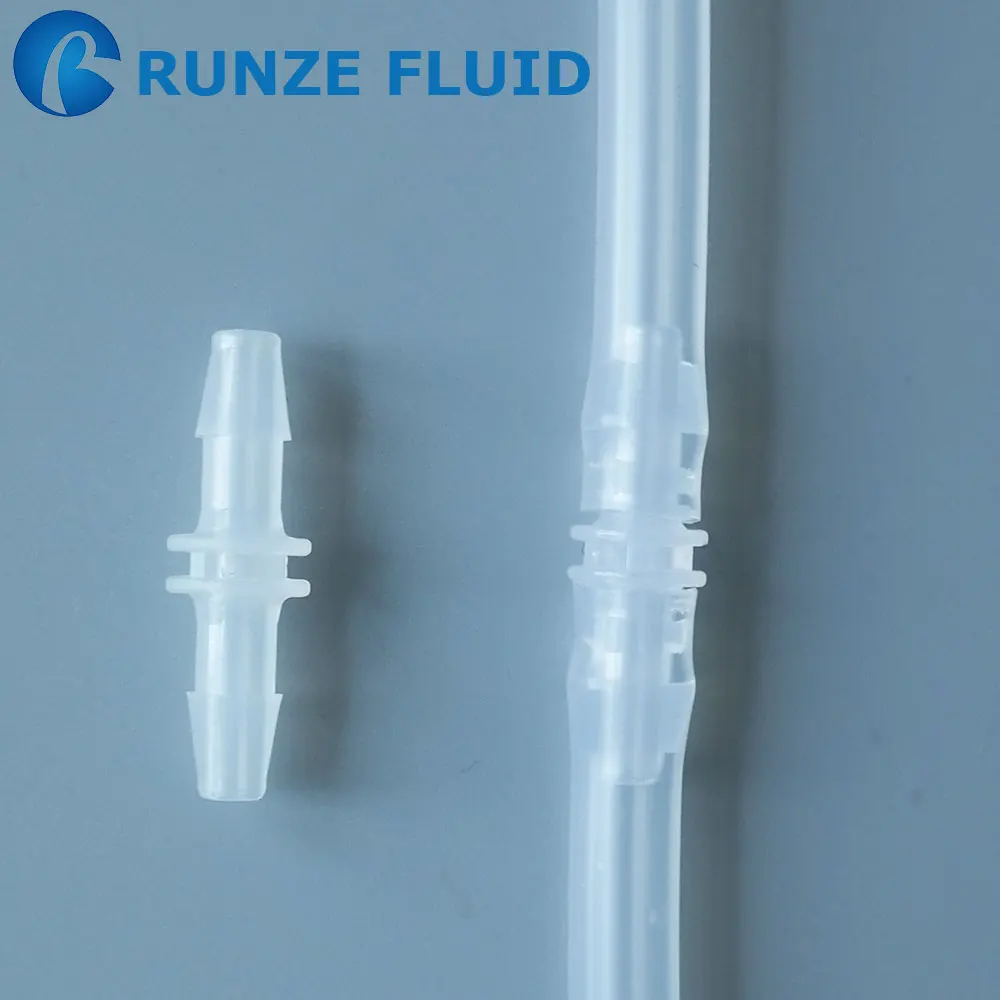

1. Barbed union is used for joining flexible/soft tubing together

2. Choose right size barbed union according to Inner Diameter of flexible/soft tubing



Coompatible  RUNZE Tubing







1. Silicon tubing (For non-corrosive liquid)

2. Rubber tubing (For weak corrosive liquid)

3. Viton tubing (For strong corrosive liquid)
