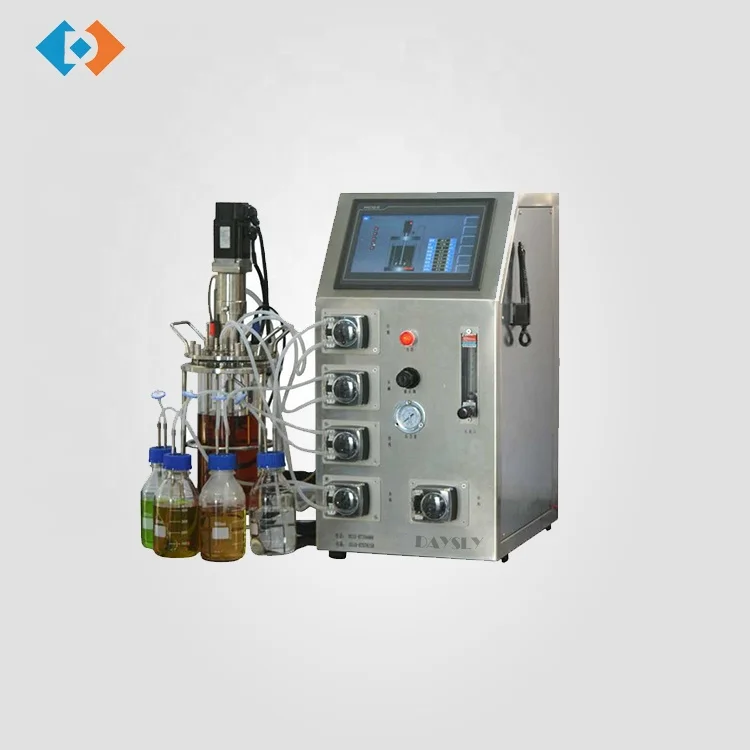

Ферментер из боросиликатного стекла
Ферментер из боросиликатного стекла

Ферментер из боросиликатного стекла


Поделиться:


Цена:10 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 11900.42 $* 12495.19 $*
Aug-19-2025 11800.91 $* 12390.14 $*
Jul-19-2025 9900.91 $* 10395.57 $*
Jun-19-2025 11600.88 $* 12180.12 $*
May-19-2025 10100.25 $* 10605.0 $*
Apr-19-2025 11400.68 $* 11970.68 $*
Mar-19-2025 11300.2 $* 11865.27 $*
Feb-19-2025 11200.89 $* 11760.70 $*
Jan-19-2025 11100.92 $* 11655.3 $*

Характеристики


Product Description


Feature:
1.Fermentors can be sterilized easily by sterilizable -in -place

2.Large 10.4" colourful simens touch screen simplifier entering set points and provides displays of parameter.

3. Advanced software to make it easy for operation and understanding.

4.Stainless steel vessel, piping and control cabinet has long life

5.Excellent stability and convenient to operate

6.Modular design provide system flexibility

7.Small footprint to minimize space requirement

8.Opening piping frame with plenty of space between valves and piping, make it easy for operation and maintenance.

Application:
DAYSLY offers fermentors for microbial culture Applications. It is ideal system for production of bacteria, yeast, enzyme, and fungi, etc in aerobic and anaerobic cultures. This series of products suits for various kinds of microbiology lab, pilot and industrial scale fermentation. User can choose appreciate model according to Client s detail requirement. Lab scale:5L,10L,20L,30L,40L,50L, 60L,70L,80L,90L,100L,150L Pilot scale:200L,300L,400L,500L,600L, 700L,800L,900L,1000L,1500L,2500L, 3000L,4000L Industrial scale:5000L,6000L,7000L,8000L, 9000L,10000L…20000L Special product can be made according to special requirements.

\t
Model
\t
DSL-FM
\t
Tank Body
\t
Tank Volume:5L;
Diameter Height Ratio:1:2.5;
Filling Volume:70%~75%;
Tank Material: Autoclavable borosilicate glass + stainless steel (304/316 Optional);
Jacket Material:304 stainless steel;
Design Pressure:0.25Mpa;
Working Pressure:0.20Mpa;
Round thread process ports for pH, DO, temperature, defoam, liquid level, inoculation, feeding, spare parts.
\t
Material
\t
Borosilicate glass
\t
Sterilization
\t
Autoclaved
\t
Pressure
\t
Different according to different capacity, can also be customized
\t
Agitation
\t
Speed:50~800rpm;
Control Accuracy:±1%FS;
Resolution:1rpm;
Bearing :Japan NSK;
DC speed regulating motor in optimized design and compact outline, is characterized by large torque, high efficiency, steady function and long service life.
\t
Air System
\t
Filter Cartridge Accuracy:0.01µm;
Flowmeter:Rotameter;
Manually regulate gas inlet pressure and flow (pressure sensor is optional, and displayed on touch screen)
\t
Operating panel
\t
Chinese and English version
\t
Main components and controls of system
\t
Temperature Control
\t
Measuring Range:0~160°C;
Control Range:T+6°C~60°C;
Control Accuracy:±0.2°C;
Resolution:0.1°C;
PT100 temperature sensor, automatic electrical heating. Tap water is controlled by solenoid valve to automatically cool down. T refers to temperature of tap water.
\t
pH  control
\t
Measuring Range:0.00~14.00pH;
Control Range:2.00~12.00pH;
Control Accuracy:±0.02pH;
Resolution:0.01pH;
High temperature resistant Hamilton PH electrode imported from Switzerland for fermentation exclusive use, and controlled by peristaltic pump from PLC. (Mettler electrode is optional)
\t
Do Detection
\t
Measuring Range:0.1~200%;
Resolution:0.1%;
Related with speed.
High temperature resistant Hamilton DO electrode imported from Switzerland for fermentation exclusive use. (Mettler electrode is optional)
\t
Foam Control & Feeding System
\t
First-class mechanical pressure defoaming paddle
100~100000Ω defoaming electrode, feeding electrode. PLC automatically transmit defoamer or medium through material feeding port, silicone tube, peristaltic pump to control foam and medium.

\t
Inoculation & Culture Transferring
\t
Inoculation mode:Flame inoculation;
Culture Transferring: Applies different pressure method to realize culture transferring from first class seed tank to the second class seed tank or in reverse.
\t
Control System
\t
PLC+7” true color touch screen + fermentation software package = Biological fermentation process control system;
Control cabinet and independent operation on site.
Touch screen and man-machine conversion.
Fermentation data are auto saved, easy to download to computer through USB.
Packing & Delivery
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t

WENZHOU DAYSLY TECHNOLOGY CO.,LTD is located in Binhai, a science and technology park of WENZHOU, CHINA. The company was set up in 1996 to fulfill the needs of the local and oversea Food, Beverage, Pharmaceutical and Chemical industries. In line with the principle on “quality first,credit first, customer supreme”, developing and innovating our product. Our mission is to engage in powerful professional foreign trade ,to continually acquire international clients,and to provide services and solutions that meet or exceed international standards.
