QT4-15 Полноавтоматическая машина цемента кирпича и пустотелых блоков для мощения бордюрного камня

QT4-15 Полноавтоматическая машина цемента кирпича и пустотелых блоков для мощения бордюрного камня

Категория: Асфальтоукладчики >>>
Поставщик: Quanzhou,City,Xingxin,Machinery,Manufacture,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.70 $*	0.79 $*
Aug-17-2025	0.92 $*	0.27 $*
Jul-17-2025	0.51 $*	0.45 $*
Jun-17-2025	0.20 $*	0.13 $*
May-17-2025	0.94 $*	0.90 $*
Apr-17-2025	0.3 $*	0.95 $*
Mar-17-2025	0.76 $*	0.46 $*
Feb-17-2025	0.67 $*	0.42 $*
Jan-17-2025	0.57 $*	0.15 $*

Характеристики

Product Description

Some advantages of XINGXIN QT series concrete block making machine:

1. About PLC control cabinet : SIEMENS PLC and button; ABB relay; Schneider Accessories etc. Furthermore, there is and additional heat dispassion resistor installed the right side of our PLC for speeding up the dispassion and makes the cycle time shorter.

2. Our hydraulic station system and solenoid valve are Youken brand which is from Taiwan. It is fully sealed so don't worry water leakage and there is a cover for easily clean.

3. About vibration box and raw materials feeding: we use the advantage frequency conversion motor to make the density of different types of blocks produced are nice.

4. Whole cast vibration box used not welded by iron plates to make our vibration box stronger and longer lifespan.

5. More advantages of our block machines please feel free to contact with us, thanks!

Details Images

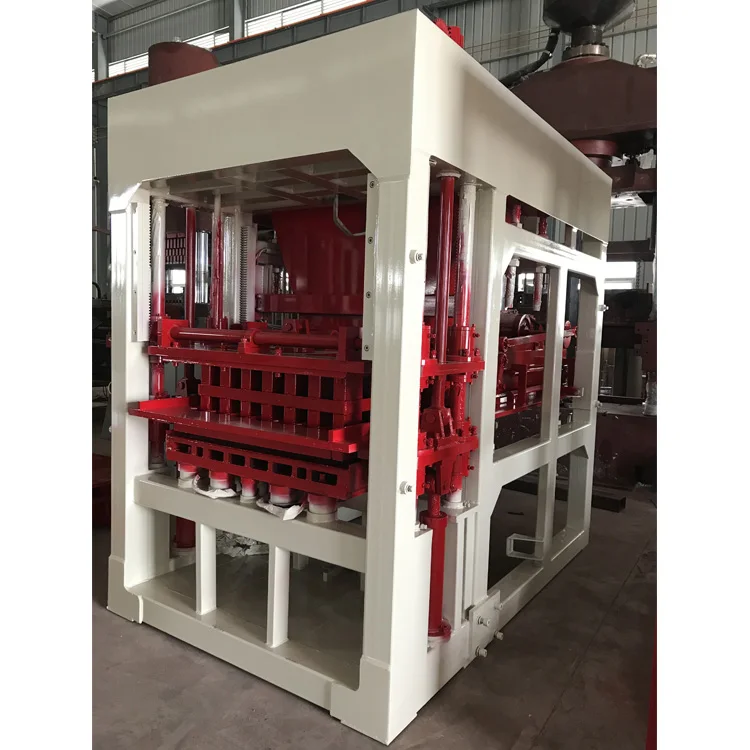

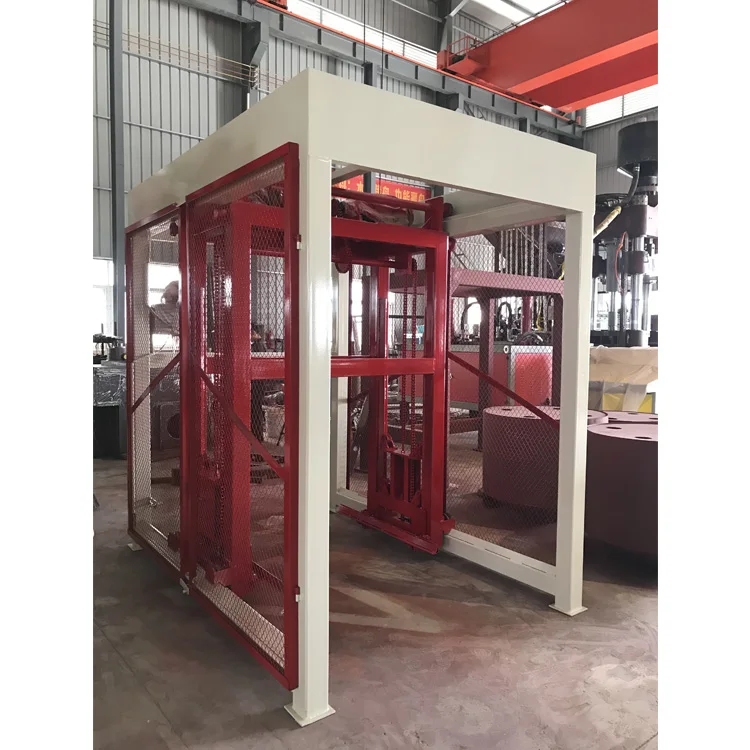

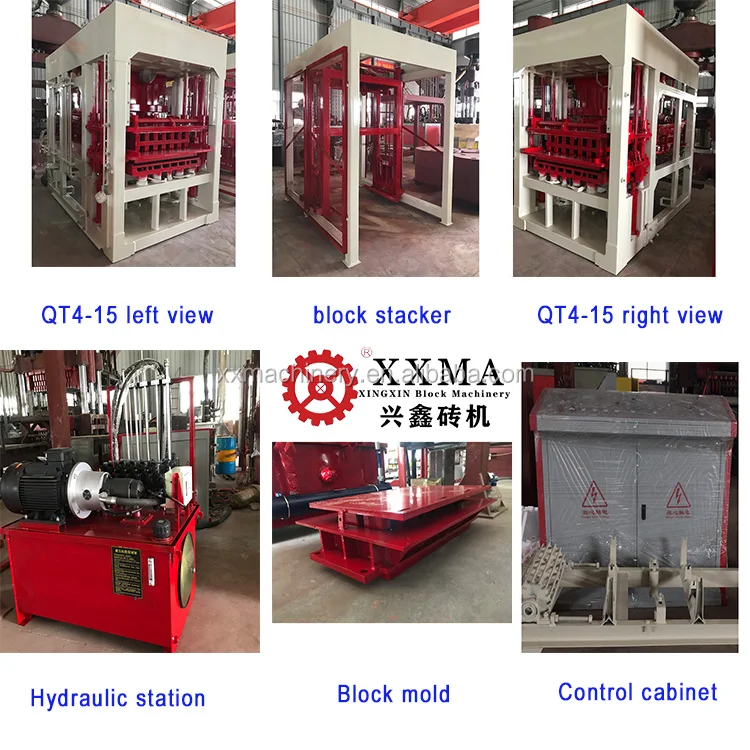

Fully automatic QT4-15 finished block machine showed as following:

Specification

Model	QT4-15	Total Power	26.7 KW
Vibration frequency	3800-4500	Cycle time	12-20 s
Total weight	about 8000 KGS	Vated pressure	25mpa
Pallet size	98056020 mm	Molding method	hydraulic vibration
Machine size	945033002700mm	Vibration force	68 KN
