Гибкая светодиодная лента высокой яркости 60 лм * 4 3528
US $3.50-$3.60
7 2 Вт внутренний светодиодный светильник для шкафа с датчиком движения
- Категория: LED Cabinet Lights >>>
- Поставщик: Shenzhen,Surmountor,Lighting,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 4.62 $* | 4.5 $* |
| Jul-20-2025 | 3.57 $* | 3.44 $* |
| Jun-20-2025 | 4.41 $* | 4.73 $* |
| May-20-2025 | 4.50 $* | 4.7 $* |
| Apr-20-2025 | 3.86 $* | 3.51 $* |
| Mar-20-2025 | 4.16 $* | 4.67 $* |
| Feb-20-2025 | 4.15 $* | 4.10 $* |
| Jan-20-2025 | 4.24 $* | 4.67 $* |
Характеристики
Specification
7.2W Indoor LED Motion Sensor LED Cabinet Light For Furniture | ||
watts | 7.2w | |
voltage | 12v/24V | |
material | aluminum+ Opal diffuser + LED | |
length | 560mm, custom | |
installation | Corner surface mounted with clips | |
temperature | ww 3000k/ nw 4000k / cw 6000k | |
cable output | 20cm with 5521 DC plug | |
warranty | 2 years | |
Product Description

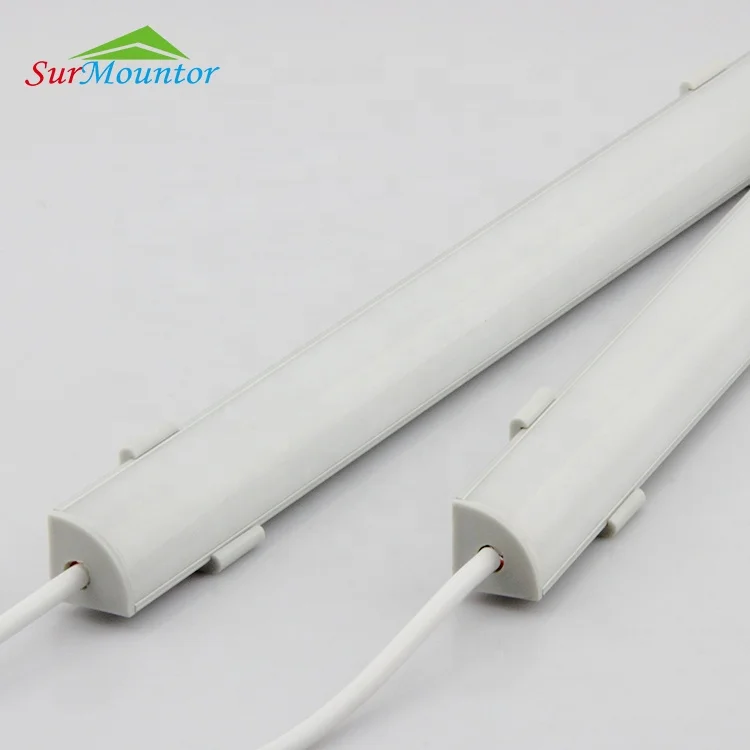

A1616 Aluminum channel
Size: 16*16mm, good heatsink for high power LEDs. Length: 560mm, 860mm, 1160mm, customization.
PC cover of A1616 led profile
Transparent/ clear
Frosted
Milky

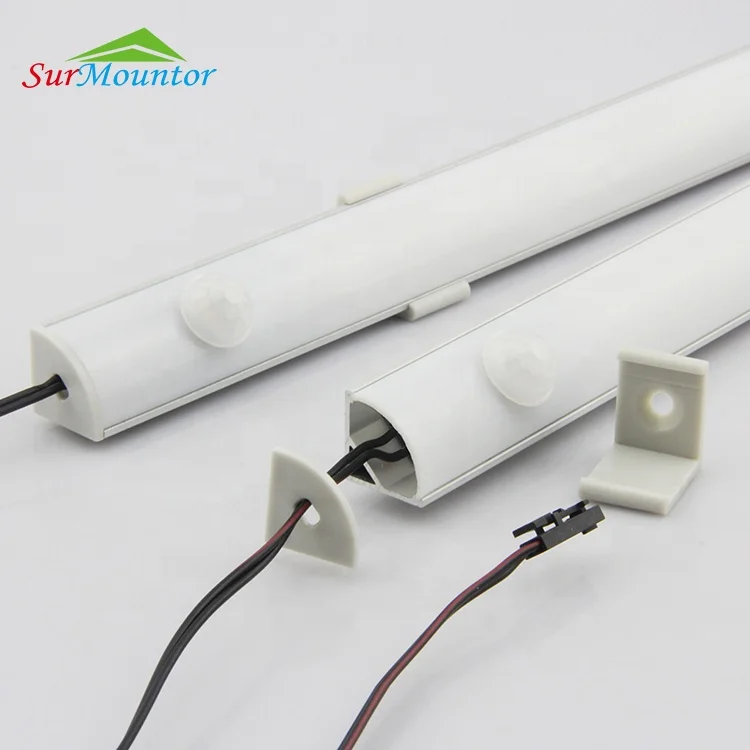

Connector for A1616 led profile
1. Inner corner
2. Outer corner
3. Straight connector
A1616 led linear light inner led strips
SMD2835 120leds/m, CRI90-95,
24VDC, 14.4w/m, WW/NW/CW,
PCB 10mm, IP20.
6 leds every cut (50mm).
CE , ROHS.
7.2W Indoor LED Motion Sensor LED Cabinet Light For Furniture-- Cable connector

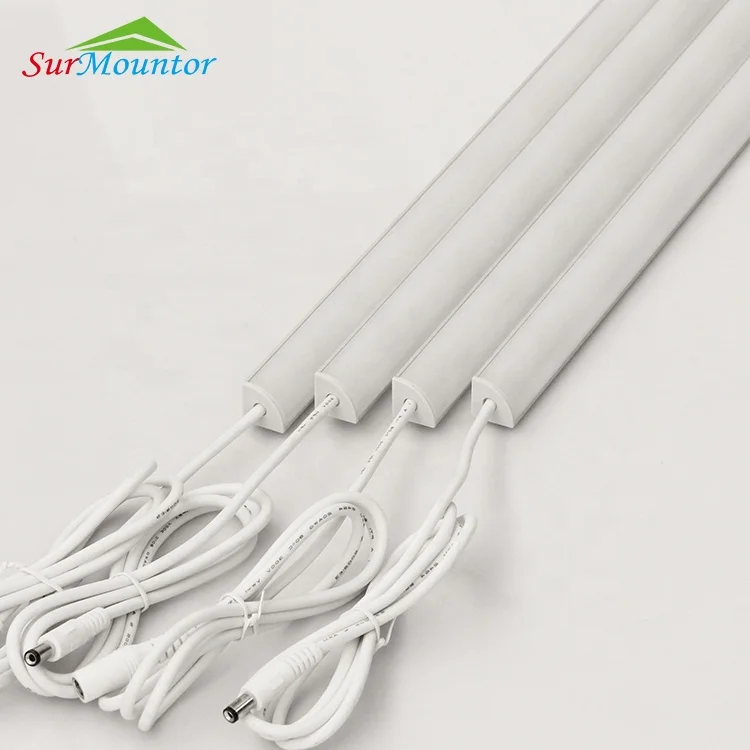

Customer can choose 0.2m or 1m / 2m cable with male plug, then it is very easy to connect to the power supply.
5521 DC plug with 1m cable output
Then it is easy to run many pieces of A1616 under cabinet light in one common power supply by 6ways spliter box.
6 ways spliter box for male plug
It is good for many pieces led lights .

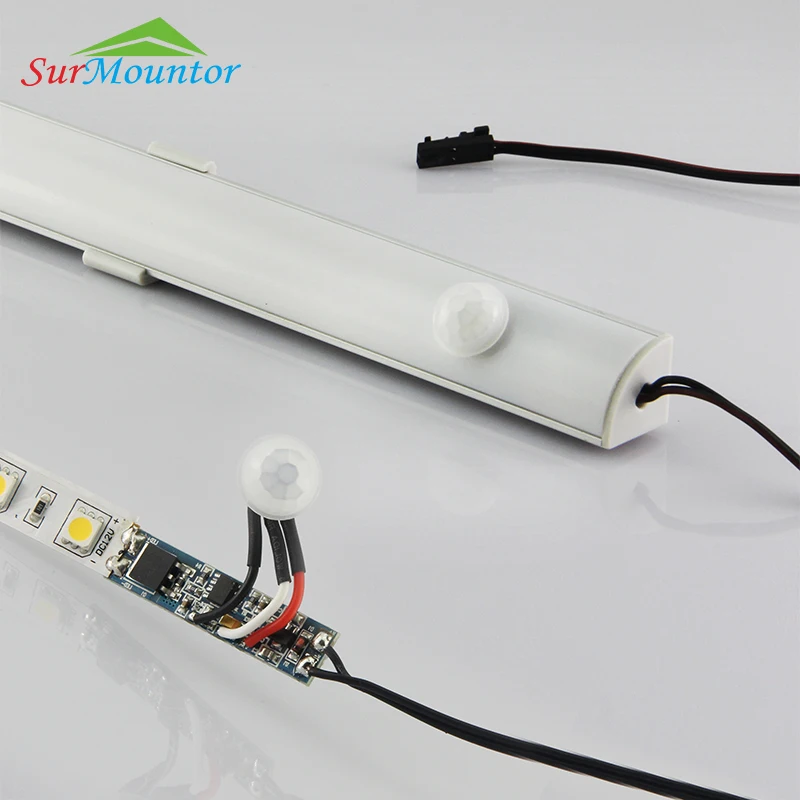

7.2W Indoor LED Motion Sensor LED Cabinet Light For Furniture -- Automatical switch : PIR motion sensor
PIR Sensor will automatically turn on the light when the cabinet door is open, and turn off the led light after the door close 6 to 70 seconds.
Model | A1616-600 | A1616-900 | A1616-1200 |
LED Light Length | 600mm | 900mm | 1200mm |
Bulb Watt | 8.0W | 12.9W | 16.6W |
Input Voltage | 12V/24V | 12V/24V | 12V/24V |
Installation process
1. Cut a 4mm hole at the back of the cabinet
2 . Screw the mounting clips at the corner
3. Put the clips plug in the splitter box which is connect the power supply, Or connect the 5521 DC plug to the power supply directly.
4. Turn on the power

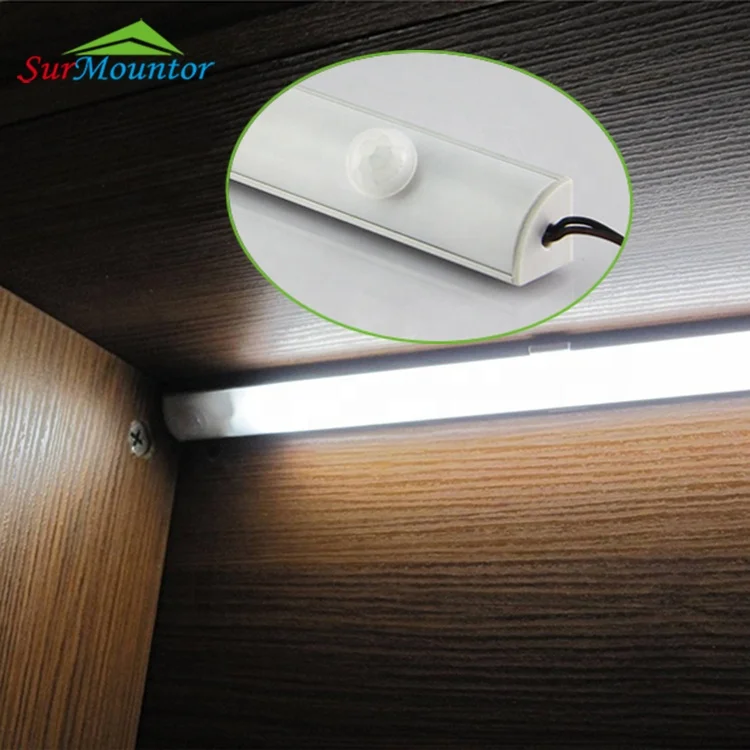

Applications
Packing & Delivery
Under cabinet led light-- plastic bag per piece-- white box -- stick lable on each white box-- put into carton
Certifications
Related Products
A1816 Linkable linear led cabinet light
A1816- 600MM 7.2w/pcs
A1816- 1000MM 14.4w/pcs
PCB connector to link maximun 15M per
power supply without voltage lost.
A1713 led cabinet light
Super light bar - 570mm 8.0w/pcs
Super light bar - 870mm 12.3w/pcs
Super light bar - 1170mm 16.6w/pcs
Female and male end caps to connect longer
Magnet and angle mounting clips on the back.
