Автоматическая медицинская марлевая компрессионная Складная
- Категория: Other Textile Machines >>>
- Поставщик: Yueyang,MDK,Protection,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.76 $* | 0.62 $* |
| Aug-18-2025 | 0.13 $* | 0.75 $* |
| Jul-18-2025 | 0.97 $* | 0.20 $* |
| Jun-18-2025 | 0.17 $* | 0.56 $* |
| May-18-2025 | 0.78 $* | 0.44 $* |
| Apr-18-2025 | 0.83 $* | 0.92 $* |
| Mar-18-2025 | 0.79 $* | 0.7 $* |
| Feb-18-2025 | 0.38 $* | 0.65 $* |
| Jan-18-2025 | 0.69 $* | 0.95 $* |
Характеристики
Product description
Introduction:

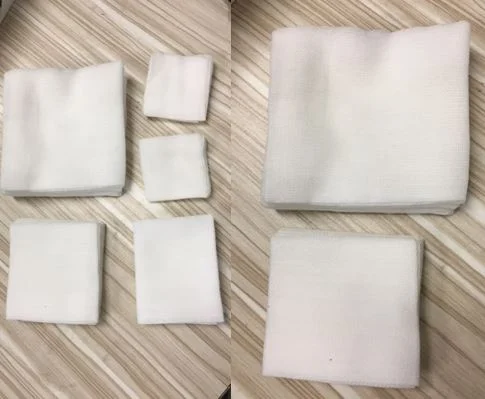

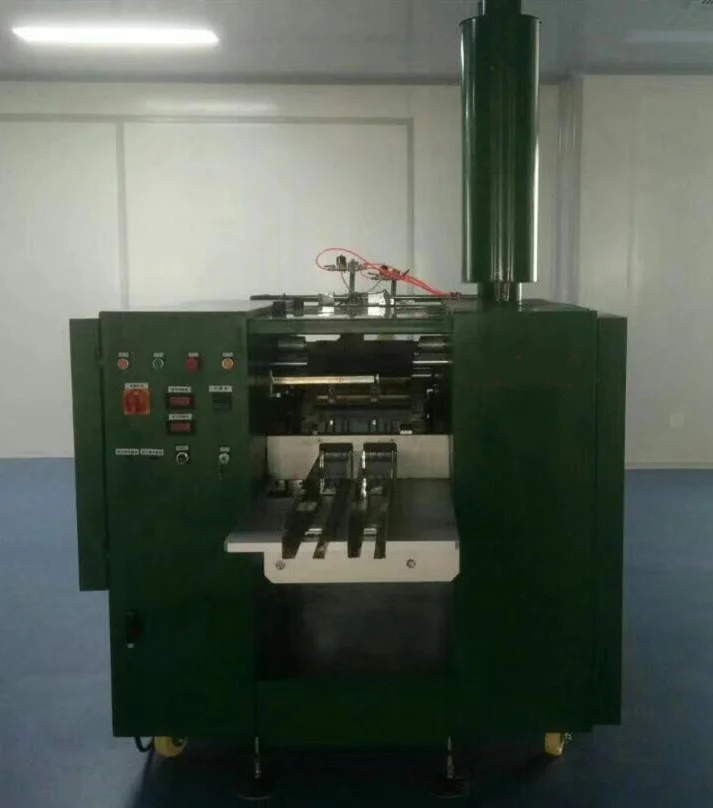

Gauze swabs (sponge) folding machines,for automatic folding french folds(edge unfolded) style gauze swabs of 5cmx5cm,7.5cmx7.5cm and 10cmx10cm in 8,12,16 ply. Other sizes gauze sponges of 5cmx7.5cm,7.5cmx10cm and 10cmx12.5 cm in 8,12,16 ply are also available. Special sizes can be built as per need.
Production capacity:
270 pcs per minute for gauze swabs of 5cmx5cm,in 8,12,16 ply
225 pcs per minute for gauze swabs of 7.5cmx7.5cm,in 8,12,16 ply
180 pcs per minute for gauze swabs of 10cmx10cm,in 8,12,16 ply
Labor: 1 worker required.
Technical Specifications
Folded Single Convey
ITEM | FG-5(2 INCH) | FG-7.5(3INCH) | FG10(4INCH) |
PCS/MIN | 200 | 180 | 145 |
Meter/MIN(Gauze Length) | 40 | 54 | 58 |
Product Size | 5X5cm | 7.5X7.5cm | 10X10cm |
Product Layer | 8,12,16 | 8,12,16 | 8,12,16 |
Auto-Count | YES | YES | YES |
Gauze Roll Size(MAX) | Φ1000mm | Φ1000mm | Φ1000mm |
Gauze Roll | Φ900mm | ||
Machine Length | 3000mm | 3200mm | 3300mm |
Machine Width | 1400mm | 1550mm | 1750mm |
Machine Height | 1350mm | 1400mm | 1450mm |
POWER | 5.9kw | 6.7kw | 7.7kw |
Power Voltage | 3*380v | 3*380v | 3*380v |
Power Frequency | 50hz | 50hz | 50hz |
Compressed Air Consumption | 0.6Mpa2m3/h | 0.6MPa2m3/h | 0.6MPa2m3/h |
0.2MPa 51/m | 0.2MPa 51/m | 0.2MPa 51/m | |
Net Weight | 1500kg | 1900kg | 2300kg |
Unfolded Double Convey
Item | FG-5 | FG-7.5 | FG10 | FG6 | FG7 | FG8 |
PCS/MIN | 180x2 | 160x2 | 125x2 | 180x2 | 160x2 | 160x2 |
Meter/MIN(Gauze Length) | 40X2 | 54X2 | 58X2 | 44X2 | 50X2 | 52X2 |
Product Size | 5X5 5X6 5X7 | 7.5X7.5 7.5X8 7.5X9 | 10X10 10X12
| 6X6 6X7 6X8 | 7X7 7X8 7X9 | 8X8 8X9 8X10 |
Product Layer | 8,12 | 8,12 | 8,12 | 8,12 | 8,12 | 8,12 |
Auto-Count | yes | yes | yes | yes | yes | yes |
Gauze Roll Size(MAX) |
Φ1000mm
| |||||
Gauze Roll |
Φ900mm | |||||
Machine Length | 3500mm | 3200mm | 3300mm | 3500mm | 3800mm | 4000mm |
Machine Width | 1400mm | 1550mm | 1750mm | 1400mm | 1500mm | 1500mm |
Machine Height | 1350mm | 1400mm | 1450mm | 1350mm | 1400mm | 1400mm |
Power | 6kw | 8kw | 8kw | 7kw | 8kw | 8kw |
Power Voltage |
3*380v
| |||||
Power Frequency |
50hz
| |||||
Compressed Air Consumption | 0.6Mpa2m3/h
| |||||
Water Consumption | 0.2MPa 51/m
| |||||
Net Weight | 1500kg | 1900kg | 2300kg | 1500kg | 1900kg | 1900kg |
|
|
|
|
|
|
|

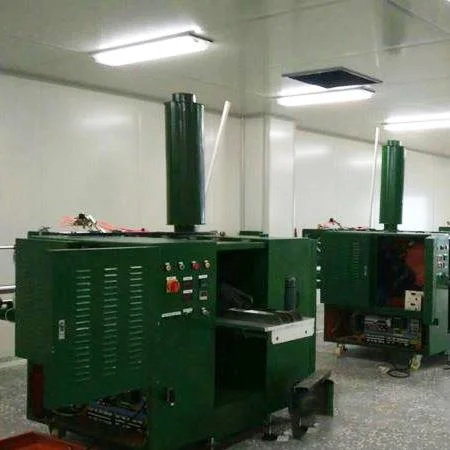

Product display
More products
Customer Visithibiti
Delivery & Payment
FAQ
1.Q: Are you a factory or trading company?
A: We are a factory which license of import and export.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueyang City, HunanProvince
The nearest airport is Yueyang airport.
We would like to pick up you in that airport. Welcome to visit us!
3.Q: How long is the warranty period ?
A: ONE year.
4.Q: How about the installation? Do you have after-sale service?
A: We will send professional technician to your company to install the machine and train your staff until they could operate the machine independently.
5.Q: Why should we choose your company?
Certified company with CE certificates.
Various production line, covering more than 50 different kinds of professional machinery to produce medical disposable.
Advanced technical support and strict quality management system.
High-efficiency and timely service by E-mail, Skype,Whatsapp,etc.
