high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow UL CE RoHS
- Категория: Centrifugal Fans >>>
- Поставщик: Shenzhen,Yccfan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2.74 $* | 2.3 $* |
| Aug-15-2025 | 2.51 $* | 2.12 $* |
| Jul-15-2025 | 2.55 $* | 2.61 $* |
| Jun-15-2025 | 2.92 $* | 2.66 $* |
| May-15-2025 | 2.11 $* | 2.24 $* |
| Apr-15-2025 | 2.4 $* | 2.84 $* |
| Mar-15-2025 | 2.10 $* | 2.94 $* |
| Feb-15-2025 | 2.42 $* | 2.16 $* |
| Jan-15-2025 | 2.76 $* | 2.57 $* |
Характеристики

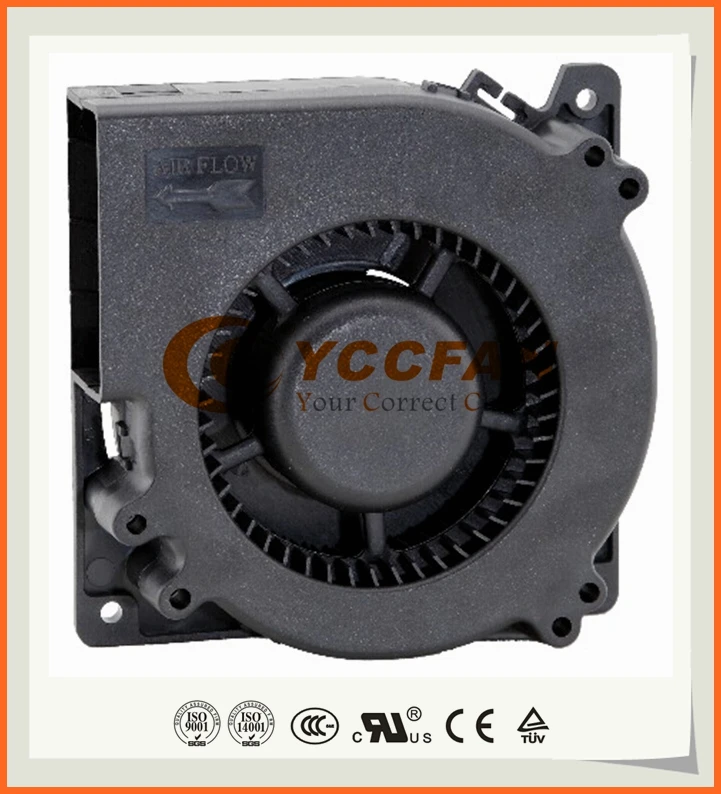

high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow air UL CE RoHS approved
Product Description
Specification: 120x120x32mm 12volt dc motor blower fan
Rated voltage: 12v 14v 24v according to customer's requirement
Air flow, air pressure, speed and rated voltage can be customized based on customer's requirement
Bearing: Sleeve or Ball ( sleeve working time for 30,000 hours, ball working time for 50,000 hours)
Yccfan ball bearing is Minebea NMB brand, it is imported from Japan
YCCFAN 100% inspected material, are all compliance to RoHS, environmental protection
and fireproofing material UL94V-0 .
| Size | Material | Rated Voltage | Operating temperature | Length of lead wire | Terminal |
| 120 x 120 x 32 (mm) | Plastic ( UL 94 V-0 rating) | 5v, 8v 9v, 12v 14v 24v | -30 ℃ to + 75 ℃ for ball bearing -10 ℃ to+ 70 ℃ for sleeve bearing
| as customer's requirements | as customer's requirements |
high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow air UL CE RoHS approved
factory visiting
We have DC FAN & AC FAN production room, and our QC Group will choose the products
randomly from them and inspect products every day. It totally assure the product quality.
high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow air UL CE RoHS approved
inspection equipment
A & B manchine: temperature testing manchines
we can test the fan whether they can work in high temperature or low temperature by the fan is put into A or B manchine,
temperature range : -40 degree to 200 degree, and also test the fan lifetime under difference temperature, i.e: 85 degree
C Noise room
the noise level will be tested into this room, background less 20 dba
D Wind tunnel
precise air flow of fan and air pressure
E Vibrating equipment
testing vibration of fan
F Salt-flog testing equipment
G XRF-ROHS Inspection Instrument
high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow air UL CE RoHS approved
Certifications
1. All cooling fan have passed CE , Most of them also got UL & CUL certificate
2. Our company have approved IS9001 & ISO14001 CCC certificate .
high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow air UL CE RoHS approved
trade show
Yccfan attend many exhibitions at home and abroad every year.
( HongKong, Guangzhou, Shanghai, South Korea, USA,Germany ,Alaska)
You are warmly welcome to come Yccfan company if you would like to visit our factory.
high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow air UL CE RoHS approved
Packaging & Shipping
Packing: carton box or as customer's requirements
Shipping:
1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.
2. Large Measure are shipped by ship or by air as customer's requirements.
3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow air UL CE RoHS approved
Our Services
1.Warranty : one year warranty for all products.
2.Privated Labelling: All of axial fan are able to be Private labeled.
3.Delivery time:Normally lead time is 25 days.
4.Products quality:100% products inspection before delivery.
5.Customized products and cooling products is provided as customer request.
Help us to provide preferably product fan for you:
- Fan Type, DC/AC
- Case Size (Dimensions)
- Speed
- Air Flow
- Noise
- Rating Voltage, 3V/5V/12V/48V/115V/220-240V
- Bearing, Sleeve/2Ball/VAPO
- Wire, 2 lead wires/3 lead wires/4 lead wires
- Wire Length
- Connector or not
- Target Price
- high air flow blower fan 120mm 120x120x32mm 12volt dc motor blow air UL CE RoHS approved
- Ask freely if questions, we will get back to you detailed specification.
