Стальная противопожарная дверь ASICO BK67 UL с

Категория: Doors & Windows >>>
Поставщик: Shandong,Asico,Door,Co.,Ltd.

Цена:149,00 $ - 158,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-20-2025	189.23 $*	193.13 $*
Jul-20-2025	153.50 $*	156.74 $*
Jun-20-2025	186.23 $*	190.96 $*
May-20-2025	185.9 $*	189.56 $*
Apr-20-2025	148.88 $*	151.2 $*
Mar-20-2025	182.49 $*	186.58 $*
Feb-20-2025	180.93 $*	184.23 $*
Jan-20-2025	179.45 $*	183.6 $*

Характеристики

Product Description

ASICO door is dedicated to the manufacture of various doors, especially solutions for providing commercial hollow metal doors. ASICO door's hollow metal door is one of the flagship products, and ASICO door's hollow metal door meets US UL standards.

Product Specifications
Brand	ASICO

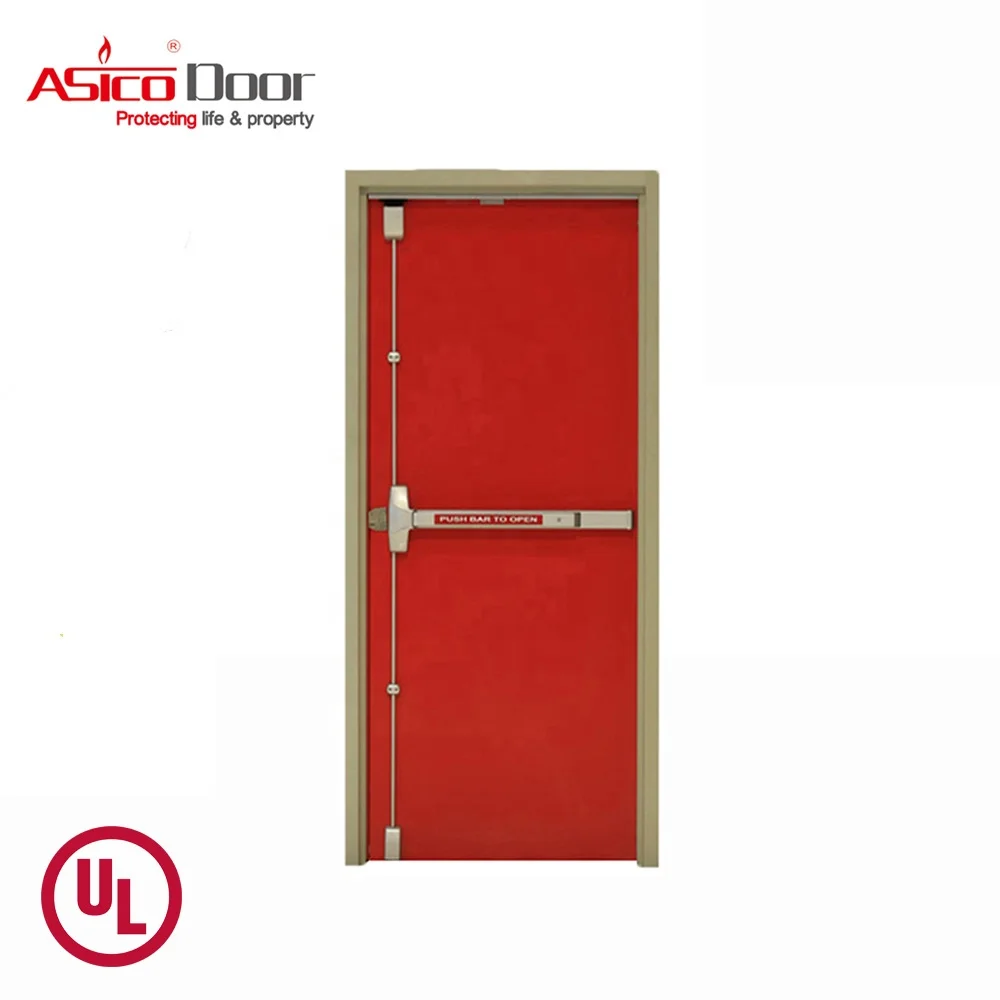

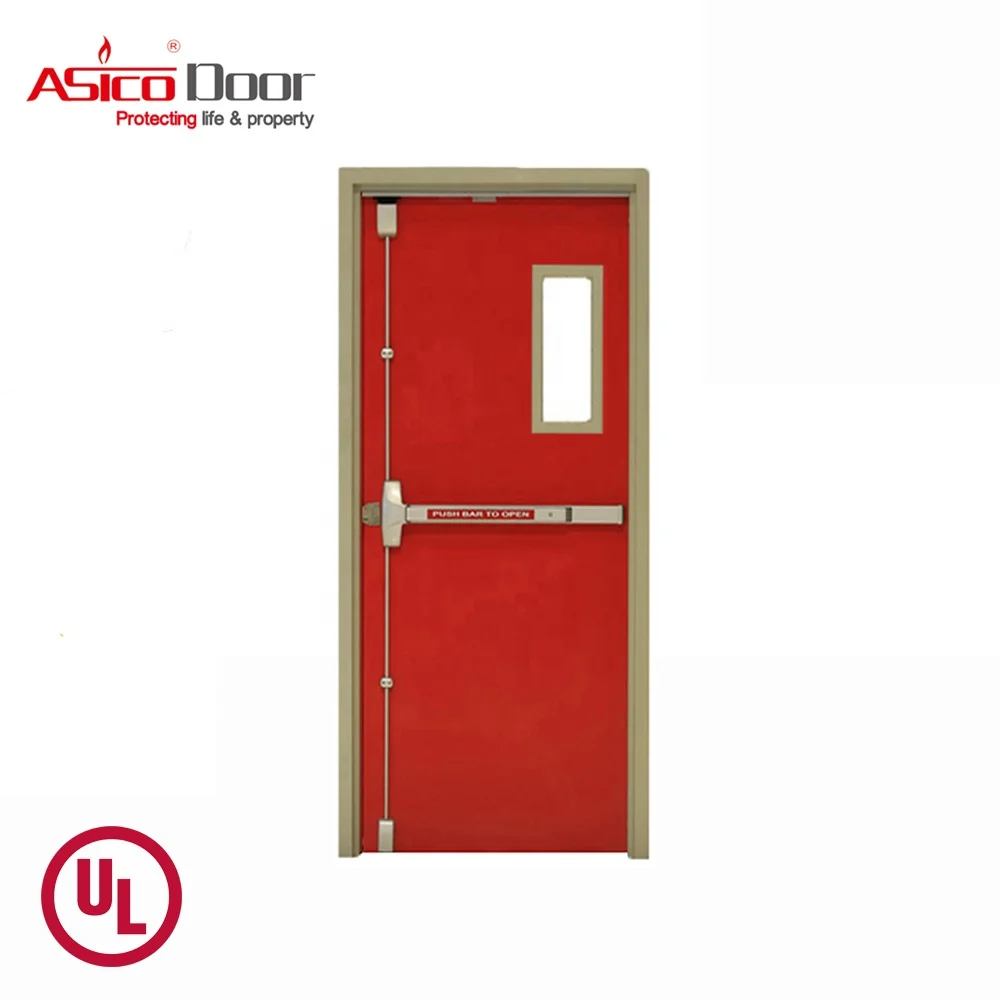

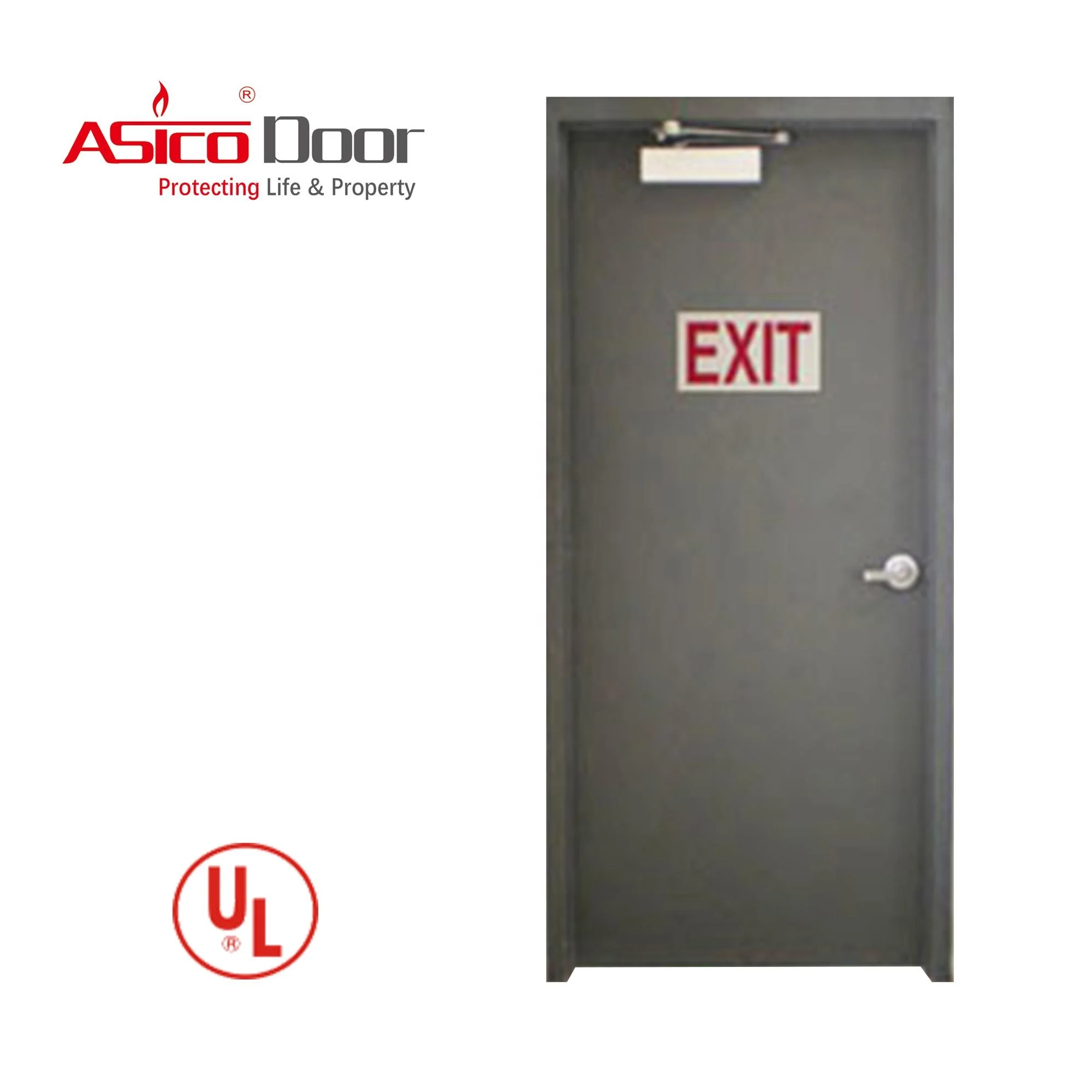

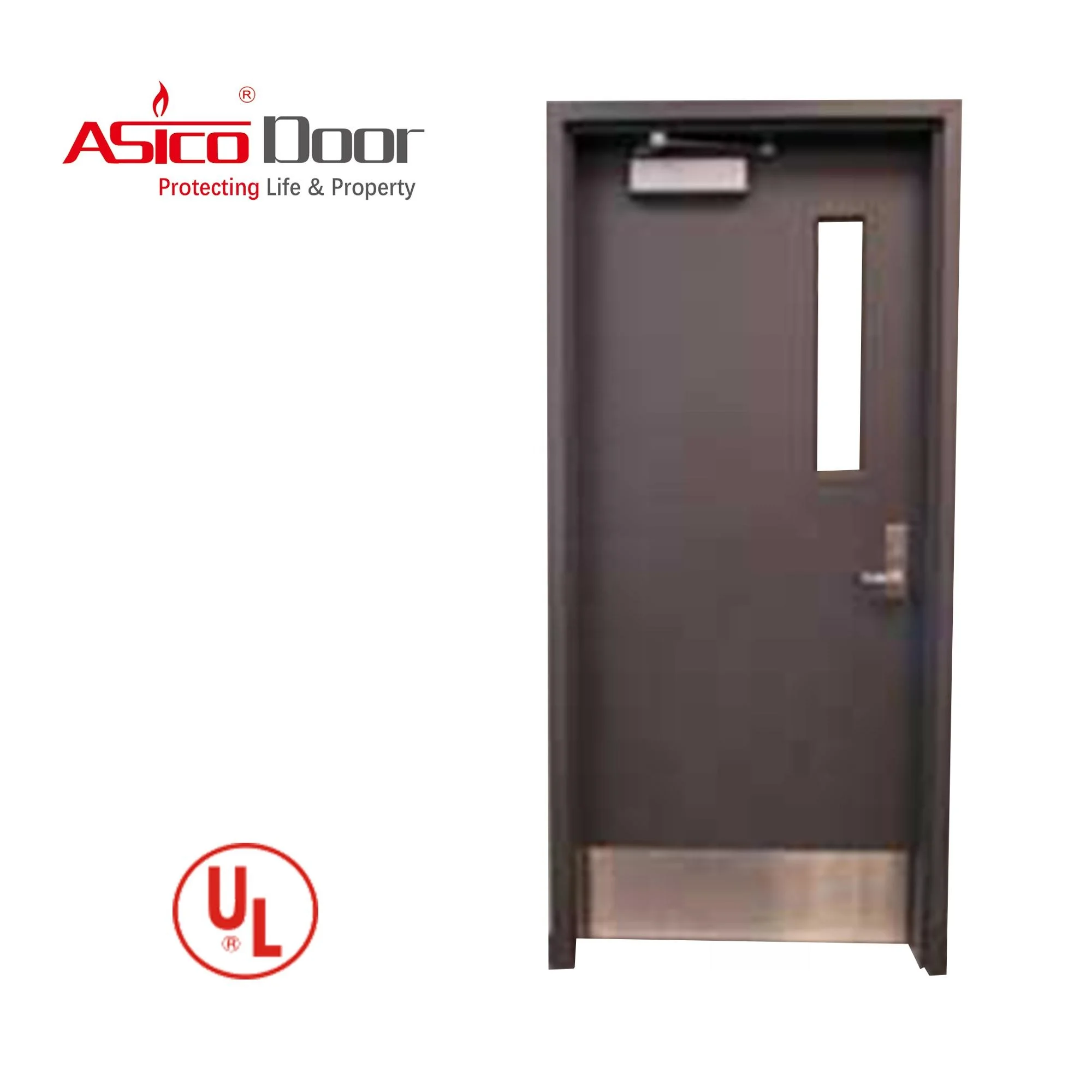

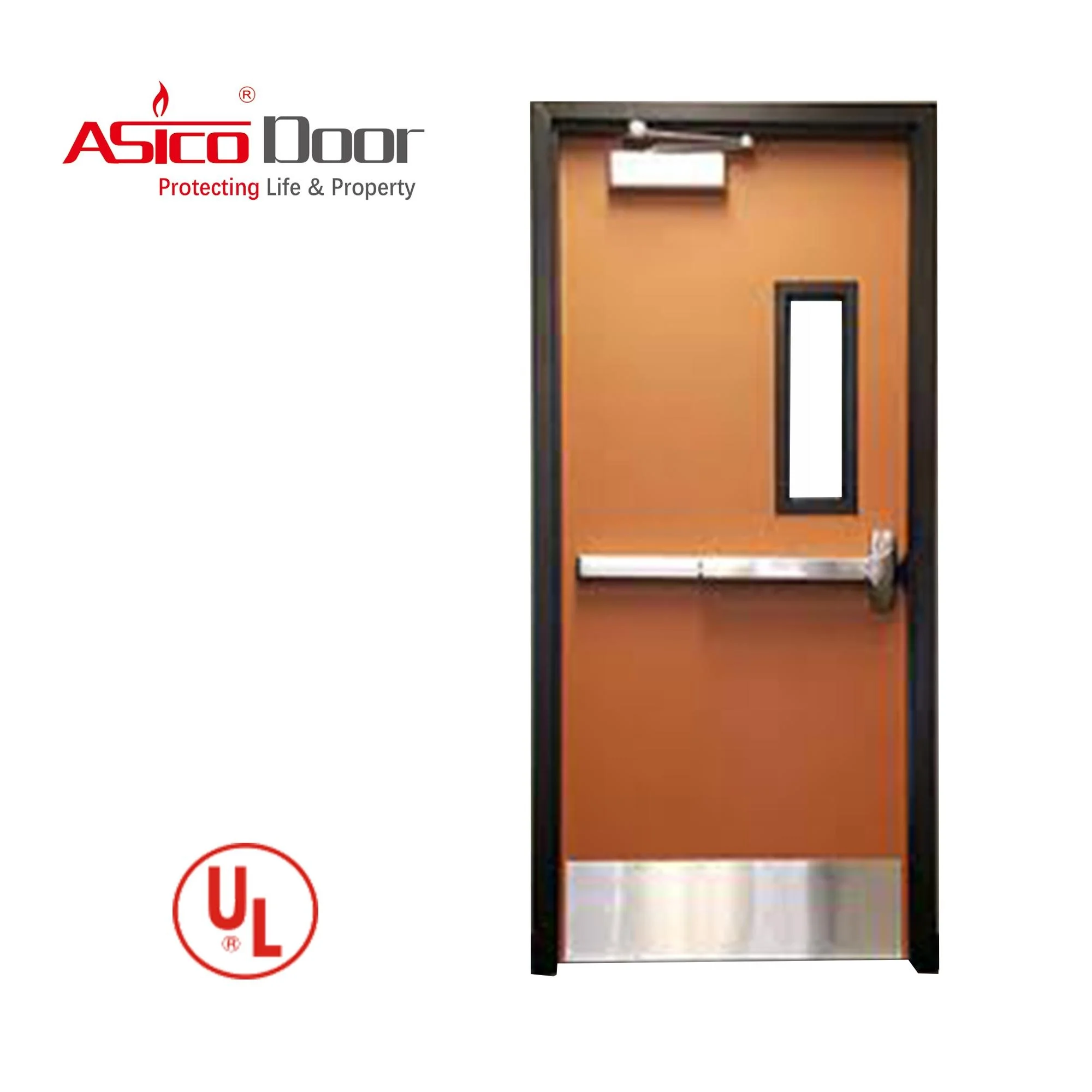

Product Name	ASICO BK67 UL Listed Steel Fire Door
Standard	UL 10(b), UL 10(c), UBC 7-2, NFPA, ASTM
Certifications	UL NUM(R38744/R38745)
Filler Material	Honey Core, Mineral rock wool, polyurethane core.
Fire rated time	1 hour up to 3 hours.
Size	Maximum size is 8’x8’ (2440x2440mm)
Door leaf sheet	22 Ga. - 18 Ga. (0.8/1.0/1.2 mm)galvanized steel/cold roll steel
Door frame	16 Ga. - 14 Ga. (1.5mm-2.0mm). cold roll steel/galvanized steel
Surface finish	Door leaf and frame powder coated finish.
Frame depth	115mm - 240mm
Opening	Swing, Inward/Outward
Color	RAL color system, could be customized as well.
Accessories	Lock,handle,hinges,door closer,panic bar and other as requested.
Vision Panel	With or without as requested.
Lite Frame	UL listed lite frame. (UL Number: 38990)
Louver	With or without as requested.
Feature	Fire proof and thermal insulation.
Application	Suitable for building project, business, home decoration(Office, hotel, church, home and so on.)
Package	Inside with PE paper, outside is double layers carton box, then wooden pallets packaged.
MOQ	100 sets

Certifications

Technical Data

Reinforcement&Frame

KD Frame:

A KD or Knocked Down hollow metal frame (slip-on frame) is used for interior applications and comes in 3 pieces (strike jamb, hinge jamb and head). The KD metal door frame is designed to be installed after the stud wall has been built and drywall applied, as it wraps the wall. For use with metal or wood doors.

Welded Frame:

Generally it has two options of face welding and a full profile welded frame.

Face welding is weld applied only to the face of the frame, usually at the 45 degree joint. The full profile weld is applied to the full contour of the frame at the intersection of the head and the jambs. Since most manufacturers can fire rate their frames knocked down (in 3 pieces), welding is not required and is usually for cosmetic appearance and ease of installation.

Three types of common ASICO metal frames to match different options anchors.

Drywall Frame

Masonry Frame

Adjustable Frame

More details for ASICO metal frames

* Frame steel thickness: 18 gauge (1.2mm), 16 gauge (1.5mm), 14 Gauge (2.0mm)
* Throat depth available: 4 3/4” - 10 1/4”.
* Standard height of stops shall be 0.625 in. (15.8 mm)
* Factory applied baked-on rust inhibiting primer or Prefinished.
* Cut ready opening is prepared for single stud, door silencers, three per strike jamb for single door openings, two per head for pairs, except on gasketed or weather stripped frame product. Silencers shall be supplied and installed by others.
* ASICO Frame product is mortised, reinforced, drilled and tapped at the factory for templated hardware or in accordance with the approved hardware schedule and templates provided by the hardware supplier.
* Hardware reinforcing ready for full mortised hinges and pivots, strikes, flush bolts, closer, hold open arms, and other surface applied hardware.
* Fire rated unique label 1 hour, 1.5 hour, 2 hours up to 3 hours.

Installing Anchors

Masonry Wall Anchor
