Натяжная спиральная гофрированная стальная трубчатая машина для бетонной
- Категория: Construction Machinery Attachments >>>
- Поставщик: Nantong,Zhenhuan,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 5593.85 $* | 5873.58 $* |
| Aug-15-2025 | 5546.6 $* | 5823.32 $* |
| Jul-15-2025 | 4653.42 $* | 4886.50 $* |
| Jun-15-2025 | 5452.16 $* | 5725.44 $* |
| May-15-2025 | 4747.58 $* | 4984.61 $* |
| Apr-15-2025 | 5358.42 $* | 5626.53 $* |
| Mar-15-2025 | 5311.24 $* | 5577.35 $* |
| Feb-15-2025 | 5264.99 $* | 5527.0 $* |
| Jan-15-2025 | 5217.58 $* | 5478.96 $* |
Характеристики
MACHINE DESCRIPTION

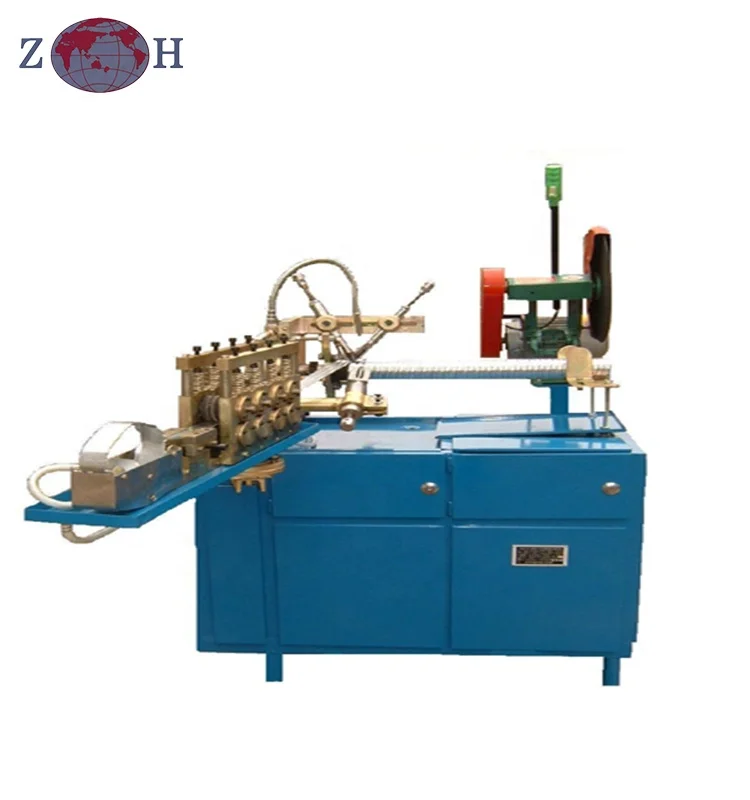

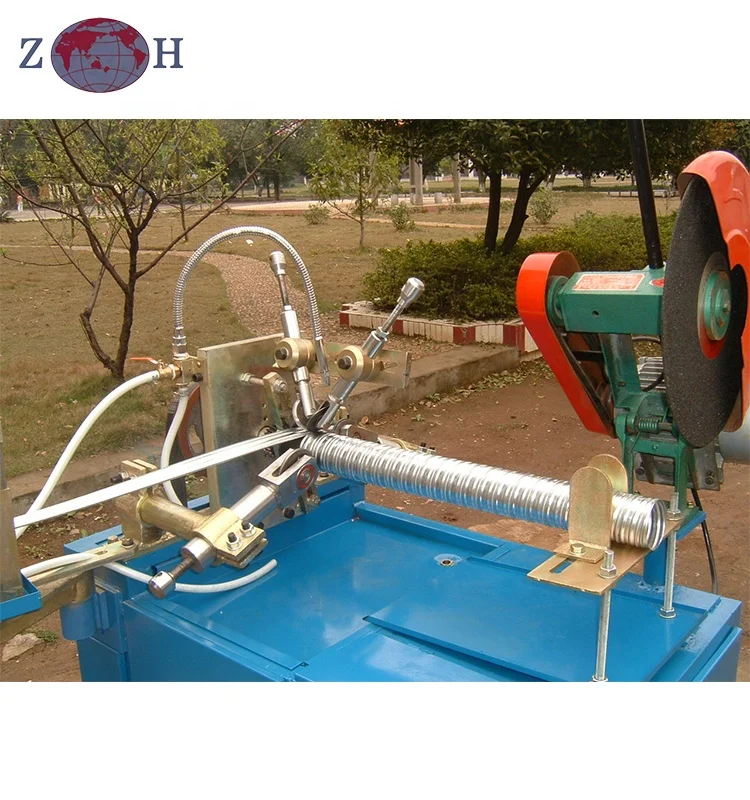

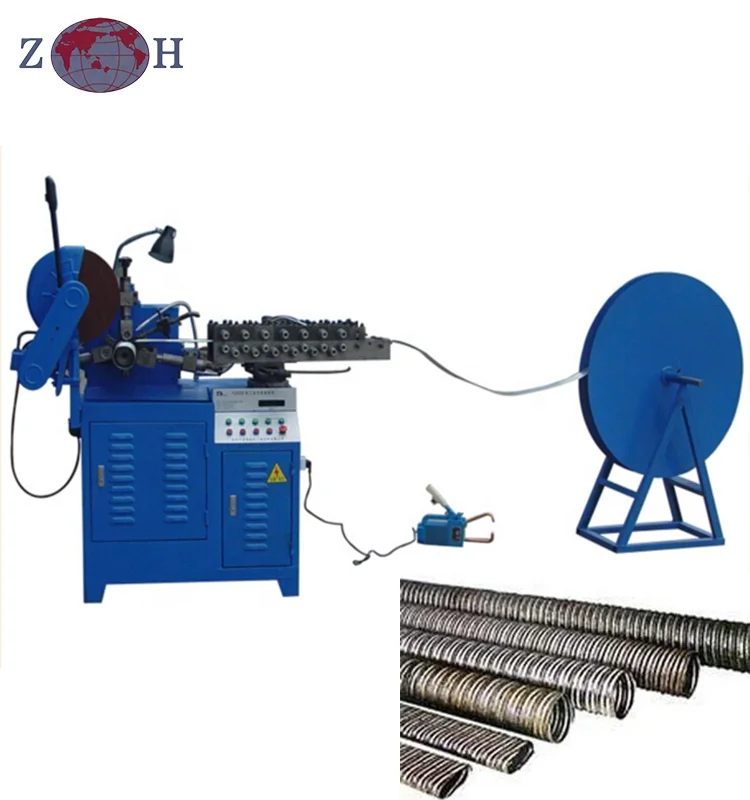

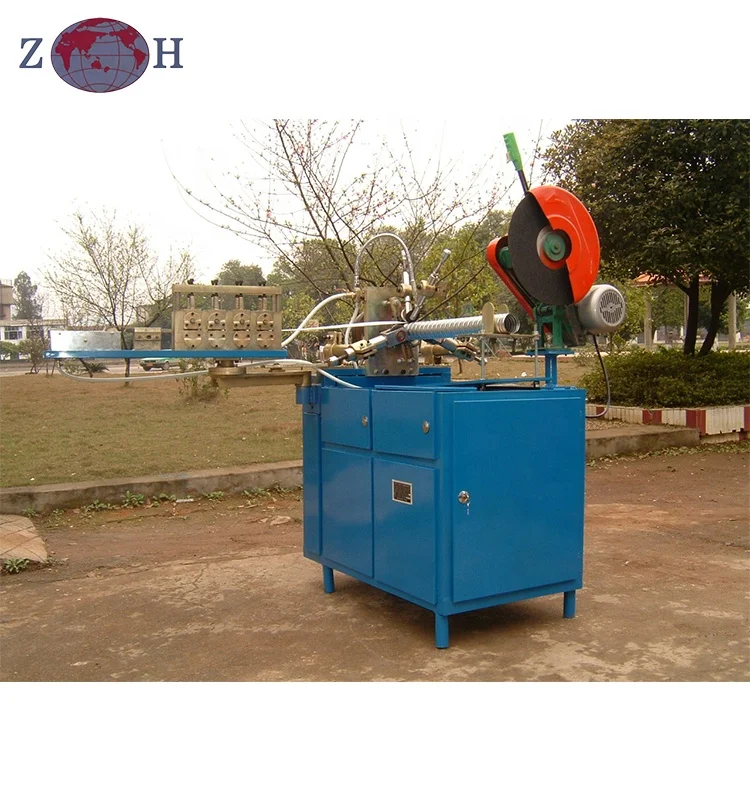

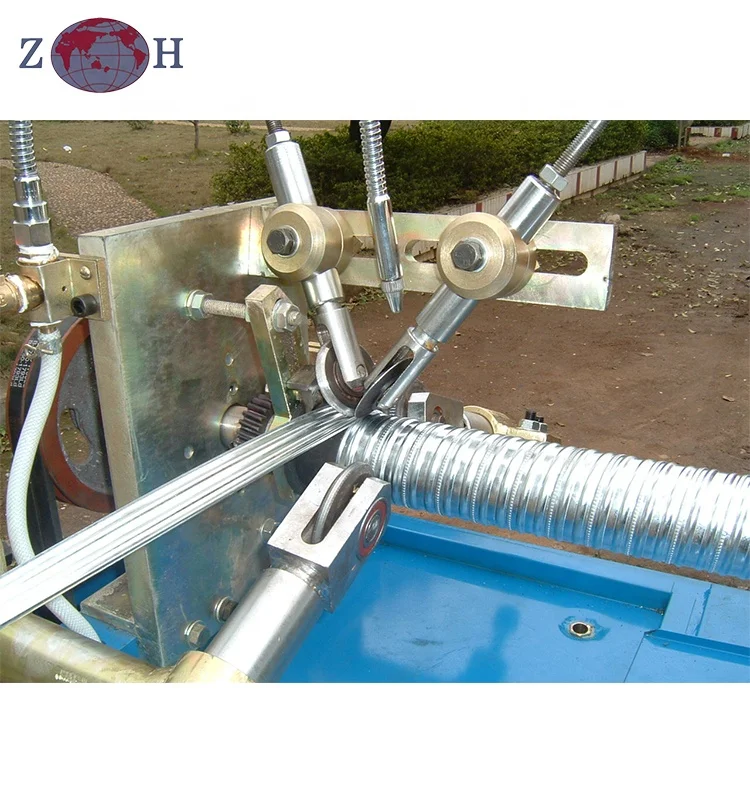

This post tensioning corrugated duct machine is comprised of two machines, one is for forming round ducts and the other is for forming oval shape from round ducts.
This post tensioning corrugated metal duct machine is suitable for both indoor and site work.
This post tensioning corrugated metal duct machine is suitable for both indoor and site work.
MAIN FEATURES
2. Double lock type
3. Raw material: galvanized steel
MACHINE SPECIFICATION
No. | Item | Data |
1 | Type | ZHP-135 |
2 | Diameter range | 35~135mm |
3 | Suitable material thickness | galvanized steel strip, 0.2~0.4mm |
4 | Suitable strip width | 35.4~36mm |
5 | Pitch of spiral | 23mm |
6 | Seam lock type | double lock seam |
7 | Strip linear feeding speed | 0- 40 m/min |
8 | Motor for round duct machine | 4kW |
9 | Motor for oval duct machine | 3kW |
10 | Total weight | About 600kg |
11 | Dimension of round duct machine | About 1300 x 1800 x 1300mm |
12 | Dimension of oval duct machine | About 800 x 450 x 800mm |
RELATED MACHINES
COMPANY PROFILE
