AC-5010MA цифровой беспроводной конференц-системы основному контроллеру обсудить и голоса видео

Описание и отзывы

Трекер стоимости

Характеристики







PRODUCT SPECIFICATIONS

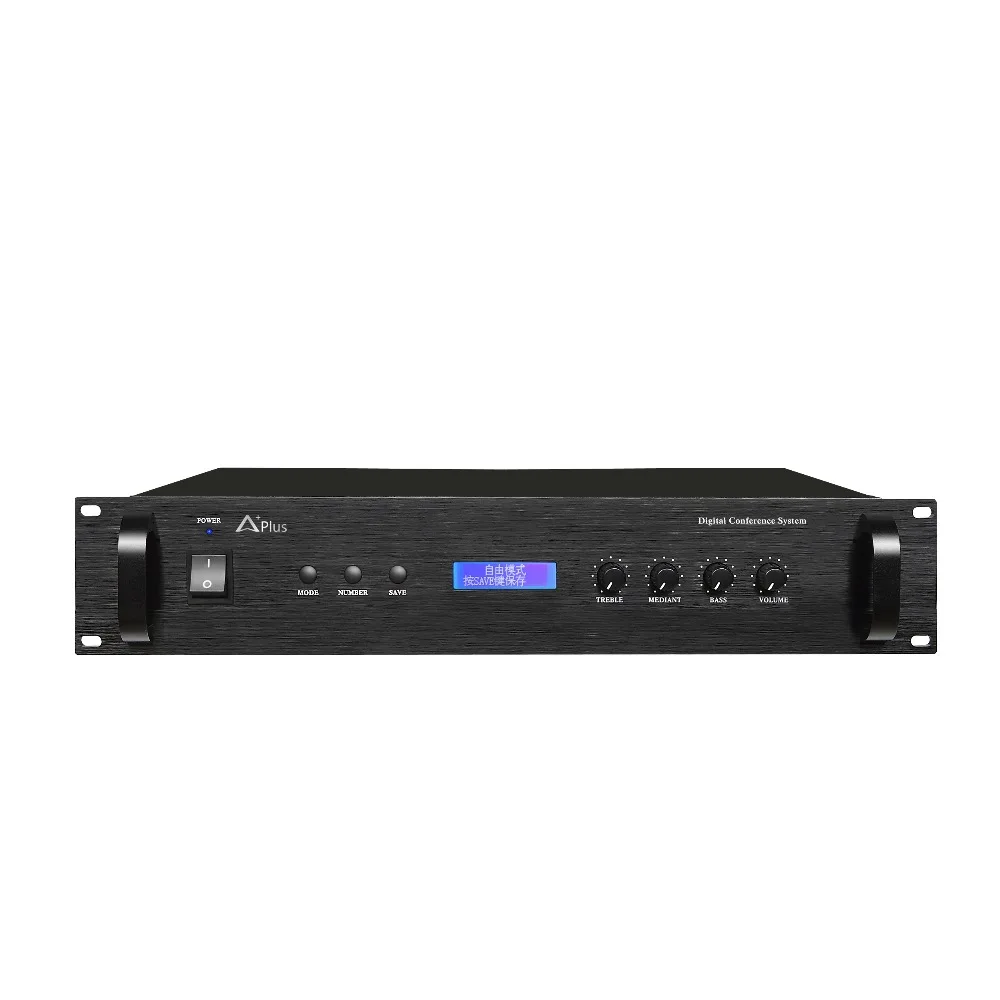

ITEM NO.: AC-5010MA  (DISCUSS+VIDEO+VOTING)

Designed accordance to ISO and IEC 914 standards

Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250

units microphone with extension power unit

Equipped with four groups of 8P-DIN interface for system connection

With the port for telephone interface input, telephone meeting is available with telephone coincidence

System support discuss mode:

Free mode, FIFO mode (1-9 microphone units), Limit mode (1-9 microphone units)

System working model can display on LCD

Support internal video camera auto-track

Support internal voting



Connection:

1pc 13m of main cable with 8PIM plugs

8 PIN socket for system connection



Equipment Parameter:

Power supply: AC110V/240V 50HZ-60HZ

Consumption rating: 115W

T.H.D: <0.05%

S/N : >75db

Frequency response: 100Hz-18 KHz

Color: black

N.W: 8.12 KG

Audio output: RCA x 2, XLR x 1

Output impedance : 47 KΩ

Data communication: RJ45 x 1

System connection 8-PIN DIN x 4



Dimension (mm) 483 x 355 x 89 (19”/2U)









PRODUCT APPLICATIONS
