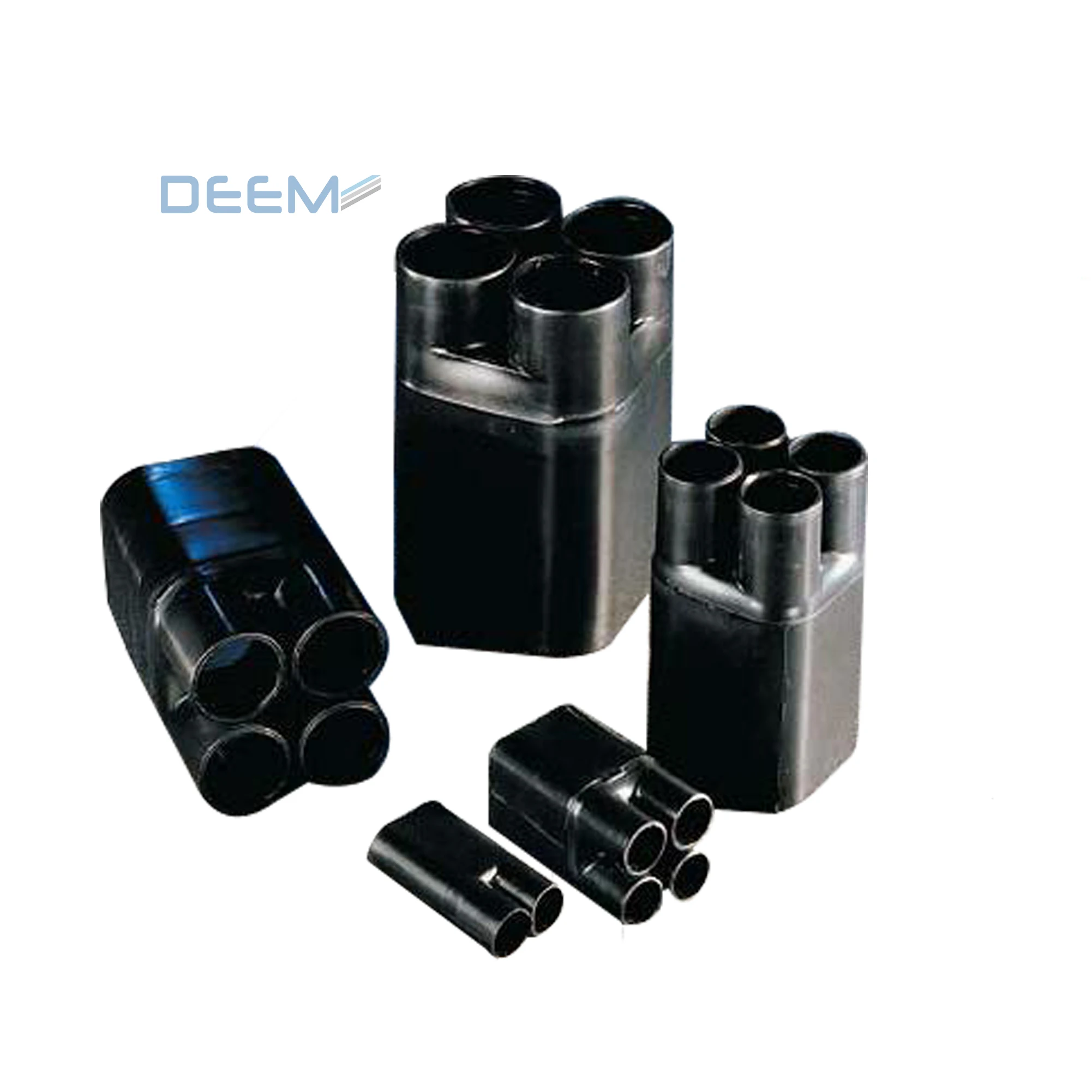

Считаем терм усадочная 4 или 5 сердечников кабеля

Описание и отзывы

Трекер стоимости

Характеристики

Technical Data

Property	Test Method	Typical Data
Operating temperature	IEC 216	-55°C to +110°C
Tensile strength	ASTM D 2671	13 MPa (min)
Tensile strength after thermal aging	ASTM D 2671 (120°C/168hrs.)	10 MPa (min.)
Elongation at break after thermal aging	ASTM D 2671 (120°C/168hrs.)	250% (min.)
Elongation at break	ASTM D 2671	300% (min.)
Water absorption	ISO 62	1% (max.)
Dielectric strength	IEC 243	>15 kV/mm
Volume resistance	IEC 93	>10 13 Ω.cm
Flammability	/	Flammable

Dimensions

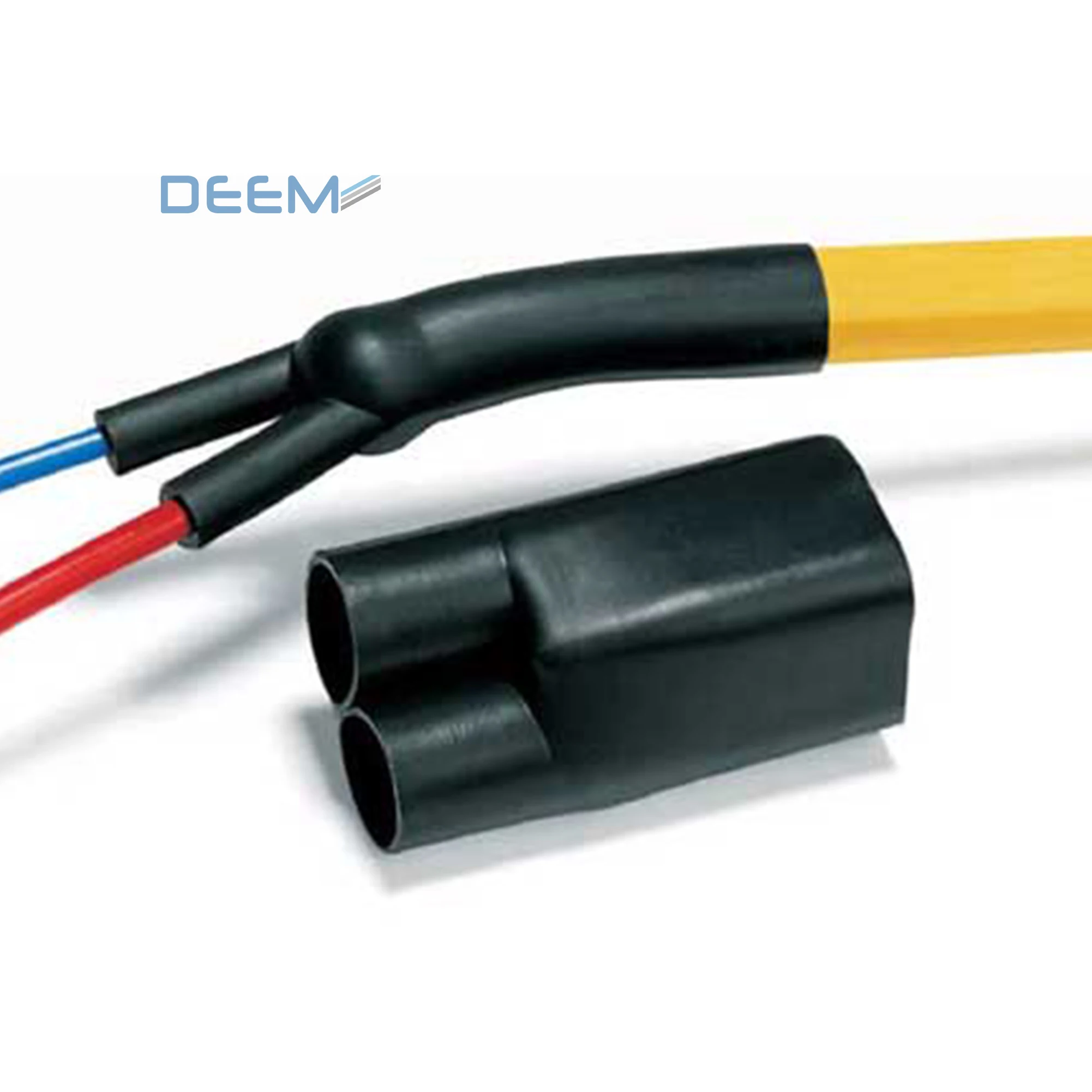

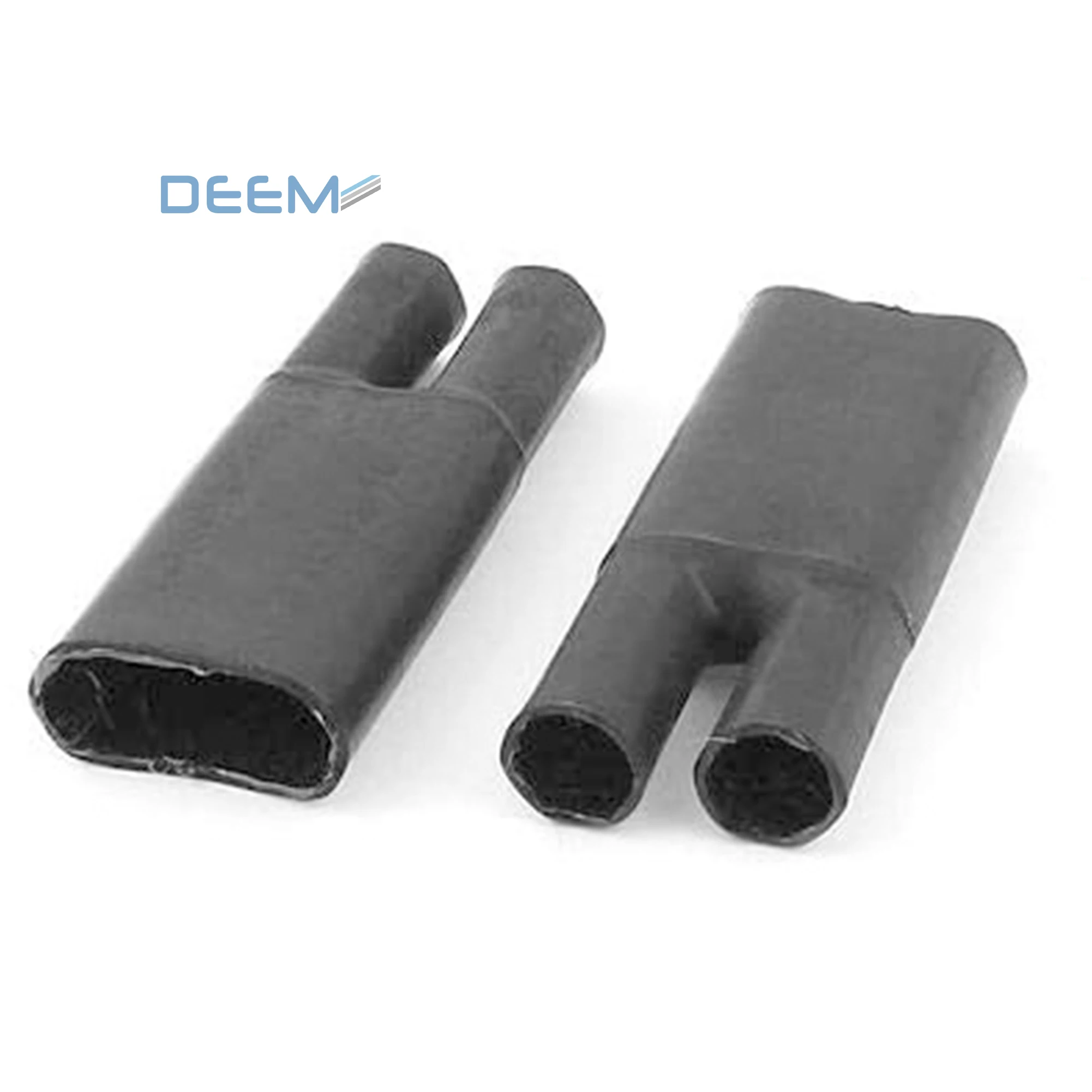

DM-B2	D (mm)		I (mm)		Recovered length		Recovered wall thickness
2 cores breakout	a (min.)	b (max.)	a (min.)	b (max.)	L (mm)	F (mm)	Dw (mm)	Iw (mm)
22/8	22	8	9	3.5	55	18	2.2	1.8
30/12	30	12	14	4.5	93	23	2.6	2.2
40/16	40	16	15	5	125	35	2.1	2.1
60/23	60	23	25	7.5	118	29	2.6	2.6
60/23-L	60	23	25	7.5	155	45	2.6	2.6
90-60	90	60	30	8.5	190	50	3	3
150/90	150	90	20	6.5	150	70	3	3

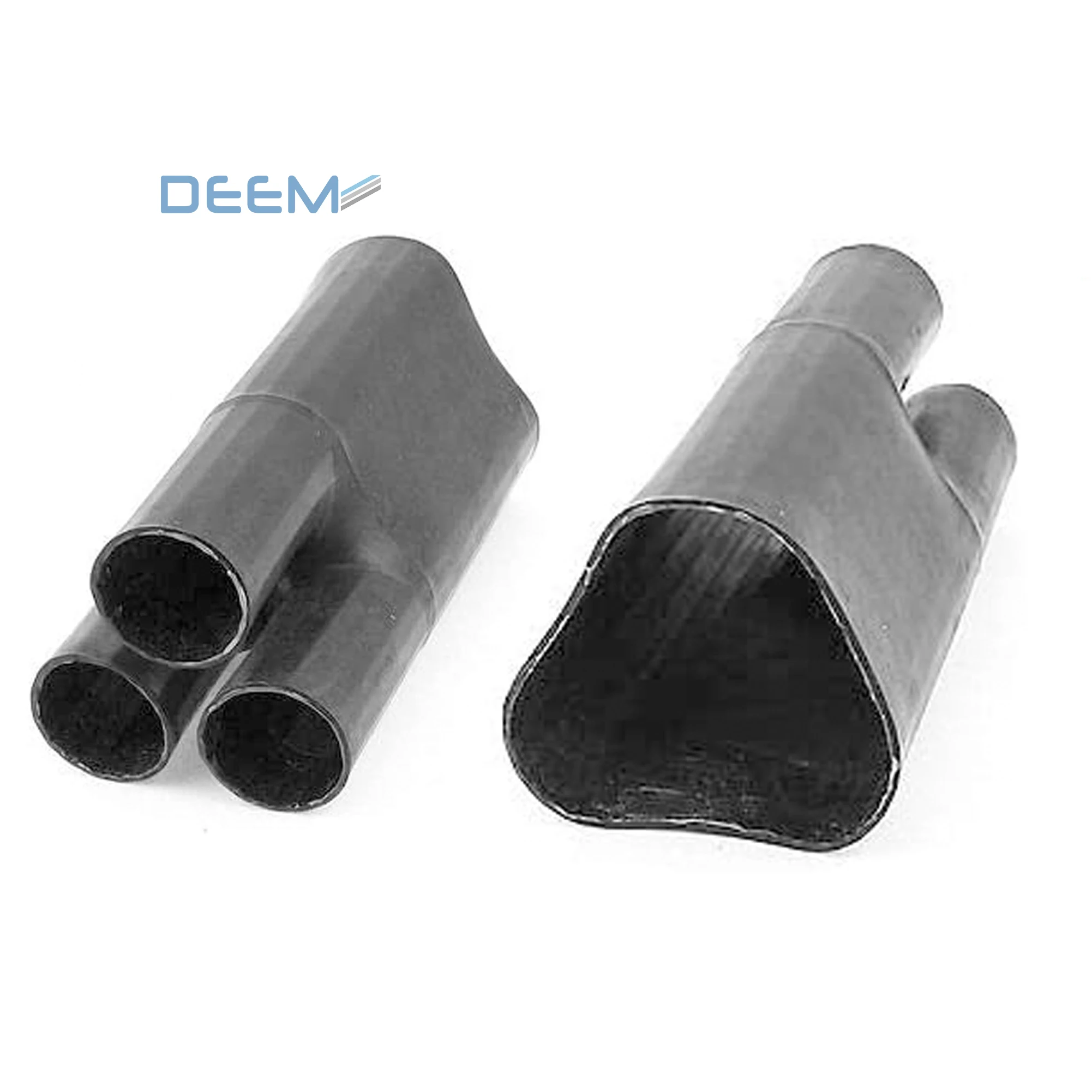

DM-B3 /3 cores breakout
38/16	38	16	15	4.5	110	35	2.1	2.1
40/16-L	40	16	15	4.5	125	35	2.1	2.1
60/25	60	25	25	8	165	50	3	2.5
60/24-L	60	24	25	8	180	45	3.2	2.8
80/38	80	38	35	11	185	55	3.5	3.5
80/38-L	80	38	35	11	215	57	4	4
110/50	110	50	46	17.5	250	65	4	4
125/57	125	57	55	20	260	75	4	4
140/70	140	70	62	26	280	75	4	4
170/77	170	77	75	28	280	80	4	4

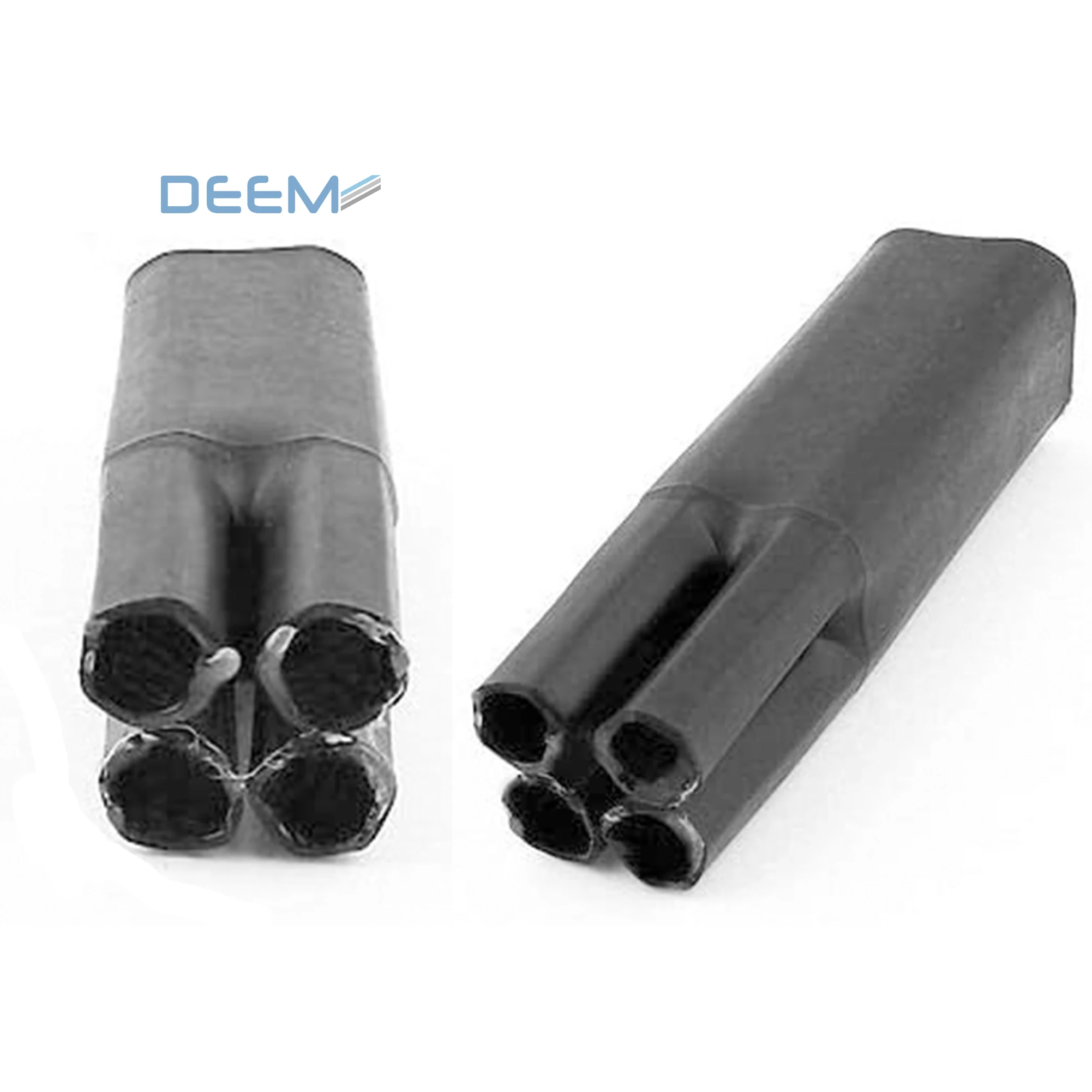

DM-B4 /4 cores breakout
40/15	40	15	14	3.5	105	26	2.2	2
55/21	55	21	20	5	150	40	3.1	2.6
65/26	65	26	26	7	175	45	3.3	2.9
75/26	75	26	28	7	175	45	3.3	2.9
82/37	82	37	30	9	190	60	4	3
90/37	90	37	32	9	190	60	4	3
100/47	100	47	38	12	198	58	4	3
125/52	125	52	52	15	240	75	4	4
160/70	160	70	64	19	260	75	4	4

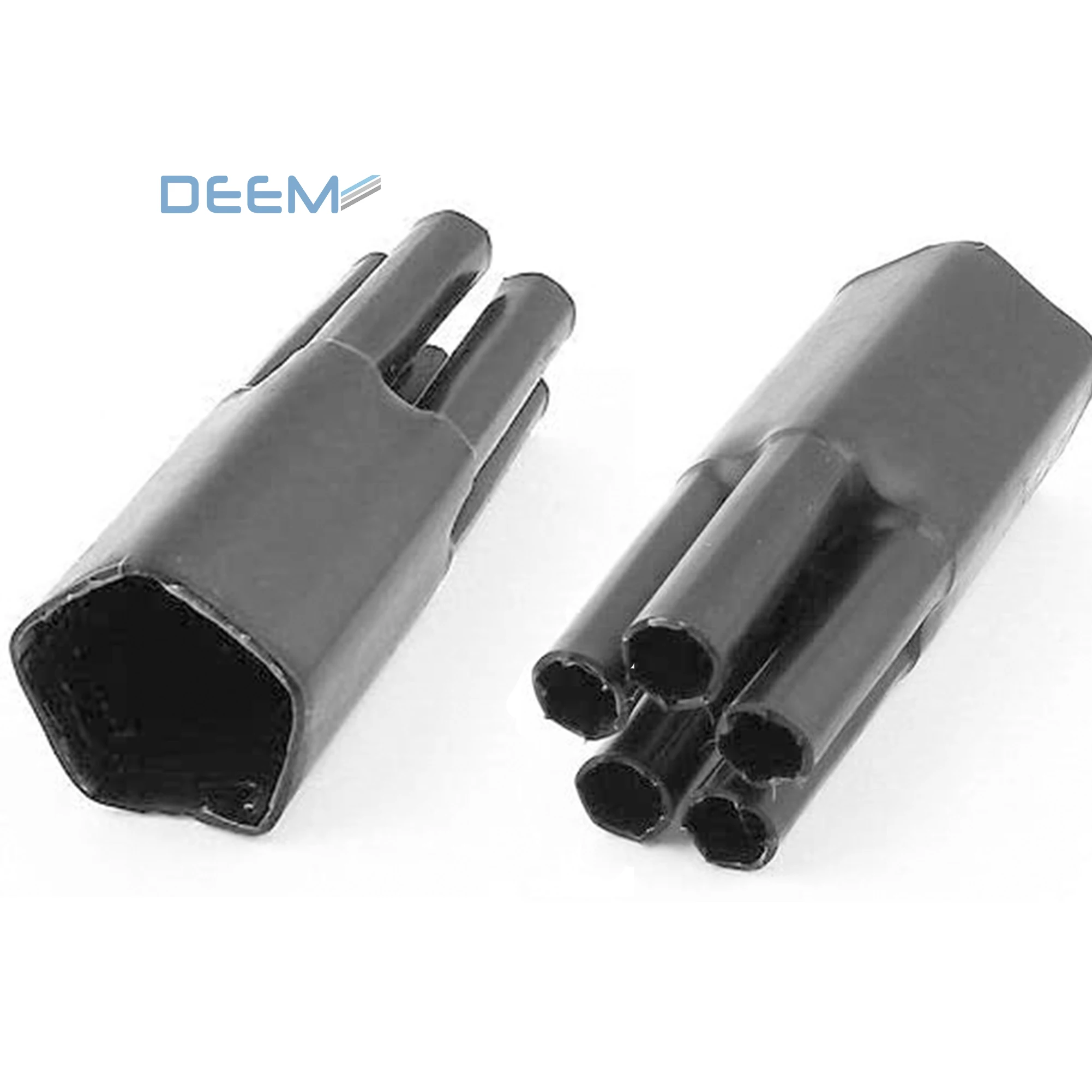

DM-B5 /5 cores breakout
40/19	40	19	13	4	98	25	2.5	2
55/24	55	24	18	5	155	40	3	2.6
80/33	80	33	26	8	175	53	3	2.8
100/42	100	42	34	10	190	60	3	3





                Click here to get a free sample!





DEEM Electronic&Electric Material Co Ltd is a joint venture manufacturer between Chinese sourcing company with a professional heat shrink backgroud specialist in Europe more than 20 years.We are specialized in research,develop,manufacturer and sales of radiation cross linked heat shrinkable material in worldwide.Such as thin wall,dual wall,medium wall,heavy wall and other specialty products like PTFE,PVDF,silicon rubber,crimp seal connectors,Fiber optic protectors,Braiding Sleeve and other kits in plastic box or small mini box etc related products.Meanwhile OEM and ODM service are available

DEEM is also able to provide any kind of added value jobs.Such as what we already did for the customer packing,cutting,loading,labeling,any kinds of kitting etc.Meanwhile we are also having the capacity to do the trading work as customer request in related fields.

Delivery.Efficiency.Economic.Material.Reliable service and products are servicing the customers more than 20 countries in worldwide.Welcome to join it.
