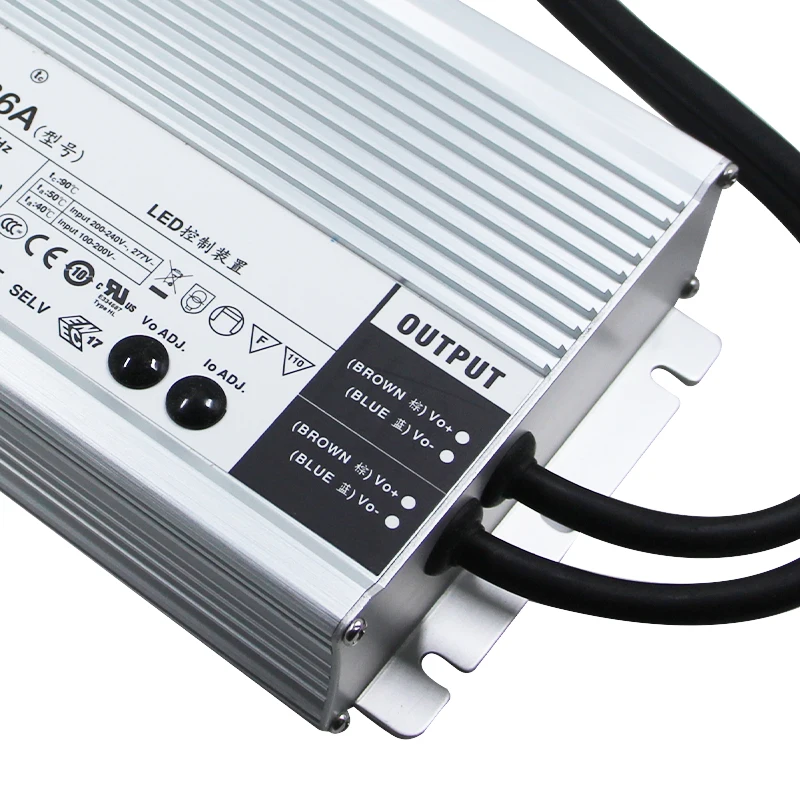

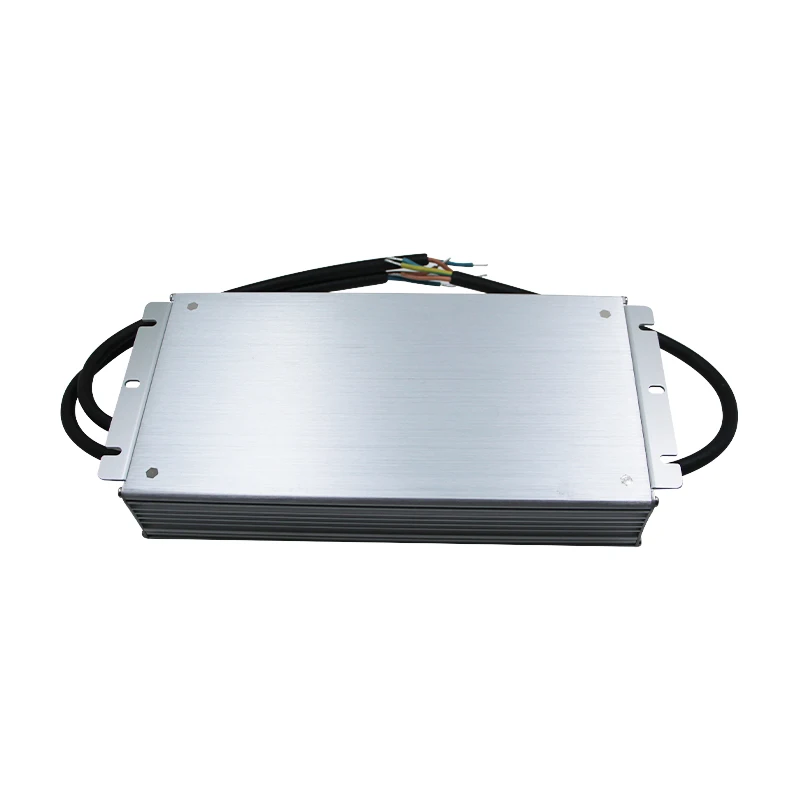

Mean Well HL-480H-24A Waterproof Power Supply LED 480W 24V 20A

Product Overviews

Features:

Meanwell Power Supply 24V 20A
Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
IP67/IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off, isolated design); smart timer dimming; junction box
Protections:Short circuit / Over current / Over voltage /Over temperature
Typical lifetime> 62000 hours
7 years warranty

Applications:

LED Harbour
LED greenhouse lighting
LED statium lighting
LED mining lighting
Type “HL” for use in ClassDivision I , Division 2 hazardous(Classified) location

Description:

HL-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HL-480H operates from 90 305VAC and offers models with different rated voltage ranging~between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series isable to operate for -40~ +90°C°Ccase temperature under free air convection. The design of metal housing andIP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HL-480His equipped with various function options, such asdimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Model Series:

HL-480H-24A / HL-480H-30A / HL-480H-36A / HL-480H-42A / HL-480H-48A / HL-480H-54A

Mean Well HLG-480H-24A Waterproof Power Supply LED 480W 24V 20A

Detailes:

MODEL		HL-480H-24	HL-480H-30	HL-480H-36	HL-480H-42
OUTPUT	DC VOLTAGE	24V	30V	36V	42V
	CONSTANT CURRENT REGION	12 ~ 24V	15 ~ 30V	18 ~ 36V	21 ~ 42V
	RATED CURRENT	20A	16A	13.3A	11.4A
	RATED POWER	480W	480W	478.8W	478.8W
	RIPPLE & NOISE	200mVp-p	200mVp-p	250mVp-p	250mVp-p
	VOLTAGE ADJ. RANGE	Adjustable for A-Type only (via built-in potentiometer)
		20.4 ~ 25.2V	25.5 ~ 31.5V	30.6 ~ 37.8V	35.7 ~ 44.1V
	CURRENT ADJ. RANGE	Adjustable for A-Type only (via built-in potentiometer)
		10 ~ 20A	8 ~ 16A	6.6 ~ 13.3A	5.7 ~ 11.4A
	VOLTAGE TOLERANCE	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISE TIME	500ms, 80ms 115VAC/230VAC
	HOLD UP TIME	16ms at full load 230VAC / 115VAC
INPUT	VOLTAGE RANGE	90 ~ 305VAC /127 ~ 431VDC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF>=0.98/115VAC, PF>=0.97/230VAC, PF>=0.95/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
	TOTAL HARMONIC DISTORTION	THD< 20% when output loading >=40% at 115VAC/230VAC 115VAC,230VAC,277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
	EFFICIENCY 230VAC	94%	94.50%	95%	95%
	EFFICIENCY 277VAC	95%	95%	95.50%	95.50%
	AC CURRENT	5A / 115VAC 2.45A / 230VAC 2A / 277VAC
	INRUSH CURRENT	COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT	95 ~ 108%
		Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	27 ~ 33V	33 ~ 40V	40 ~ 50V	46 ~ 55V
		Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-40 ~ +90°C (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
	MAX. CASE TEMP.	Tcase= +90°C
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+80°C,10~95% RH non-condensing
	TEMP. COEFFICIENT	±0.02%/°C (0 ~ 60°C )
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min.each along X, Y,Z axes
SAFETY &EMC	SAFETY STANDARDS	U8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14,GB19510.1; IP65 or IP67 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 Class C (@ load>=50%) ; EN61000-3-3; GB17743, GB17625.1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
OTHERS	MTBF	345.5K hrs min. Telcordia SR-332(Bellcore) ; 95.3K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	26212543.8mm (LWH)
	PACKING	2.8Kg;4pcs/12.2Kg/0.58CUFT

MODEL		HL-480H-36	HL-480H-42	HL-480H-48	HL-480H-54
OUTPUT	DC VOLTAGE	36V	42V	48V	54V
	CONSTANT CURRENT REGION	18 ~ 36V	21 ~ 42V	24 ~ 48V	27 ~ 54V
	RATED CURRENT	13.3A	11.4A	10A	8.9A
	RATED POWER	478.8W	478.8W	480W	480.6W
	RIPPLE & NOISE	250mVp-p	250mVp-p	250mVp-p	350mVp-p
	VOLTAGE ADJ. RANGE	Adjustable for A-Type only (via built-in potentiometer)
		30.6 ~ 37.8V	35.7 ~ 44.1V	40.8 ~ 50.4V	45.9 ~ 56.7V
	CURRENT ADJ. RANGE	Adjustable for A-Type only (via built-in potentiometer)
		6.6 ~ 13.3A	5.7 ~ 11.4A	5 ~ 10A	4.4 ~ 8.9A
	VOLTAGE TOLERANCE	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISE TIME	500ms, 80ms 115VAC/230VAC
	HOLD UP TIME	16ms at full load 230VAC / 115VAC
INPUT	VOLTAGE RANGE	90 ~ 305VAC /127 ~ 431VDC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF>=0.98/115VAC, PF>=0.97/230VAC, PF>=0.95/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
	TOTAL HARMONIC DISTORTION	THD< 20% when output loading >=40% at 115VAC/230VAC 115VAC,230VAC,277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
	EFFICIENCY 230VAC	95%	95%	94.5%	95%
	EFFICIENCY 277VAC	95.50%	95.50%	95%	95%
	AC CURRENT	5A / 115VAC 2.45A / 230VAC 2A / 277VAC
	INRUSH CURRENT	COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC230VAC; Per NEMA 410
	MAX. No. of PSUs on 16A CIRCUIT BREAKER	2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT	95 ~ 108%
		Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	40 ~ 50V	46 ~ 55V	53 ~ 63V	60 ~ 70V
		Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-40 ~ +90°C (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
	MAX. CASE TEMP.	Tcase= +90°C
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+80°C,10~95% RH non-condensing
	TEMP. COEFFICIENT	±0.02%/°C (0 ~ 60°C )
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min.each along X, Y,Z axes
SAFETY &EMC	SAFETY STANDARDS	U8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.14,GB19510.1; IP65 or IP67 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 Class C (@ load>=50%) ; EN61000-3-3; GB17743, GB17625.1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
OTHERS	MTBF	345.5K hrs min. Telcordia SR-332(Bellcore) ; 95.3K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	26212543.8mm (LWH)
	PACKING	2.8Kg;4pcs/12.2Kg/0.58CUFT

MECHANICAL SPECIFICATION

Mean Well HLG-480H-24A Waterproof Power Supply LED 480W 24V 20A

Mean Well HL-480H-24A Waterproof Power Supply LED 480W 24V 20A

Packing

Packing:

Shipping:

Factory View

Strict, professional production and test, large stock for fast shipping

Application

What our Power Supply can do for you?

Certifications

What Certification do we have?

Why Choose us?

SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS

1. What we sell is 100% Genuine Mean Well Power Supply;

2. Small quantity orders acceptable;

3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;

4. We have larger stocks and this support us can make a very prompt shipping;

5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;

6. Price could be negotiated for more and large quantity;

7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
