Автогрейдер известного бренда XCMG GR180 высокое качество л. С. новый автогрейдер на


Поделиться:


Цена:10 000,00 $ - 1 000 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 11900.92 $* 12495.85 $*
Aug-16-2025 11800.34 $* 12390.32 $*
Jul-16-2025 9900.3 $* 10395.45 $*
Jun-16-2025 11600.24 $* 12180.20 $*
May-16-2025 10100.73 $* 10605.68 $*
Apr-16-2025 11400.94 $* 11970.30 $*
Mar-16-2025 11300.24 $* 11865.84 $*
Feb-16-2025 11200.22 $* 11760.50 $*
Jan-16-2025 11100.13 $* 11655.38 $*

Характеристики


Product Description

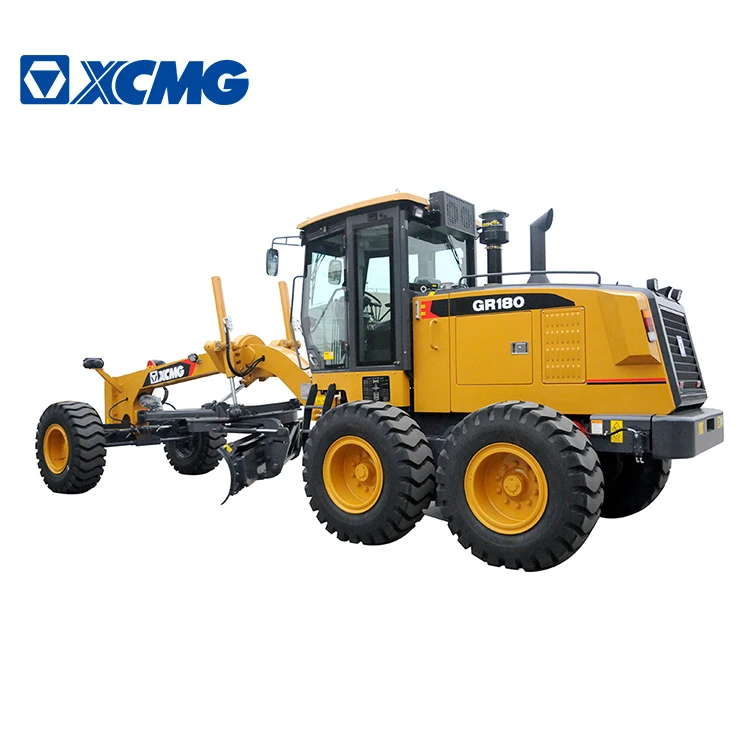

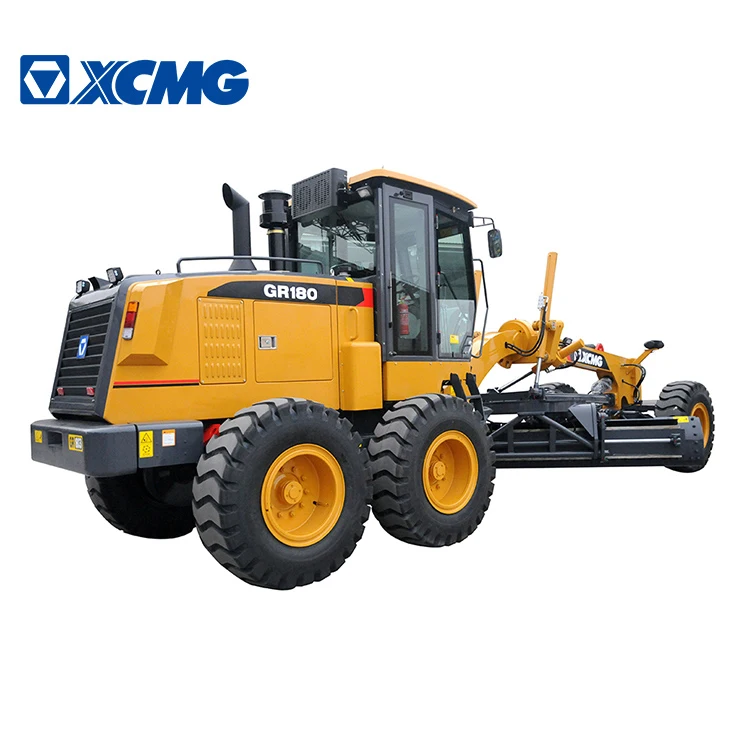

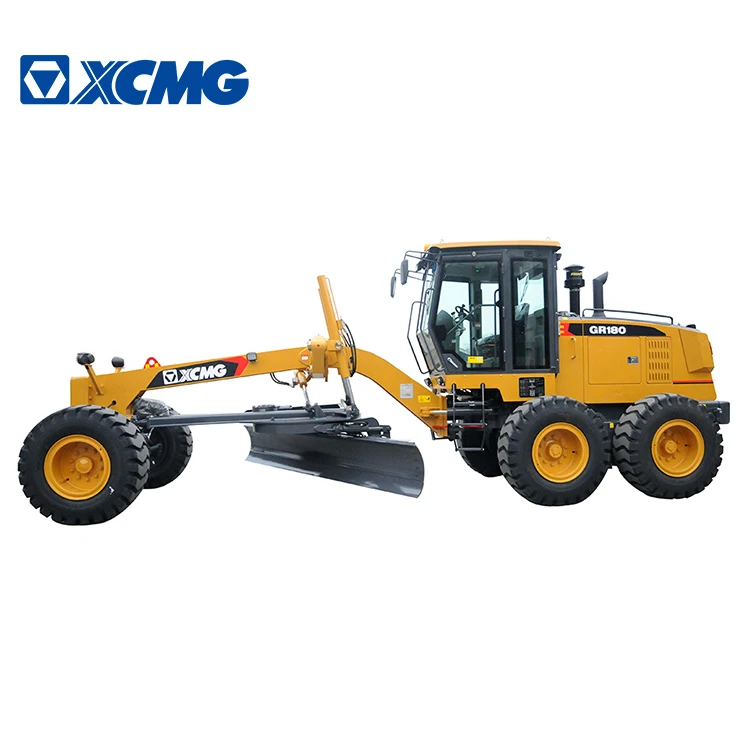

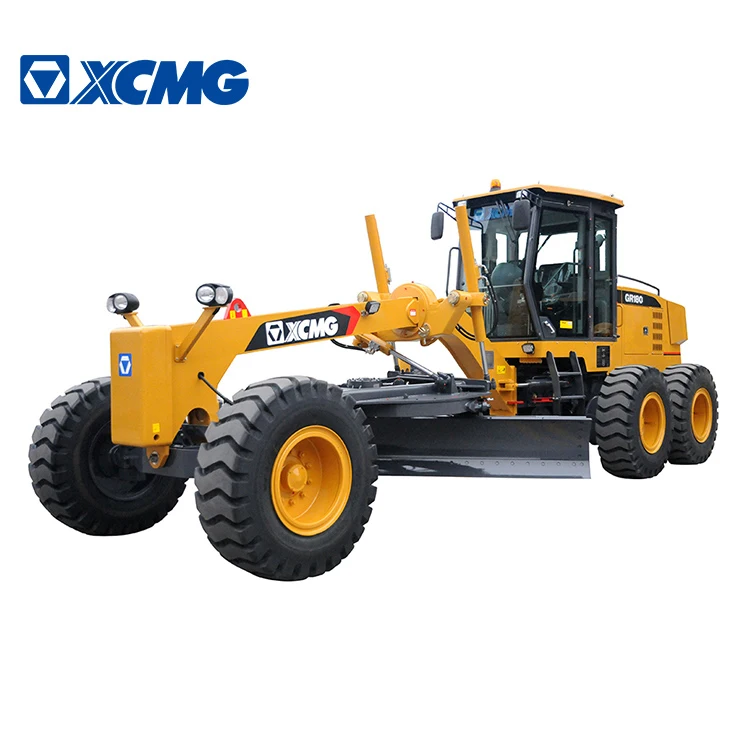

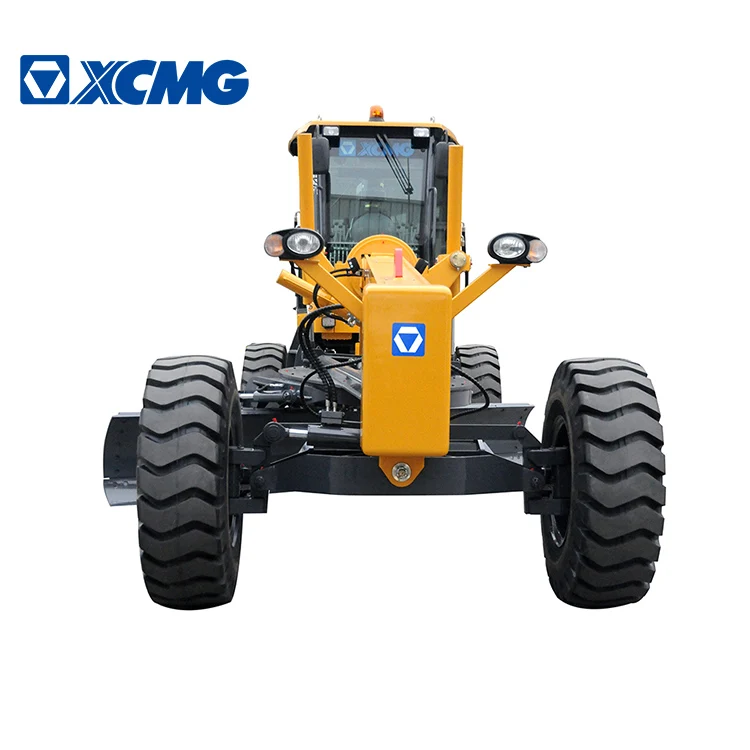

XCMG official Famous brand rc motor grader GR180 high quality 180hp new motor grader for sale

The GR180 Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement.

1,Cumminns Engine, Z F Technology Gearbox, and X CMG Drive Axle make the drive system power matching more reasonable and reliable.

2,Double-circuit hydraulic brake system makes the brake more reliable and stable;

3,Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system;

4,Use X CMG special enhanced work devices;

5,The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.

Specification



Description
Unit
Parameter value
Engine model

6CTA8.3-C190-Ⅱ
Rated power/speed
kW/rpm
142/2200
Overall dimension (standard)

8900x2625x3420
Total weight (standard)
kg
15400
Tire specification

17.5-25
Ground clearance (front axle)
mm
430
Tread
mm
2156
Space of front and rear axles
mm
6219
Space of middle and rear wheels
mm
1538
Forward velocity
km/h
5/8/11/19/23/38
Reverse speed
km/h
2005/11/23
Tractive effort f=0.75
kN
≥79
Maximum gradeability
%
≥25
Tire inflation pressure
kPa
260
Working system pressure
MPa
18
Transmission pressure
MPa
1.3-1.8
Maximum steering angle of front wheel

±50°
Maximum slant angle of front wheel

±17°
Maximum oscillating angle of front axle

±15°
Maximum oscillating angle of equilibrium box

Front15° Rear15°
Maximum steering angle of frame

±27°
Minimum turning radius
m
7.3

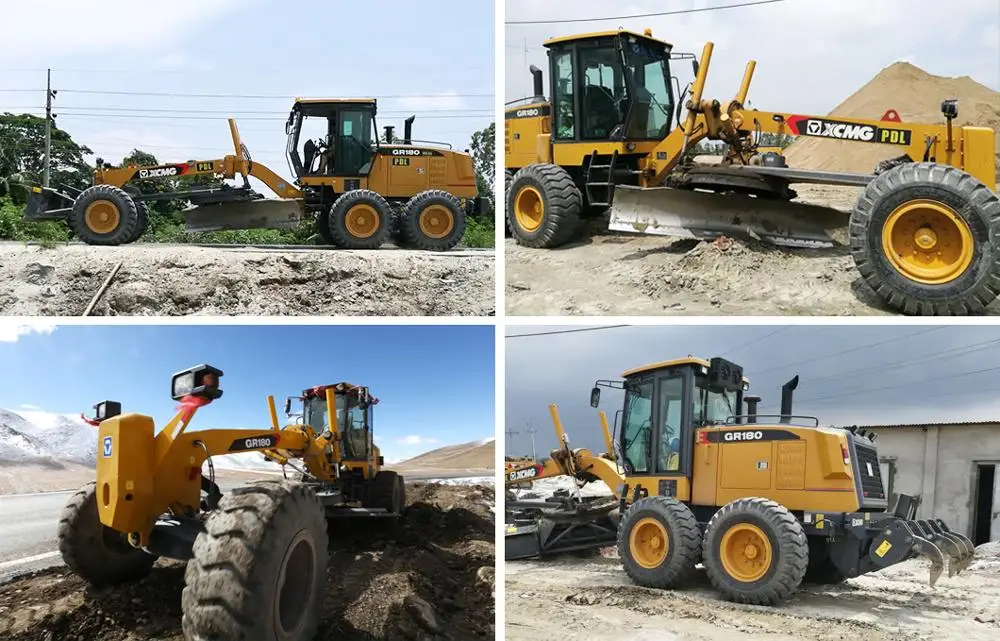

Detailed Images


.jpg

Related products

Packaging & Shipping

01

Company Information



_01

_02

FAQ

04


Данные ресурс не является интернет-магазином, а лишь содержит ссылки на международную торговую площадку Alibaba.com
