Новый дизайн слот-машина
- Категория: Push Button Switches >>>
- Поставщик: Yueqing,Anhe,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.56 $* | 0.6 $* |
| Aug-17-2025 | 0.26 $* | 0.94 $* |
| Jul-17-2025 | 0.72 $* | 0.11 $* |
| Jun-17-2025 | 0.66 $* | 0.0 $* |
| May-17-2025 | 0.55 $* | 0.41 $* |
| Apr-17-2025 | 0.1 $* | 0.89 $* |
| Mar-17-2025 | 0.79 $* | 0.77 $* |
| Feb-17-2025 | 0.47 $* | 0.94 $* |
| Jan-17-2025 | 0.98 $* | 0.60 $* |
Характеристики
Product Category
Product Description

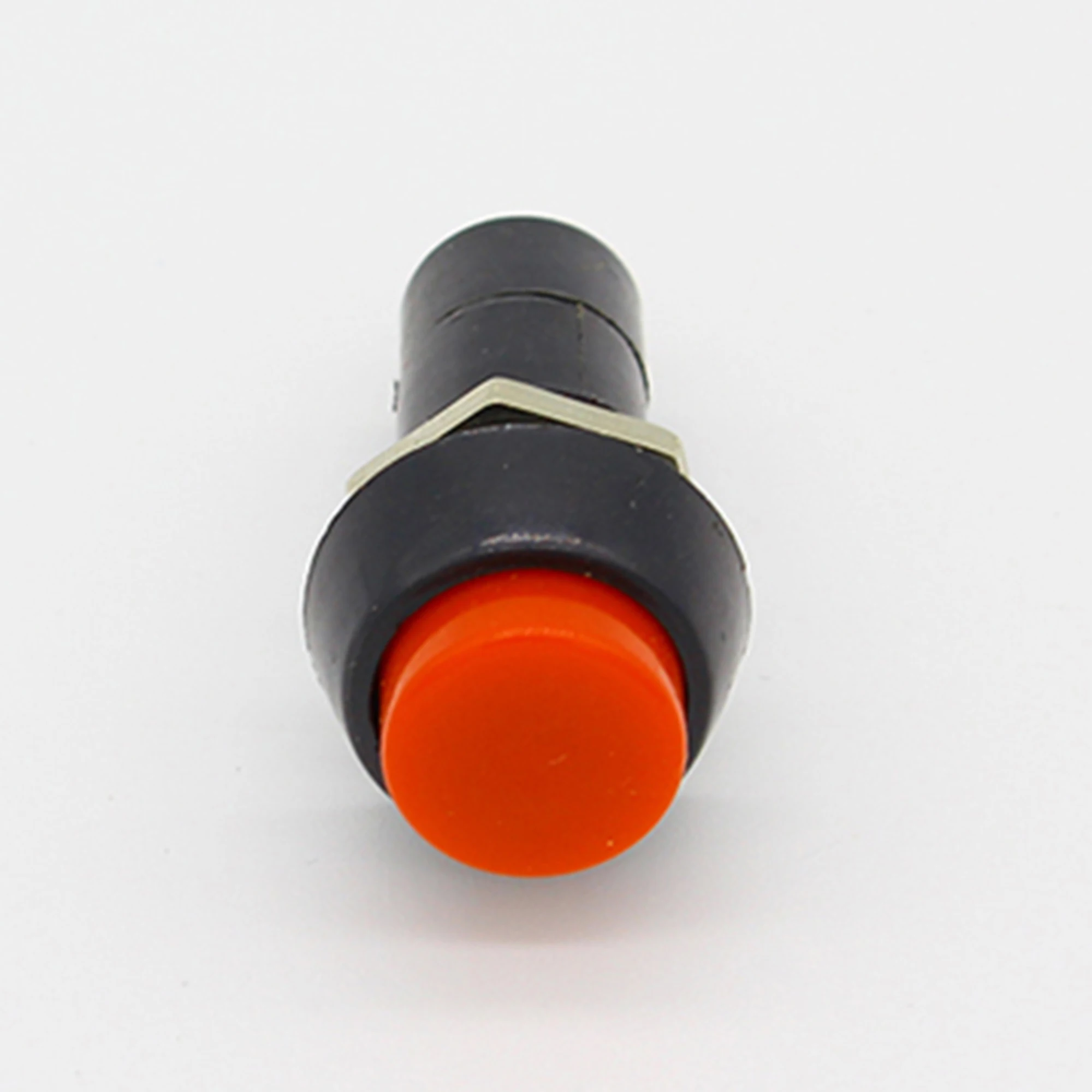

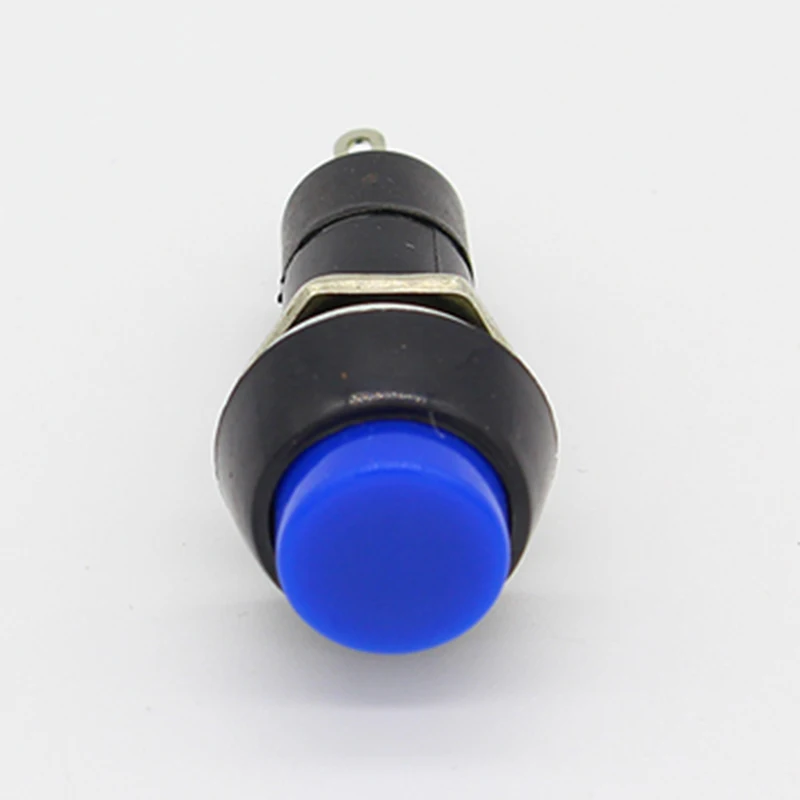

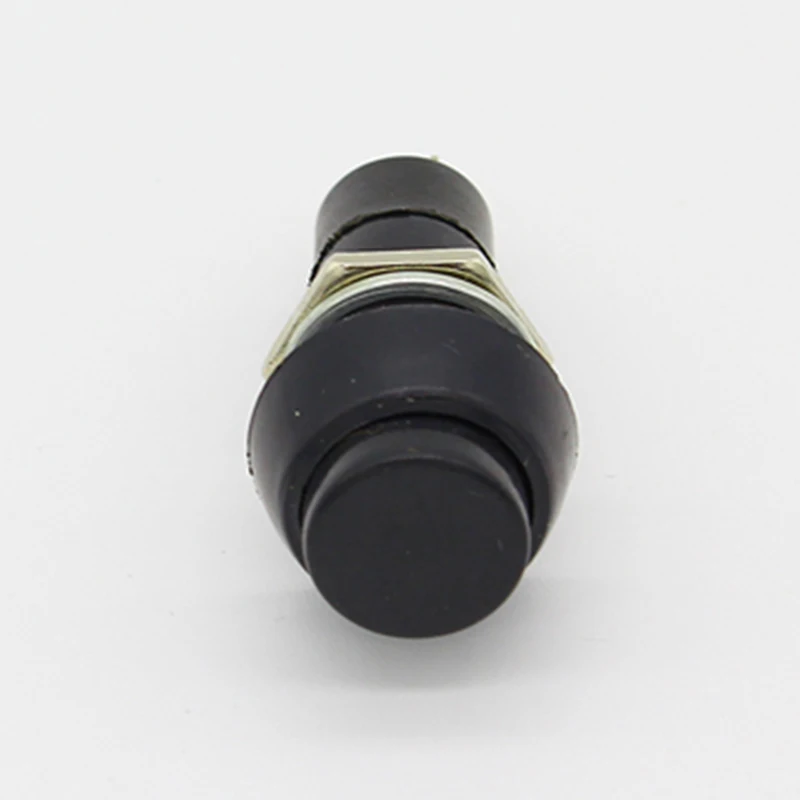

new design slot machine push button
Different Models of push button switch
Product details
| Certificate | CQC CE ROHS |
| Material | Plastic |
| Operation type | Self-locking/General |
| Product type | Push button switch |
| Button color | Red Yellow White Black Green |
| Lamp color | Red Green Yellow Blue White |
| Emitting Type | Annular |
| Function | Momentary 1NO |
| Color | White |
| Type | Supplies>>Switches>>Push Button Switches |
| Product Keywords | slot machine push button,skoda superb keyless entry push button start,single push button light switch |
Quality assurance:
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
Product Specifications
| Switch Specification | |||
| Rating | 300mA 30VDC | ||
| Contact Resistance | 20mΩ; Max. Initial at 2-4VDC, 100mA | ||
| Insulation Resistance | 100MΩ; Min. | ||
| Dielectric Strength | AC250V(50/60Hz for 1minute) | ||
| Electrically Life | 10,000 Cycles Typical | ||
| Environment temperature | -20°C to 85°C | ||
| Operating Force | Customized | ||
| APPROVALS | |||
| CE | CQC | Rohs | TUV |
Detailed Images
| Materials | |
| Housing | Tin Over Steel |
| Actuator | Acetal |
| Terminal Base | Phenolic |
| Sping | Spring Steel |
| Terminals | Silver Over Brass |
| Contact | Silver Over Phosphor Bronze |
| Waterproof Cap | Available ( If you required) |
| Application: They are widely used in TV, VCD, juicer, heater, consumer electronics, household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc. | |
| Operating force | 2.3±1N |
| Mounting method | PC board |
| Poles | 1 |
| Operation | Latching |
| Terminal type | For PC board |
| Minimum order unit (pcs.) | 4,500 |
| Operating temperature range | -40°C to +85°C |
| Rating (max.)/(min.) (Resistive load) | 0.2A 30V DC/50µA 3V DC |
| Electrical performance | |
| Contact resistance (Initial performance/After lifetime) | 20mΩ max./40mΩ max. |
| Insulation resistance | 100MΩ min. 500V DC |
| Voltage proof | 500V AC for 1 minute |
| Mechanical performance | |
| Terminal strength | 5N for 1 minute |
| Actuator strength Operating direction | 30N |
| Resistance to soldering heat | |
| Manual soldering | 350±10°C, 3(+1, 0)s |
| Dip soldering | 260±5°C, 5±1s |
| Durability | |
| Operating life without load | 10,000 cycles 40mΩ max. |
| Operating life with load (Load: as ratings) | 10,000 cycles 40mΩ max. |
| Environmental performance | |
| Cold | -20±2°C for 96h |
| Dry heat | 85±2°C for 96h |
| Damp heat | 40±2°C 90 to 95%RH for 96h |
Hot Selling Products
Company Information
Our Advantages
Packaging & Shipping
PACKAGE:
Standard export carton as per items acking.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
