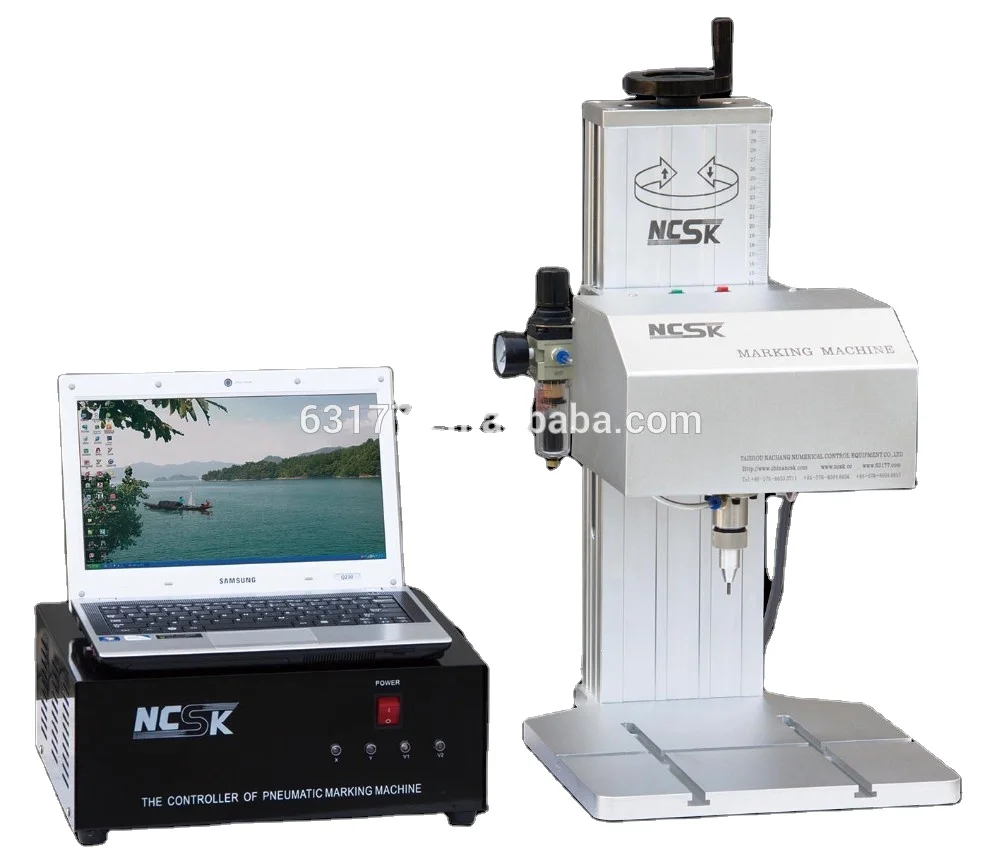

Пневматическая маркировочная машина для маркировки металла
- Категория: >>>
- Поставщик: Taizhou,Nachang,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.50 $* | 0.66 $* |
| Aug-15-2025 | 0.77 $* | 0.56 $* |
| Jul-15-2025 | 0.78 $* | 0.92 $* |
| Jun-15-2025 | 0.38 $* | 0.5 $* |
| May-15-2025 | 0.48 $* | 0.3 $* |
| Apr-15-2025 | 0.96 $* | 0.52 $* |
| Mar-15-2025 | 0.97 $* | 0.42 $* |
| Feb-15-2025 | 0.58 $* | 0.89 $* |
| Jan-15-2025 | 0.87 $* | 0.83 $* |
Характеристики
Product Description
NCSK start producing pneumatic marking machine since 2002. In the past 15 years, we keep on developing the hardware and software to make the machine more easy to use. In 2012, we start using Aluminium body intead of cast iron body for machine, Which Increased the costs but makes the maching more light, beautiful and not easy to get dirty.
Marking contents | Numbers, characters, graphs and coders. |
Marking depth | 0.02-1mm(adjustable,relevant to materials) |
Marking speed | 2-3 letters/s according to letter size |
Marking materials | Metal or nonmetals with hardness under HRC55 |
Power | AC220V±10% 50~60Hz AC110V±10%50~600Hz |
Pneumatic pressure | 0.2-0.7Mpa |
Energy consumption | 100W(air compressor excluded) |
Repeat precision | 0.02-0.05mm |
Working Environment | Regular working environment |
Item | Marking Area(mm²） | Maxiumm Height (mm) | Weight(kg) | Dimensions(mm) | Remarks | ||||||
L | W | H | D | ||||||||
NCQ/A-135-85 | 135*85 | 280 | 22 | 430 | 330 | 675 | 0-280 | machine can be customized; we can make machine according to your requirements. | |||
NCQ/A-200-110 | 200*110 | 280 | 23.5 | 465 | 390 | 675 | 0-280 | ||||
NCQ/A-250-200 | 250*200 | 280 | 49 | 540 | 435 | 685 | 0-280 | ||||
Detailed Images
1. Guide rail is the most important things for working stability and machine life. So we use two linear guide rail on each axis to make sure the machine is stable.
2. LED light to lighting the work area.
3. Protect wire when going though hole.
1. High quality solenoid valve, made in TAIWAN, the life is more than 20,000,000 times.
2. Using wire terminal to connect the electronic device, easily to replace.
1. The wire will be bending many time when machine is working. To avoid the damage, we use plastic sleeve to protect wire and fixed to the body.
2. Every Solder joint are protected by heat-shrinkable sleeves.
1. Penumatic machine create vibration when working, this vibration may interfere the marking and reduce the machine life. So we design two stainless steel column to reinforce the machine.
2. This knob is designed to reduce the high frequency vibration.
Accessories box
Common accessories is free with machine.
1. Sealing O-ring and spring
2. Cleansing oil: clean marking head.
3. Plier and wrenche
4. Marking head and pins
We design Various kinds of marking head to adapt various application.
Marking pin installation
spring----＞marking Pin ----＞Small O-ring ----＞big O-ring
The material of the marking pin is Tungsten steel and cooper .
The hardness of Tungsten steel is HRC90.
So the marking can working for material with hardness under HRC55. Inside of the marking head there is Tungsten steel tube. that makes the marking head using at least 2 years. .
Calibration show in cloumn
.Easily for us to know the height of the whole marking head and the direction of up and down .

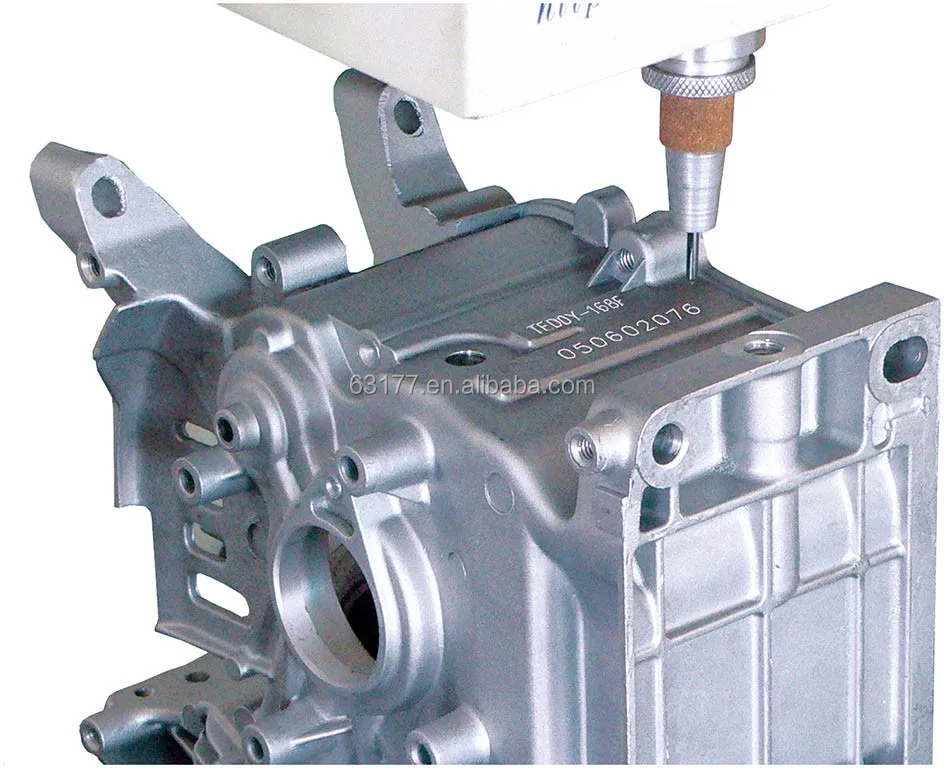

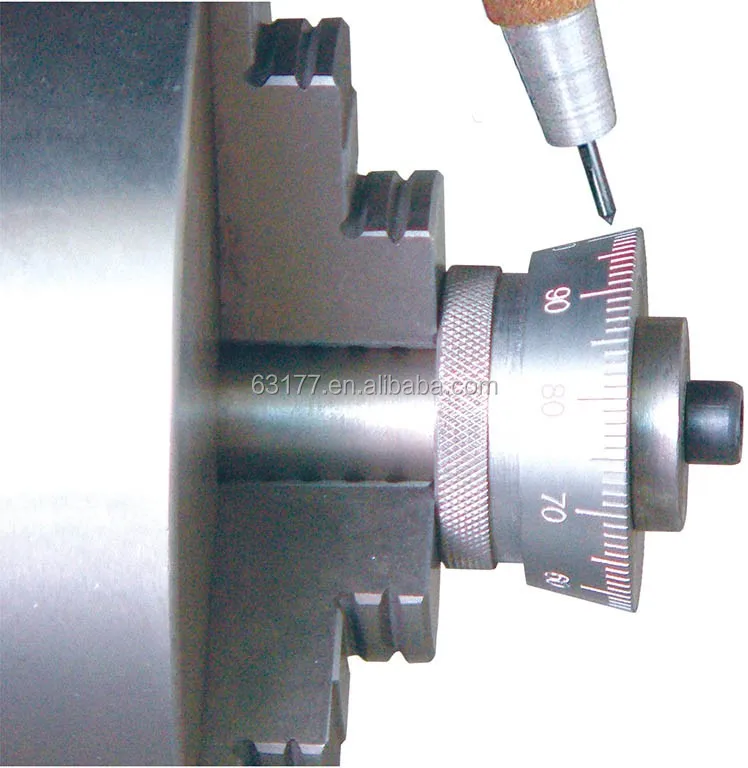

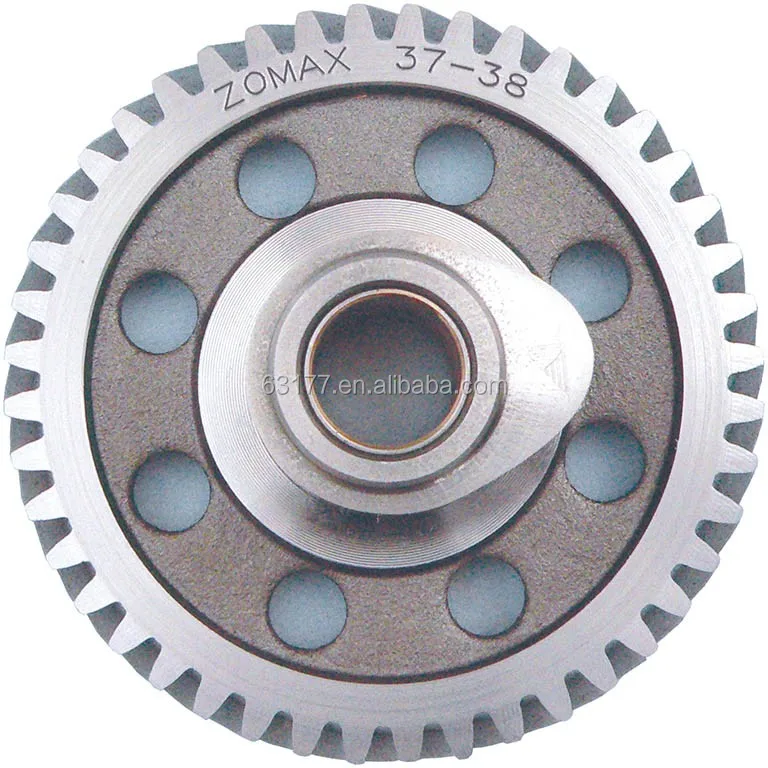

Application
Packing & Delivery
Packaging | ||
Weight | 53kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Factory
FAQ
Q1: What is application of your marking machine?
A: Marking words or logo on car frame, automotive chassis, engine, mechanical part, machine tool, metal pipe, gear, pump body, valve and various hardness plastic products, bodywork of motorcycle.
Q2: How can I learn to use the machine?
A: We have video tutorial on youtube, please visit "https://www.youtube.com/watch?v=KqgoFqC4pp8".
Q3: What contents can the machine mark?
A: Alphanumeric info, VIN number, Serial number, Date, Random number, Vector graph,etc.
Q4: How long time can the pin use?
A: One machine will have 4 pin. one pin can use 3 month to 1 year, it is depend on the working strength and material .
Q5: Warranty time?
A: 1 year.
