Машина для нанесения покрытий сквозным отверстием двухсторонней печатной
- Категория: PCB & PCBA >>>
- Поставщик: Changsha,Suny,Electronic,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.95 $* | 0.42 $* |
| Aug-18-2025 | 0.15 $* | 0.39 $* |
| Jul-18-2025 | 0.42 $* | 0.55 $* |
| Jun-18-2025 | 0.88 $* | 0.45 $* |
| May-18-2025 | 0.66 $* | 0.1 $* |
| Apr-18-2025 | 0.43 $* | 0.36 $* |
| Mar-18-2025 | 0.73 $* | 0.63 $* |
| Feb-18-2025 | 0.0 $* | 0.72 $* |
| Jan-18-2025 | 0.79 $* | 0.4 $* |
Характеристики
Products: PCB through-hole machine, metal through hole machine
Model: SUNY-ZGK320
Our factory is mainly to produce the PCB production equipment.
We can provide all the PCB making machines, and the completely PCB production line.
Our machine can used for the 200*300mm/300mm*400/400*500mm etc. PCB boards.
You can also inform us your PCB size, then we can custom the machine for you!!!!
We can also supply the chemicals and reagents & consumables for the PCBs.
Our PCB making machine video:
https://www.youtube.com/watch?v=sQZVaeKhogs
Specification:

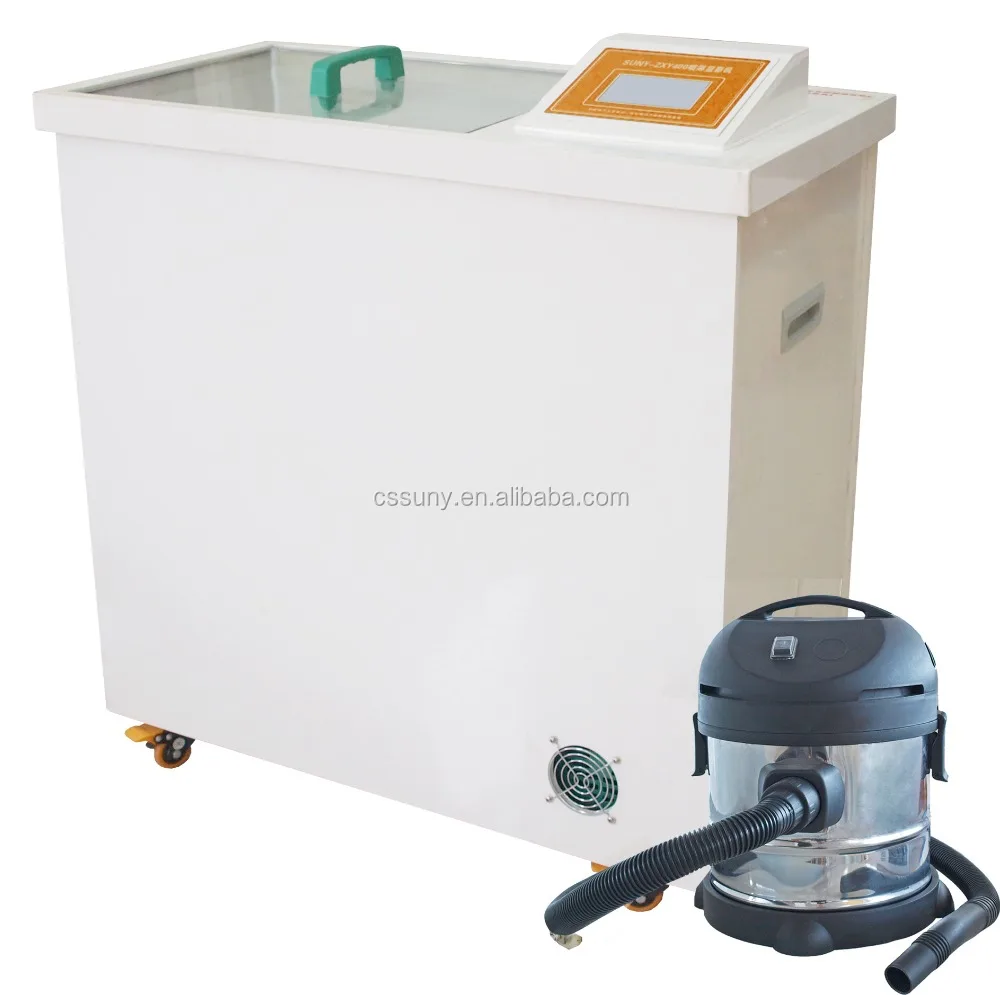

Through-hole machine SUNY-ZGK320
1. Usage: double-sided perforative aperture copper sinking and copper plating to the double-sided circuit board and other non-metal materials;
2. Function characteristics: air-blowing and precoated of copper plating, electroplating short circuit and no plating open circuit testing; constant temperature and heating temperature control with double temperature-control protection, automatic through-hole function, to ensure the conduction rate of through-hole; with opening cover detection, better protecting the safety of the operator
3. Structure features: transparent roof, convenient for operation and observation; self-contained universal caster wheel, convenient for carrying; eight processing grooves, high degree of automation of PCB through-hole operation; negative pressure through aperture structure, automatic through aperture operation function; with double-sided spray water structure, realizing the automatic washing function of PCB;
4. Through-hole technology: advanced black-aperture process, without environmental pollution;
5. Processing dimension: 400mm×300mm;
6. Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition through-hole process manual ; In touch screen you can play the circuit board design sketch after through-hole process;
7. Electroplating power: all control positive and opposite direction pulse electroplating power supply, the current range: 0~30A, adjustable 0.1 A step value, voltage: the highest DC6V
8. Air pump parameters: gas flow: 30L/min;
9. Negative pressure air pump: power 1000W vacuum suction: 210Bar; gas flow: 48L/min;
10. Input power: AC220V/50Hz;
11. Entire machine power: 2200W;
12. Overall volume: length 970mm×width 750mm×height 720mm;
13. Weight: 80Kg (liquid not contained).
