Алюминиевый сплав пользовательские радиатор экструзии
US $4.00-$10.00

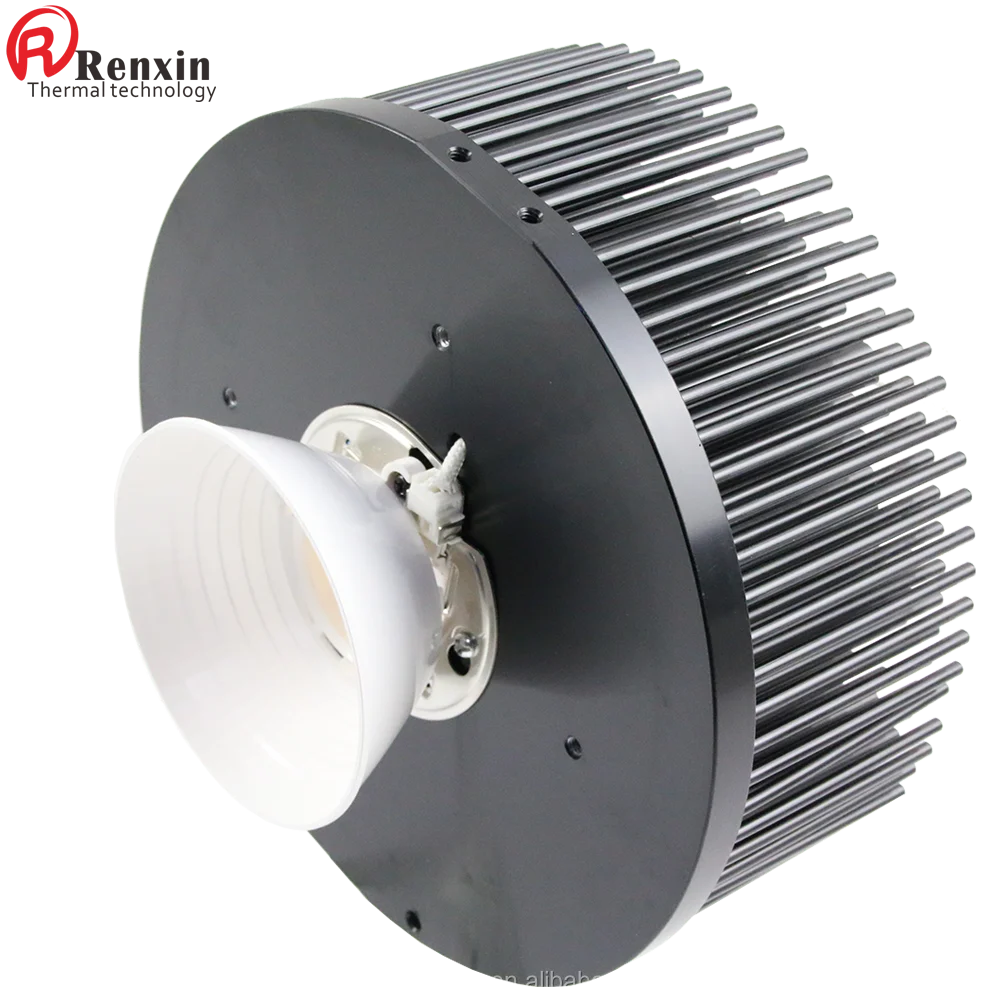

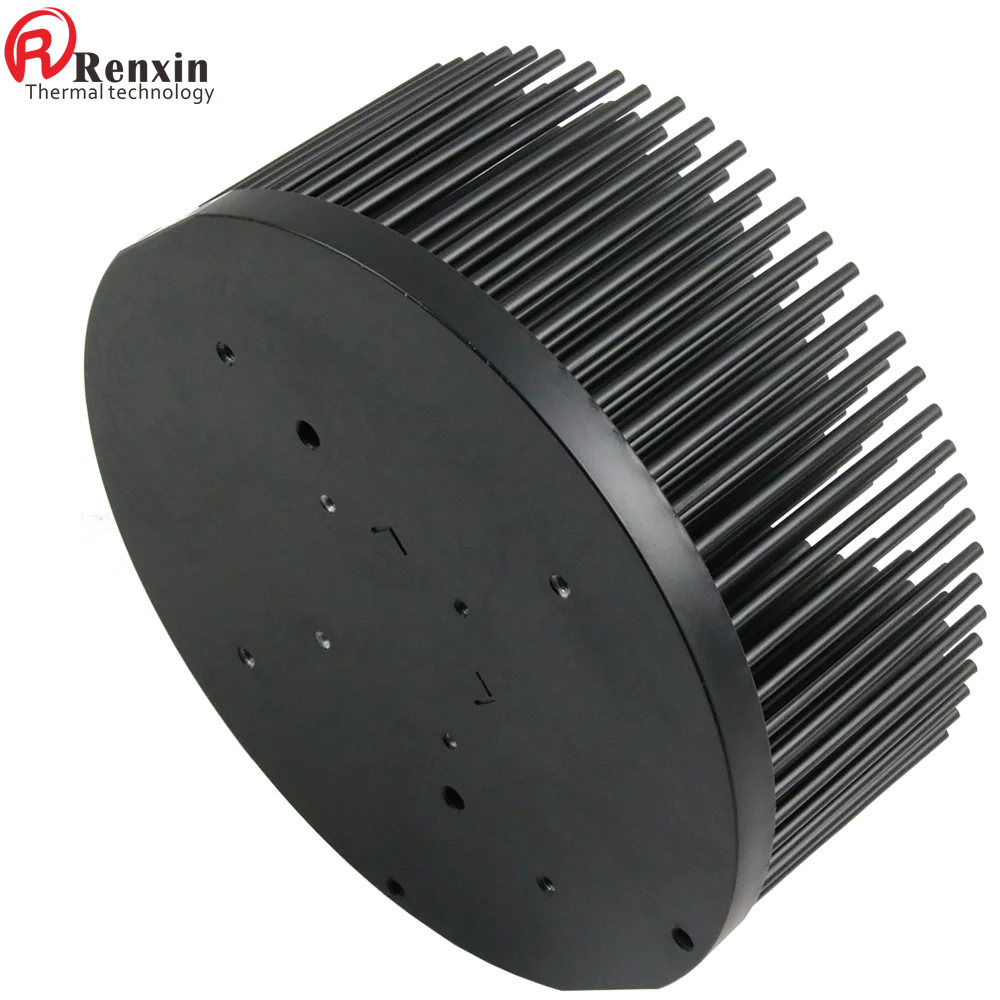

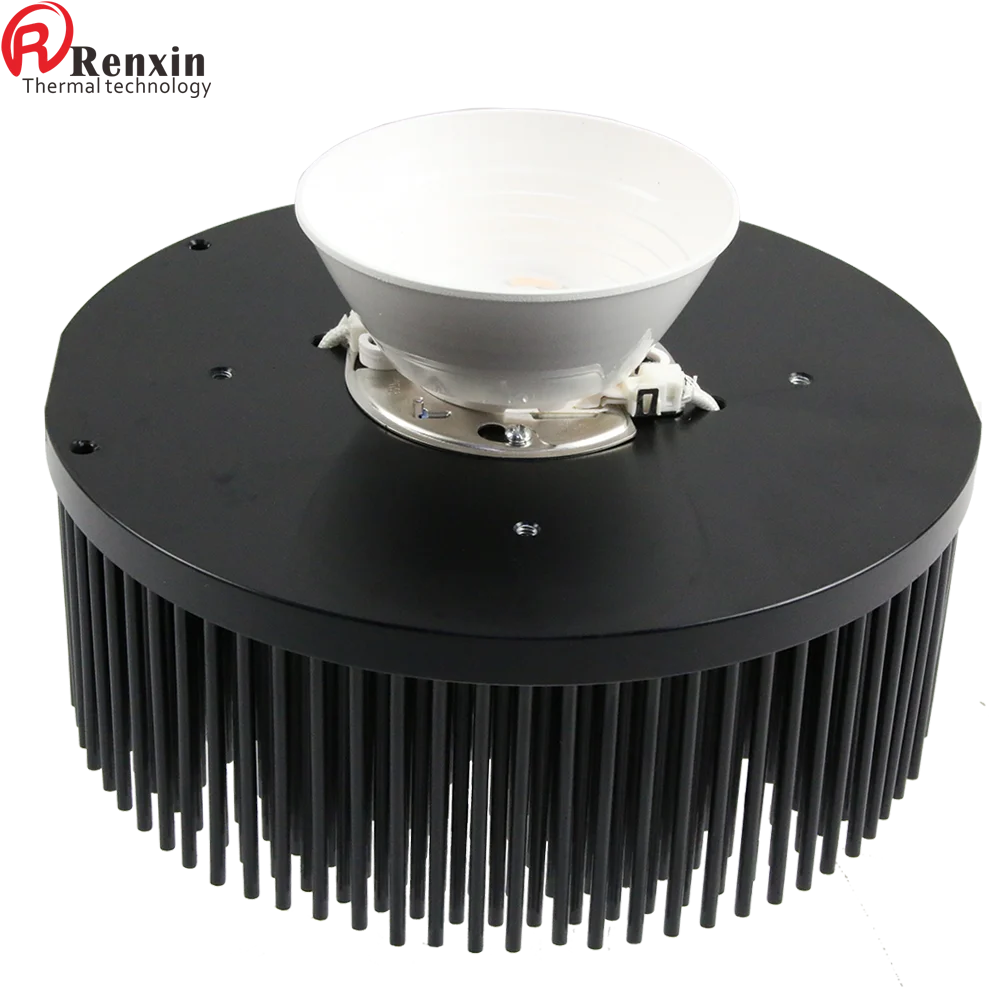

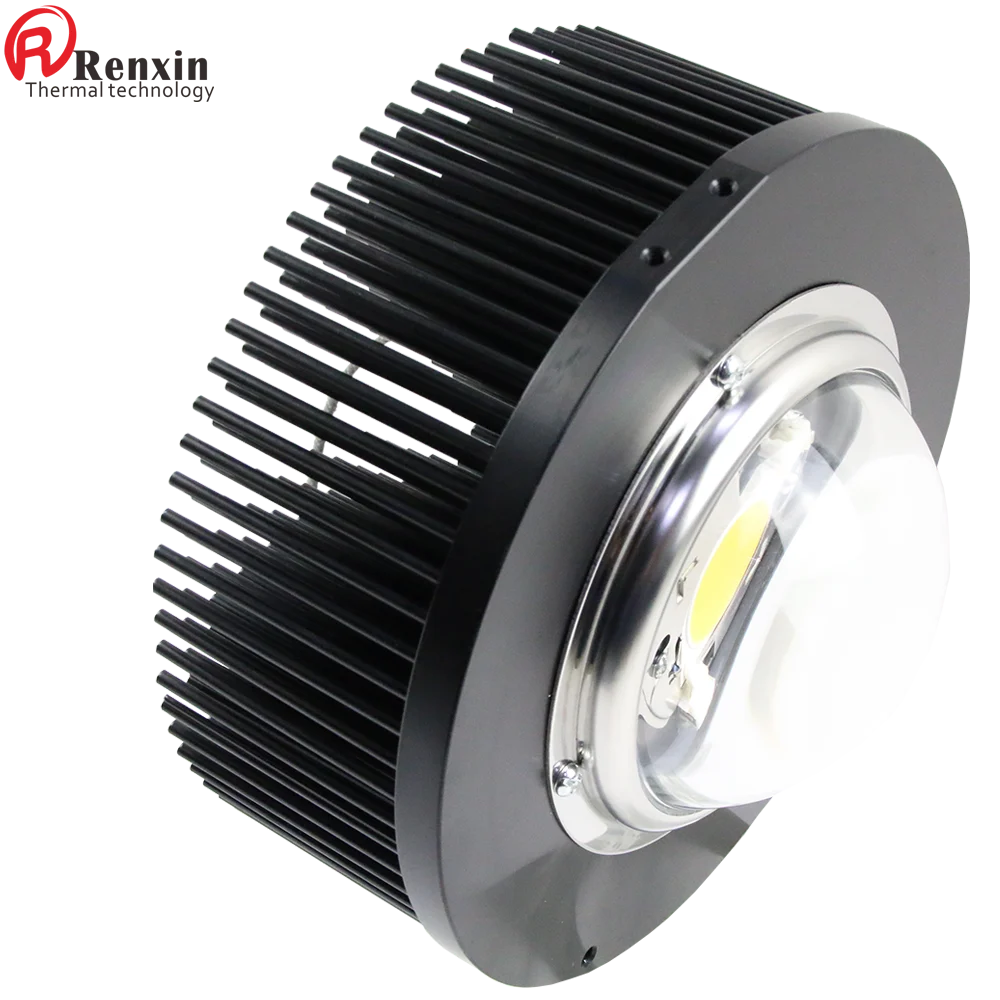

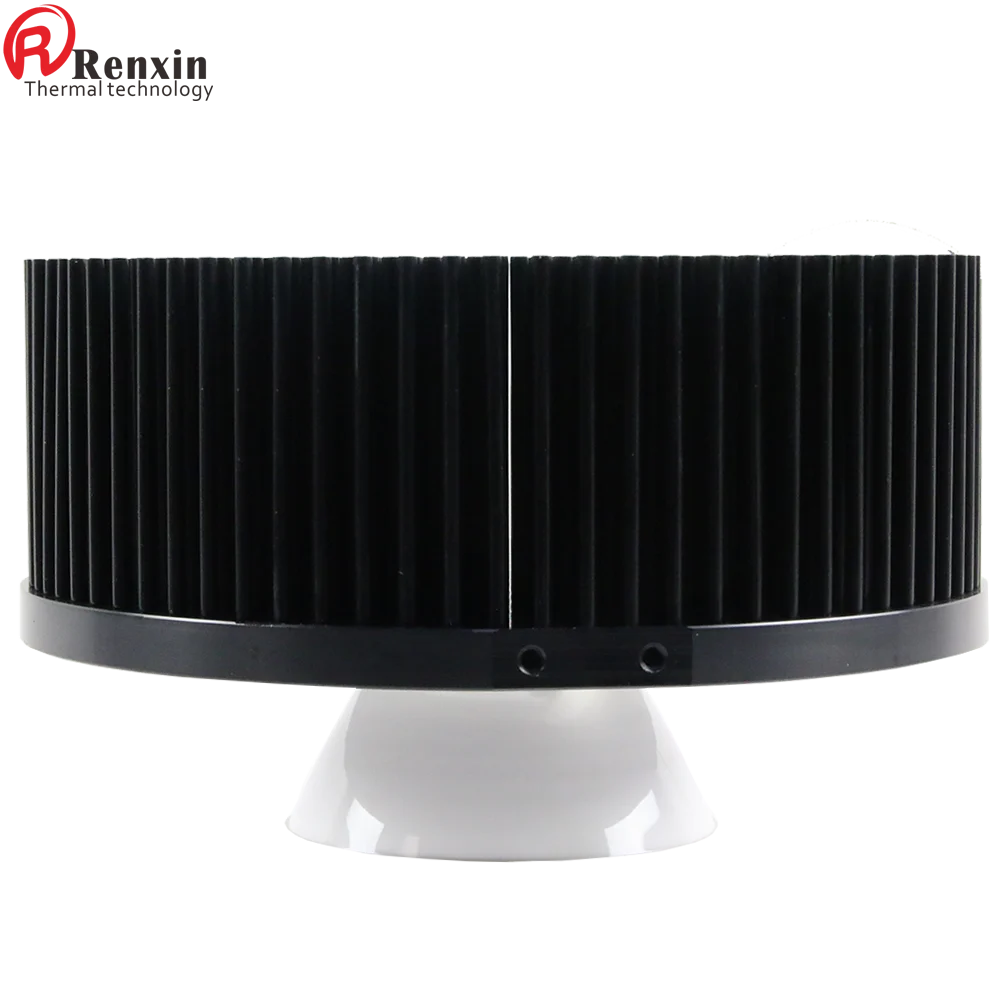

Контактный плавник 120 Вт светодиодный радиатор для Cxb3590 высоких промышленных помещений цилиндрический
- Категория: Heat Sinks >>>
- Поставщик: Dongguan,Renxin-Seiko,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 14.39 $* | 15.73 $* |
| Aug-16-2025 | 14.49 $* | 15.69 $* |
| Jul-16-2025 | 12.45 $* | 13.13 $* |
| Jun-16-2025 | 14.3 $* | 15.21 $* |
| May-16-2025 | 12.10 $* | 13.68 $* |
| Apr-16-2025 | 14.8 $* | 15.57 $* |
| Mar-16-2025 | 14.56 $* | 15.18 $* |
| Feb-16-2025 | 13.52 $* | 14.45 $* |
| Jan-16-2025 | 13.54 $* | 14.6 $* |
Характеристики
Specification
item | value |
Type | Heat Sinks |
Lighting solutions service | Lighting and circuitry design, led lighting |
Luminous Efficacy(lm/w) | 14000 |
Surface Treatment | Anodize |
Warranty(Year) | 5 |
Process | Forging |
IP Rating | IP65 |
Certification | RoHS |
Place of Origin | China |
Guangdong | |
Brand Name | Renxin |
Body Color | Black |
Shape | Round |
Body Material | Aluminum |
Application | Led Light |
Material | Aluminum 1070 (99.5%) |
Watts | 70-120watts |
Certification | ISO 9001:2015 |
Diameter | 180mm |
Height | 70 mm-((2.75 inch) |
Bottom thickness | 10 mm (0.39 inch) |
Net Weight | 1.52 Kg |
Available for | CXB3590/Vero 29/CLU048 |
Product name | Aluminum High Pin Heat Sink |
Product Description
Feature :

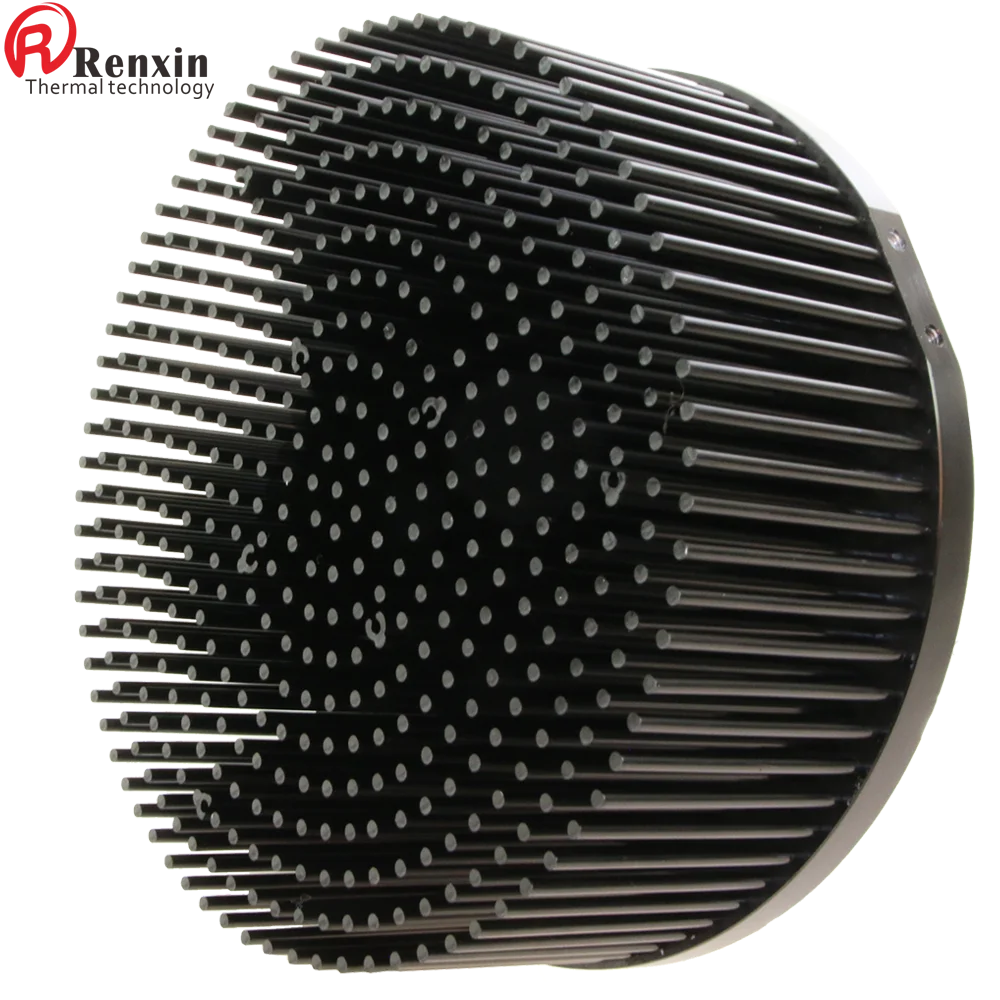

Splayed pin heatsinks are relatively new derivatives of the standard pin fin heatsinks. Unlike standard pin fin heatsinks, which contain an array of vertically oriented pins, splayed pin fins features pins that gradually bend outward. Curving the pins in this way increases the spacing between the pins and allows surrounding air streams to enter and exit the pin array more efficiently without sacrificing surface area.
The impact of increased pin spacing on heatsink performance is agnified at lower air speeds because weak air streams have less power to penetrate the array of pins. In low air speed environments and in natural convection, the increased spacing between the pins reduces the heatsinks' thermal resistance by up to thirty percent versus a standard pin fin heatsink. As a result, splayed pin fins are recommended for low and moderate airspeed environments and for natural convection cooling
The impact of increased pin spacing on heatsink performance is agnified at lower air speeds because weak air streams have less power to penetrate the array of pins. In low air speed environments and in natural convection, the increased spacing between the pins reduces the heatsinks' thermal resistance by up to thirty percent versus a standard pin fin heatsink. As a result, splayed pin fins are recommended for low and moderate airspeed environments and for natural convection cooling
Dimensions and Drilled
A >Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR+reflector adapter 50-2300AN and LEDiL F13838_ANGELINA-XW
B >Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR + 100mm Glass lens with 112mm diagonal mounting positions
C >Pre drilled for Citizen CLU-048 with Ideal Holder 50-2204CT + reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
D > Pre drilled for Citizen CLU-048 with BJB Holder 47.319.2030.50+reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
E > Pre drilled for Bridgelux Vero 29 with reflector adapter LEDiL C13584_CLAMP-VERO29 and LEDiL F13838_ANGELINA-XW
F > Pre drilled for Bridgelux Vero 29 with 100mm Glass lens with 112mm diagonal mounting positions
B >Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR + 100mm Glass lens with 112mm diagonal mounting positions
C >Pre drilled for Citizen CLU-048 with Ideal Holder 50-2204CT + reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
D > Pre drilled for Citizen CLU-048 with BJB Holder 47.319.2030.50+reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
E > Pre drilled for Bridgelux Vero 29 with reflector adapter LEDiL C13584_CLAMP-VERO29 and LEDiL F13838_ANGELINA-XW
F > Pre drilled for Bridgelux Vero 29 with 100mm Glass lens with 112mm diagonal mounting positions
Details：Dimens
Drawing：
Item | Part Number | Watts | OD (mm) | Base Height (mm) | Total Height (mm) |
1 | RX613-120-XX | 33-70Watts | Ø120 | 10 | 70 |
2 | RX613-133-XX | 50-75Watts | Ø133 | 10 | 70 |
3 | RX613-140-XX | 55-85Watts | Ø140 | 10 | 70 |
4 | RX613-150-XX | 65-100Watts | Ø150 | 10 | 70 |
5 | RX613-163-XX | 70-105Watts | Ø163 | 10 | 70 |
6 | RX613-180-XX | 75-110Watts | Ø180 | 10 | 70 |
Application：
>: Easy to install. Our tutorials allow you to assemble perfect LED grow lights , a practice well loved by DIYers.
>: We provide standard products from 45W to 100W for you to choose from. our on-site thermal design engineers
will provide professional thermal analysis reports, CAD design, and free technical support
>: All the LED grow lighting accessories are made available in one-stop style to save your valuable time while
allowing you to have professionally assembled LED grow lighting products
> :Special aluminum brackets and fasteners are available to make the assembled light fittings into a professional
and perfect LED grow lighting system while saving you a lot of cost and time.
> :We are a Specialized manufacturer backed by a complete quality management system and provide all-round
after-sales service. We promise to offer a warranty of 5 years for all of our products,
>: We provide standard products from 45W to 100W for you to choose from. our on-site thermal design engineers
will provide professional thermal analysis reports, CAD design, and free technical support
>: All the LED grow lighting accessories are made available in one-stop style to save your valuable time while
allowing you to have professionally assembled LED grow lighting products
> :Special aluminum brackets and fasteners are available to make the assembled light fittings into a professional
and perfect LED grow lighting system while saving you a lot of cost and time.
> :We are a Specialized manufacturer backed by a complete quality management system and provide all-round
after-sales service. We promise to offer a warranty of 5 years for all of our products,
Packing & Delivery
Carton, include Knife cards + Plastic of pallet (1.2m x 1.2m),
Can be customized according to your requirements packaging
Can be customized according to your requirements packaging
Company Profile
Company
RenXin.Seiko Industry Co.,LTD has been a leading manufacturer of technical heatsink and hardware parts over 10 years. The service range of about more than 1.500 articles includes standardized catalogue products as well as customers' products
We are providing aluminum extrusions heat sink, copper skiving fin heatsink ,stamping and nanophase powder heat sink, graphite powder heat sink for phone, PC, PDA, television, set top box , lighting, motors, smart home , DC charging point ,SMPS and Li-Lon battery
RenXin.Seiko was founded in 2004. Today we have a staff of 150 employees at our CNC workshop and automatic workshop in DongguanSongshan Lake Science& Technologic Industry Park, Aluminum extrusions workshop in Foshan , The production site Songshan lake includes among others a state-of-the-art machinery, an efficient R&D ,product department and nanotechnology for heat sink.
RenXin.Seiko stands for
R&D
Product department
State-of-the-art machinery
Quality management
Nanopowder coat assembly te
CNC automation engineering
Individual service
RenXin.Seiko Industry Co.,LTD has been a leading manufacturer of technical heatsink and hardware parts over 10 years. The service range of about more than 1.500 articles includes standardized catalogue products as well as customers' products
We are providing aluminum extrusions heat sink, copper skiving fin heatsink ,stamping and nanophase powder heat sink, graphite powder heat sink for phone, PC, PDA, television, set top box , lighting, motors, smart home , DC charging point ,SMPS and Li-Lon battery
RenXin.Seiko was founded in 2004. Today we have a staff of 150 employees at our CNC workshop and automatic workshop in DongguanSongshan Lake Science& Technologic Industry Park, Aluminum extrusions workshop in Foshan , The production site Songshan lake includes among others a state-of-the-art machinery, an efficient R&D ,product department and nanotechnology for heat sink.
RenXin.Seiko stands for
R&D
Product department
State-of-the-art machinery
Quality management
Nanopowder coat assembly te
CNC automation engineering
Individual service
Certifications
FAQ
1,Why do you choose our factory?
For more than a decade, we have been doing our utmost to provide customers with better products and more comfortable
services,carefully treat each customer, and take every transaction seriously. Feedback customer friends with better products,more favorable prices and better service.
2,What are the benefits of working with us？
1).Production time and product quality are stable, customers do not need to spend a lot of time to find other suppliers
2).We provide not only high-quality products but also our professional services
3).We will give various preferential policies from time to time for long-term cooperation with old customers.
4).Because we focus on the industry, focus on production, so worthy of your trust
3,How to ensure the quality of your products?
(1)Material inspection--Check the material surface and roughly dimension
(2)Production first inspection--To ensure the critical dimension in mass production
(3)Sampling inspection--Check the quality before sending to the warehouse
(4)Before shipment inspection--100% inspected by QC assistants before shipment
4,What's our strengths?
1). We have strict production standards, quality control and inspection before goods delivery.
2). With 10 years experience, our factory is well recognized by clients and enjoys a good reputation among overseas markets.
3).While being awarded various honors, our brand Renxin Aluminium Profiles is famous in Alibaba，and we always honor our cooperation and keep commercial integrity.
4). Strong R&D team and sold at home and abroad.
For more than a decade, we have been doing our utmost to provide customers with better products and more comfortable
services,carefully treat each customer, and take every transaction seriously. Feedback customer friends with better products,more favorable prices and better service.
2,What are the benefits of working with us？
1).Production time and product quality are stable, customers do not need to spend a lot of time to find other suppliers
2).We provide not only high-quality products but also our professional services
3).We will give various preferential policies from time to time for long-term cooperation with old customers.
4).Because we focus on the industry, focus on production, so worthy of your trust
3,How to ensure the quality of your products?
(1)Material inspection--Check the material surface and roughly dimension
(2)Production first inspection--To ensure the critical dimension in mass production
(3)Sampling inspection--Check the quality before sending to the warehouse
(4)Before shipment inspection--100% inspected by QC assistants before shipment
4,What's our strengths?
1). We have strict production standards, quality control and inspection before goods delivery.
2). With 10 years experience, our factory is well recognized by clients and enjoys a good reputation among overseas markets.
3).While being awarded various honors, our brand Renxin Aluminium Profiles is famous in Alibaba，and we always honor our cooperation and keep commercial integrity.
4). Strong R&D team and sold at home and abroad.
