Характеристики

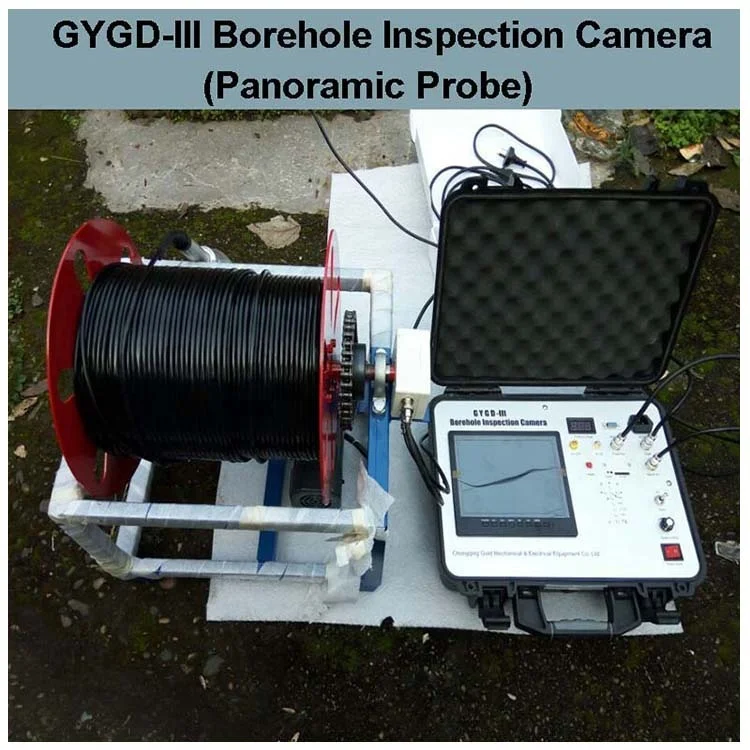

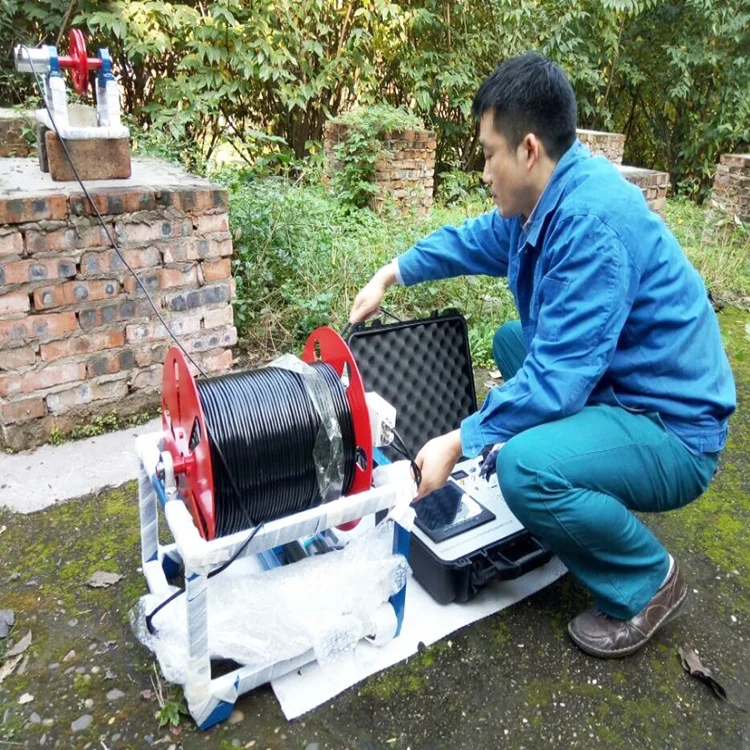

New Well & Borehole Inspection Camera for Water Well Inspection
*Real time video, collect, record,
*Clearly image show on ground instrument,
*Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole,
*Widely used in water well, oil field, coal field, engineering geology, dam, reservoir, oceaneering,
*Stable performance and modern design,
*High resolution LED screen,
*Large storage SD card(max to 32GB),8GB could continue record 32 hours,
*Autofocus,brightness is adjustable.
Technical Parameters fo the Water Well Inspection Camera:
No. | Configuration | Dimension | Specification |
1 | Camera probe | Diameter: 50/70mm Length: 470mm | 1. Camera lens are manufactured with high-quality resins. 2. High-quality steel body with solid structure, not easy to be damaged. 3. Maximum bearable pressure:15Mpa (can reach the depth of 2000m under water) 4. 6-12 LED lamps are available |
2 | Camera | 1. Sony inducer 1/3’’ CCD 2. HD 720 TVL image definition 3. Waterproof 4. Panoramic lens camera | |
3 | Specialized cable | Length: 0-2000m (optional) | 1. With steel wire 2. Max bearable tension: 250kg |
4 | Control unit | 1. 220V/380V/12V optional voltage mode 2. Aeronautic aluminium case | |
5 | Downhold pulley | Logging depth counter equiped | |
6 | Logging winch | Manual & electric winch available | |
7 | HD DVR | SD card | |
