MCT200 краски толщины покрытий с цифровым

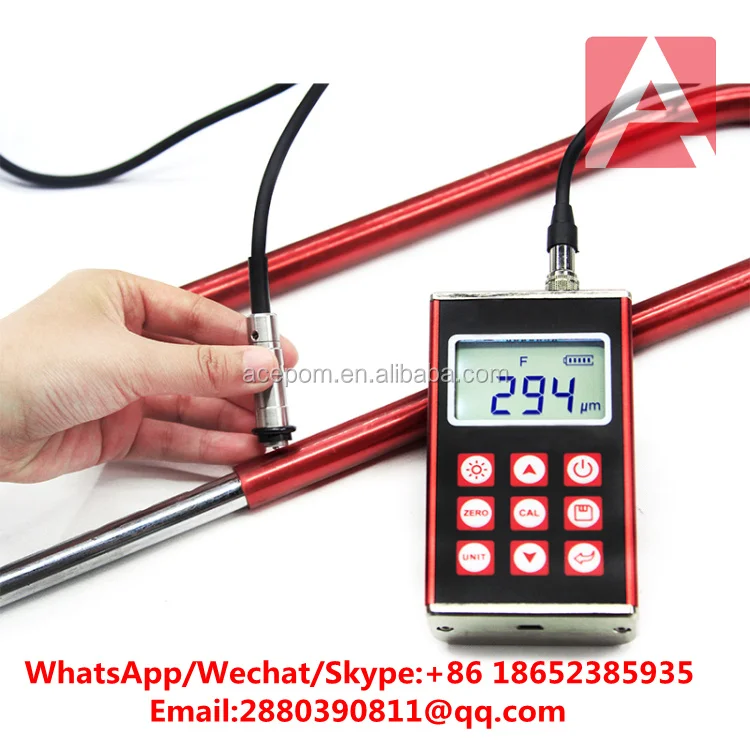

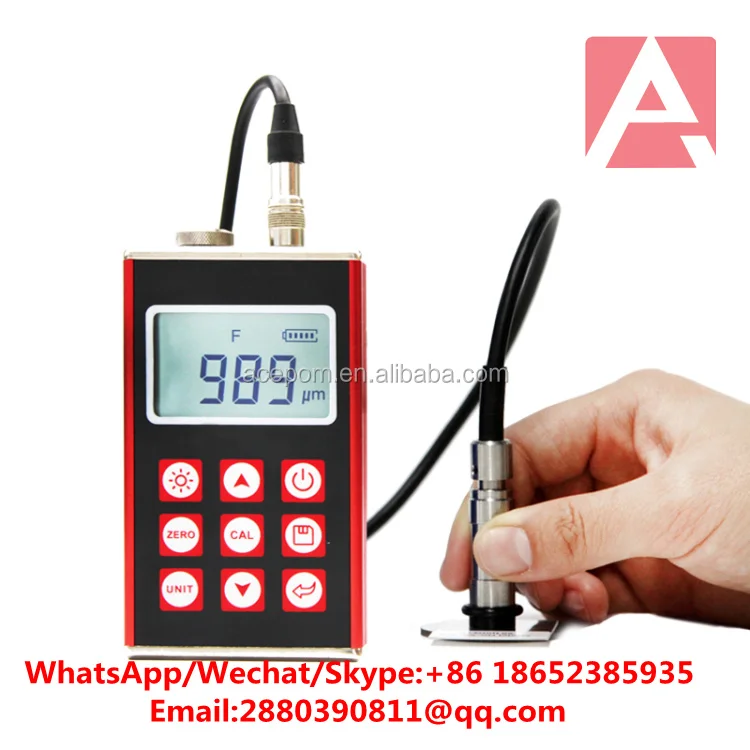

MCT200 Coating Thickness Gauge is designed for non-destructive, fast and precise coating thickness measurement and also can measure the film thickness. It is widely used in manufacturing,metal processing industry, chemical industry.commodities inspection and other testing areas. Measuring range from 0 to 10 mm, can meet the different industries in view of the workpiece surface coating thickness testing requirements. It is the necessary professional precision instrument to improve the production efficiency and the qualified rate, saving the cost of production.

Five types of probes are available for different application,probe contact parts with the hard chrome or red ruby materials, very durable.

With different external probes,the gauge can be applied to measuring thickness of

non-magnetic coating on magnetic metal substrate,as well as non-conductive coating on non-magnetic metal substrate.

Two calibration methods can be applied to the gauge and the system error of the probe can be corrected with the basic probe calibration method.

Two measuring modes: single or continuous, changeable.

Measuring status indicator shows the measuring status.

EL display back light ensures easy reading of screen data in low light conditions.

Battery information indicates the rest capacity of the battery.

Auto sleep and auto power off function to conserve battery life.

USB1.1 communication port.

Optional software to process the memory data on the PC.

Compact aluminum case, suitable for use under poor working conditions.

Measuring principle: Magnetic induction & Eddy current.

With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic Metal substrate,as well as non-conductive coating on non-magnetic metal substrate.

Working temperature: -10℃~+50℃.

Storage temperature: -30℃~+60℃.

Relative humidity: ≤90%.

The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

Five types of probes(F400,F1, F10,N1,CN02) are available for different applications, F10 probe measures up to 10mm.

With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.

Two calibration methods can be applied to the gauge.The system error of the probe can be corrected with the basic probe calibration method.

Two measuring modes: single or continuous, changeable.

Measuring status indicator shows the measuring status.

Measured values and user information are shown on a large, easy-to-read LCD.The display back light ensures easy reading of screen data in low light conditions.

Battery information indicates the rest capacity of the battery.

Auto sleep and auto power off function to conserve battery life.

USB1.1 communication port, optional software to process the memory data on the PC.

The gauge equips with data-pro software, can do measurement results transmission, automatic storage management, measurement data analysis, measurement reports print etc.

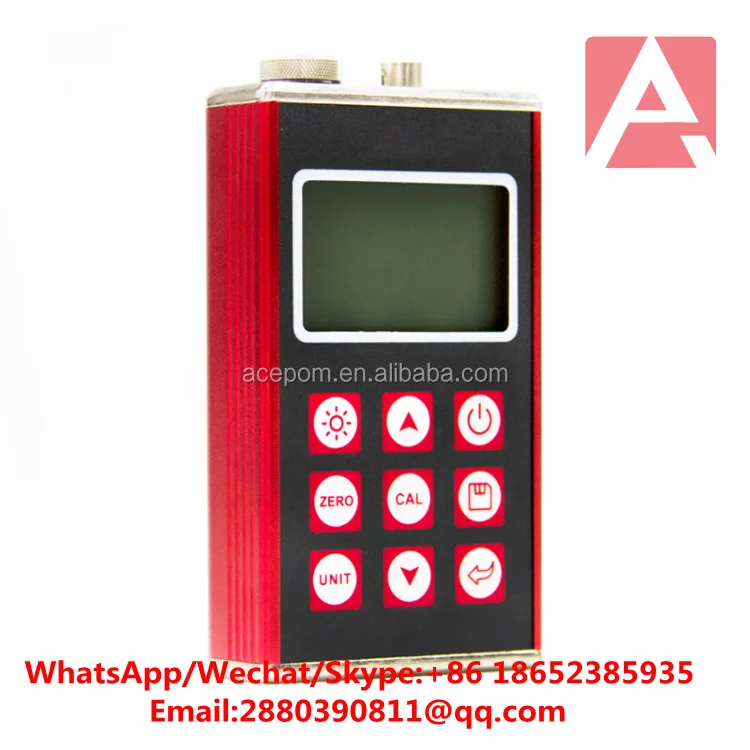

Compact aluminum case, suitable for use under poor working conditions.

Operating Method and Attentions

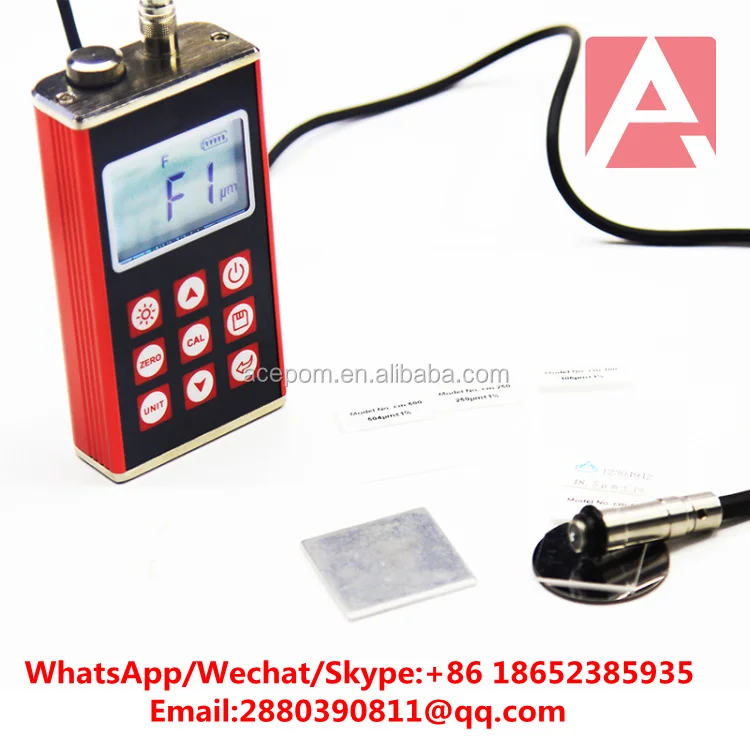

When the instrument is off, press CAL then press start, with a beep, enter the calibration mode, set the probe zero point.

Test on the specimen, use up/down to retify the valus, then follow the step on the other four slices. In asending order, such as, 50, 100, 200, 400, 800μm. The instrument should avoid humidity, unplug the plug with care, keep clean.

The battery should be changed when almost out, used batteries must be removed from the gauge without delay to avoid leakage, please take out the batteries when not using.

The calibration substrate should avoid scratch, rust.
