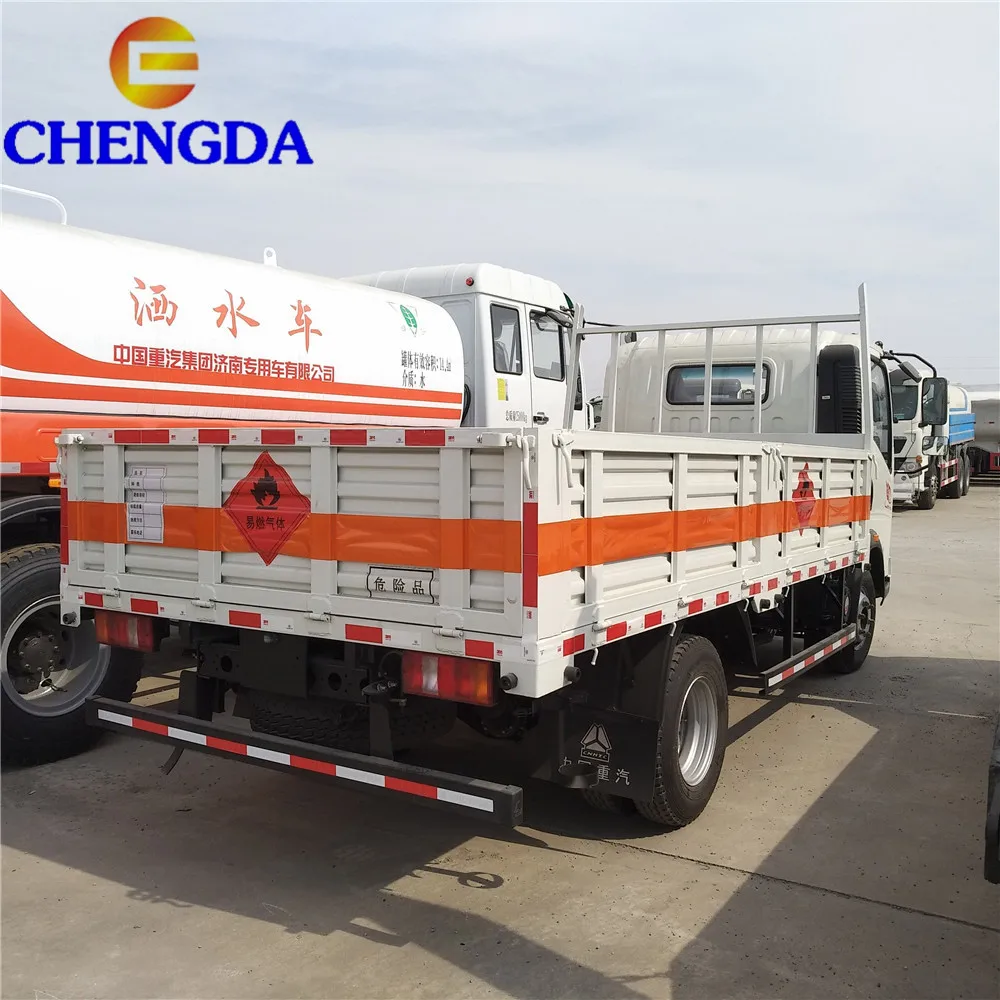

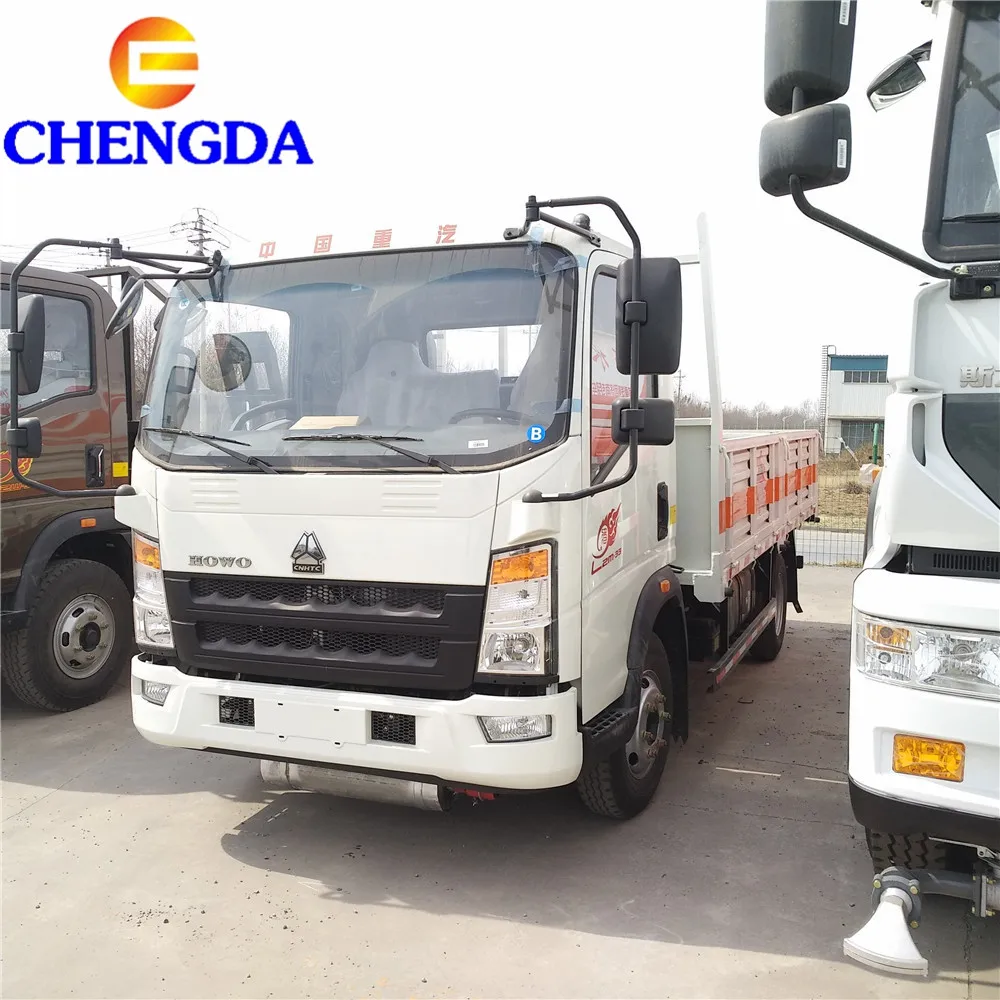

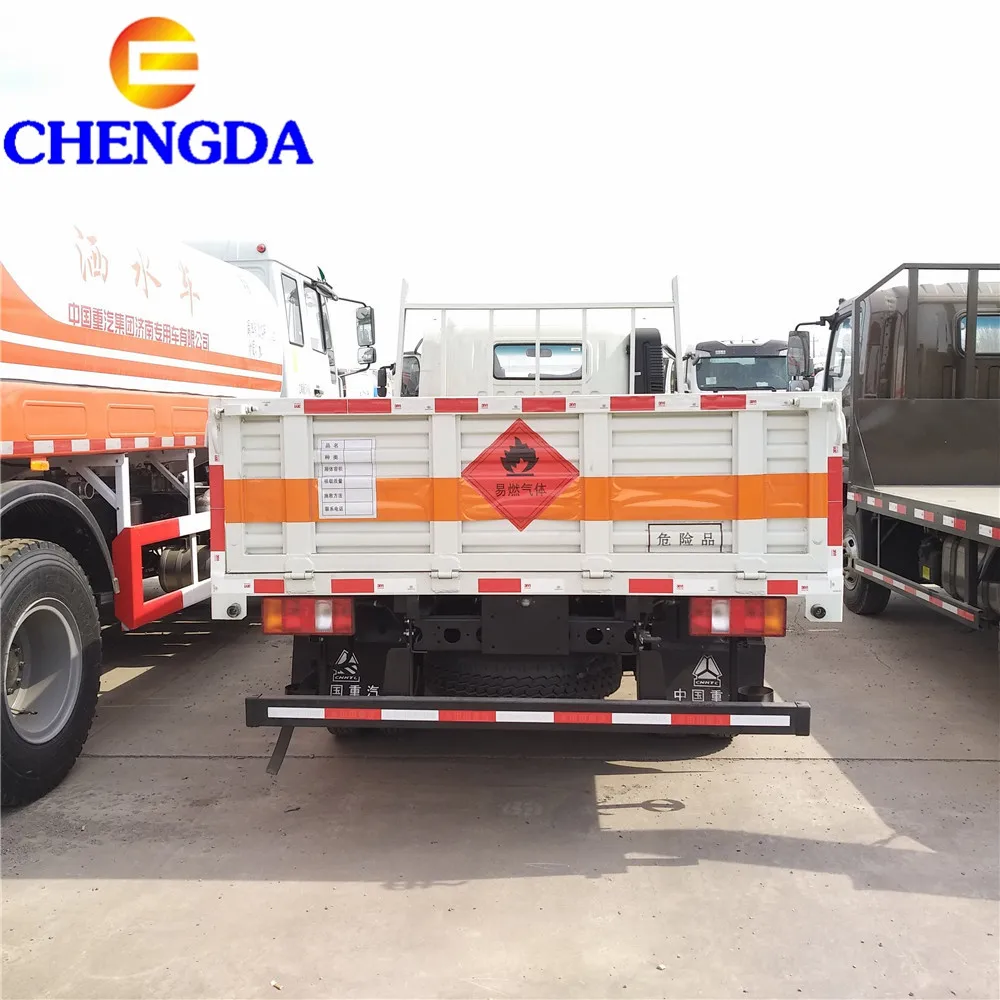

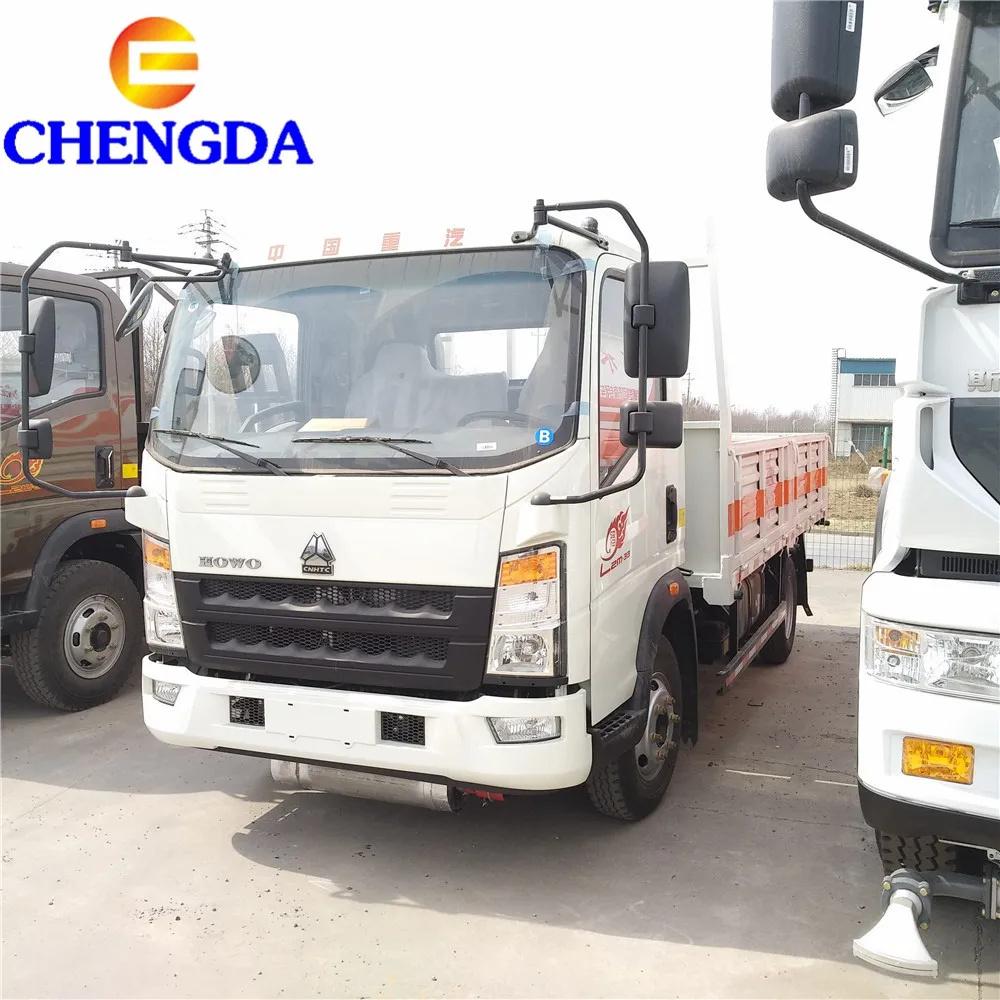

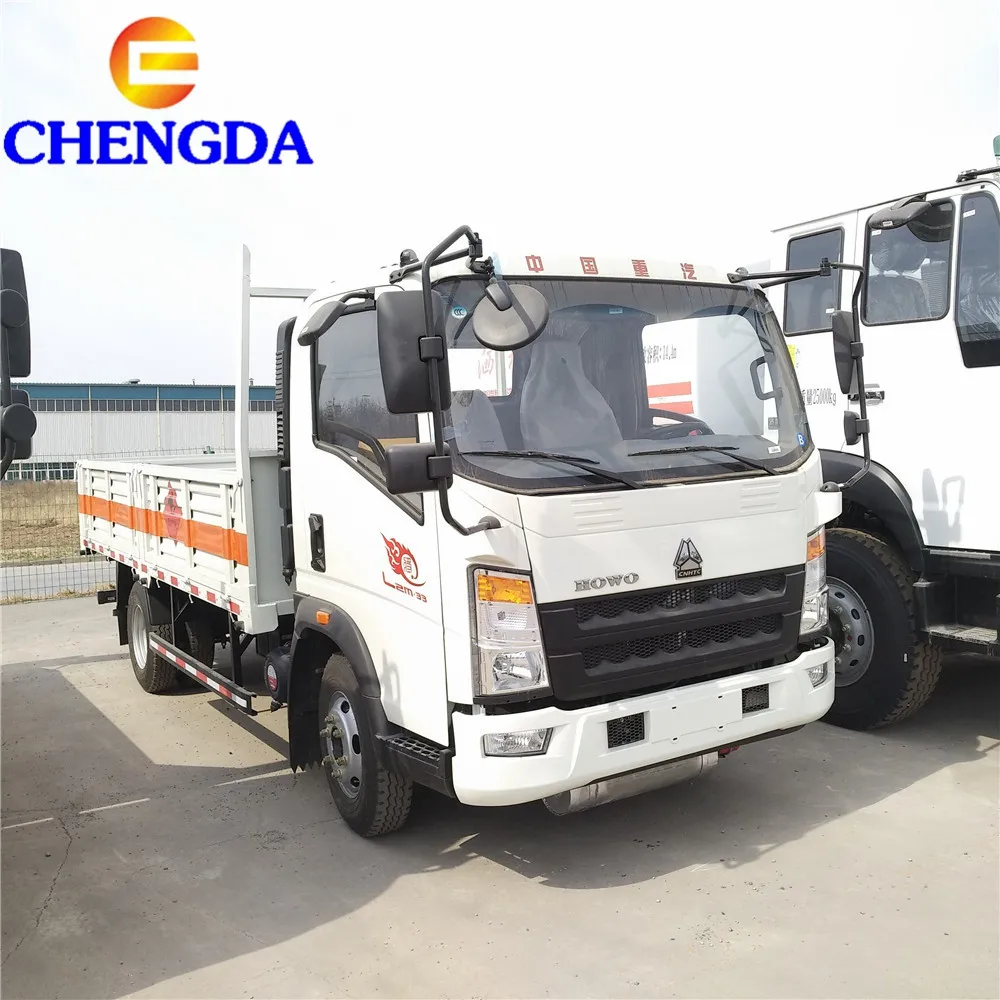

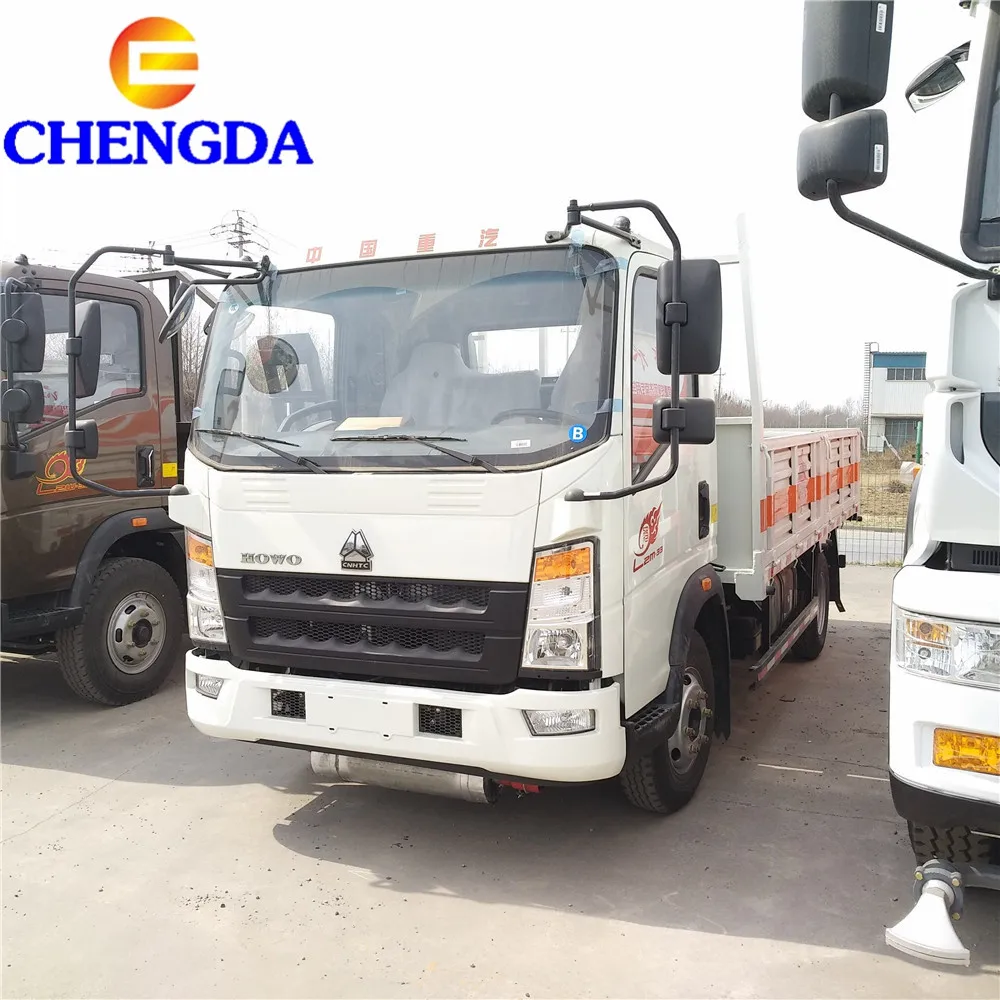

SINOTRUK HOWO 5 тонны 4x2 легкий

Type

HOWO 4x2 cargo truck

Loading capacity (T)

5

Parameters

Overall dimension(LxWxH mm)

5995x2250x2450

Carriage dimension (LxWxH mm)

4200x2050x400

Drive mode

4x2

Wheelbase (mm)

3360

Wheel tread  (Front/Rear mm)

1800/1595

Min. ground clearance (mm)

210mm

Front overhang/Rear overhang(mm)

1160/1475

Approach angle/

Departure angle(°)

18/18

Max. speed (km/h)

90

Max. grade ability (%)

30

Fuel consumption (L/100KM)

11.2

Min. turning radius (m)

7m

Curb weight (kg)

3300

Rated load (kg)

5000-6000

Capacity of cab

3

Gross weight (kg)

9495

Cab

width*length

1760

Engine

Model

YN38CRD2

Type

Diesel, four-cylinder, inline, injection,pressurize, intercoolers

Displacement (L)

3760

Power/rated speed (kw/rpm)

81/3000

Maximum torque/rotate speed (N.m/rpm)

330/1600~2000

Gear box

type

WLY535,5 forward & 1 reverse

speed ratio

6.314/3.913/2.262/1.393/1.00/0.788/5.874

Frame

height(mm)

                 195

Front axle

VGD20QB

Rear axle

HGC35QB

Suspension

11/9+7CH

Braking system

Drive brake

Hydraulic drum

Parking brake

Cutting-off air brake

Auxiliary brake

                Exhaust brake

Clutch

300

Electrical appliance

Nominal voltage

24V

Battery

80AH

A/C

With

Tire

7.00R16

Fuel tank (L)

120L

Basic configuration

Radio,sun shield, clutch booster,power steering,adjustable steering wheel, heater, electric control flameout ,electrical heating,  air dryer, left hand, electric window ( option ), metallic paint of cab(except white)
