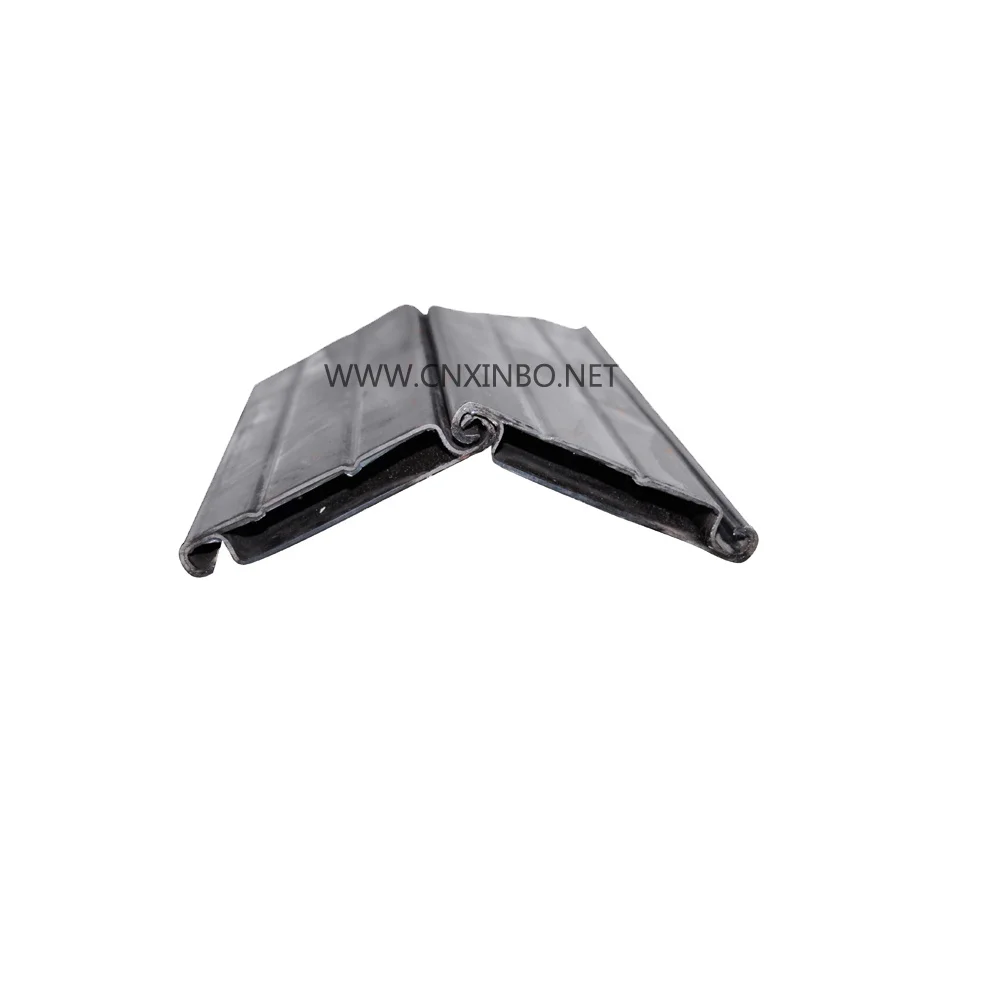

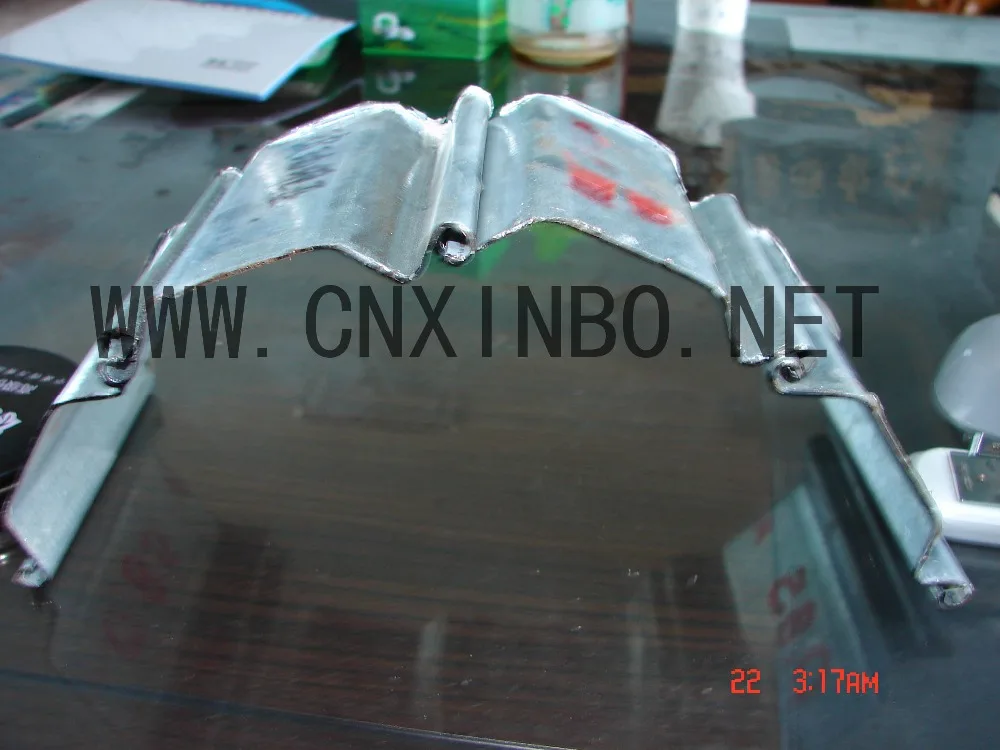

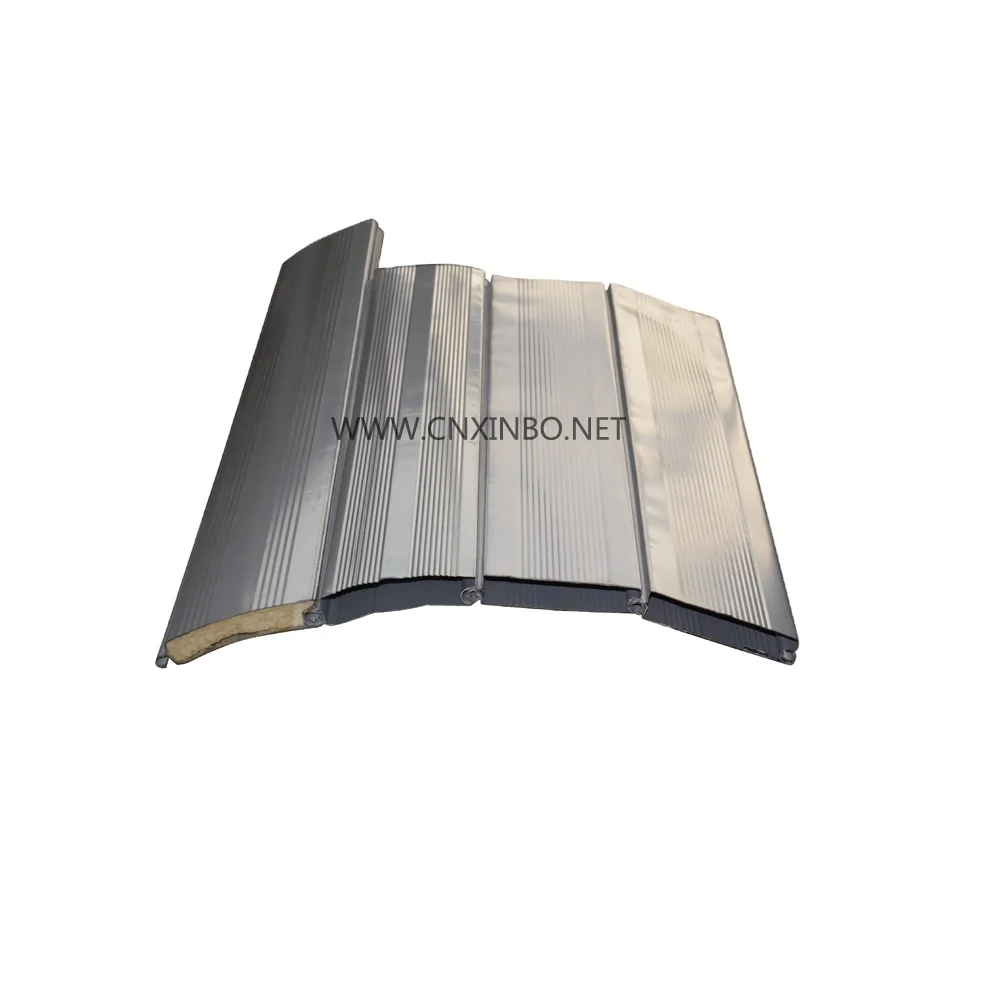

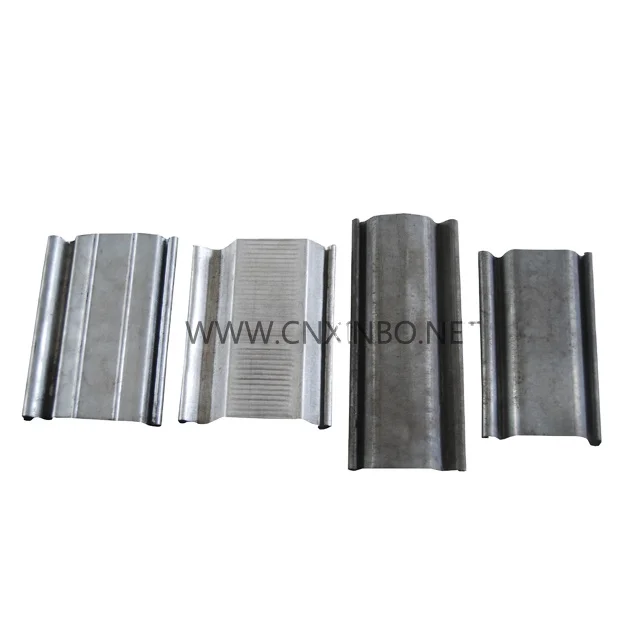

Гаражные Воротные панели производственная линия двери затвора делая

material: galvanized sheet or colored armor plate

Equipment operation\tAutomatically

Voltage \tAC380/50-60Hz

Thickness of sheet(mm)\t0.3--0.8

Material width(mm)\t1250

Productivity \t0-16m/min

Output /shift (8hs)\t5000m

Producing capability\t3500 m2/8hs

The size\t7300mmx1600mmx1400mm

Material of rollers\t45#steel

Diameter of shaft\tФ70mm

Total power(kw)\t8 kw

Weight\tAbout 1500~3500KGS

Driven system\tSingle

Power of hydraulic system\t4KW

Power of main molding core\t4KW(cycloidal planetary gear speed reducer)

Main Features

●Manual Decoiler can bear 5 tons

●Feeding platform

●Main molding core

●Hydraulic system

●Automatic shearing system

●Computer control system

●High-precision automatic counter

●Driven system protective covering

●Panel supporting table

Machine Parts

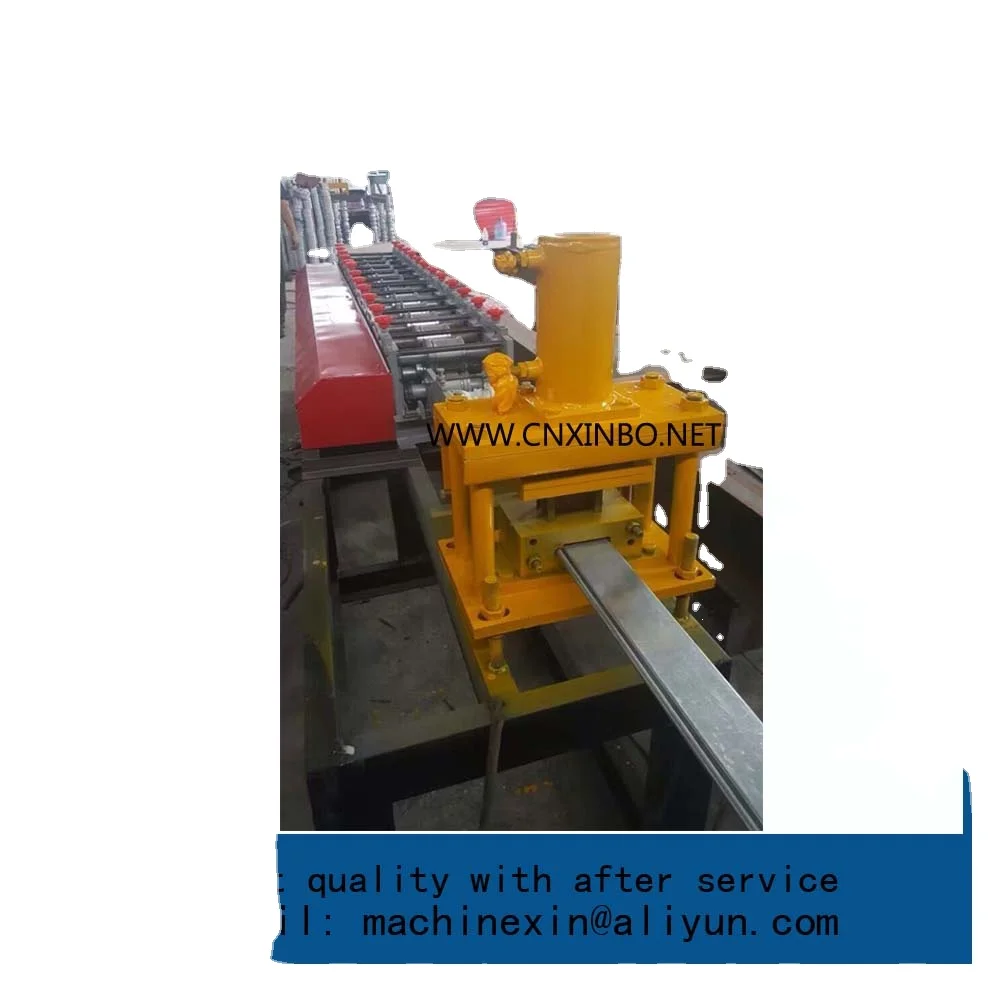

Name: cutting part

Brand: Xinbo

Original:China

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Main Features

Name:inputting plate
Brand:Xinbo
Original: China

Machine Parts

Name: Bliwing Cylinder
Brand: FESTO
Original: China

It adopts MITSUBISHI PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

Main Features

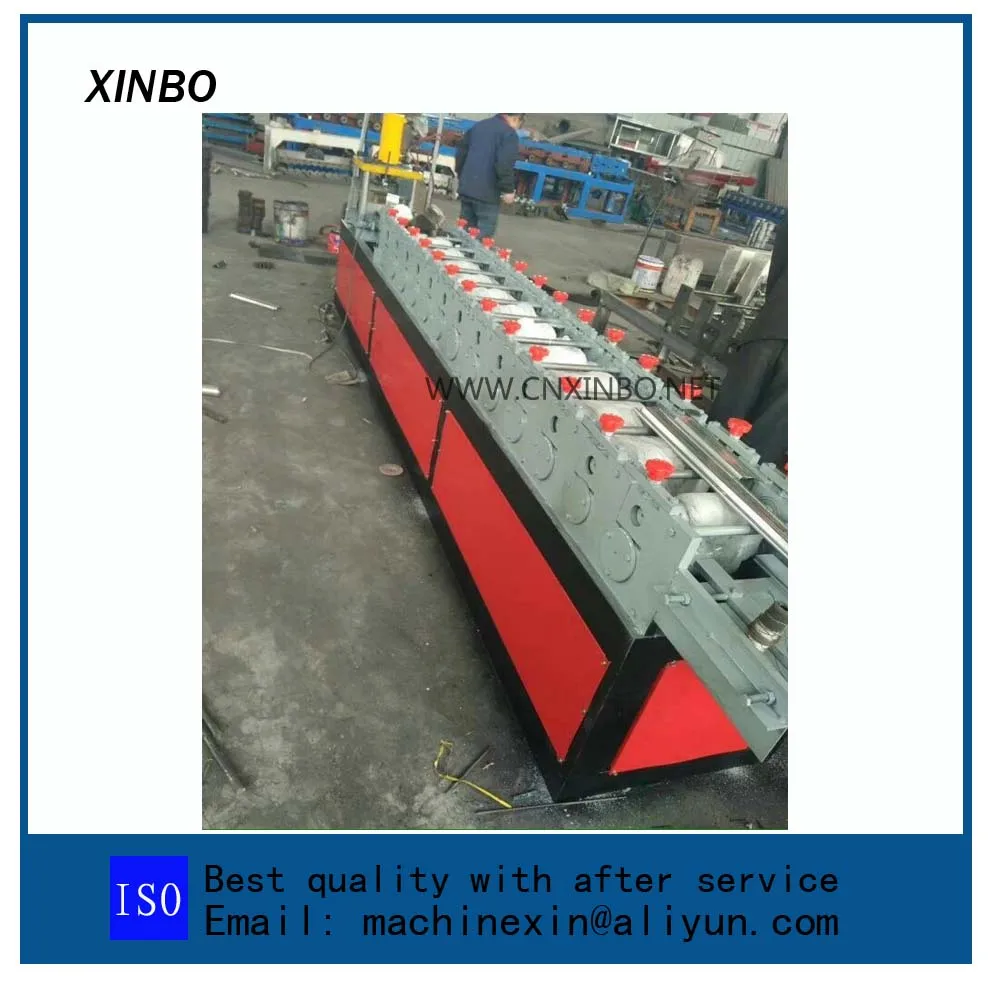

Name: main door machine
Brand:Xinbo
Original: China
