Недорогой одноплатный компьютер Linux i.MX6UL для решения шлюза

Low Cost Linux Single Board Computer Freescale i.MX6UL ARM Cortex-A7 for IoT Gateway Solution

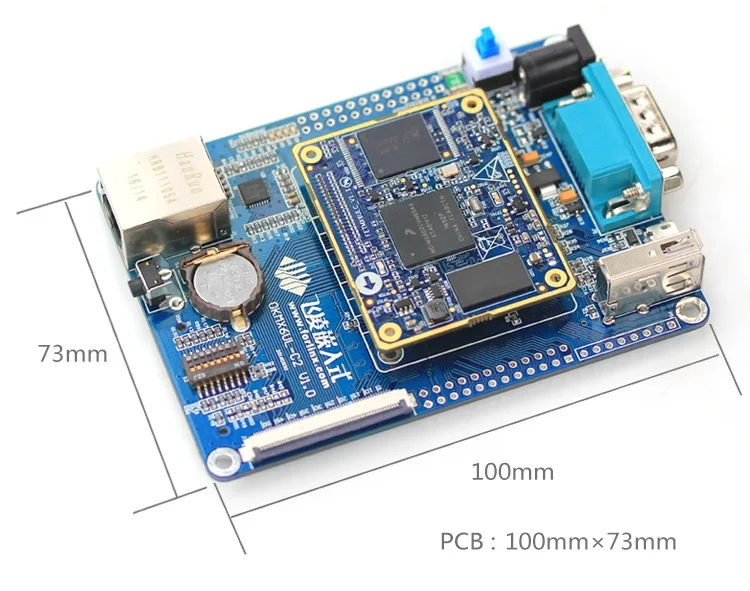

OKMX6UL-C2 is a Cortex-A7 featuring low price single board computer designed by Freescale i.MX6UltraLite processor with high product performance. Its carrier board is available for both a commercial grade CPU module and an industrial grade CPU module, the whole board size is only 100mm x 73mm, on-board LCD, Ethernet, USB host/OTG, RTC, SD card, LED are all available. 41x GPIO pinned out by dual-row pin connectors with pitch of 2.54mm, which is very convenient for usrs to flash OS and test the board to finish their evaluation.

This single board computer or its system on module is especially fit for IoT gateway solution.

Ultra low power consumption

the FETMX6UL-C2 SoM (system on module) power consumption could be 50% lower than ARM9/ARM11 series SoM

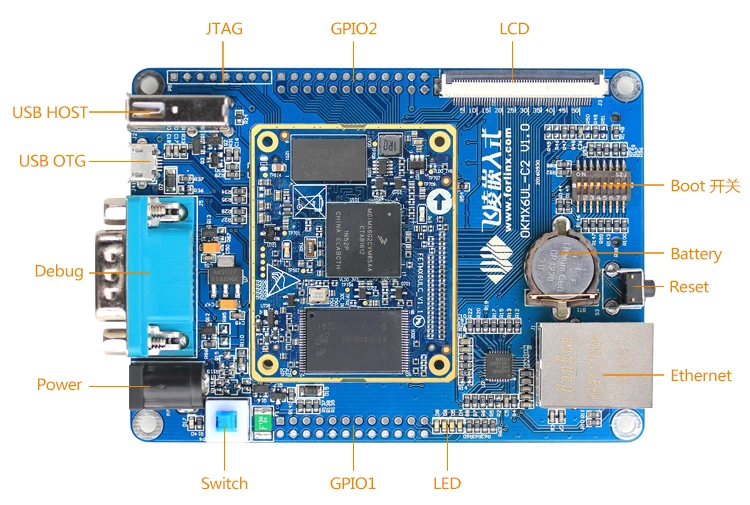

Below picture can show you clearly about all interfaces on the carrier board of this single board computer

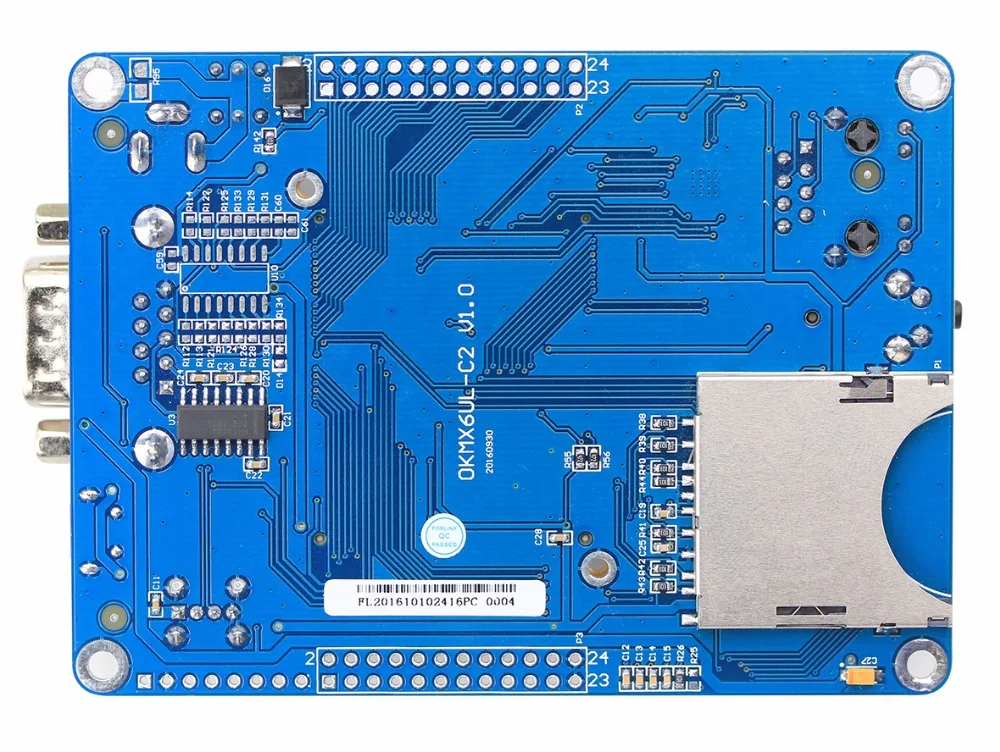

Back of single board computer

one piece a box, box dimensions: 24*19*10cm

parcel could be sent out by express or air solution within 5 working days after receipt of full payment.

both freight prepaid and collected are optional

Below pictures will show you how we generally pack a board

Founded in 2007, Forlinx Embedded Tech. Co., Ltd. is one of the best and leading manufacturer and supplier of embedded system ARM single board computer/development board/CPU module/system on module (SoM) and solution provider in China. As a member of CSIA (China Software Industry Association) Embedded System Branch,dedicated to providing customers with best embedded ARM development board/single board computer, CPU module/SoM, expand modules and solutions, its main products are single board computer, CPU module, TFT LCD module and other added-on modules sold to all over the world.

With an excellent R&D group and close relationships with chipset suppliers such as Samsung, TI, Freescale/NXP, etc., Forlinx has placed TI AM335x Cortex-A8 featuring industrial grade single board computer and Freescale i.MX6 Cortex-A9, Cortex-A7 and Samsung Cortex-A53, Cortex-A9, Cortex-A8, ARM11 and ARM9 featuring series embedded system products to market to be widely used by thousands of enterprises from all walks of life (smart home, communication, new energy, medical. transportation, navigation, environment inspection, etc.) for product developments.

Years of innovation and development and also supporting from customers, Forlinx has become a mainstream brand in embedded industry in China.

Technical Support Coverage

• Offering inquiry solution of hardware and software resources provided by Forlinx.

• Engineers help explain questions and solve problems occurred during the operation processes following the hardware and software manuals.

• ODM after-sales tech supports.

• Updateing the hardware and software resources and manuals.

• Helping users to analyze the breakdowns of products.

Technical disscussion Coverage

• Souce code modification.

• Develop new applications.

• Port new operation system.

• Help users to solve problems occurred in hardware and software aspects that done by themselves

How to get techincal support

1. Check Product Dowload File

All kinds of hardware, software files and user manuals are included in the download link that is provided for users after placing an order.Please carefully check these files before operation; questions that frequently asked could be solved by this approach.

2. Give us a phone call

You could call us by phone to the number: 86-312-3102663 in our working time (Beijing time: 8:30-12:00 (am), 13:00-17:00(pm) (Monday-Friday)

3. Send us E-mail

Generally, If you have any technical questions that could not be solved by yourself, please email us to below addresses according to the system now you are operating with.
We will response you within 24 hours.

4. Send us On-line messages

Or you could directly open our website, and leave us on-line messages via message system or skype. However, please also make sure that you have submitted correct contact information in the message system, such as: your name, email address, telephone numbers, etc. We will try our best to response you as soon as possible.

1. Authority Freescale IDH

2. Stability product performance

3. Product life time guarantee

4. Necessary after-sale technical support instant communication

5. High product quality
