Technique details--condensing gas boiler



Type	LL1PBD18/20-H			LL1PBD24-H
	Unit	LPG(Y)	NG(T)	LPG(Y)	NG(T)
Gas pressure	Pa	2800	2000	2800	2000
Rated input power(Heating load)	KW	18/24		24
Rated output power	KW	17.6/19.6		23.5
Minimum heating input power	KW	5.4/6		7.2
Minimum heating output power	KW	5.1/5.7		6.8
Minimum hot water input power	KW	5.4/6		7.2
Minimum hot water output power	KW	4.9/5.4		6.5
Nominal heating capacity	KW	7.5/8.2		10
Efficiency (%)
In condensing mode full power at 30/50℃	%	103.7%
In normal mode at 60/8℃	%	97.1%
Medium mode at  40/60℃	%	93.8%
At minimum power at 40/60℃	%	91.16%
At 30% of medium power at  30/50℃	%	99.07%
Hot water pressure	Mpa	0.03~0.8
Power supply	/	220V-50HZ
Rated power	W	110
Protection degree	IP	X4D
Heating area for reference	Sq.m	100/120		140
Temperature Settings range of heating water	℃	30-80(floor heating: 30~60)
Temperature Settings range of hot water	℃	30~60
Expansion tank capacity	L	6
Expansion tank initial pressure	bar	1
Heating pipes  safety valve start-up pressure	Mpa	0.3
Hot water pipes  safety valve start-up pressure	Mpa	0.8
Pump lift	m	5
Dimension of the smoke exhaust pipe	mm	Coaxial double flue Φ60- Φ90		Coaxial double flue Φ60- Φ100
Reference maximum consumption quantity-NG	(m³/h)	0.54-1.8/0.6-2.0		0.72-2.40
Reference maximum consumption quantity-LPG	(m³/h)	0.2-0.4/0.22-0.72		0.26-0.86
Flue length	m	1
Connector size	inch	heating/ gas:3/4” hot water 1/2”
Net weight	kg	41		42
Normal working noise	dB	Less than42

CE Certificate:

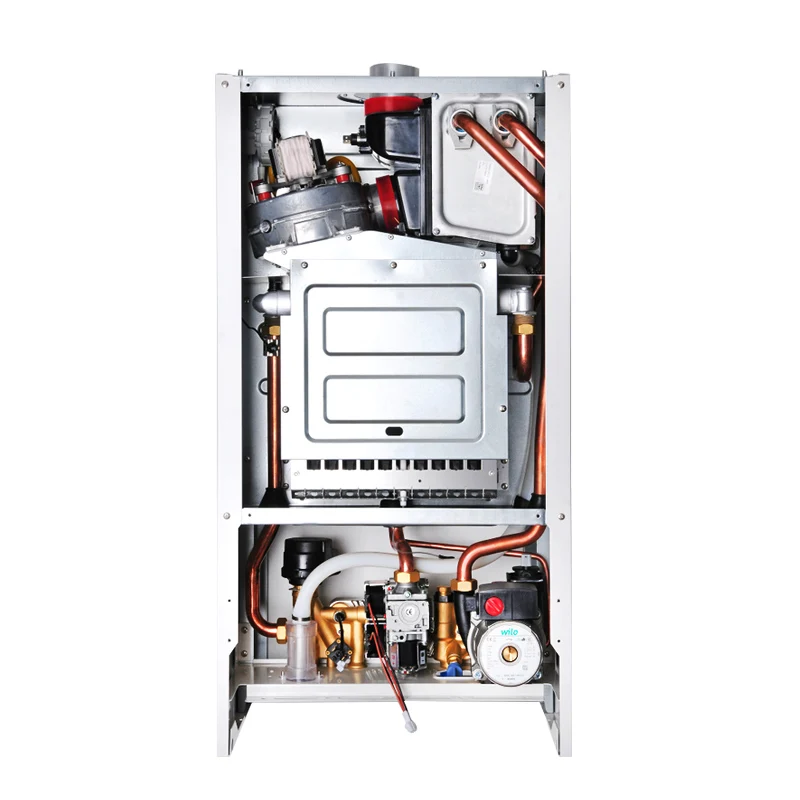

Inner structures:

Production lines:

Test systems:



ISO9001:2008 certificate:



Safety features:

-Triple over-heat protection.
-Flameout protection.
-Reignite function.
-Defer ignition function.
-Anti-freezing function.
-Anti-lock function for pump.
-Overload protection for pump.
-Lightning strike protection.
-Overload protection for control system.
-Safety release function.
-Automatic circulation function of pump.
-Self-diagnostic function.
-Safety lock function.
-Automatic by-pass valve



Product characteristic:

-European Technology
-Provide both heating and shower water
-High efficiency and gas-saving
-Quietly working
-Intelligent and economical control system

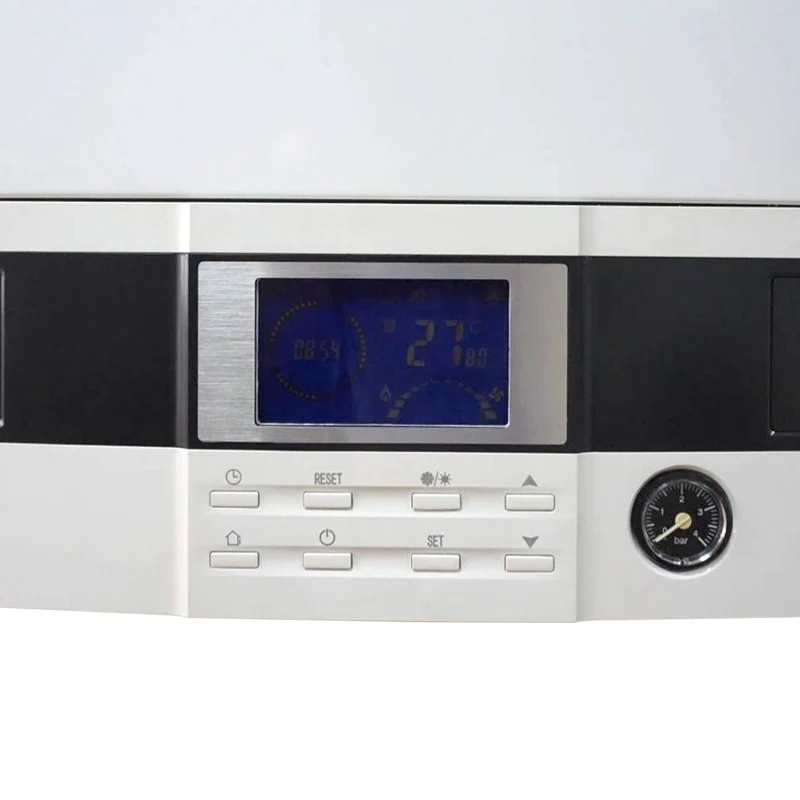

-Easy operation with digital LCD screen
-Four section timer
-Remote controller optional
-Fashionable appearance design
-High quality components with CE certificates
