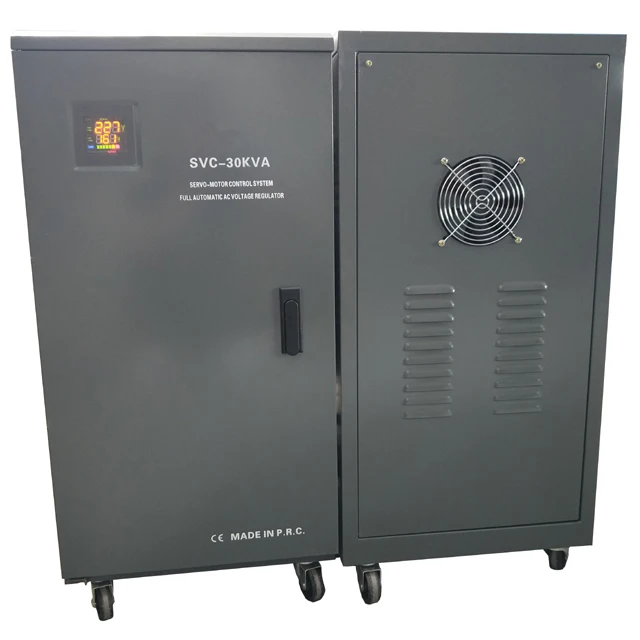

Стабилизатор напряжения svc 30 кВА/стабилизатор tnd

Стабилизатор напряжения svc 30 кВА/стабилизатор tnd

Категория: Регуляторы/стабилизаторы напряжения >>>
Поставщик: Yueqing,Zhongming,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.11 $*	0.54 $*
Aug-17-2025	0.31 $*	0.25 $*
Jul-17-2025	0.20 $*	0.21 $*
Jun-17-2025	0.14 $*	0.47 $*
May-17-2025	0.17 $*	0.68 $*
Apr-17-2025	0.34 $*	0.48 $*
Mar-17-2025	0.80 $*	0.97 $*
Feb-17-2025	0.39 $*	0.37 $*
Jan-17-2025	0.15 $*	0.40 $*

Характеристики

Product Description

Dear ALL concern this is new design new funcation stabilizer:we have as follow difference

1.input low protect.also can setting trip input breaker.(if input breaker off stabilizer all thing protection and loading appliance protect too).this customer can setting at local place any data.

2.input high protect.also can setting trip input breaker.that means protect all thing.(if input breaker off stabilizer all thing protection and loading appliance protect too).this customer can setting at local place any data.

above two support WIFI power on,after input breaker trip.used mobile phone can setting power on.

3.output low protect.this customer can setting at local place any data.(like output low than 200V or 190v power off)

4.output high protect.this customer can setting at local place any data.(like output high than 250V or 245v power off)

5.over-loading protect.have one resistance setting any current.like 5000va can setting 15A-25A any one you want.customer can setting at them side very easy.

6.over-temperature protection coil brun out.at bruch side assmble one electron hot resistance.

7.delay time 5 second for short time.if need long time delay also can add it

8.motor broken pcb protect too.

also all will be display at meter input voltage output voltage.over-loading.over-temperature.input low input high all display.still delay time show too.also can setting long time delay 3 min.short delay time 5 second.

my pcb used HT66 cpu control it.so with computer make program can make all protection.also voltage protect you can setting at your place.after selled some main stabilizer business customer.all customer feeback like this pcb design.also have trip input breaker function for assmble according to customer requirement. more information can send to our email:1298291927(at)qq(dot)com

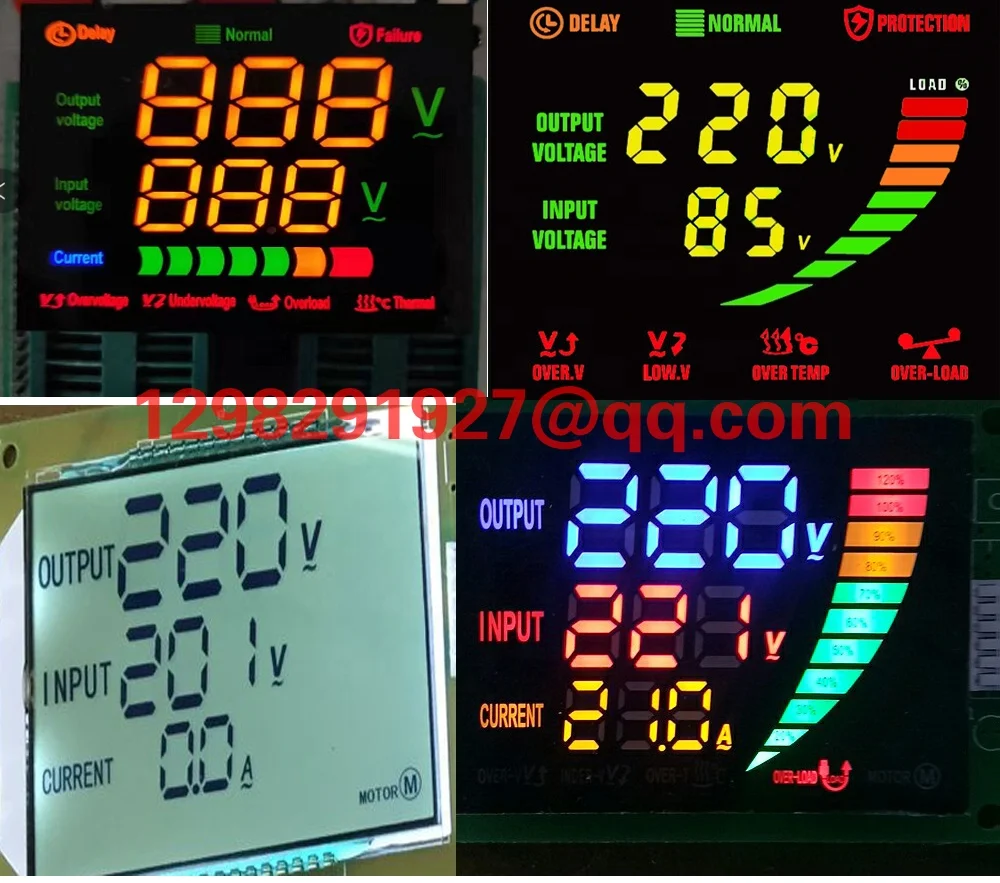

Led Multidisplay we have as follow some kind.still have another 2 kind send to our email inquiry.1298291927(at)qq(dot)com

SVC(TND) Series High Precision Full-Anto AC.Voltage Stabilizer

Application:

SVC(TND) series single-phase high precision full-auto AC voltage stabilizer adopts linear integrated circuit form servo motor control system, drive the contact voltage regulator to regulate automatically by controlling the servo motor, it has excellent features,such as small wavefrom.distrotion,high power factor.free from the effector frequency variation of supply,it is used most situations where the electricity voltage fluctuation requirement

Service Occasions:

Computer,Fax machince and office equipument,Test equipment,lighting equipment,Alarm and security system,X-Ray equipment,Medical equipment,Duplicator,Broadcasting equipment,Numeric control machine tool,Industrial robot,Photographic processing machine,Laboratory instrument HI-FI.

Spec.:

Input Voltage Range	150V-250V
Phase Number	Single Phase
Frequency	50/60Hz
Output Voltage Precision	220V±2%
Response Time	<1sec.against 10% input voltage deviation
Efficiency AC-AC	>98% other we can do according to customer requirement such as 80%
Power Factor Cost	0.8
Temperature rise	60
Withstand voltage	1500V/min
Waveform Distortion	Non-lack fidelity waveform, Sine Wave
Insulation Resistance	>2MΩ
Insulation Grade	E Grade(According China standard)
Protection Function	Over-Voltage(Input More 260V and Output More than 240V),under voltage less Than 150V.Over-load, Short Circuit,Delay time choice(Long delay around 3 minuter.short delay time 3-5 second)
Ambient Temperature	-10+45
Relative Humidity	>90%

Packaging & Shipping

Eeach one voltage stabilizer one wooden case packing box.inside we first used one plastic plastic bag.then used 4pcs foam by 3.5mm thinkness protect.

Full container voltage regulator/voltage stabilizer loading all is three phase from 15kva to 50kva for control left(elevator).

FUll container voltage regulator/voltage stabilizer loading 10pcs three phase voltage stabilizer 50kva.rest all is single phase voltage stabilizer

General we shipping to NingBO or Shanghai sea port.we can do FOB or CIF of CNF price.

Our Services

1.Quality control

automatic voltage regulator / automatic voltage stabilizer quality control for very customer very important.we control quality from very one spare part.especally coil power and PCB board. see picture below.if you want to know more information how about our how to keep stabilizer quality good.pls contact our email.

PCB

2. Quality Guarantee

we give our customer automatic voltage regulator / automatic voltage stabilizer voltage regulator/voltage stabilizer quality guarantee period 2 years if proper loading we give customer 5 years and adopt our technician suggestion(AT 5 years period if input voltage often fluctuation only change carbon brush ).every voltage stabilizer we first testing part quality then assmbel finished testing output and loading testing.after testing finished we make dynamic testing.after packing we testing again.see below our testing equpiment.

above is loading testing coil power.all customer automatic voltage regulator / automatic voltage stabilizer we must make loading testing.

above one is automatic voltage regulator / automatic voltage stabilizer dielectric Strength Tester.another one is automatic voltage regulator / automatic voltage stabilizer no load current testing machine.

3. Feeback

If automatic voltage regulator / automatic voltage stabilizer voltage stabilizer get any problem or have any specially design stabilizer inquiry.we will reply customer within 24 hours.bcos our sale person is technician.like three phase stabilizer output need 220V.general is 380V.surge protect and over-loading protect.full power loading design.silicon area and winding wire size design specally.

container1

above automatic voltage regulator / automatic voltage stabilizer is line conditionner protect

4.OEM/ODM available

we accpet customer OEM or ODM.customer send to our your logo and company name and packing box design.if no have design.we can design for customer.then printing voltage stabilizer panel logo and company name.samll power carbon box we printing customer logo and company too

5.we accpect sample order testing our quality.

at make sample before we confirm all specification no problem.first we will testing by our sale person.after we testing finished.we will send to customer check quality.small power sample we give customer sample for free.customer pay shipping cost.

Company Information

YUEQING ZHONGMING ELECTRIC CO.,LTD located at chaoyang industrial Zone, Liushi,yueqing,Wenzhou, Zhejiang, China. Our company main products is voltage stabilizer. variable transformer(contact regulator) and isolation transformer. We ensure Best quality, Competitive Price and Strong Life Time After Sales Service.our born in 2009 years.and our engineer and boss workring stabilizer factory already have 15 years. company

FAQ

1.About Our Voltage stabilizer how to make quality no any problem.

first we do voltage stabilizer inside main part PCB board and coil.we have winding machine and Dipping paint(immerse machine).silicon testing no loading current machine.

only we receive customer we first will be send to detail spec of coil size and weight and silicon area and copper wire size for our customer reference.after custome confirm okay.then we do one sample testing.after testing okay we will begining make all production order.bcos our boss working stabilizer factory already have 10 years experience.

company info-no.jpg

2.About How Control voltage regulator/Voltage stabilizer no any problem.

our company worker 80% is from company parter.not like other factory worker wage from do working how many pcs assmble.no assmble stabilizer no wage.we difference.if control worker how to working that mean will be easy control quality.voltage stabilizer 60% quality problem from worker.20% quality problem from material and 20% coil size.we make all customer voltage stabilizer keep quality is NO.1 bcos our company boss is coil design engineer.if want to know detail.pls email us discussing.we are is one professional voltage stabilizer.

3.About voltage regulator/Voltage stabilizer power.some customer call efficience

in our city liushi 90% factory do power at most 80%.some time some factory only do

70% power or 60% power.new customer search and send to many inquiry to many factory.get very difference price.some sale person tell to customer we power have 90% or 100%.so how to

get 90% and 100%.from stabilizer weight.light weight impossible get high quality power.for exsample 10kva two coil.gernal to do net weight only have 35kg around.this weight design.

silicon area at 36.4 and wire size 1.68.compention coil silicon area 38.7 and inside aluminum wire is 2.5mm/outside wire is 4.3.if less this weight maybe only have 70% power.another deisng is used one biggestion coil.weight around 28kg around.

4.Why Some New Customers order Container choice us.

Very big reason our sale person is technician and factory parter.quality control very easy and good than other.second reason our price very good.high quality lowest price.coil design and production by ourself.coil is voltage stabilizer/voltage regulator inside main and importan parts.we can face to face discussing with customer very spec voltage stabilizer silicon area wire size and weight.how to control quality good.we all stabilizer do many a lot of testing step very carefull before dispatch.first we do raw material testing by sale person.then make testing report record.after silicon make winding testing coil no loading current.if okay.we assemble finish testing output and protect function.after make dynamic testing.at packing big we testing againg check painting nameplate and send to warehouse then loding container
