Steel Plate Permanent 2000kg Magnetic Lifter
US $200.00-$273.00
Индивидуальный Магнитный силовой магнит для обработки листового металла электро-Постоянный
- Категория: Магнитный подъемник >>>
- Поставщик: Zhuzhou,HVR,Magnetics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.20 $* | 0.0 $* |
| Aug-16-2025 | 0.95 $* | 0.81 $* |
| Jul-16-2025 | 0.98 $* | 0.80 $* |
| Jun-16-2025 | 0.9 $* | 0.59 $* |
| May-16-2025 | 0.2 $* | 0.17 $* |
| Apr-16-2025 | 0.45 $* | 0.60 $* |
| Mar-16-2025 | 0.46 $* | 0.16 $* |
| Feb-16-2025 | 0.50 $* | 0.92 $* |
| Jan-16-2025 | 0.12 $* | 0.21 $* |
Характеристики
Product Description
HM1 series electromagnet lifting of single steel sheet with min. thickness of 5mm. Lifting of long Steel Sheets is a difficult- and time consuming Operation. In addition, thin Steel Sheets are very flexible, which makes moving very dangerous. The HM1 series of electro permanent magnetic Beams offer an answer to this problem.

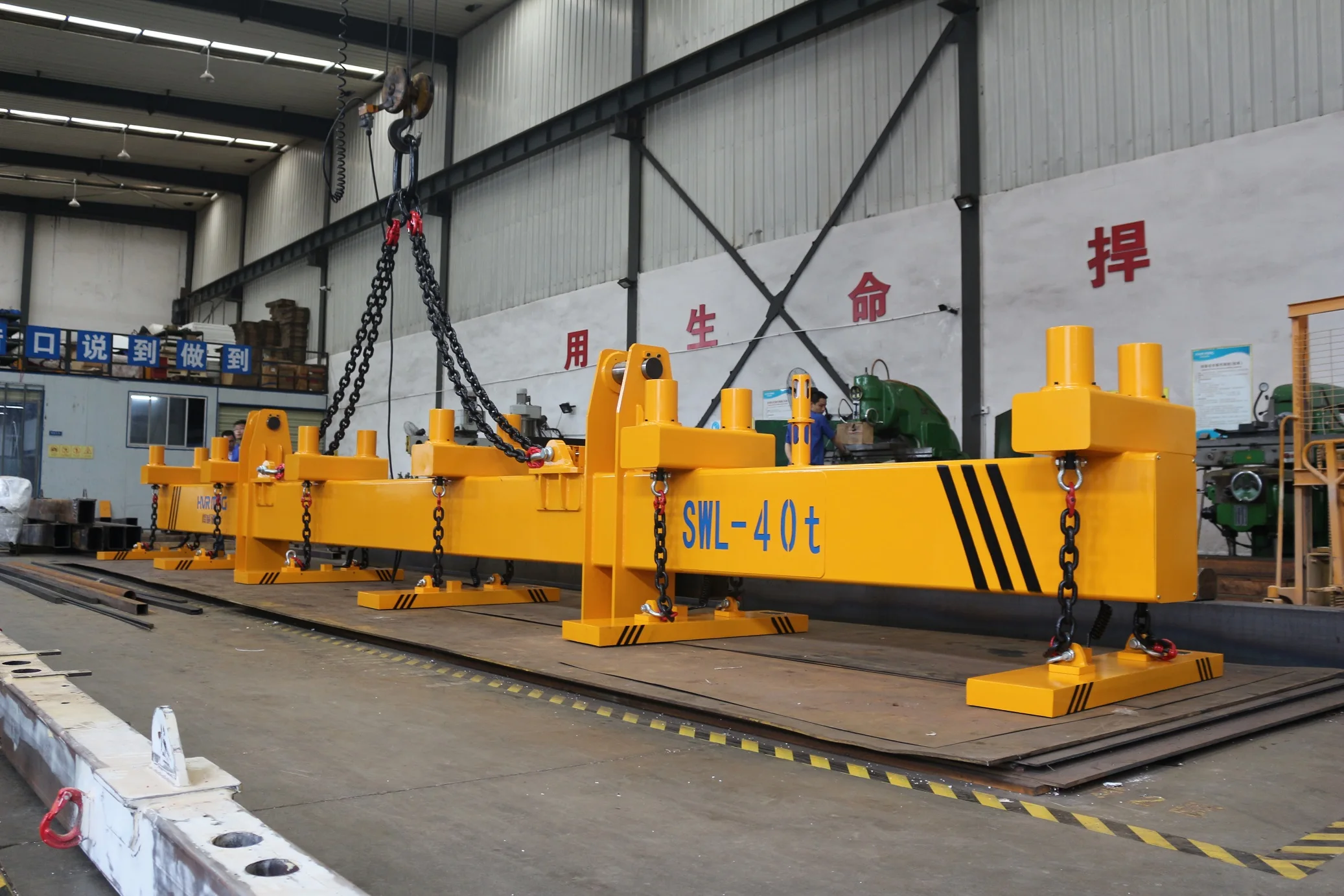

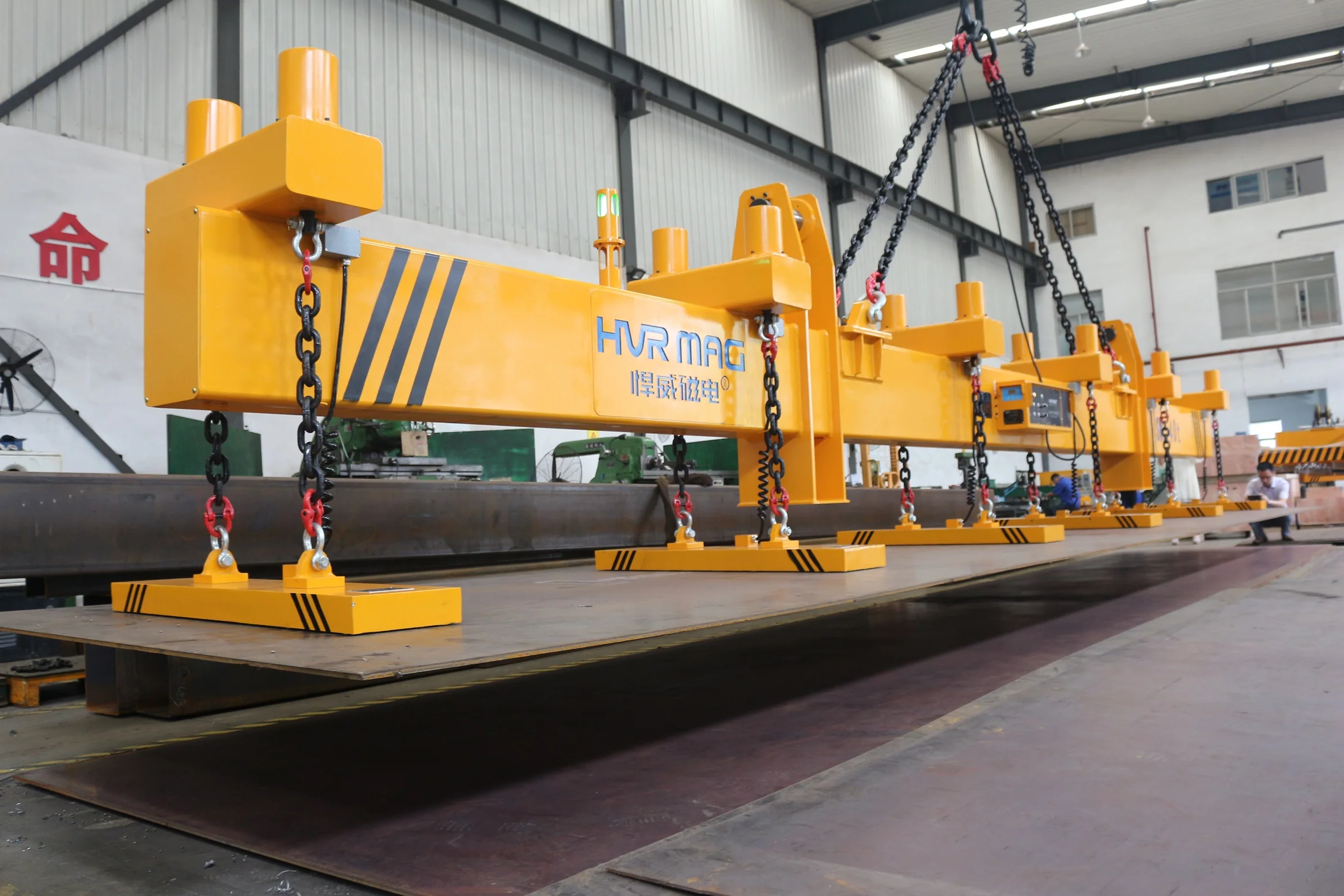

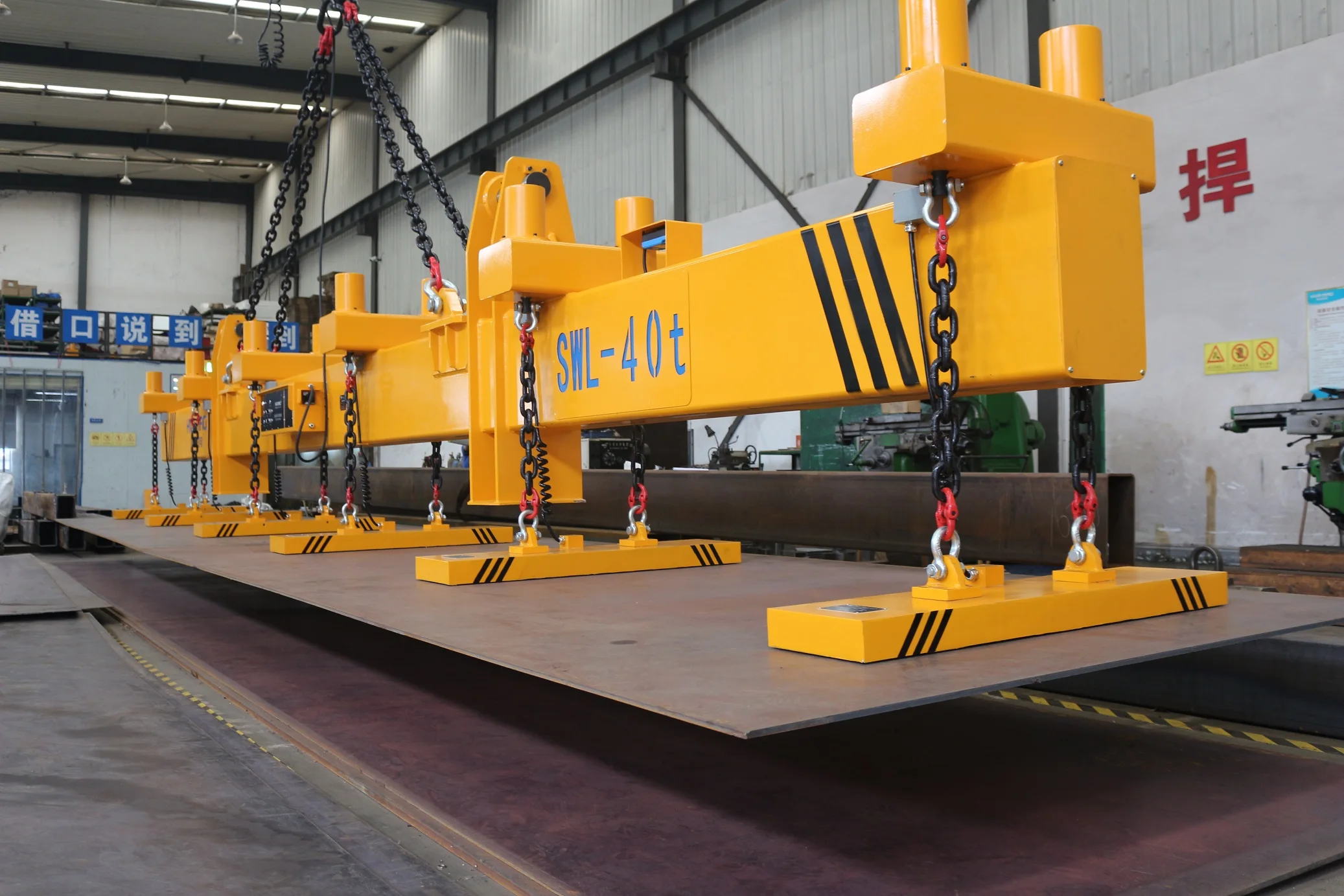

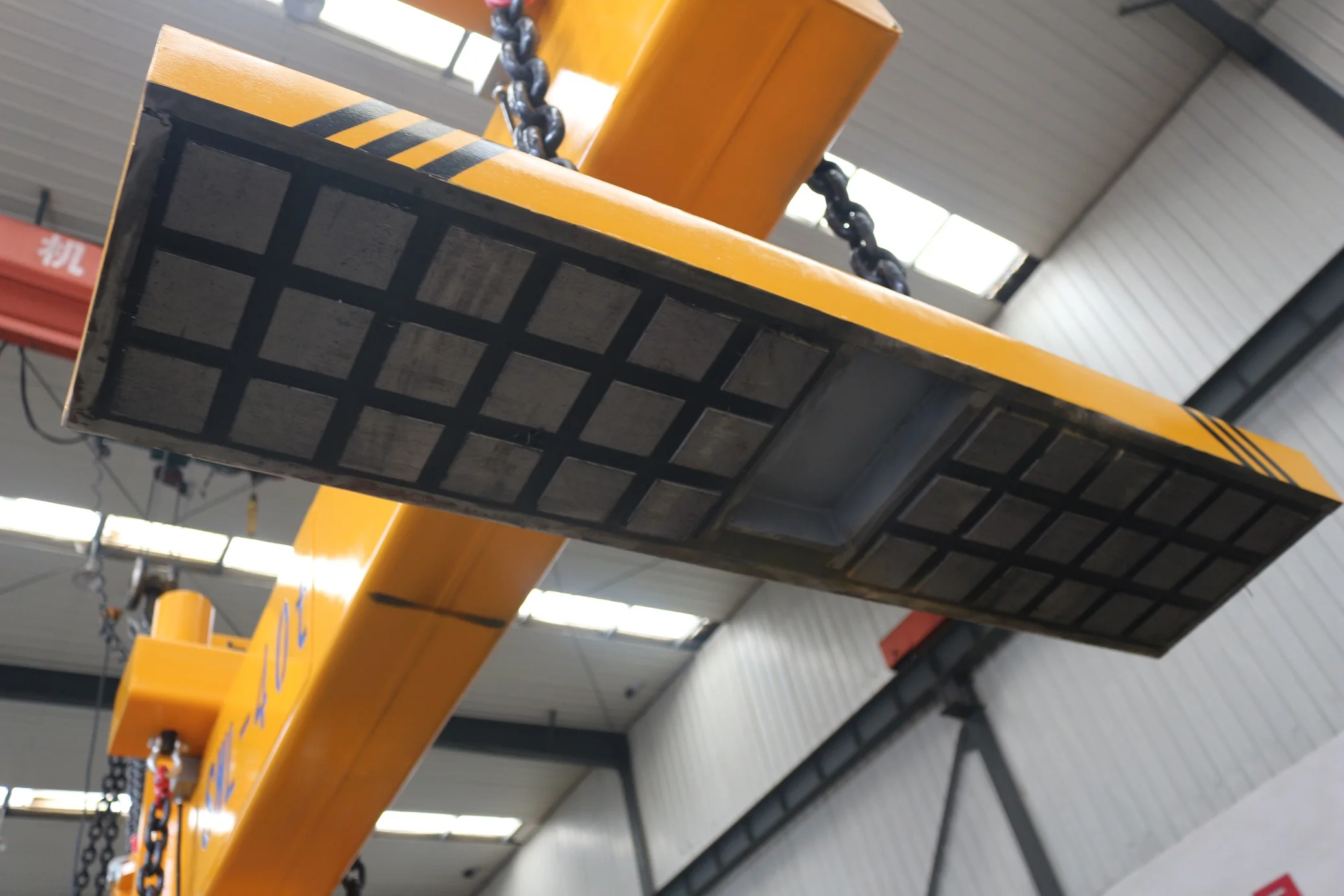

The welded Beam of construction steel is equipped with a number of electro permanent magnetic Modules, which are each elastically suspended, for a perfect adaptation to the Steel Sheet.
The electronic control Unit is equipped with a selector switch that allows to activate/deactivate a number of magnetic modules..
The PICK-UP cycle grants the lifting of 1 single Steel Sheet.
Control via the integrated digital push Buttons or with the standard supplied Radio remote Control.
The electronic control Unit is equipped with a selector switch that allows to activate/deactivate a number of magnetic modules..
The PICK-UP cycle grants the lifting of 1 single Steel Sheet.
Control via the integrated digital push Buttons or with the standard supplied Radio remote Control.
Product Paramenters
Features of electro permanent lifting magnet

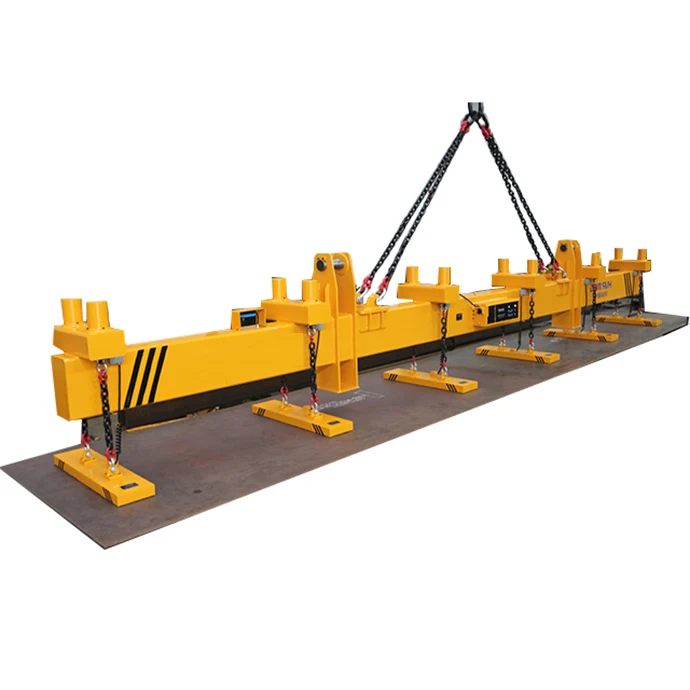

• EPMs suspended from fixed length spreader beam so that the maximum range of plates are covered.
• Double Mag Cycle - this ensures the safe lifting of the load.
• Power Control – Magnetic Power can be varied in 2 steps
• Magnets can be selectively switched according to the length of the plate being handled.
- Smaller Plates – Only internal magnets are switched ON.
- Larger Plates – All the magnets are switched ON.
• Safety Interlock Key – 2 buttons are needed press simultaneously. This eliminates the chance of accidental operation.
• ADPREM – Accidental Demagnetization Preventions Mechanism. Disable the demagnetization cycle when carrying load.
• Lamp Block – Displays the systems present state.
• Radio Remote Control – Operates from a convenient distance when all the functions i.e, the landing detection is available.
• Double Mag Cycle - this ensures the safe lifting of the load.
• Power Control – Magnetic Power can be varied in 2 steps
• Magnets can be selectively switched according to the length of the plate being handled.
- Smaller Plates – Only internal magnets are switched ON.
- Larger Plates – All the magnets are switched ON.
• Safety Interlock Key – 2 buttons are needed press simultaneously. This eliminates the chance of accidental operation.
• ADPREM – Accidental Demagnetization Preventions Mechanism. Disable the demagnetization cycle when carrying load.
• Lamp Block – Displays the systems present state.
• Radio Remote Control – Operates from a convenient distance when all the functions i.e, the landing detection is available.
Product Main Areas of Application
• For loading/ unloading plates from Railway Wagons/ trucks.
• For storing in Plate yards.
• For feeding plates onto a flame/ plasma cutting machine table, one at a time.
• Can be used with EOT/ Gantry/ Mobile Cranes etc
• For storing in Plate yards.
• For feeding plates onto a flame/ plasma cutting machine table, one at a time.
• Can be used with EOT/ Gantry/ Mobile Cranes etc
Specification
Art No. | Series Code | Length(mm/in) | Width(mm/in) | Thickness(mm/in) | Dead weight (kg/Lbs) | Capacity (kg/Lbs) | ||||
Min. | Max. | Min. | Max. | Min. | ||||||
HM1-06-010 | HM1-010A0104-1 | 400/15.7 | 6000/236 | 60/2.3 | 400/16 | 4/0.1 | 430/947 | 1000/2200 | ||
HM1-06-012 | HM1-012A0104-1 | 200/7.9 | 6000/236 | 250/9.8 | 1500/59 | 8/0.3 | 450/992 | 1200/2640 | ||
HM1-06-030 | HM1-030A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 900/1984 | 3000/6600 | ||
HM1-06-060 | HM1-060A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 1000/2200 | 6000/2727 | ||
HM1-06-090 | HM1-090A0203-1 | 500/19.7 | 6000/236 | 500/19.7 | 3200/126 | 5/0.2 | 1100/2420 | 9000/19800 | ||
HM1-06-240 | HM1-240A0203-1 | 500/19.7 | 6000/236 | 580/22.8 | 3200/126 | 8/0.3 | 1600/3520 | 24000/52800 | ||
HM1-09-050 | HM1-050A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1200/2640 | 5000/11000 | ||
HM1-09-080 | HM1-080A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1300/2860 | 8000/3636 | ||
HM1-09-090 | HM1-090A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1400/3080 | 9000/19800 | ||
HM1-09-120 | HM1-120A0204-1 | 2350/92.5 | 9000/354 | 500/19.7 | 3200/126 | 5/0.2 | 1500/3300 | 12000/26400 | ||
HM1-09-160 | HM1-160A0204-1 | 2350/92.5 | 9000/354 | 600/23.6 | 3200/126 | 5/0.2 | 1600/3520 | 16000/35200 | ||
HM1-12-019 | HM1-019A0106-1 | 2100/82.8 | 12000/472 | 250/9.8 | 1500/59 | 5/0.2 | 740/1628 | 1900/4180 | ||
HM1-12-050 | HM1-050A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/138 | 5/0.2 | 1600/3520 | 5000/11000 | ||
HM1-12-080 | HM1-080A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/138 | 5/0.2 | 1800/3960 | 8000/17600 | ||
HM1-12-100 | HM1-100A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/138 | 5/0.2 | 2000/4400 | 10000/22000 | ||
HM1-12-150 | HM1-150A0205-1 | 5000/196 | 12000/472 | 500/19.7 | 3500/138 | 5/0.2 | 2200/4840 | 15000/33000 | ||
HM1-12-200 | HM1-200A0205-1 | 5000/196 | 12000/472 | 600/23.6 | 3500/138 | 5/0.2 | 2400/5280 | 20000/44000 | ||
HM1-12-240 | HM1-240A0206-1 | 5000/196 | 12000/472 | 600/23.6 | 3500/138 | 5/0.2 | 2800/6160 | 24000/52800 | ||
HM1-15-025 | HM1-025A0108-1 | 4000/157 | 15000/590 | 200/7.8 | 800/31 | 6/0.2 | 950/2090 | 2500/5500 | ||
HM1-16-100 | HM1-100A0206-1 | 2800/110 | 16000/630 | 500/19.7 | 3500/138 | 5/0.2 | 2600/5720 | 10000/22000 | ||
HM1-16-140 | HM1-140A0206-1 | 2800/110 | 16000/630 | 500/19.7 | 3500/138 | 5/0.2 | 2900/6380 | 14000/30800 | ||
HM1-16-200 | HM1-200A0206-1 | 2800/110 | 16000/630 | 600/23.6 | 3500/138 | 5/0.2 | 3100/6820 | 20000/44000 | ||
HM1-16-240 | HM1-240A0206-1 | 2800/110 | 16000/630 | 650/25.5 | 3500/138 | 5/0.2 | 3400/7480 | 24000/52800 | ||
HM1-06-005 | HM1-010A0104-1 | 400/15.7 | 6000/236 | 60/2.3 | 400/16 | 8/0.3 | 430/946 | 480/1056 | ||
Certifications
Packing & Delivery
* Customized bracket support for all-round protection
Why Choose Us
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
FAQ
Q: HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
