JST GH BM02B-GHS-TBT BM03B-GHS-TBT 1 25mm Вертикальная штыревой разъем для печатных
- Категория: Headers & Wire Housings >>>
- Поставщик: Shenzhen,Scondar,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.54 $* | 0.32 $* |
| Aug-15-2025 | 0.80 $* | 0.33 $* |
| Jul-15-2025 | 0.99 $* | 0.90 $* |
| Jun-15-2025 | 0.91 $* | 0.53 $* |
| May-15-2025 | 0.78 $* | 0.87 $* |
| Apr-15-2025 | 0.76 $* | 0.63 $* |
| Mar-15-2025 | 0.92 $* | 0.84 $* |
| Feb-15-2025 | 0.0 $* | 0.25 $* |
| Jan-15-2025 | 0.26 $* | 0.38 $* |
Характеристики
Product Description

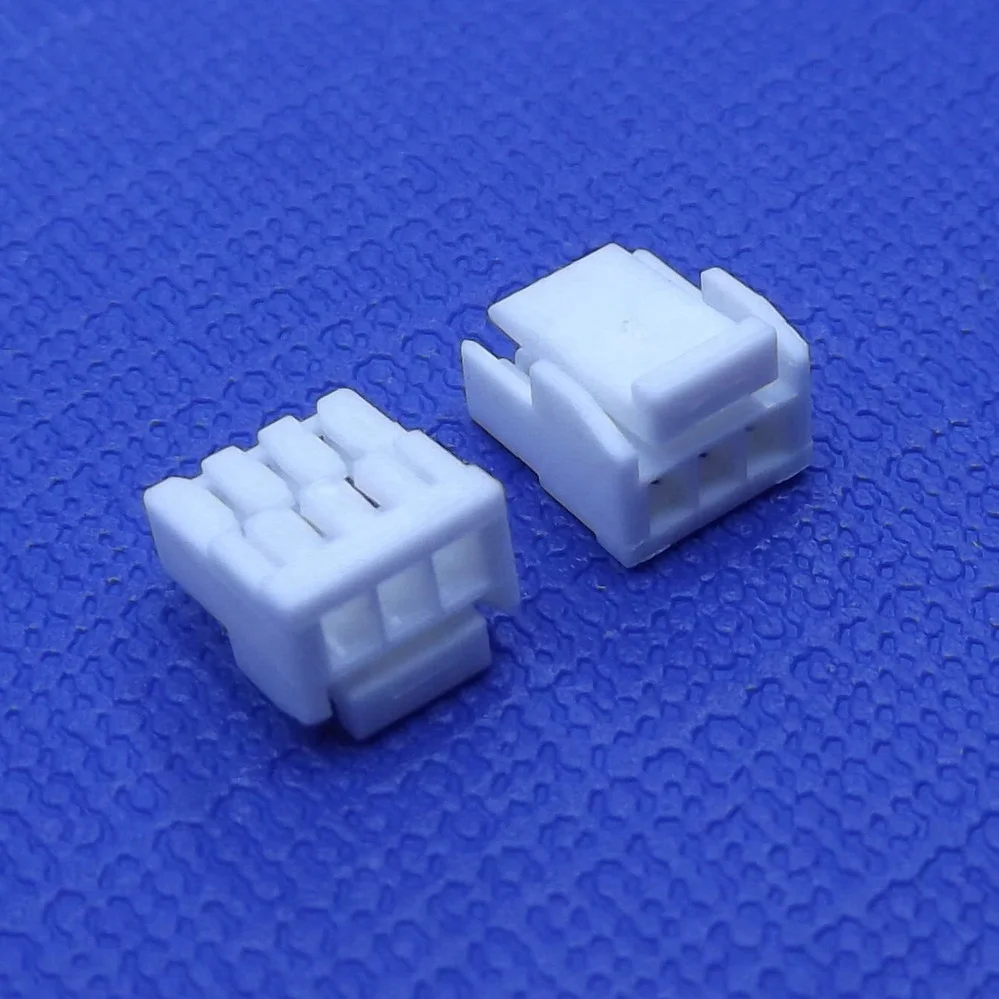

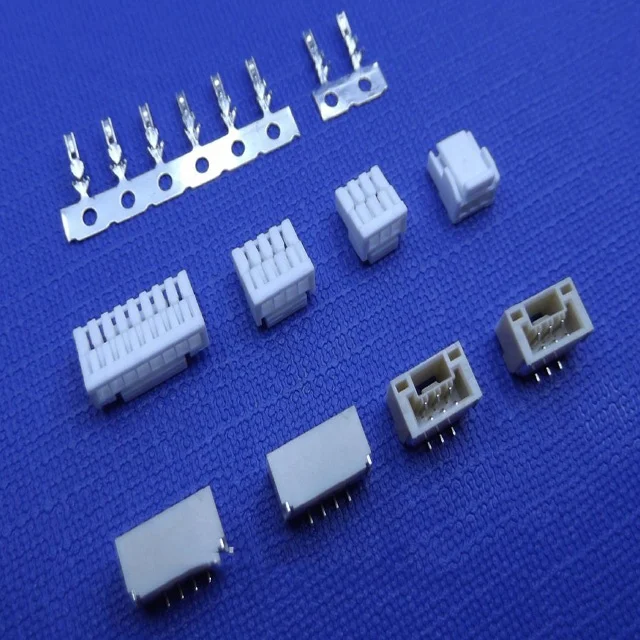

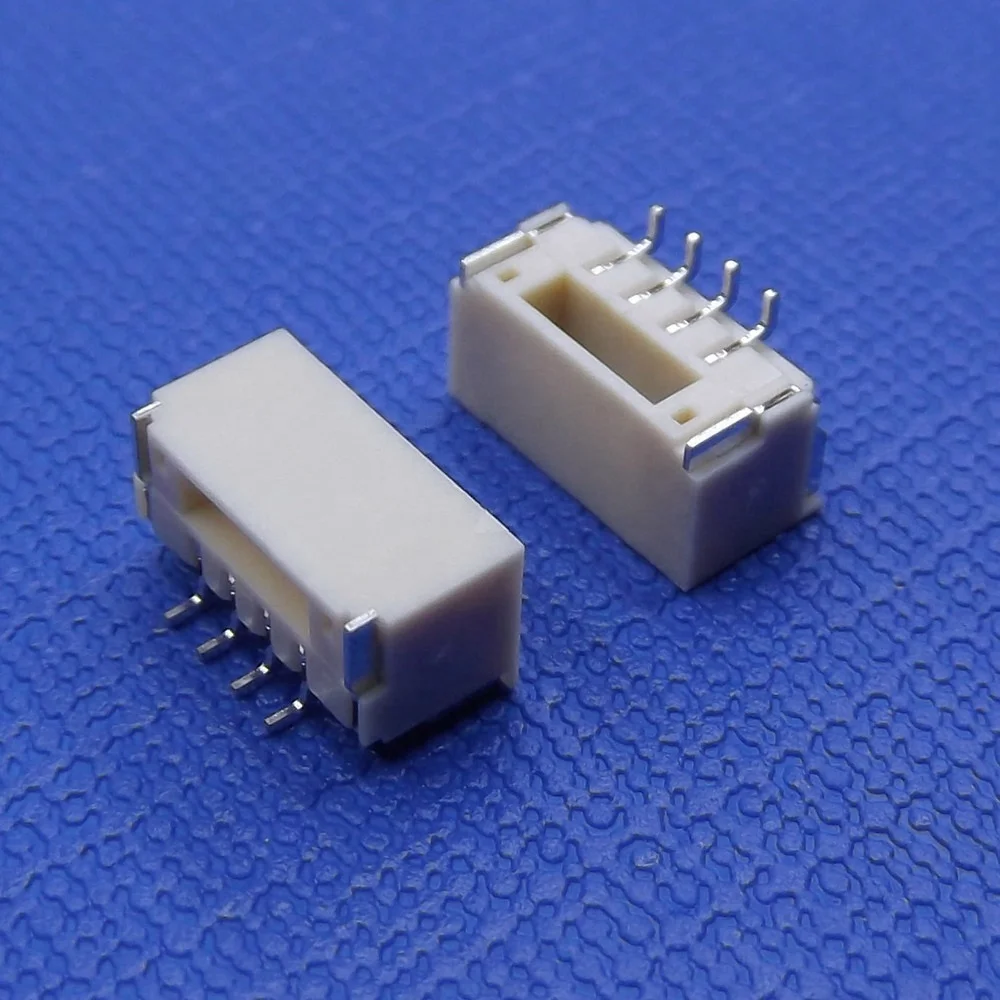

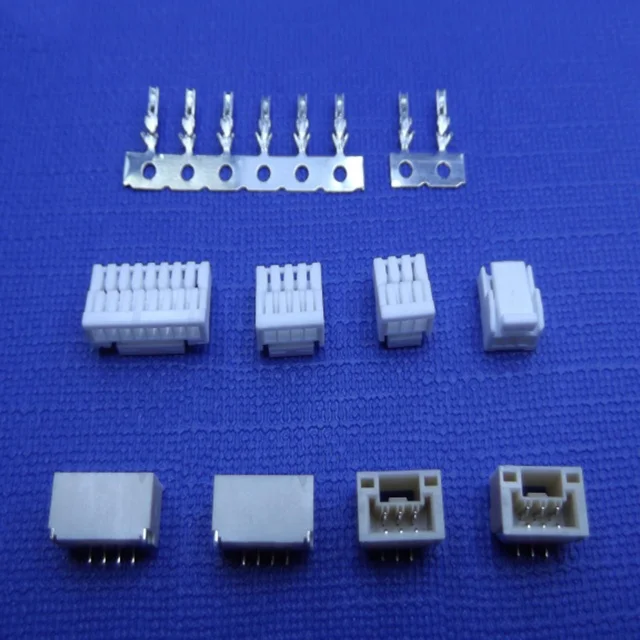

SCT1258 Series JST GH wire to board connector

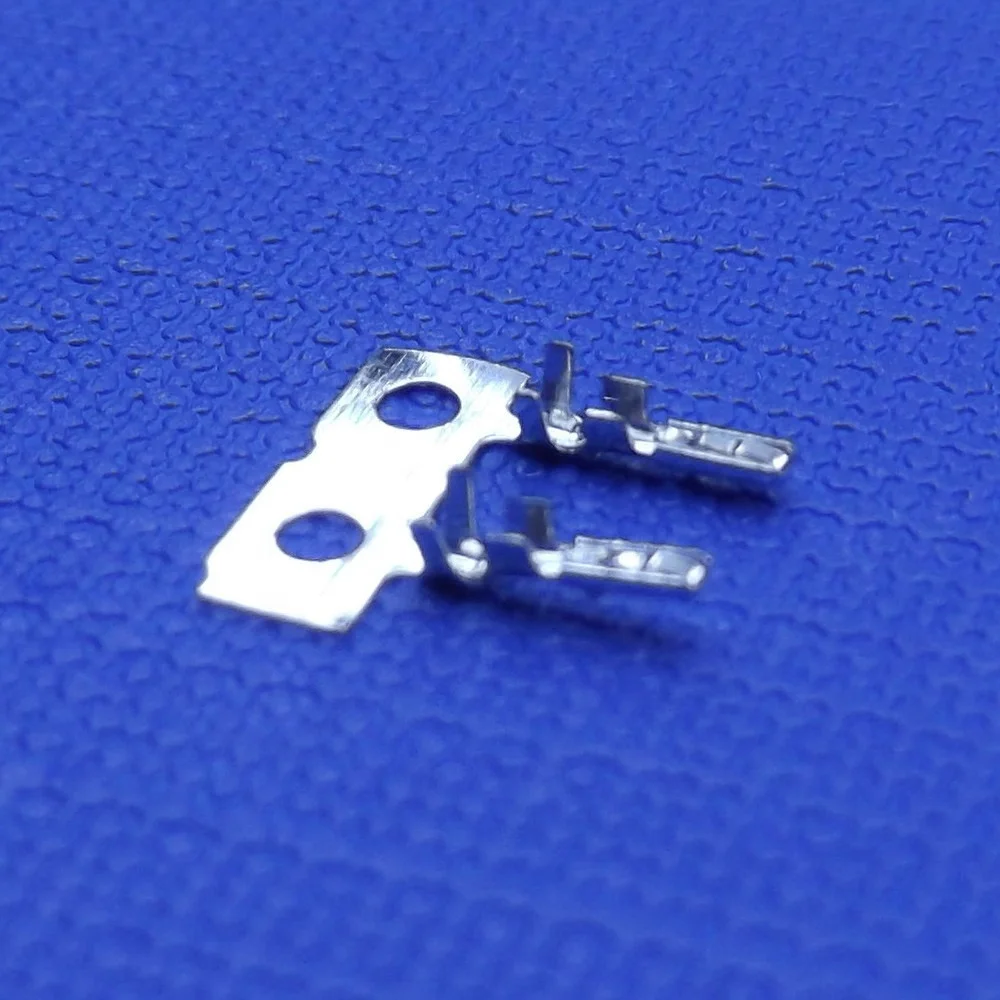

SCT1258 Series are replace of JST GH connector. 1.25mm pitch, wire to board crimp terminal style with low contact resistance.
Compatible: JST GH Series Connector
Pitch: 1.25mm
Poles: 2-15P
Current rating: 1A (AWG#26-#30)
Items | Specifications |
Part Number: | SCT1258 |
Compatible: | JST GH Series Connector |
Pitch - Mating Interface: | 1.25mm |
Circuits: | 2-15P |
Applicable wire: | AWG#26-#30 (Max.OD:0.8mm) |
Current Rating: | 1A |
Voltage Rating: | 50V |
Temperature Range: | -25°C~+85°C |
Contact Resistance: | 30m Omega Max |
Insulation Resistance: | 100M Omega Min |
Withstanding Voltage: | 500V AC/minute |
Wire & Cable Assemblies: | Customized |
