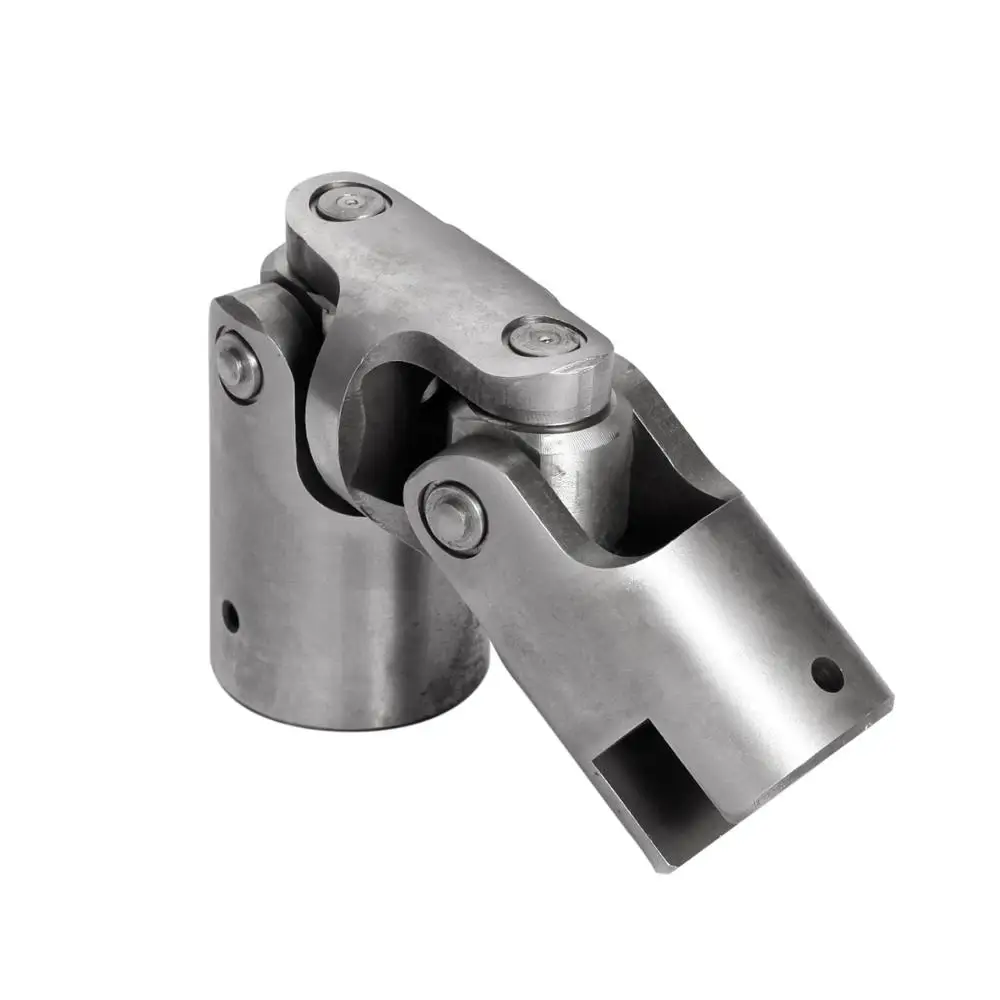

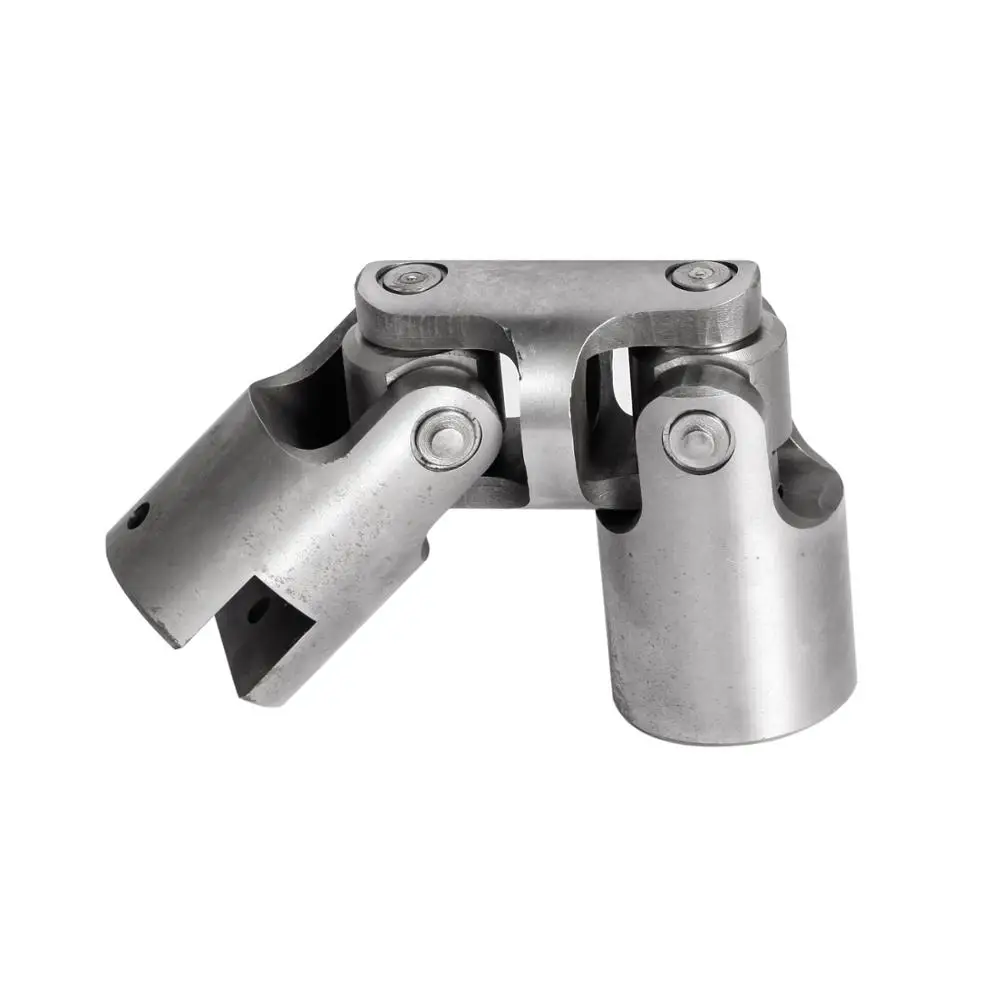

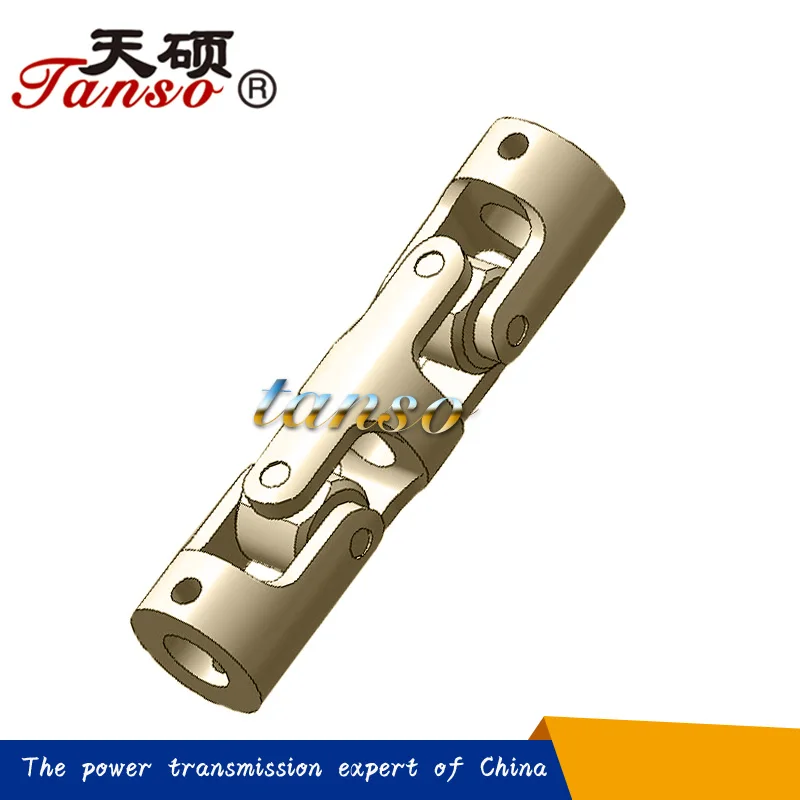

Одиночный и двойной маленький универсальный шарнир из нержавеющей стали для сельскохозяйственной

Одиночный и двойной маленький универсальный шарнир из нержавеющей стали для сельскохозяйственной

Категория: Universal Joints >>>
Поставщик: Cangzhou,Tanso,Coupling,Co.,Ltd.

Цена:21,00 $ - 25,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	27.46 $*	28.82 $*
Jul-16-2025	22.88 $*	22.16 $*
Jun-16-2025	26.91 $*	27.23 $*
May-16-2025	26.12 $*	27.35 $*
Apr-16-2025	21.38 $*	21.74 $*
Mar-16-2025	26.7 $*	27.56 $*
Feb-16-2025	25.53 $*	26.93 $*
Jan-16-2025	25.51 $*	26.23 $*

Характеристики

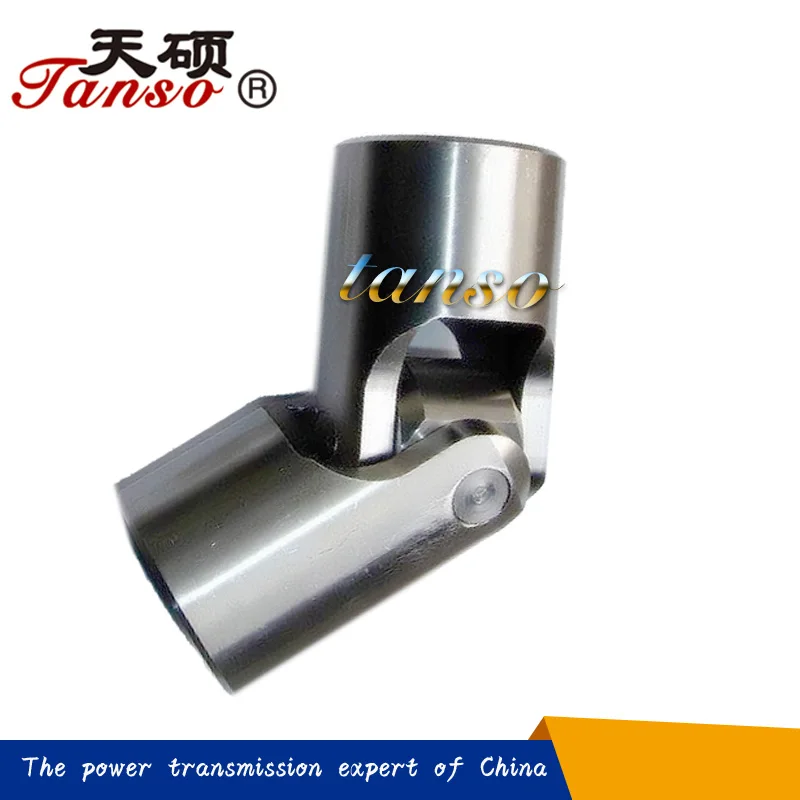

universal joint.jpg

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.

WS/WSD universal coupling is suitable for retating system which the two axis angle <45,nominal torque 11.2~1120N*m.

Features of WS /WSD universal coupling:

1.Available in your choice of round, hex, splined, or keyway bore

2.Lubrication is required for optimal wear – boots and lubricant extend universal joint life

3.Max angular mislegnment:45^o

Type	Nominal torque	d	D	L₀				L		L₂	Mass
	T_n	H7									m
	N·m										kg
				WSD		WS					WSD		WS
				Y	J₁	Y	J₁	Y	J₁		Y	J₁	Y	J₁
WS1	11.2	8	16	60	-	80	-	20	-	20	0.23	-	0.32	-
WSD1		9
		10		66	60	86	80	25	22			0.2		0.29
WS2	22.4	10	20	70	64	96	90			26	0.64	0.57	0.93	0.88
WSD2		11
		12		84	74	110	100	32	27
WS3	45	12	25	90	80	122	112			32	1.45	1.3	2.1	1.95
WSD3		14
WS4	71	16	32	116	82	154	130	42	30	38	5.92	4.86	8.56	0.48
WSD4		18
WS5	140	19	40	144	116	192	164			48	16.3	12.9	24	20.6
WSD5		20						52	38
		22
WS6	280	24	50	152	124	210	182	52	38	58	45.7	36.7	68.9	59.7
WSD6		25		172	136	330	194	62	44
		28
WS7	560	30	60	226	182	296	252	82	60	70	148	117	207	177
WSD7		32
		35
WS8	1120	38	75	240	196	332	288			92	396	338	585	525
WSD8		40		300	244	392	336	112	84
		42
