Speed: 24KPH-100KPH, it's customized, genearlly we will design as 72V80KPH.
Work Voltage range: 48V-96V, will be 72V as default.
Max Torque approx 182.0N.m
KV: 6.25/7.29/8.33/9.03/11.9/16.32(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Disc brake (as default), PCD6*44mm for bicycle
Drop-outs/Rear fork Width for installation: 150mm
Dual Halls with waterproof connectors(One for using, one for spare
10mm axle flats
10mm² Cross Section of Phase Wire(not including insulation layer)
Waterproof Grade: IP54
Color: Black (As default)
N.W/ G.W: 13.5kg/14.5kg
Dimension drawing

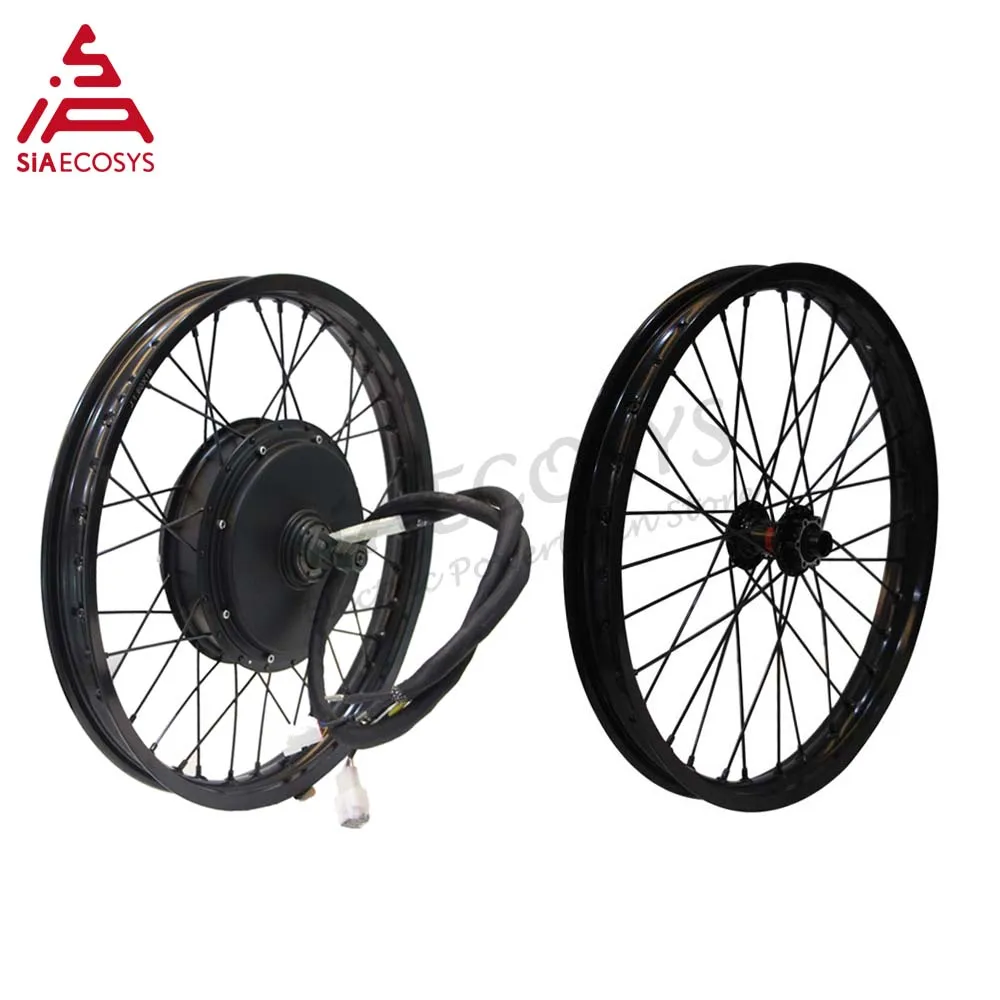

Front and Rear wheel kit
Front Wheel Set
19"X1.6" 2 Cross Pattern Front Wheel Set
Wheel rim optional: 17*1.6inch/18*1.6inch/18*1.85inch
Spokes color optional: Black/Silver color
Now we could also make the spoke in black (Iron).

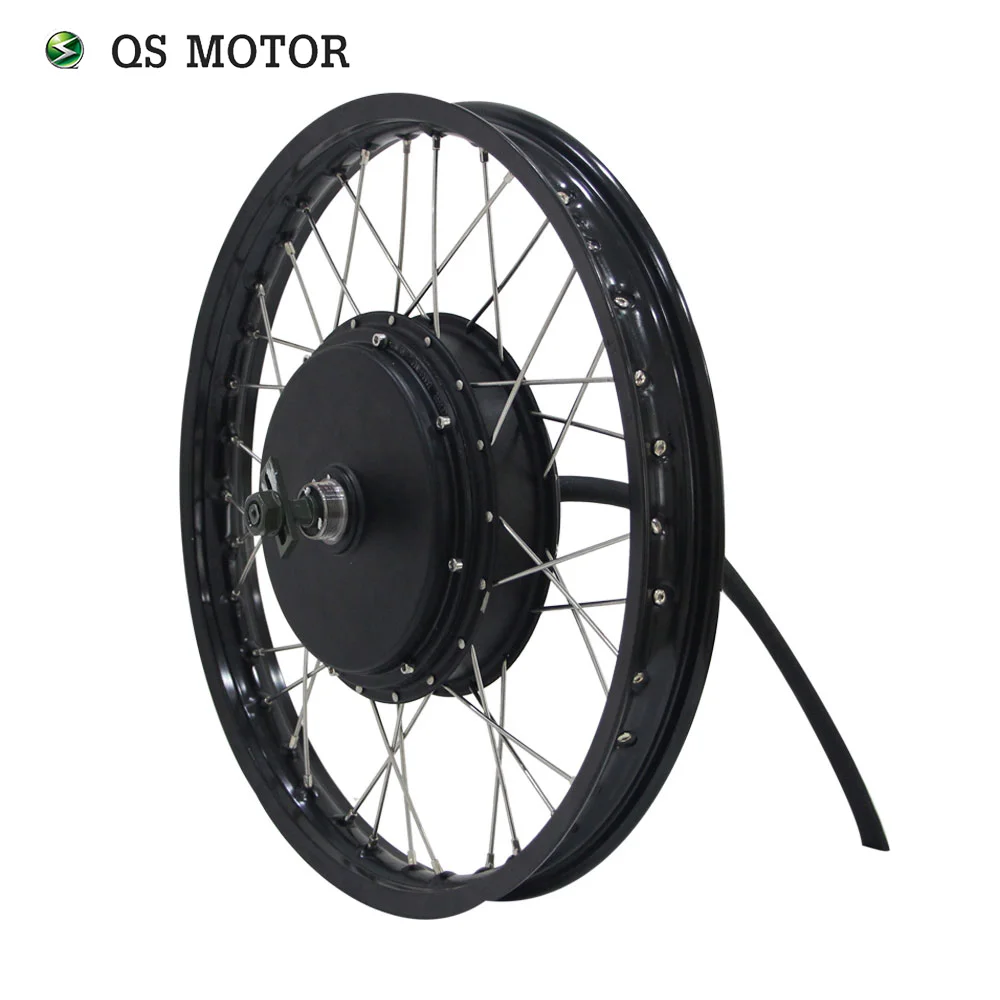

Rear Wheel Set
Option 1.
19"X1.6" 1 Cross Pattern Rear Wheel Set
Black spoke is avaiable.
Option 2.
18"X1.85" 1 Cross Pattern Rear Wheel Set
18"*1.85" black moped aluminium wheel rim
Option 3.
18"X1.6" Radial Pattern Rear Wheel Set
18"X1.6" Black moped aluminium wheel rim
Option 4.
17"X1.6" 1 Cross Pattern Rear Wheel Set
Payment & Shipment
Find a good payment term is important to boost the cooperation. If you do not find your favorable payment way, please feel free to contact our customer service.
TT, Money Gram, Western Union, Paypal, online order etc.
Package
For front & rear wheel set, we use wooden support. For rear wheel, carton package is ok.
Find a convenience way for your shipment.
Sample order: DHL, FedEx, TNT, UPS, EMS, E-package, by sea, by air etc.
