The Parking system device includes parking space detector, data collector and configuration tool

---Sensor WPSD340S

Operating frequency:   for Europe: 868.0 MHz

                                         for USA: 915.0 MHz

                                         for East South countries 433.0 MHz

Power supply:   Built-in Lithium batteries, expected lifetime of 4-6 years *

Antenna:           Included

Detection:        Magnetic and Optical

Installation:      Mounting Over the floor

Dimensions:    143 mm diameter, 37 mm height

Protection:       IP67, completely sealed housing

Operating temperature:  -40~85 ℃

Battery lifespan:   3years

--Data collector WDC400x

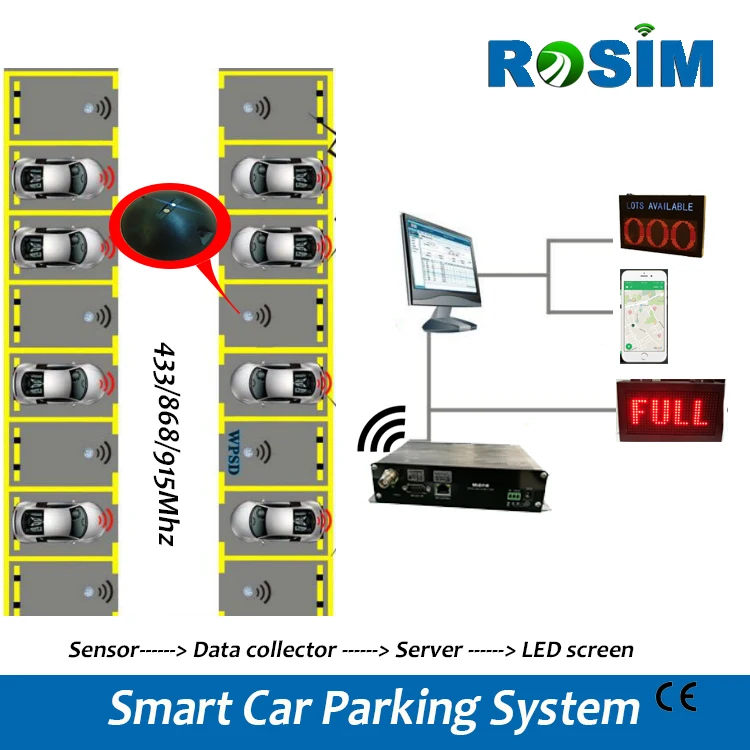

It is the receiver which acts as a bridge between wireless sensor and user system will send real-time parking spots information to platform software which will analyze the updated information and inform car parkers where to park through LED screen or mobile application.

Through wireless sensor for parking, you can get the information which is included:

 Main Feature

1) Wireless communication: there’s no need to place cables or wires as the installation of loops or ultrasonic sensor, but only pad, which makes WPSDs become the most suitable vehicle detecting solution for parking lot, especially outdoor parking lot;

2)High accuracy: the ROSIM wireless sensor for parking lot featured with dual magnetic and optic detection technology. The combination of the two vehicle detection technology, as well as a sophisticated algorithm, greatly improves the accuracy and efficiency of the detection. accuracy>99%

3)Fast installation: it just needs about 2 minutes for installation of each WPSD because of  the adoption of pad installation;

4)work in all weather: Because the WPSD has strong characteristics of waterproof, snow defense, anti-press, anti-corrosion and strong anti-jamming capacity, it can normally work in all weather;

5)Average 3 years life span( replaceable);

6)  Easy to maintain: the Wireless sensor for the parking lot(WPSD) supports firmware updating over the air.

7) Low operation consuming: due to the ultra-low power design and battery supply solution, WWPSD ’s consumed power is very lower than any other sensors in the market. This appears more and more significantly to our environments;

 Parking system introduction

ROSIM specializes in the innovation, production, and sales of wireless vehicle detection products. As a leading manufacturer of wireless vehicle detection system, ROSIM provides high quality, cost-effective and easy operation wireless traffic and parking space detection solution for ITS and parking lots management system.
