Pg13.5 кабельная втулка гидравлическая
- Категория: Cable Glands >>>
- Поставщик: Shanghai,Pinji,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.33 $* | 0.93 $* |
| Aug-15-2025 | 0.26 $* | 0.51 $* |
| Jul-15-2025 | 0.44 $* | 0.63 $* |
| Jun-15-2025 | 0.45 $* | 0.86 $* |
| May-15-2025 | 0.36 $* | 0.60 $* |
| Apr-15-2025 | 0.9 $* | 0.24 $* |
| Mar-15-2025 | 0.88 $* | 0.53 $* |
| Feb-15-2025 | 0.72 $* | 0.54 $* |
| Jan-15-2025 | 0.79 $* | 0.26 $* |
Характеристики
pg13.5 cable gland hydraulic cylinder gland M20

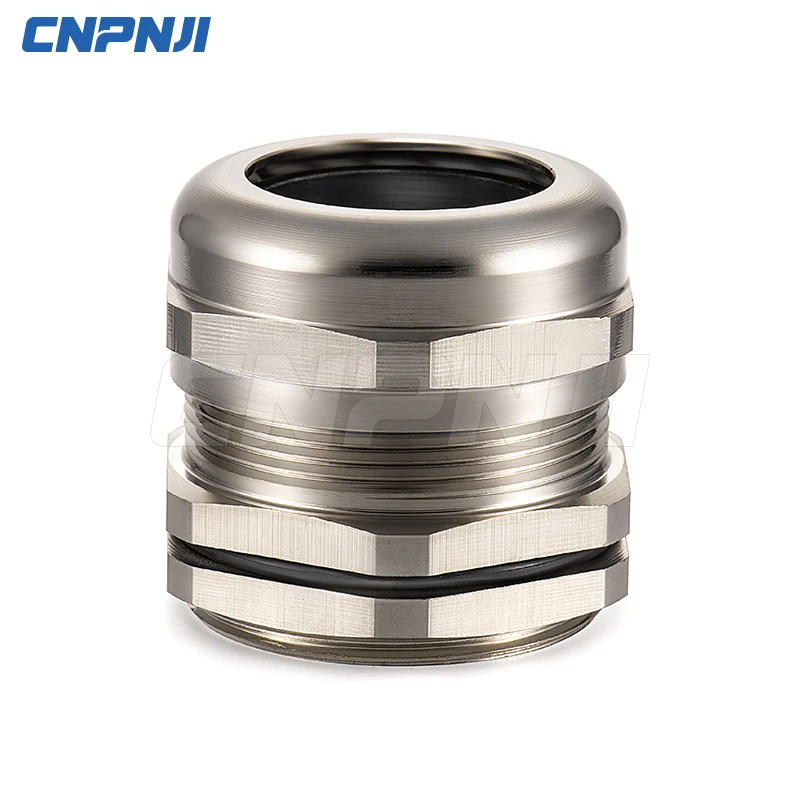

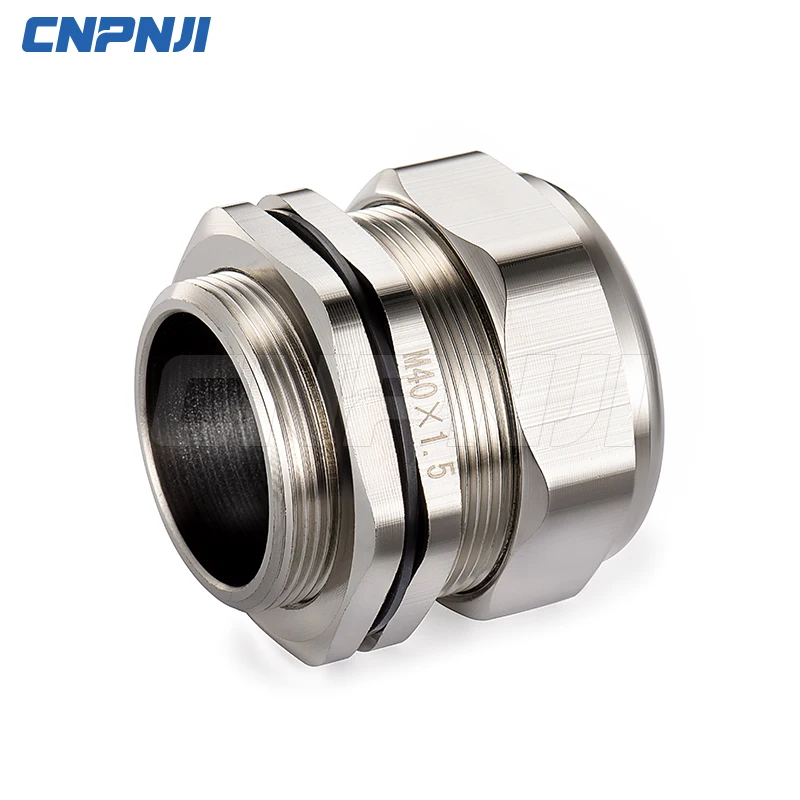

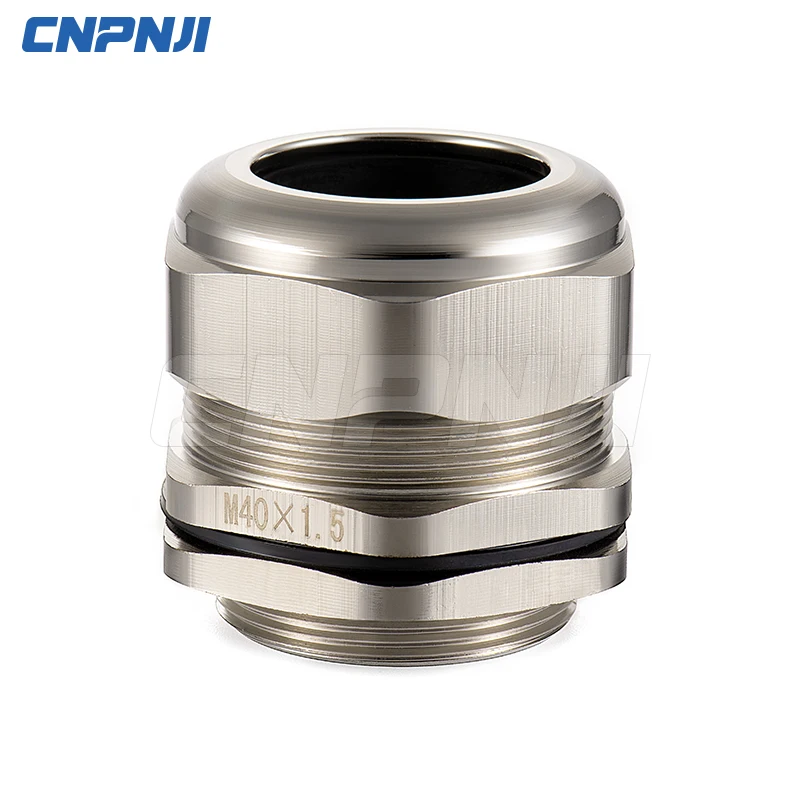

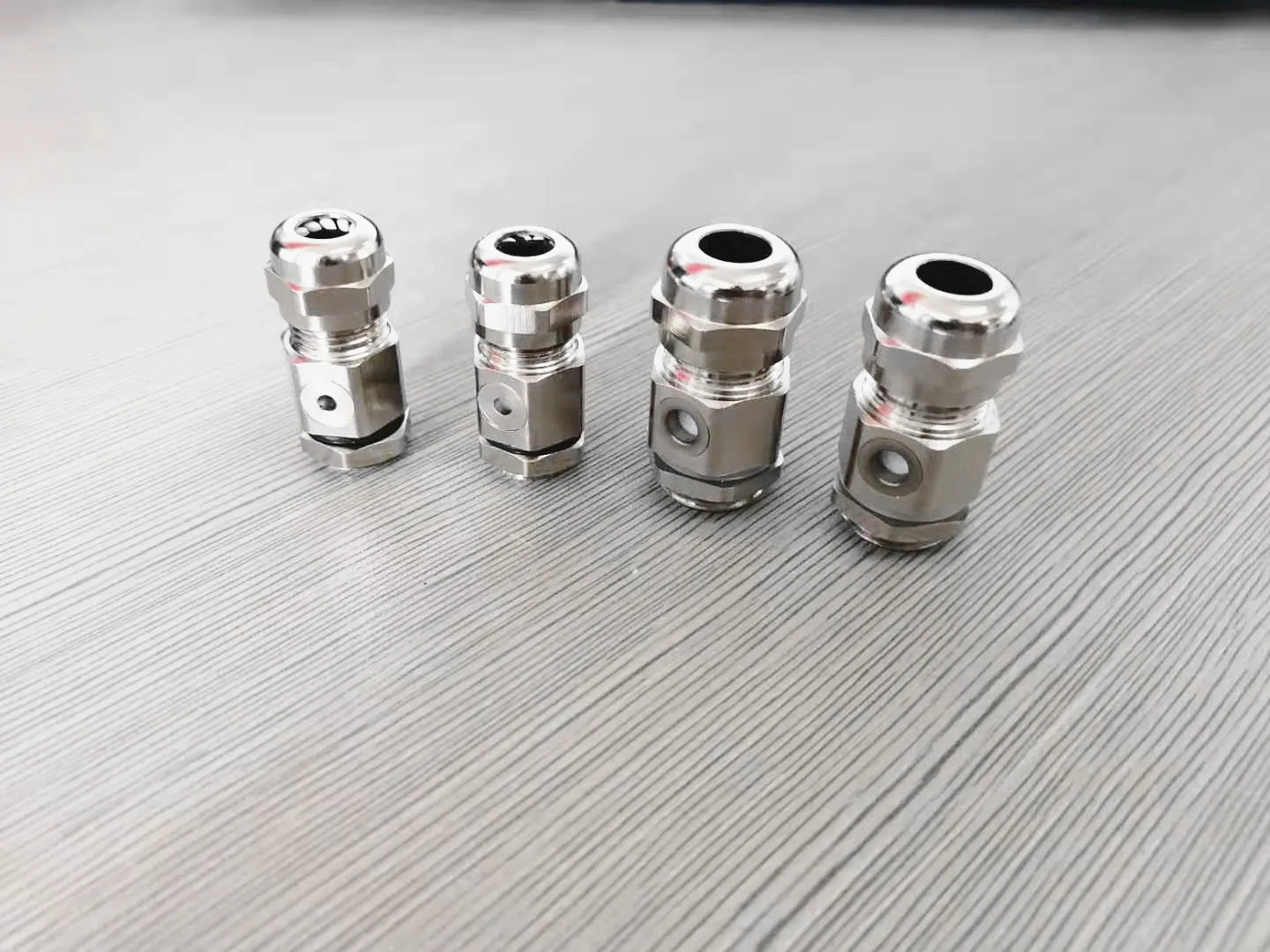

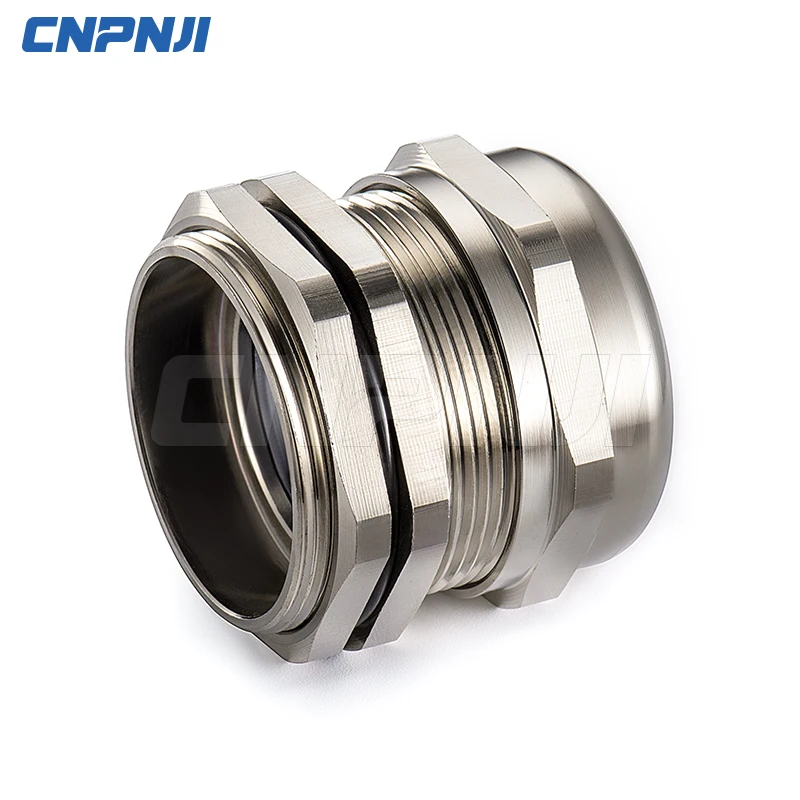

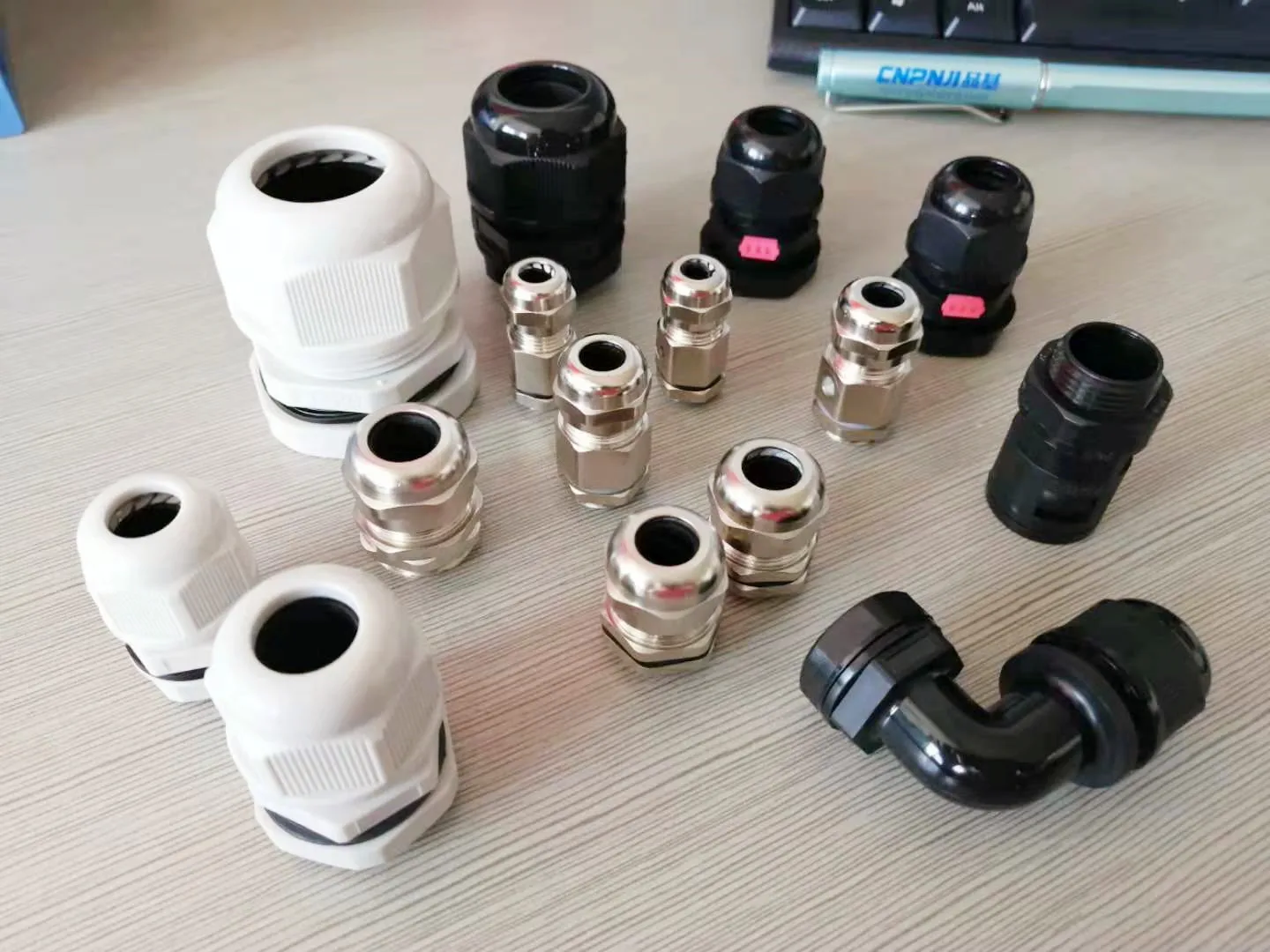

1. Pictures Of IP68 Cable Gland
2. Specification Of IP68 Cable Gland
| Standard Thread | Metric, PG Thread |
| Material | Brass with nickel plated for A,C,F parts; Nylon PA66 for E part |
| EPDM rubber or Silicon rubber for B,D parts | |
| EPDM Rubber | More waterproof; more durable; more weather resistant |
| Protection Level | IP68 (10 Bar), IP69K |
| Working Temperature | EPDM Rubber: -40 to +100 °C |
| Silicon Rubber: -50 to +200 °C | |
| Own Mold Center | Accept design new mold as sample or customized |
| Feature | Different cable range for different cable diameter |
| Different thread length for different junction box | |
| Certificates | CE,ROHS,SGS,IP68,Halogen-free,UV Resistant |
3. Exploded View And Applications Of IP68 Cable Gland
| Thread | Item No. | Cable Range | Outer Diameter | Thread Length | Spanner Size |
mm | mm | mm | mm | ||
| M6×1 | M6-3 | 2-3 | 6 | 5 | 9/9 |
| M8×1.25 | M8-5 | 3-5 | 8 | 5.5 | 11/11 |
| M10×1.5 | M10-5.5 | 3-5.5 | 10 | 7 | 14/14 |
| M12×1.5 | M12S-6.5 | 2-6.5 | 12 | 7 | 14/14 |
| M12-5.5 | 3-5.5 | 12 | 8 | 18/18 | |
| M12L-5.5 | 3-5.5 | 12 | 15 | 18/18 | |
| M12-8 | 4.5-8 | 12 | 8 | 18/18 | |
| M12L-8 | 4.5-8 | 12 | 15 | 18/18 | |
| M16×1.5 | M16S-5.5 | 3-5.5 | 16 | 9 | 18/18 |
| M16S-8 | 4.5-8 | 16 | 9 | 18/18 | |
| M16-7 | 4-7 | 16 | 9 | 22/22 | |
| M16-7L | 4-7 | 16 | 15 | 22/22 | |
| M16-10 | 6-10 | 16 | 9 | 22/22 | |
| M16-10L | 6-10 | 16 | 15 | 22/22 | |
| M20×1.5 | M20S-8.8 | 4-8.8 | 20 | 9.5 | 24/24 |
| M20S-12.5 | 7-12.5 | 20 | 9.5 | 24/24 | |
| M20-11 | 7-11 | 20 | 9.5 | 25/25 | |
| M20-11L | 7-11 | 20 | 15 | 25/25 | |
| M20-14 | 9-14 | 20 | 9.5 | 25/25 | |
| M20-14L | 9-14 | 20 | 15 | 25/25 | |
| M25×1.5 | M25-16 | 12-16 | 25 | 12 | 30/30 |
| M25-16L | 12-16 | 25 | 15 | 30/30 | |
| M25-18 | 14-18 | 25 | 12 | 30/30 | |
| M25-18L | 14-18 | 25 | 15 | 30/30 | |
| M32×1.5 | M32-22 | 16-22 | 32 | 12.5 | 40/40 |
| M32-22L | 16-22 | 32 | 15 | 40/40 | |
| M32-25 | 18-25 | 32 | 12.5 | 40/40 | |
| M32-25L | 18-25 | 32 | 15 | 40/40 | |
| M40×1.5 | M40-26 | 21-26 | 40 | 15 | 50/50 |
| M40-26L | 21-26 | 40 | 20 | 50/50 | |
| M40-31 | 24-31 | 40 | 15 | 50/50 | |
| M40-31L | 24-31 | 40 | 20 | 50/50 | |
| M50×1.5 | M50-33 | 25-33 | 50 | 15 | 59/59 |
| M50-33L | 25-33 | 50 | 22 | 59/59 | |
| M50-41 | 31-41 | 50 | 15 | 59/59 | |
| M50-41L | 31-41 | 50 | 22 | 59/59 | |
| M63×1.5 | M63-45 | 35-45 | 63 | 17 | 69/69 |
| M63L-46 | 39-46 | 63 | 17 | 75/75 | |
| M63L-51 | 44-51 | 63 | 17 | 75/75 | |
| M75×1.5 | M75-56 | 50-56 | 75 | 22 | 93/93 |
| M75-66 | 56-66 | 75 | 22 | 93/93 | |
| M90×1.5 | M90-68 | 58-68 | 90 | 24 | 110/110 |
| M90-77 | 66-77 | 90 | 24 | 110/110 | |
| M100×1.5 | M100-68 | 58-68 | 100 | 24 | 110/110 |
| M100-77 | 66-77 | 100 | 24 | 110/110 |
