Разъем RJ45 по заводской цене неэкранированный разъем cat6 rj45 модульный разъем/UTP Cat5e
- Категория: >>>
- Поставщик: Guangdong,Yilian,Cables,Company,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.46 $* | 0.63 $* |
| Aug-19-2025 | 0.34 $* | 0.38 $* |
| Jul-19-2025 | 0.25 $* | 0.65 $* |
| Jun-19-2025 | 0.50 $* | 0.35 $* |
| May-19-2025 | 0.27 $* | 0.48 $* |
| Apr-19-2025 | 0.76 $* | 0.14 $* |
| Mar-19-2025 | 0.56 $* | 0.6 $* |
| Feb-19-2025 | 0.96 $* | 0.59 $* |
| Jan-19-2025 | 0.62 $* | 0.83 $* |
Характеристики

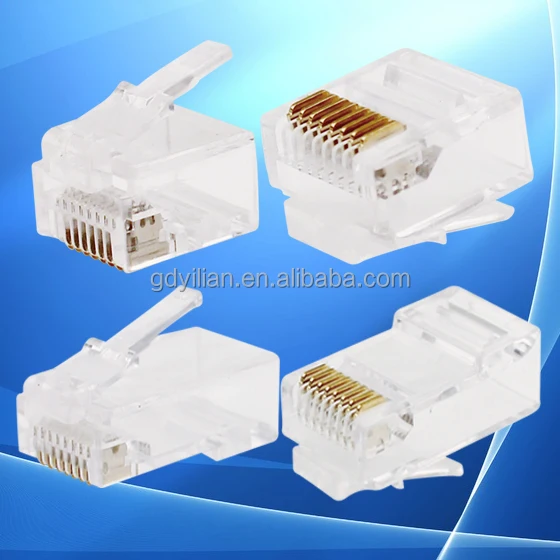

Factory Price cat6 unshielded rj45 plug modular plug/UTP Cat5e,RJ45 Plug/crystal head rj45 connector
Product description:
1.UTP:CAT.5e Modular Plug 8P8C Unshielded
2. For cable jumper links
3. Connector: Gold plated.
4. Length: 1.5m/3m/on request
5.Material: RoHS compliance available
Modular plugs:
1) All modular plugs RJ11 RJ12 RJ45 connectors are available:

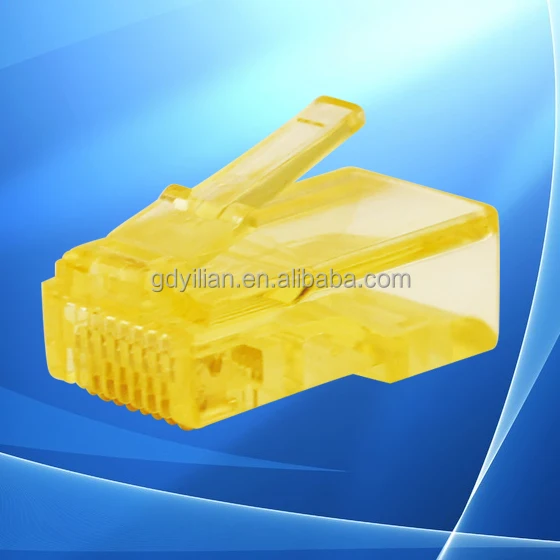

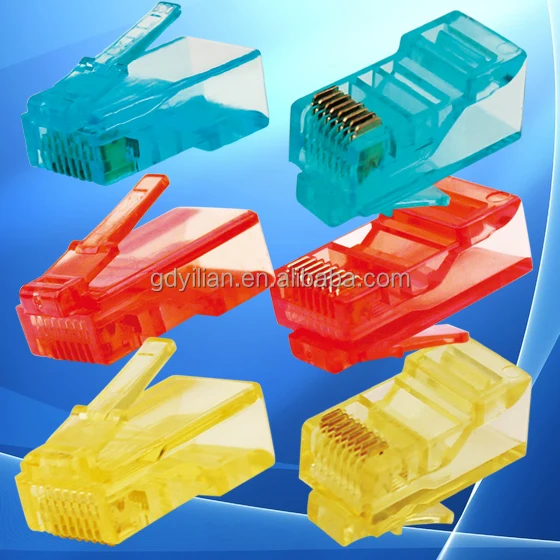

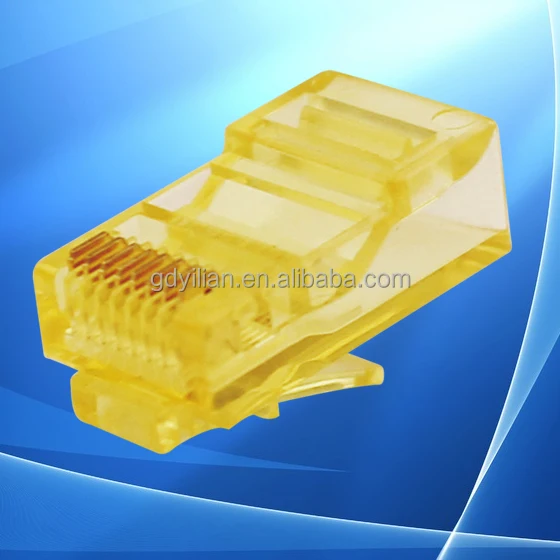

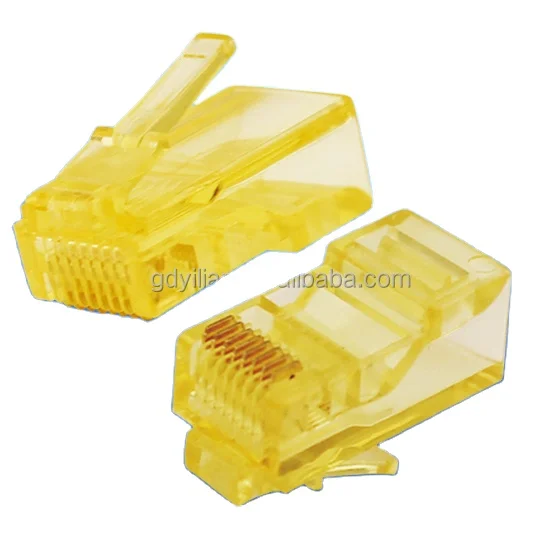

8P8C, 8P4C, 6P4C, 6P2C, 4P4C, 4P2C; RJ11/RJ12/RJ45/RJ48 connector, UTP/FTP/STP/SFTP/SSTP, color modular plugs, or UK plugs are all available.
2) Gold plating thickness: gold flash, 03, 06, 15, 30, 50U”.
3) UL/RoHS compliant.
4) Imported materials:
Imported polycarbonate material with good transparency and flexibility.
5) Designed according to FCC standard, and fully compatible with different jacks.
6) Standard packing: 1000pcs or 100pcs/bag with a sticker to mark specification.
For round cable, featuring gold plated contacts for the best possible connection. Manufactured from a leader in the network cables industry, Make your network function to it's maximum potential
Material of RJ45 plug |
1. Housing: Poly carbonate (PC) UL 94V-0 or UL 94V-2 |
2. Contacts: Phosphor bronze, Nickel plating followed with gold plating: 1u to 50u micro-inch |

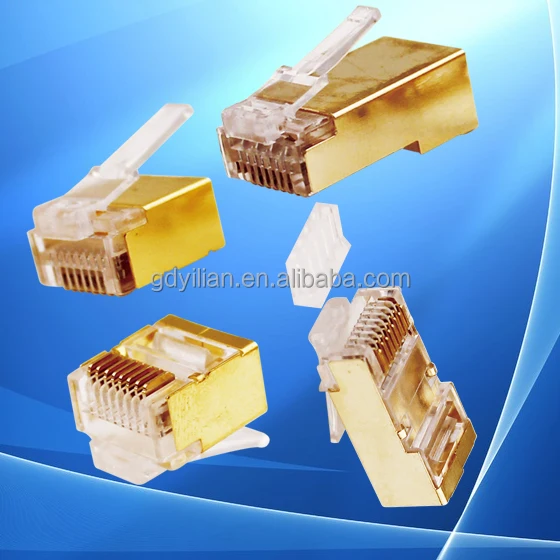

3. Shielding Housing: Brass with nickel plating or steel with nickel plating |
|
Mechanical of RJ45 plug |
1. Storage Temperature Range: 0°C~+60°C ; Operating Temperature Range:-40°C~+70°C |
2. Relative Humidity:<95% (at 25°C) |
3. Durability: 750 mating cycles min |
|
Electrical Performance of RJ45 plug |
1. Insulation Resistance: ≥1000M Ohm |
2. Contact Resistance: ≤20m Ohm |
3. Dielectric Strength: 1000V/DC 60s can't spark over |
1. Overview
For the Networking Connctor, we could supply you 8P8C, 6P6C, 6P4C and shielded and unshielded connectors and so on.
2. How to distinguish the RJ45 connector quality ?
Low quality connector use the recycle raw material ,which is cheap .
when you use the crimp tool press it , will be easy to broken and signal transmission NOT stable
1. Color :
Low quality connector : connector color is not translucence
High quality connector : connector color is more translucence
when you use the crimp tool press it , will be easy to broken and signal transmission NOT stable
1. Color :
Low quality connector : connector color is not translucence
High quality connector : connector color is more translucence
2. Working time :
Low quality Connector : the times of plugging and unplugging is short . Around 400 times will be broken .
Nice connector : the times of plugging and unplugging can be more than 2000 times.
Low quality Connector : the times of plugging and unplugging is short . Around 400 times will be broken .
Nice connector : the times of plugging and unplugging can be more than 2000 times.
3. The Pin :
Low quality connector:some supplier to save cost use the "2 theeth " Pin .
High quality connector use "3 theeth " . we also use "3 theeth"Pin
Low quality connector:some supplier to save cost use the "2 theeth " Pin .
High quality connector use "3 theeth " . we also use "3 theeth"Pin
Because "3 theeth " can be Increase the contact area with cable , so can make the signal transmission more stable .
4. The pin 's thickness of Gold Plating :
"U" is about the thickness of the Gold plating. The connector signal transmission quality based on the thickness of Gold Plating .
"U" is more thick , the price is more high, But quality is more good .
We have 1u , 3u, 6u, 15u, 30u, 50u . But most supplier to save cost ,do NO Gold plating.
"U" is about the thickness of the Gold plating. The connector signal transmission quality based on the thickness of Gold Plating .
"U" is more thick , the price is more high, But quality is more good .
We have 1u , 3u, 6u, 15u, 30u, 50u . But most supplier to save cost ,do NO Gold plating.
3. Packing
| RJ45 Connector Packing | |||||||
| NO. | Item | Packing | Dimension(cm) | N.W (KG) | G.W (KG) | ||
| L | W | H | |||||
| 1 | Cat5e UTP RJ45 Pulg | 10000pcs/carton | 41 | 36 | 37 | 15 | 16 |
| 2 | Cat6 UTP RJ45 Pulg | 10000pcs/carton | 41 | 36 | 37 | 16 | 17 |
| 3 | FTP RJ45 Pulg | 10000pcs/carton | 46 | 36 | 25 | 22 | 23.5 |
| 4 | Cat7 Plug | 10000pcs/carton | 36 | 24 | 25 | 3.6 | 5 |
4. FAQ
Q1. How to know Gold plated thickness ?
A1 : The important judgement standard for RJ45 connector is Gold plated thickness . It have no gold plated , FU , 3U , 5U, 7U, 15U, 50U etc.
The more U , The better quality . But some of bad supplier said their connector is 5U or 50U , but the order use FU . So you can see the metal
carefully , if high U , the gold color is deep . others is light color .
Q2. How to packing ?
A2 : CAT5E CAT6 RJ45 Packing :
100pcs in small PE bag with note label,
10 samll BE bag in Large PE bag ,
10 Large PE bag in a box with note label .
CAT7 RJ45 Packing :
50 pcs in Blister box packing .
Q3. Payment term ?
A3: T/T 30% deposit ,70% against the copy of BL . For our familiar customer , we can support good credit payments date .
