Конденсатор CBB65 для кондиционера

Категория: Capacitors >>>
Поставщик: Wenling,Jiayang,Capacitor,Co.,Ltd.

Цена:0,61 $ - 0,63 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.17 $*	0.56 $*
Aug-19-2025	0.40 $*	0.69 $*
Jul-19-2025	0.42 $*	0.26 $*
Jun-19-2025	0.90 $*	0.62 $*
May-19-2025	0.60 $*	0.65 $*
Apr-19-2025	0.0 $*	0.0 $*
Mar-19-2025	0.70 $*	0.52 $*
Feb-19-2025	0.49 $*	0.26 $*
Jan-19-2025	0.34 $*	0.19 $*

Характеристики

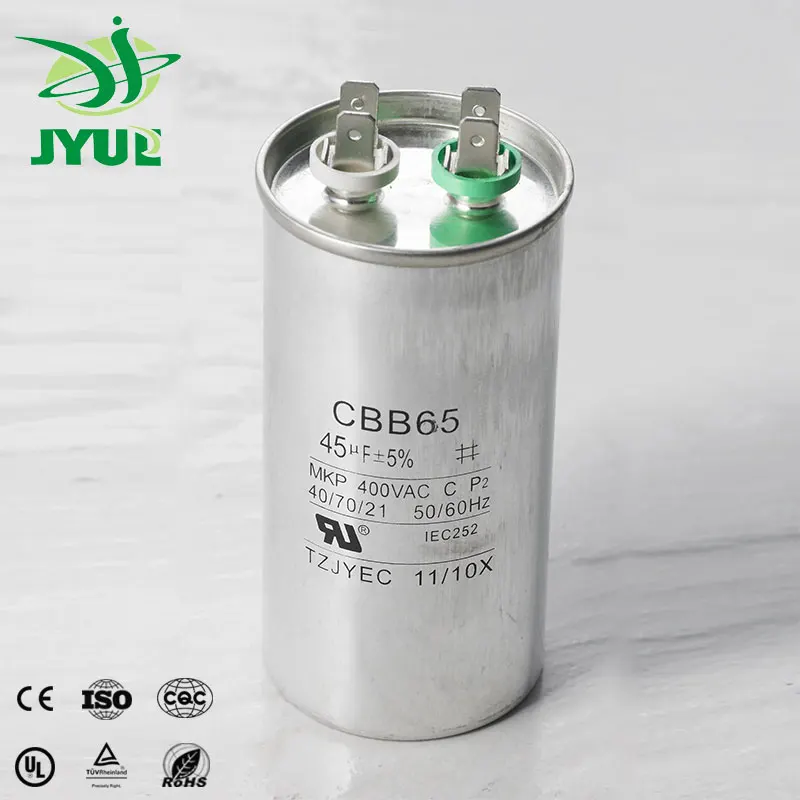

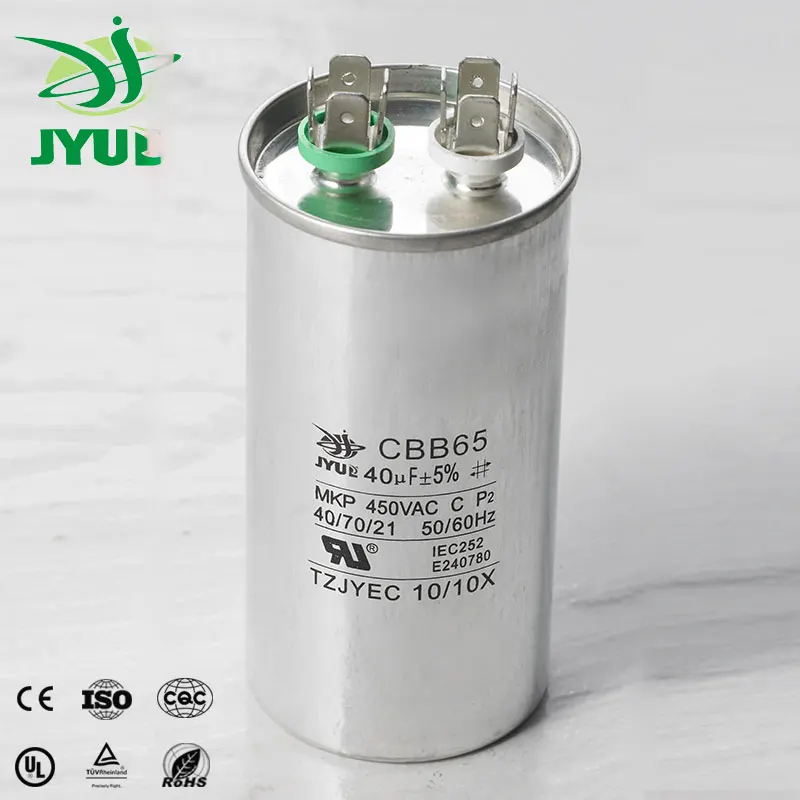

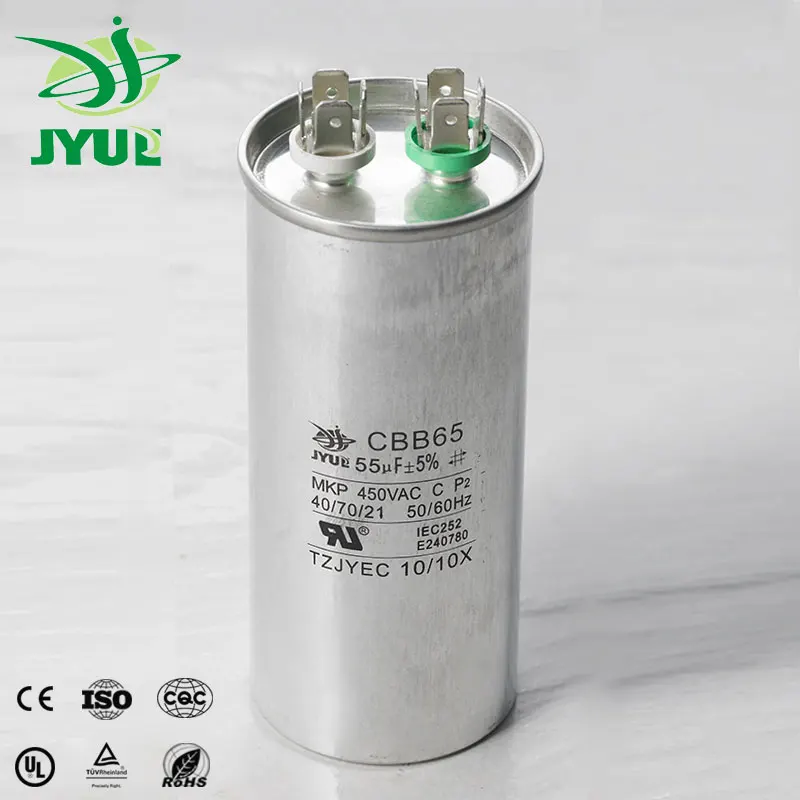

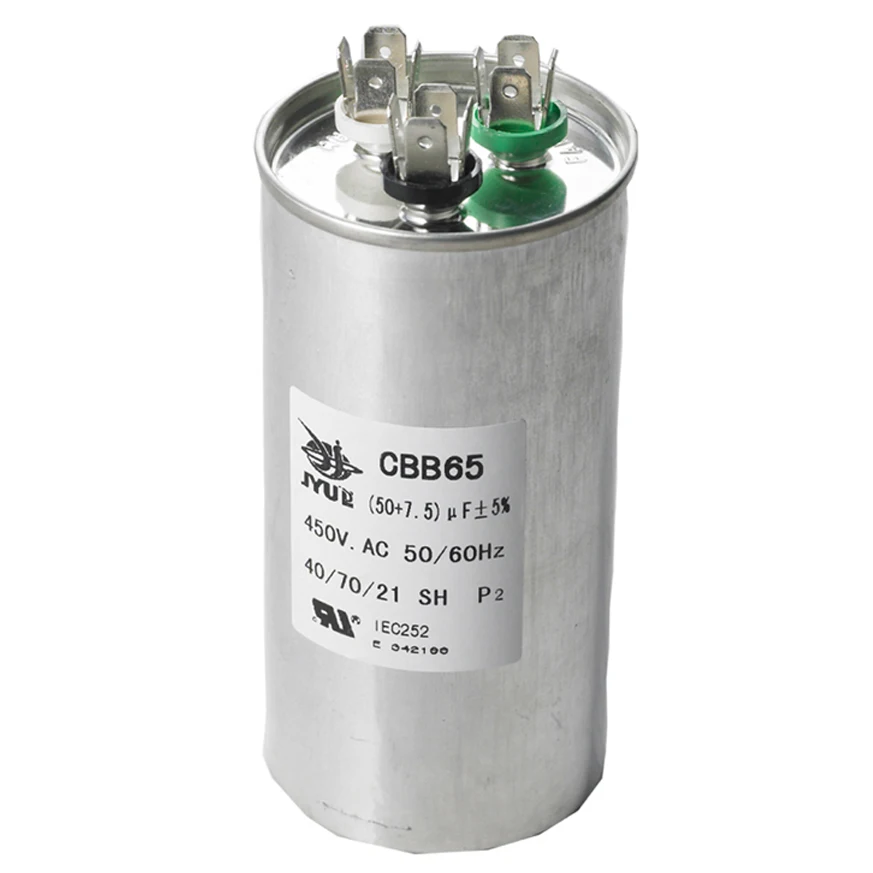

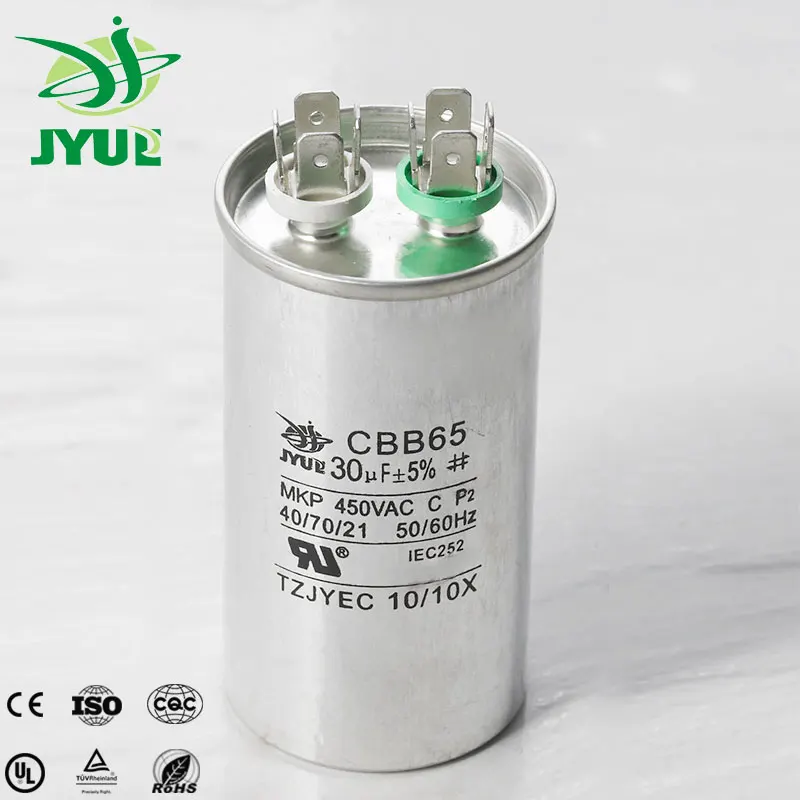

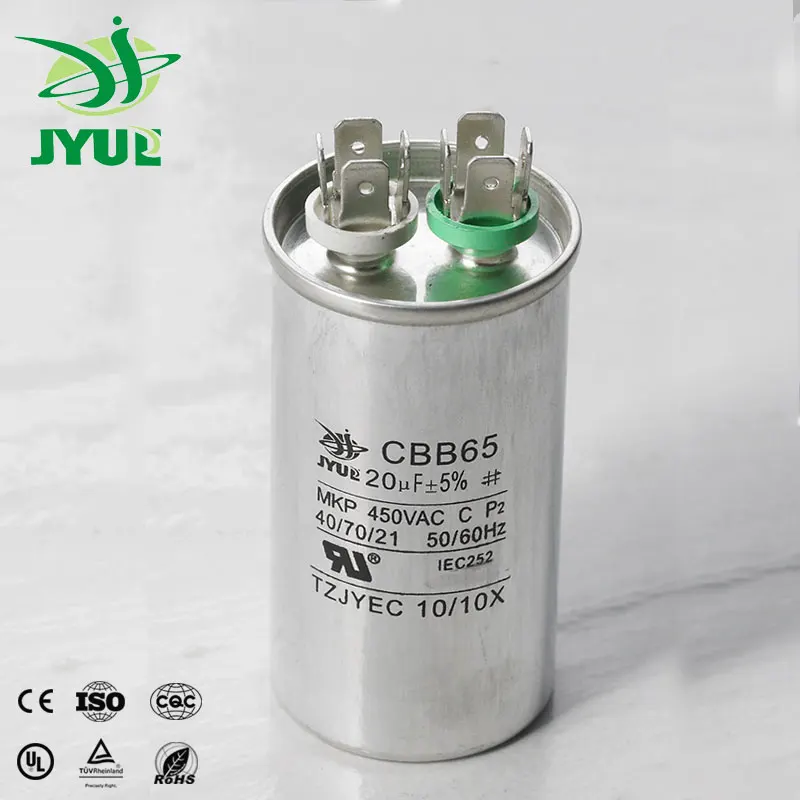

CBB65

Self introduction of CBB65

30uf 30uf 20uf445 35+5

Advantage:

♦Long life,Safe,Good stability,Small size,Available price,Low loss

♦certificate:CE+CQC+TUV+ROHS+ISO9001

♦Widely used in industry

♦Polypropylene film with Self-healing

♦Encapsulated by retardant epoxy resin

◊Product Character

CBB65 capacitor ues thickened Metallized Polypropylene Film as dielectric,coiled by high speed winding

machine and encapsulated with Aluminum body,It`s treated by using refined castor oil as impregnant in

the high temperature and vacuum environment to make thr capacitor more stable with long working life.

Meanwhile based on the principle of safety and Proof-Explosion,this kind of capacitor has been used the second generation mechanical explosion proof design to strengthen the reliability.

♦Technical Data

Performance Standard	GB/T3667.1-2005/IEC60252-1:2001
Climate Types	40/70/21
Capacitance Tolerance	±5%
Insulation Resistance	≥3000MΩ.μF
Loss Tangent	Tgδ≤0.002(50Hz-100Hz)
Endurable Voltage	T-T: 2Un T: 2S T-C: 2Un+1000V≥2000V T: 10S

◊Application

CBB65 capacitor widely used for Air-conditioners refrigerators,generators,illuminating lamps etc.

♦Demensions(mm)

Capacitance (μF)	250V	450V
Capacitance (μF)	D×H(mm)
2	40×60	40×60
3
4
5
6
7
8
10
12
15		40×70
20		40×75
25		45×75
30	40×75	45×85
35	45×75	50×85
40	45×75	50×90
45	50×75	50×100
50	50×75	50×100
55	50×85	50×115
60	50×85	50×115
70	50×90	55×130
80	50×90	55×130
90	50×115	60×130
100	50×115	60×130

Capacitance (μF)	450V D×H(mm)
20+5	50×75
25+5	50×75
25+7.5	50×85
30+1.5
30+5
30+7.5
35+1.5
35+5	50×100
35+7.5
40+5
40+7.5
45+5
45+7.5	50×115
50+5
50+7.5
55+5	55×115
55+7.5
60+5
60+6
60+7.5
