И формирующая листы для кровли 4 м OEM блокировки пневматические телескопической
- Категория: Telecommunication Towers & Accessories >>>
- Поставщик: Tianjin,Talents,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.76 $* | 0.75 $* |
| Aug-16-2025 | 0.52 $* | 0.38 $* |
| Jul-16-2025 | 0.94 $* | 0.89 $* |
| Jun-16-2025 | 0.35 $* | 0.75 $* |
| May-16-2025 | 0.47 $* | 0.20 $* |
| Apr-16-2025 | 0.88 $* | 0.91 $* |
| Mar-16-2025 | 0.30 $* | 0.66 $* |
| Feb-16-2025 | 0.46 $* | 0.18 $* |
| Jan-16-2025 | 0.96 $* | 0.56 $* |
Характеристики
Product Description

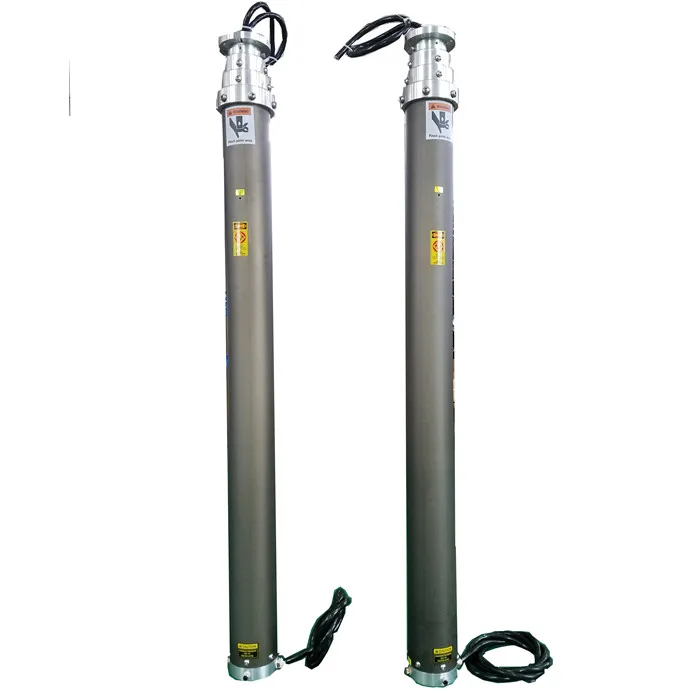

4m non-locking OEM pneumatic antenna masts
Specifications of pneumatic antenna masts | ||
extended length | 4.0m | |
closed length | 1.8m | |
max loading | 30kg | |
max diameter | 87mm | |
wind load | 25m/s | |
temperature | -40C-+40C | |

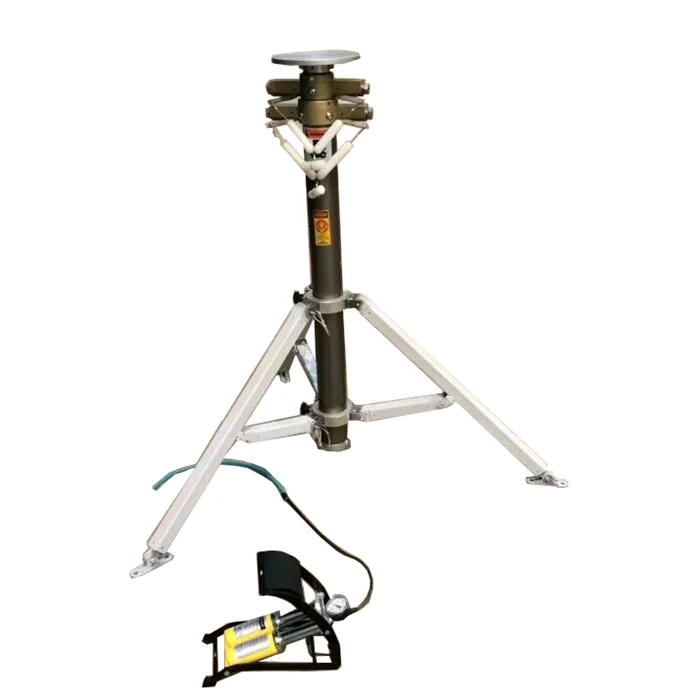

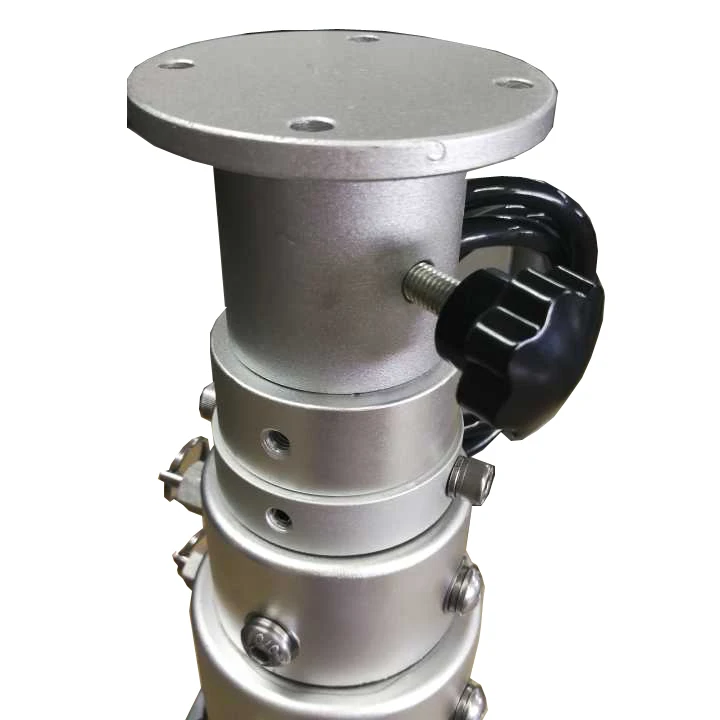

accessories | tripod, air compressor, air tube, hand operate valve, ground anchor, top plate | |
color | light brown | |
meterial | aluminum alloy 6063B | |
application | pneumatic antenna masts can be used on the ground or on the vehicle. With two kinds of lifting mode,electric and manual, it possesses many advantages.the unique technology has made our products directed better, lifting faster, operated easier and safer than ever before. | |
Detail

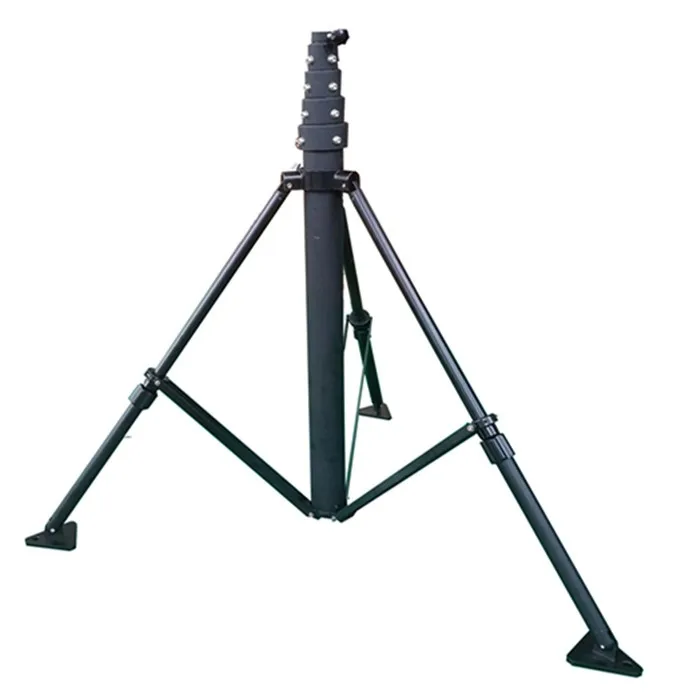

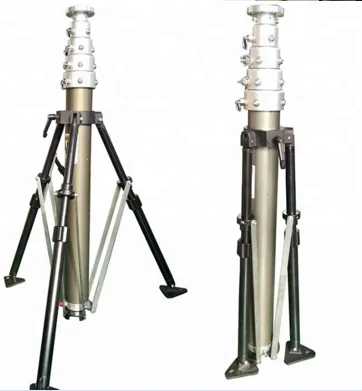

12m portable field locking telescopic pneumatic mast

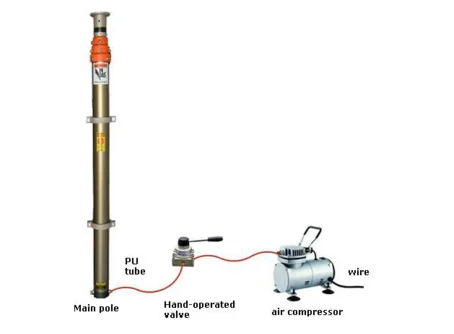

Operation steps
1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
9. when lift down the mast, please pull down the lifting control valve handle bar..
Other Specification
Pneumatic telescopic mast | ||||||||||||
MODEL No. | Extended Height (m) | Retracted Height (m) | Bottom OD (mm) | TOP OD (mm) | Section NO. | Head-load (KG) | ||||||
TAL-2.0-1.3-150-AT8 | 2 | 1.3 | 118 | 98 | 2 | 150 | ||||||
TAL-3.0-1.5-50-AT8 | 3 | 1.5 | 98 | 66 | 3 | 50 | ||||||
TAL-4.0-1.3-20-AT8 | 4 | 1.3 | 87 | 43 | 4 | 20 | ||||||
TAL-4.5-1.65-50-AT9 | 4.5 | 1.65 | 118 | 66 | 4 | 50 | ||||||
TAL-5.0-1.7-40-AT8 | 5 | 1.7 | 98 | 51 | 4 | 40 | ||||||
TAL-5.0-1.75-30-AT9 | 5 | 1.75 | 98 | 51 | 4 | 30 | ||||||
TAL-6.0-1.7-30-AT8 | 6 | 1.7 | 118 | 51 | 5 | 30 | ||||||
TAL-6.0-1.75-12-AT8 | 6 | 1.75 | 87 | 28 | 5 | 12 | ||||||
TAL-6.0-2.0-50-AT9 | 6 | 2 | 118 | 66 | 4 | 50 | ||||||
TAL-6.0-1.95-30-AT8 | 6 | 1.95 | 87 | 43 | 4 | 30 | ||||||
TAL-6.0-1.5-25-AT9 | 6 | 1.5 | 118 | 51 | 5 | 25 | ||||||
TAL-7.0-1.95-40-AT8 | 7 | 1.95 | 118 | 51 | 5 | 40 | ||||||
TAL-8.0-1.8-50-AT9 | 8 | 1.8 | 160 | 51 | 7 | 50 | ||||||
TAL-8.0-2.2-60-AT7 | 8 | 2.2 | 140 | 66 | 5 | 60 | ||||||
TAL-8.0-2.0-25-AT8 | 8 | 2 | 118 | 36 | 6 | 25 | ||||||
TAL-9.0-2.15-30-AT8 | 9 | 2.15 | 140 | 51 | 6 | 30 | ||||||
TAL-10.0-2.4-30-AT7 | 10 | 2.4 | 140 | 51 | 6 | 30 | ||||||
TAL-12.0-2.7-250-AT8 | 12 | 2.7 | 279 | 140 | 7 | 250 | ||||||
TAL-15.0-3.5-150-AT9 | 15 | 3.5 | 229 | 98 | 6 | 150 | ||||||
TAL-16.0-3.0-30-AT8 | 16 | 3 | 180 | 51 | 8 | 30 | ||||||
TAL-18.0-3.0-100-AT8 | 18 | 3 | 279 | 66 | 10 | 100 | ||||||
TAL-20.0-3.3-55-AT8 | 20 | 3.3 | 229 | 66 | 9 | 55 | ||||||
TAL-30.0-4.0-30-AT8 | 30 | 4 | 316 | 51 | 13 | 30 | ||||||
NOTE:
above specification does not include all we can do.
Certifications
Company profile
Talents Enterprise Company Limited.
Talents Enterprise co. ltd., was founded in China. since 1995, we devote ourselves to the export supply of telescopic masts made of aluminum alloy, stainless steel, fiberglass and carbon fiber. We have a professional team for the solutions and designing for the OEM and ODM of the telescopic mast and for the after sale services. We have been a 15 years golden supplier on Alibaba, we have built up a complete quality control system and Multi-way fast delivery on service. We are supplying one year free after-sale warranty to the buyer. What you are asking for is our motive power of task, we wish our great business platform could well-meet what you demand.
