HJD-J8 небольшой рулон для рулонного теплового пресса переносная печатная
- Категория: Передача тепла >>>
- Поставщик: Qingdao,Hengjinding,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.91 $* | 0.32 $* |
| Aug-15-2025 | 0.25 $* | 0.96 $* |
| Jul-15-2025 | 0.13 $* | 0.55 $* |
| Jun-15-2025 | 0.98 $* | 0.85 $* |
| May-15-2025 | 0.80 $* | 0.94 $* |
| Apr-15-2025 | 0.90 $* | 0.96 $* |
| Mar-15-2025 | 0.39 $* | 0.5 $* |
| Feb-15-2025 | 0.63 $* | 0.40 $* |
| Jan-15-2025 | 0.11 $* | 0.30 $* |
Характеристики

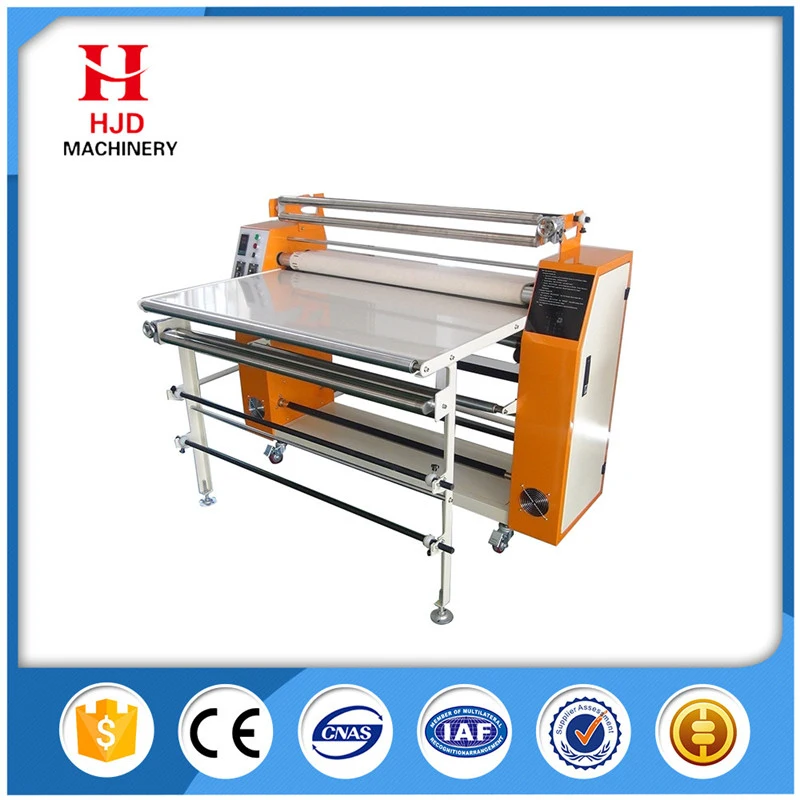

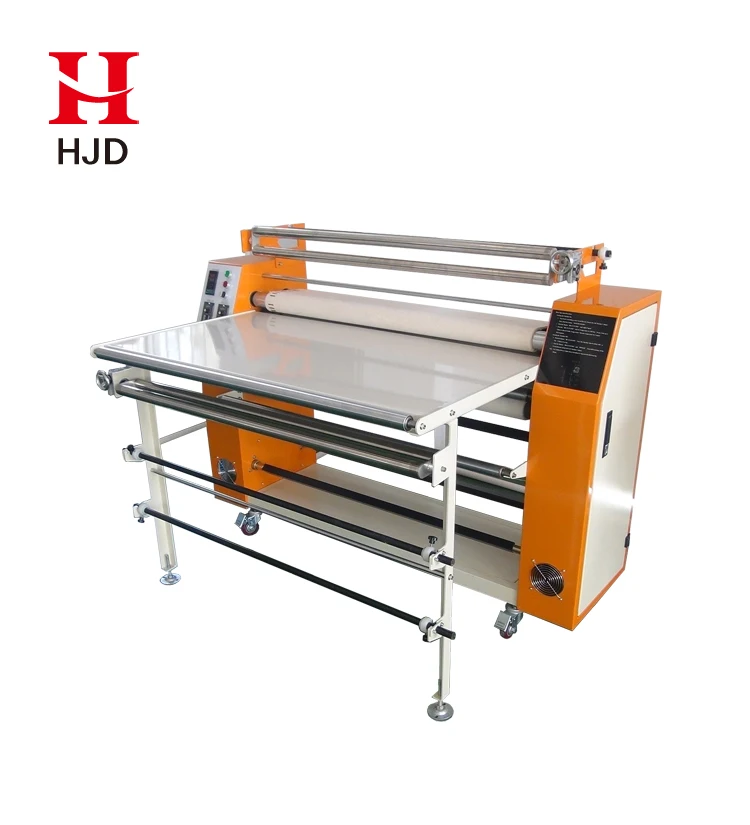

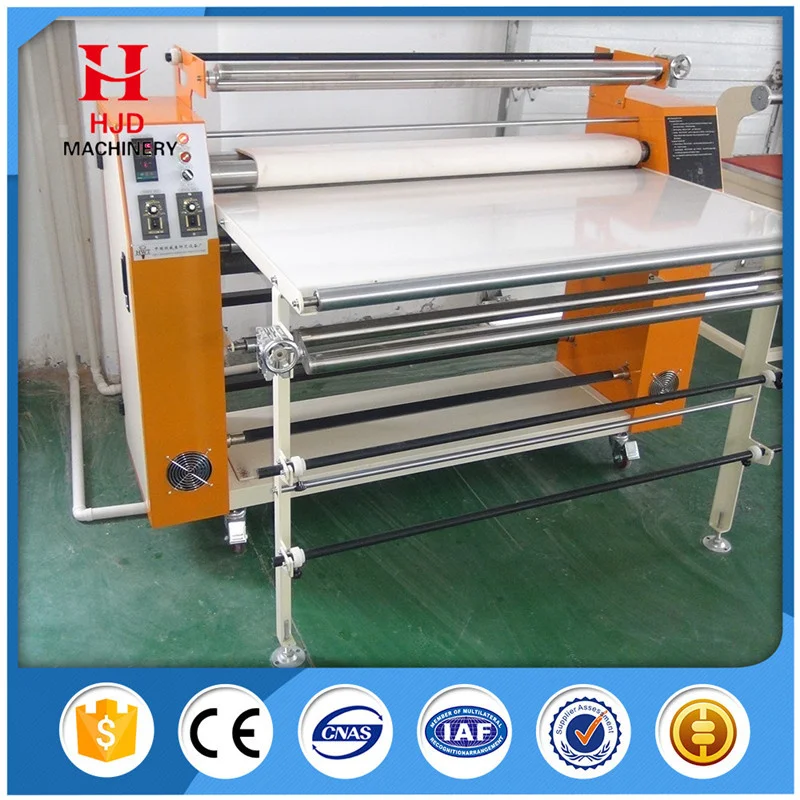

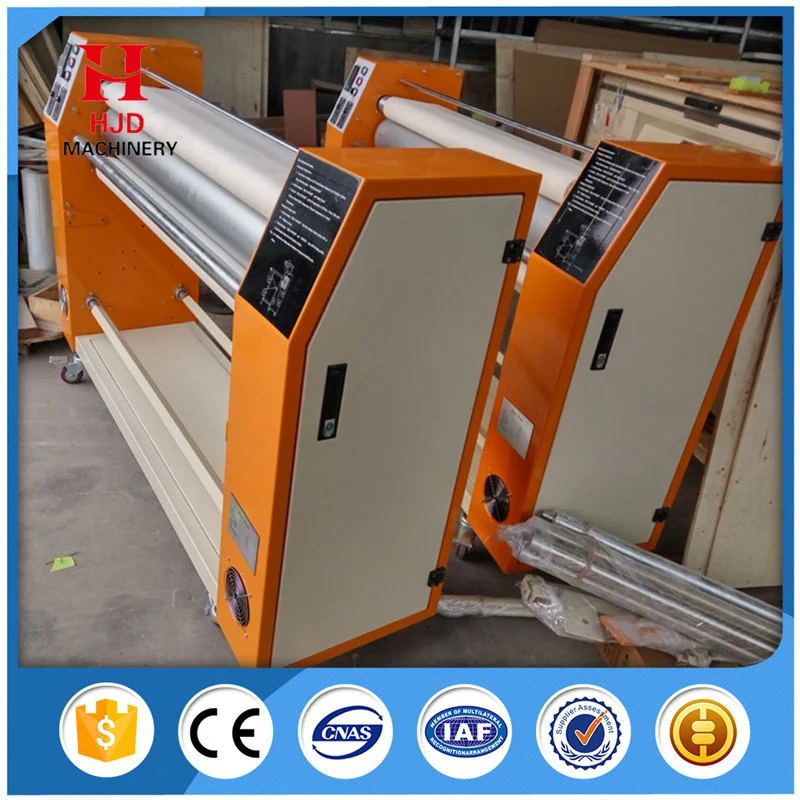

HJD-J8 small roll to roll heat press transfer printing machine
| Items | ROLLER HEAT TRANSFER PRINTING MACHINE | ||
| Model | HJD-J901 | HJD-J902 | HJD-J903 |
| Drum Diameter(mm) | 200 | 420 | 600 |
| Power | 7kw | 20kw | 43kw |
| Voltage | 220V/50Hz(single phase) | 380V/50HZ(3phase 4wire) | 380V/50HZ(3phase 4wire) |
| Heating Method | Oil-based heating pipe | Oil-based heating pipe | Oil-based heating pipe |
| Blanket width(mm) | 1130 | 1700 | 1700 |
| Working Table Length(mm) | 1305 | 1510 | 3000 |
| Max working speed (m/h) | 40-60 | 100-120 | 210-230 |

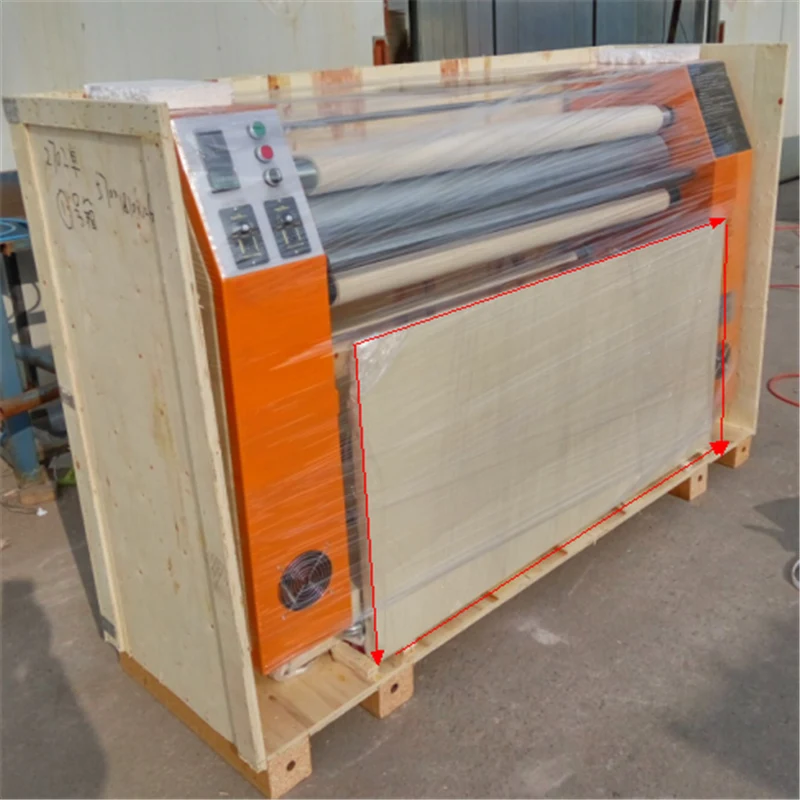

| Packing Sizes(mm) | 1800*580*1200mm | 2640*1400*1470mm | 2640*1540*1570 |
| N.W. | 320KG | 1500KG | 2500KG |
1. Wide application:heat transfer printing on both roll to roll and cut pieces,pure cotton transfer
printing in warm temperature.
2. Good printing effects:the transfer printing results are as good as those of flat transfer printing
machine.
3. Precise equipment: machine frame and all rollers are elaborately made and reinforced. Rational
machine structure ensures paper and cloth move accurately in parallel without offset.
4. Pneumatic pressure system: pneumatic roller is being used to enable extra pressure on the
drum during transfer printing.
5. High efficiency:it is a compact labor saving device with high overall yields.
FUNCTION DIAGRAM
