Характеристики
Specification

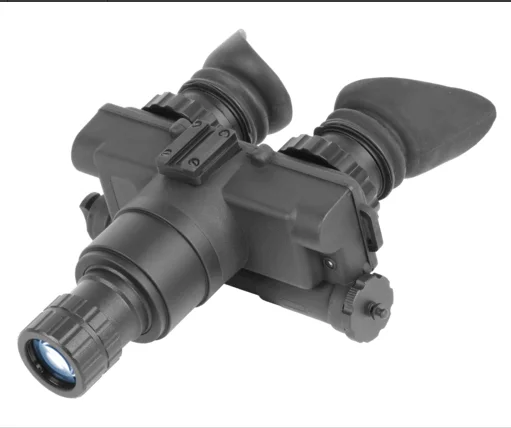

This night vision goggle adopts Gen2 image intensifier tube with the function of anti-glare and built-in IR Illuminator.It is mainly used for military observation, sea defence, frontier reconnaissance, surveillance, suppress smuggling, drug smuggling investigation and vehicles and aircraft maintenance under dark condition etc.
FEATURES
- Light wight, high resolution
- Strong light protection
- Eye-distance adjustable
- Auto brightness control
- Built in IR
- Low battery & IR indicator
- External power
- Water proof, corrosion and dust resistant

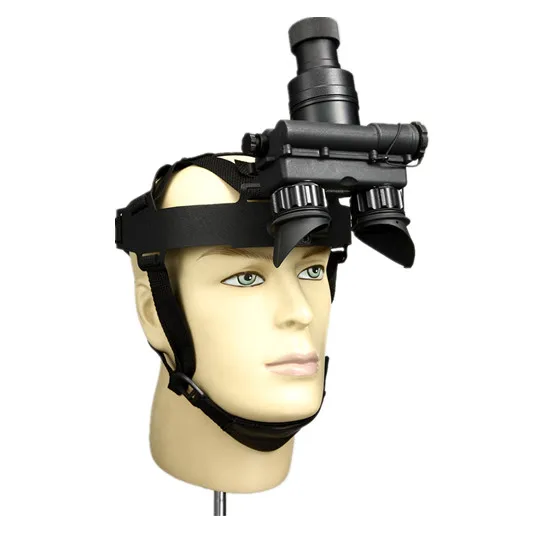

- Allowing for PASGT/ACH/MICH helmets

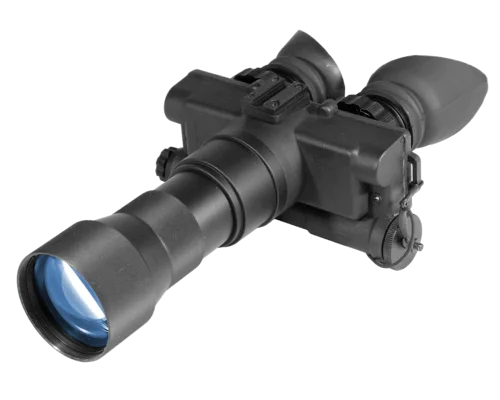

- May be equipped with a wide variety of optional magnifier lens
| Specification | |
| Model | PVS-7 |
| Magnification | 1X |
| Field of view | 40° |
| Lens system | 26.8mm F1.2 |
| Focus range, m/in | 0.25m to infinity |
| Eye relief distance | 15 mm |
| Diopter setting, D | +5°, -4° |
| Overall dimensions, mm/in | 191*7152*81 |
| Weight w/out headgear, g/oz | 530 |
| Power supply | 2 *AA |
| Estimated battery life w/out IR, 73°F, hour | up to 80 |
| Image Intensifier Tube | |
| Photocathode type | 18mm S-25 |
| Photocathode sensitivity, typical, μA/lm | 600-900 |
| Resolution, typical, lp/mm | 48-58 |
| Luminous gain, typical, fl/fcd | 19000 - 30000 |
| Signal-to-noise ratio, typical | 20:1 or better |
| FOM, typical | 1150 - 1350 |
| Tube relibility standard, hour | 10000 |
| Keep time, typical, year | 10 |
| Warranty, year | 1 |
| Effective Distance | |
| Detection range, approx, m/yard | |
| -quarter moon | up to 180 |
| -cloud cover | up to 110 |
| Recognition range, approx., m/yard | |
| -quarter moon | up to 120 |
| -cloud cover | up to 100 |
| 5mW IR iluminator, approx., m/yard | up to 30/12 |
| Environmental Data | |
| Operating temperature, °C/F | -40° to +50*/-40° to +122° |
| Storage temperature, °C/°F | -30° to +50°/-86 to+122° |
| Immersion, hour | 1 meter for 0.5 (Optional) |
| Humidity, % | up to 98% |
