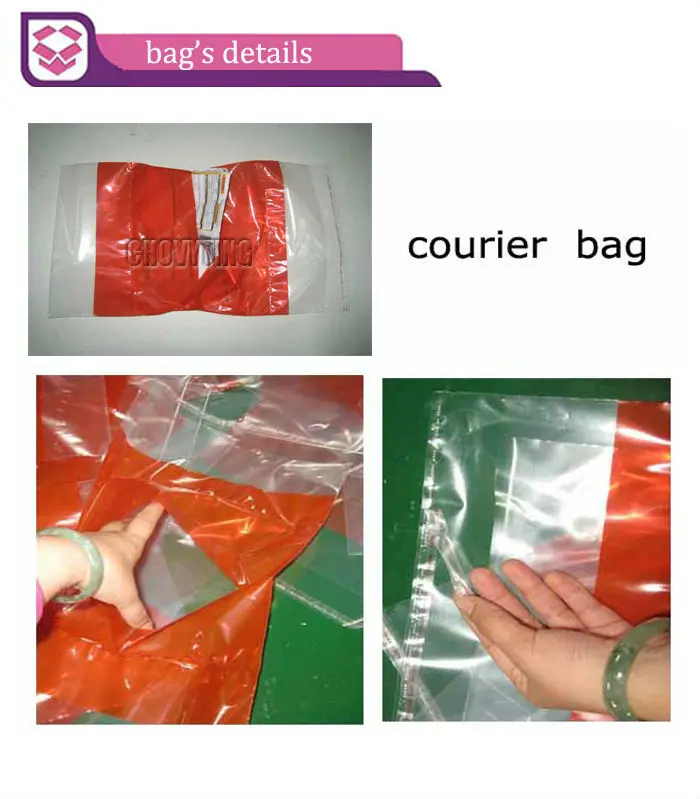

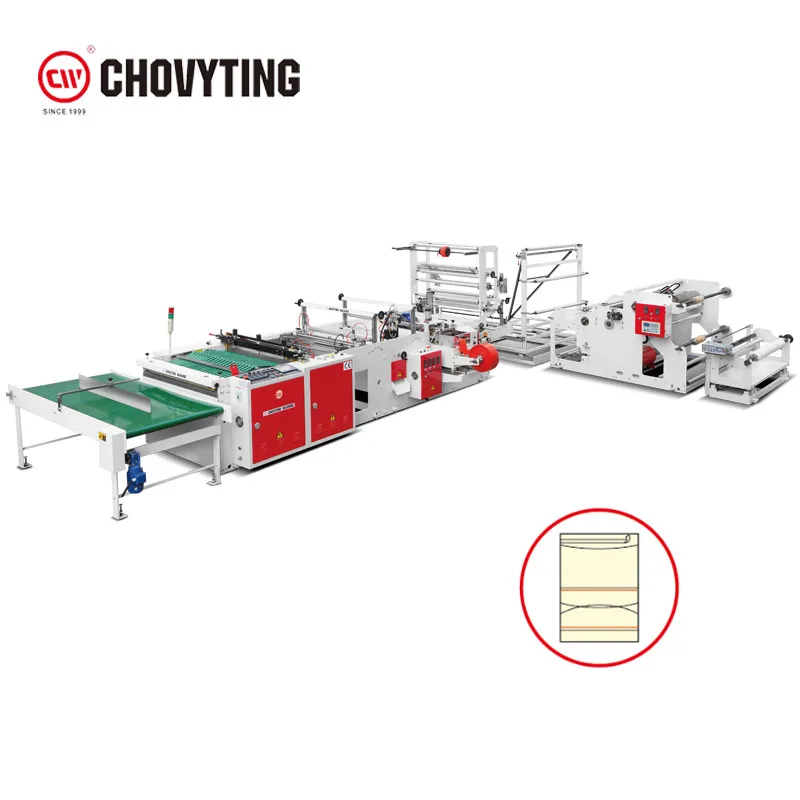

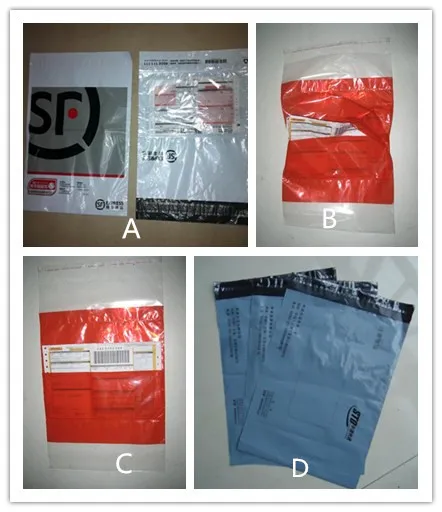

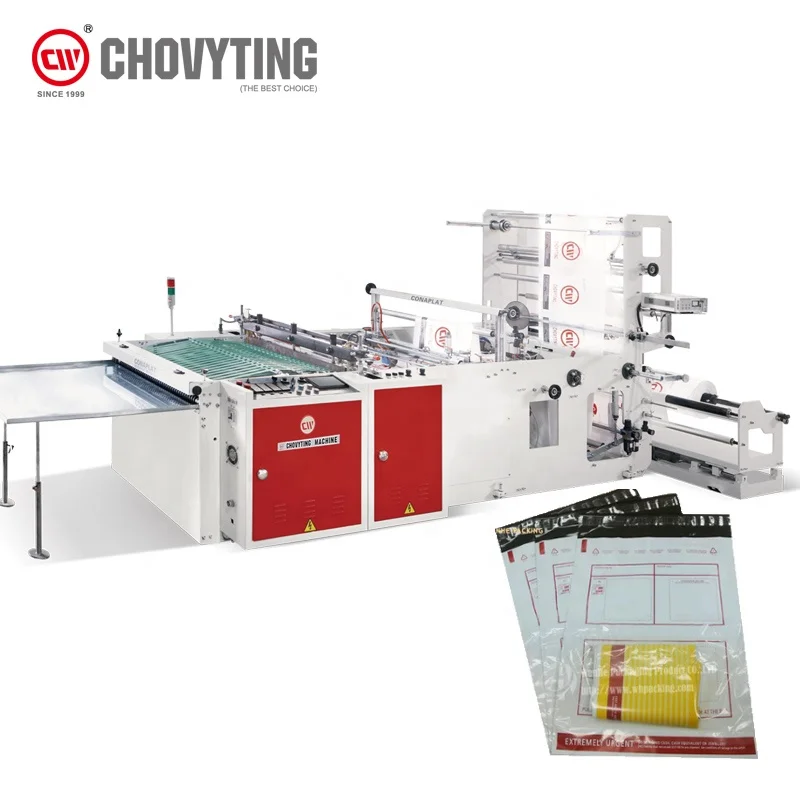

Brief Introduction: This machine is the high quantity DHL bag /courier bag/mailer bag making machine,fully automatic design,easy operation.
Optional: 1.Hot sealing device(for producing DHL bag) 2.Adhesive tape device or hotmelt glude device 3.Bottom seal and double seal knife 4.Perforation line device 5.OPP flower knife
Main Features
1.Newly design DHL bag with longitudinal seal knife structure 2.Newly design side sealing water circulate cooling device 3.Top continuous sealing device
Certifications
Detailed Images
Unwinder Parts
1.The max.diameter of the unwinder is 600mm,
2.The unwinder shaft adopt plug-shaft.Unwinder with EPC device.with SICK,Germany photocell.
3. Manual magnetic power tension control 2.5
Folding Parts (Optional)
Equipped with Triangle folding device 1600mm (edge folding device,which can fold the big single sheet film into 2 layer smaller folded film)
Note:If use single sheet film to making courier bag,this device should be purchased.
Top folding and bottom gusset Parts
1.Top folding device, which can fold the max size from top of bag is 80mm 2.Bottom gusset device, which can gusset max size from bottom is 85mm
Hot air sealing device
This device is used for sealing the pocket of courier bag.
This pocket in courier bag normally is for keeping air way bill .

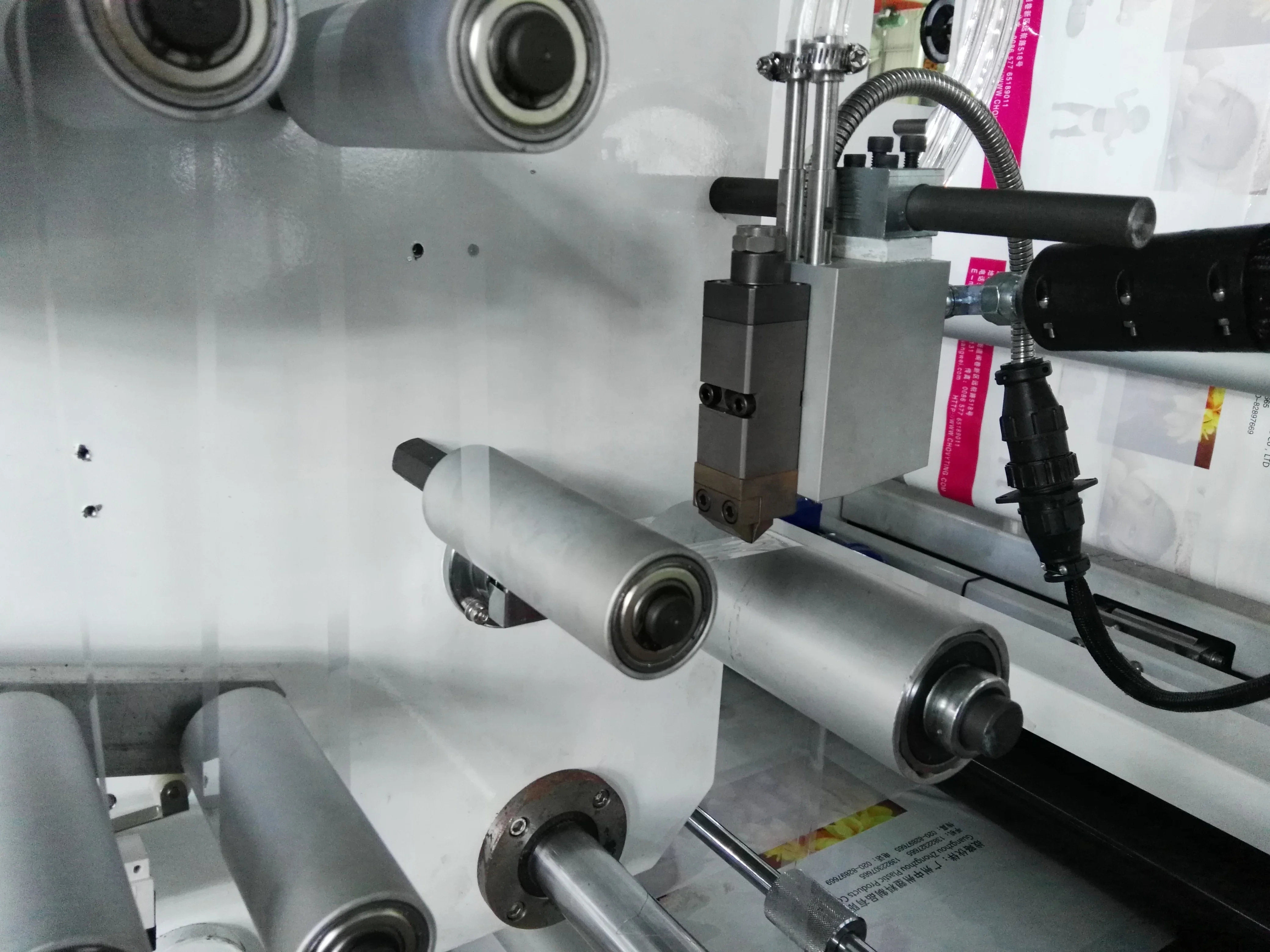

Hotmelt glue device:
Compare to the adhesive tape,the hotmelt glue device is the best choice for courier bag.
Photocell of printing and preheating:
1. Printing image tracking adopts photocell from SICK FROM GERMANY 2. The photocell of priting together with high technical computer , 3.The pre-sealing knife is designed specially of bottom four layers film, high speed produce bag 4. Double sides heating, double cylinder driven, strong for gusing, and strong for sealing

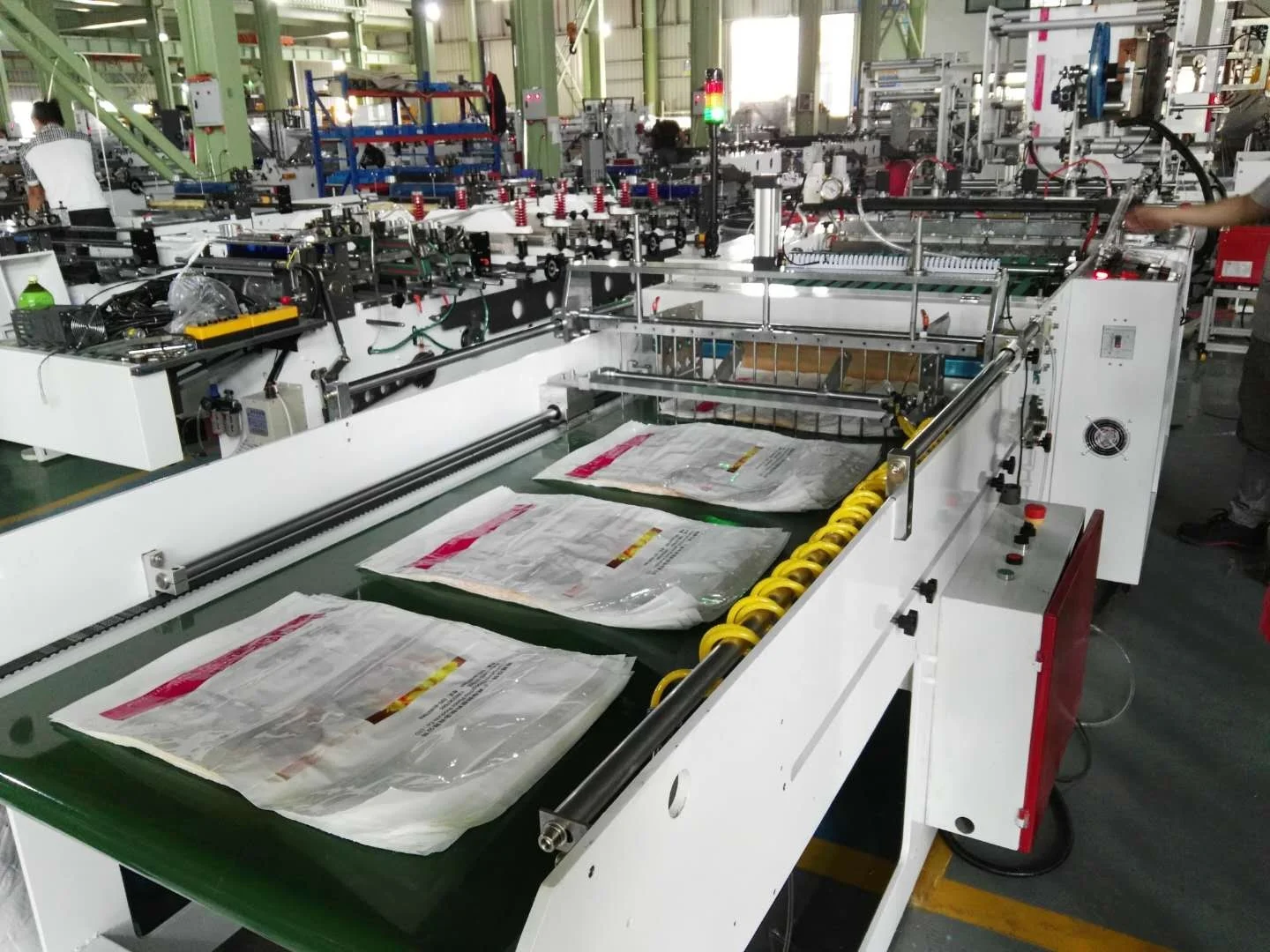

Cutting knife and belt:
1.Double side sealing knife principal axis transmission belt cylinder lifting and down, 2.The transmission belt used Habasit from switzerland 3. Turnover heavy double side sealing knife, humanism structure design, turn up 60°from one size, easy to cleaning.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
6500 (L) * 1600 (W) * 1870mm (H)
Weight
2.3 T
Packaging Details
The normal package is Wooden pallet with plastic film wrapping package.
For some spare parts ,we will packed them in wooden box.
