ul kc led light pc psu power supply ac dc 24v 5a 3a 2a 2.5a ac/dc switching ps2

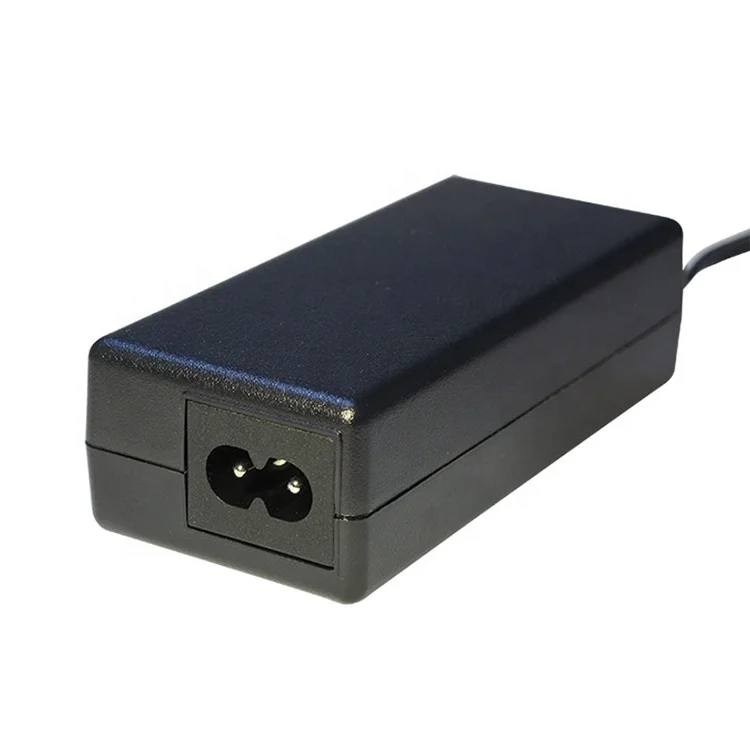

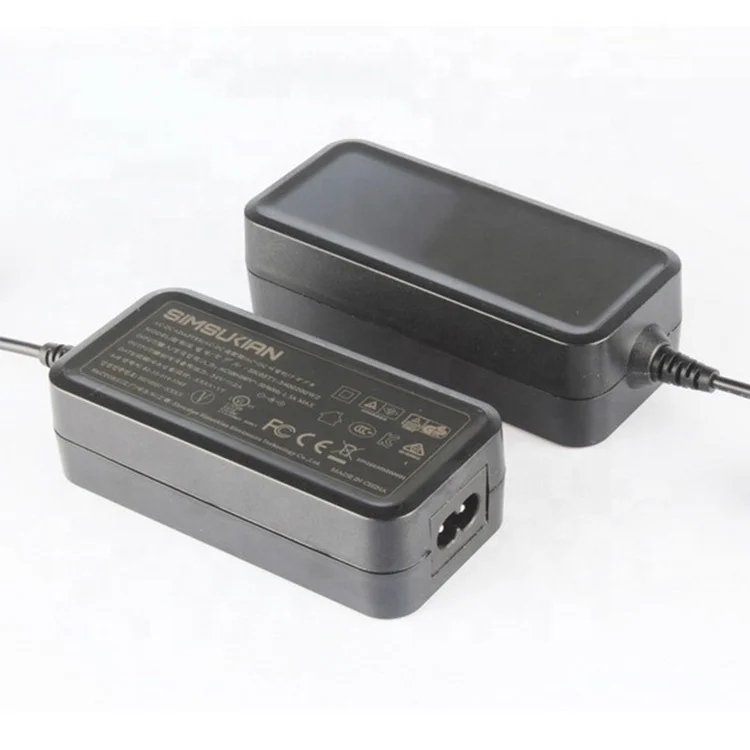

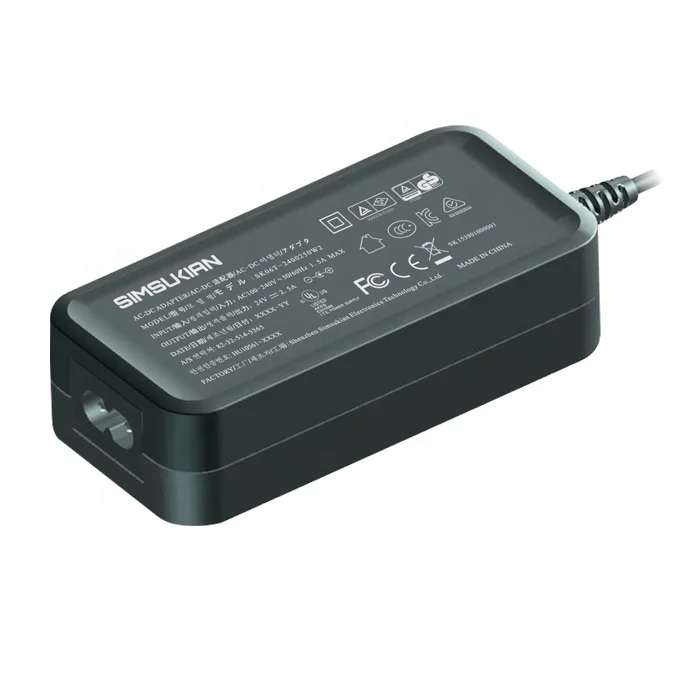

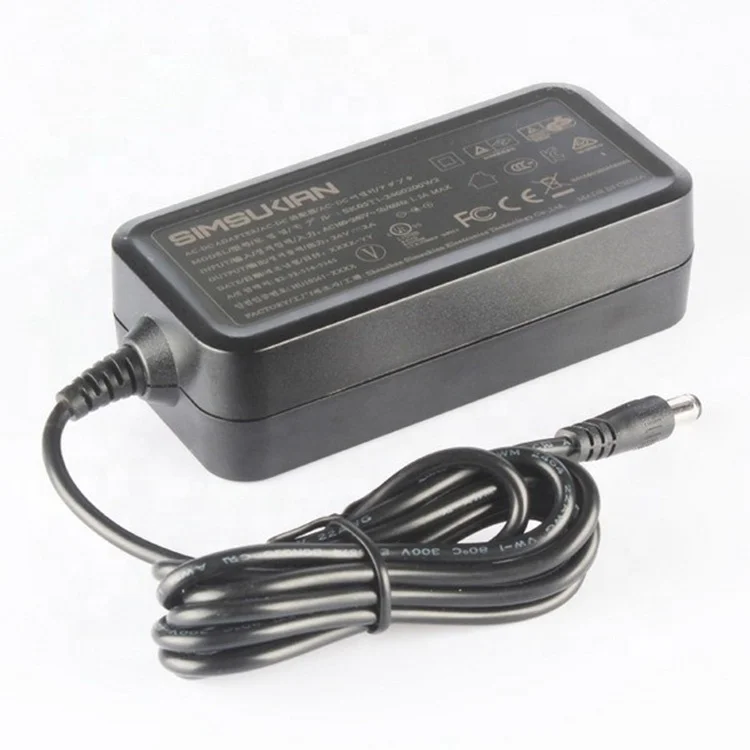

SK06T  45W Series desktop power adapter

Product Features:
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry;
2). Low-cost design, high reliability, ultrasonic lamination;
3). Built-in over voltage, over current and short circuit protection;
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 1.5A Max;
Starting Time: 3s Max; Inrush Current: 30A/240VAC Max
5) output;12v 5a
6). Output characteristics: constant voltage mode, high precision, low noise;Hold up time: 20mS Min;
7). Environmental: Operating temperature: 0 °C -40 °C, 5% -90% RH;
Storage temperature: -20 °C -85 °C, 5% -95% RH;
8). Cooling mode: natural cooling;
9). Energy efficiency accordingly: ERP / CEC-V standard;
10). Safety standards: IEC-C6/IEC-C8/IEC-C14;
11).Meet ROHS standards;
12) OEM & ODM is acceptable
13).Average failure rate: 50,000 hours;

MOdel  SK06T 65W (Series desktop  adapter)	I/P Condition	power	Output  voltage	Output  current
SK06T-XXXYYYW2	100-240V AC  1.5A Max 50/60Hz	25w	2.8-5.0v	0.1-5.0A
SK06T-XXXYYYW2			45w	5.1-8.9v	0.1-5.0A
SK06T-XXXYYYW2			59.5w	9.0-11.9v	0.1-5.0A

MOdel	I/P  condition	Power	Output voltage	Input   currant
SK05T-XXXYYYW2	100-240V AC 1.5A max 50/60Hz	22,5W	2.8-5.0v	0.1-4.5A
SK05T-XXXYYYW2			40.05W	5.1-8.9V	0.1-4.5A
SK05T-XXXYYYW2			48W	9.0-11.9V	0.1-4.5A

SK05T-XXXYYYW2	100-240V AC 1.5A max 50/60Hz	48W	12-18.9v
SK05T-XXXYYYW2			48W	19-23.9v	0.1-2.52A
SK05T-XXXYYYW2			48W	24-30v	0.1-2.0A

Details Images

Various Specifications

Various certifications, including UL, CUL, TUV-GS, CE,CB,PSE, KC, KCC, SAA, FCC, RoHs, CCC, DOE VI, etc.

Fireproof PC Material Housing

We use PC flame retardant material housing

All in one molding connector

Pure copper core wire

Multiple AC Input Plugs

We have different wall plugs power adapters for worldwide use, including US, JP, EU, KR, UK, AUS, etc. for your selections

If the DC connectors are not the shape and size you need,

We can customize to meet your requirements

The Outer Dimensions

eg: The SK06T model laptop adapter with size is above for your reference.

Application

Laptop Charging Power Adapter

Input: 100V - 240V , 50/60 Hz

Output: In usual 40-180W,

Customized voltage and current as your needs

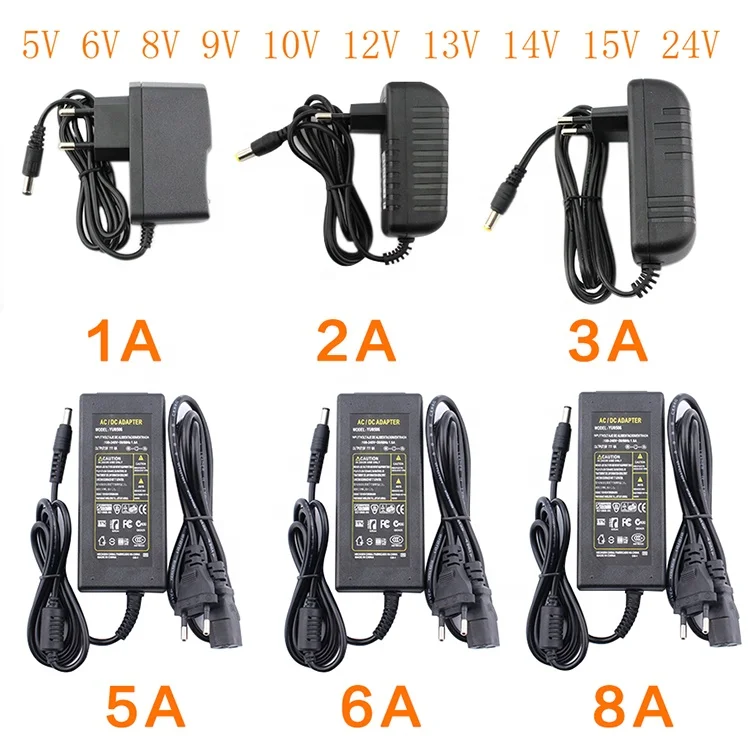

The common voltage parameters including

5V/8V/10V/12V/24V

and current including

0.5A/1.5A/2A/3A/4.5A/5A

Widely used in different devices charging

48W LED strip light,mobile charging station,home appliances 60W LED strip light,water distiller,massage chair,circulating tank,monitor 72W balance car,home use snow remover,LED strip light 90W OEM/ODM 120W mobile charging station,amplifier 150w OEM/ODM

Click To Send Us An Inquiry

Related Products

Packing&Shipping

Switching power adapter packing methods:

Will be packed with PE bag, knife card or white box

the packing can be customized

Why Choose Us

WHY CHOOSE US ?

Professional

12+ years ODM/OEM experience

manufacturer with R&D capacibility

annual exportation qty 960,0000 pcs

Good Service

free sample available

2 years warranty

good after sales service

Quick Delivery

support customization & RTS

sample period 3 to 5 days

bulk order 15-20 days

Our Customers' Feedback

Company Introduction

Shenzhen Simsukian Electronics Technology Co., ltd  is a manufacturer that manufactures good & high quality ac/dc power adapters, starting from 2008. The company provides the customized products and OEM service. Our products are widely used in drones, robots, smarthomes,LED lighting, telecommunication, beauty equipment,medical equipment, air purifiers,audiovisual products, security,digital products and many other fields. We have introduced an intelligent manufacturing production line to achieve a thorough integration of automatic production and intelligent manufacturing. Our annual production capacity of electronics products such as power adapters, wireless chargers,and car chargers has exceeded 30 million.

Our Services & Strength

1. Customized Service Our company has a global market based advanced R&D Team and has customized service for many famous brands. 2. Complete Certificate Products have appearance patents, CE, RoHs, some products have utltity model patents.

3. Our Partner More than 100 countries and regions in the world of product export(Online and offline)

FAQ

Q1: What is your MOQ?
A: 1K. For first trial or test order, we could accept 501pcs as a support.

Q2: How about your lead time?
A: 5-7 days for samples. For first new order, lead time 22-25 days; 20-22 days for repeat order. No stock available no matter for samples or mass order, to ensure the quality.

Q3: Can you accept customer Logo?
A : Sure! If you have no request on this, we do our own logo SIMSUKIAN on the adapters.

Q4: What is your package for the goods?
A: If no additional request, we have our standard package, packed with PE or CPE bag then into cartons.

Q5: How long is your burn-in time?
A: 2-4 hours aging for all the products before delivery.

Q6: What is your defective rate and warranty policy?
A: 1-3‰, two years warranty, free replacement in next new order to cover your loss.

Q7: Can you also provide AC cable?
A: Sorry, as we are not professional in AC cable field, we advise you buy it directly from a profeesional manufacturer.

Contact

Generally, customer has different specific requests on output, certifications, cable length, DC plug size and Logo design etc., please find me on below if you also have such requirements:
